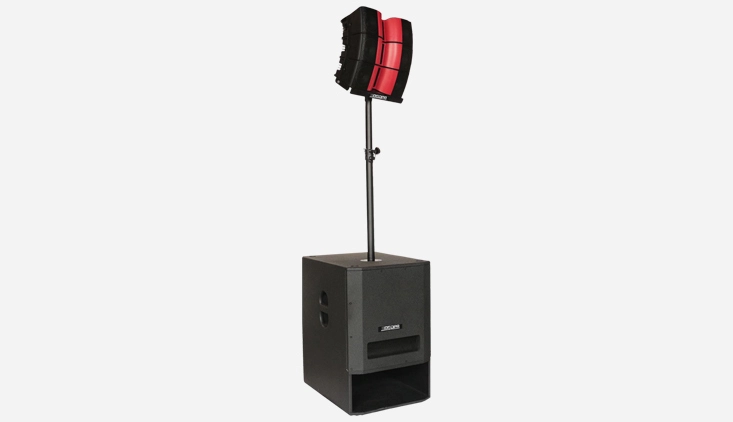

15 Inch Active Array Column Speaker LA1715

  • 15-inch active column array speaker with integrated subwoofer and 6 × 4" full-range drivers

  • 2×500W high-power built-in amplifier for strong and dynamic audio performance

  • Extended frequency response of 38Hz–20kHz for deep bass and clear highs

  • High SPL up to 131dB peak for powerful sound coverage in large spaces

  • DSP processing with selectable modes: Normal, Monitor, DJ, and Speech

  • Supports Bluetooth streaming and True Wireless Stereo (TWS) pairing

  • Multiple input options including MIC/LINE combo and balanced XLR/TRS connectors

  • Adjustable input and Bluetooth level controls for flexible mixing

  • CH1/CH2 level control with MIX/THRU output routing function

  • Speakon output for external satellite speaker system expansion

  • LED indicators for power, signal, and clip status monitoring

  • Robust metal grille with high-density subwoofer enclosure for durability

Datasheet
Get Quotation
DETAILS
SPECS
15 Inch Active Array Column Speaker
15 Inch Active Array Column Speaker
15 Inch Active Array Column Speaker
15 Inch Active Array Column Speaker

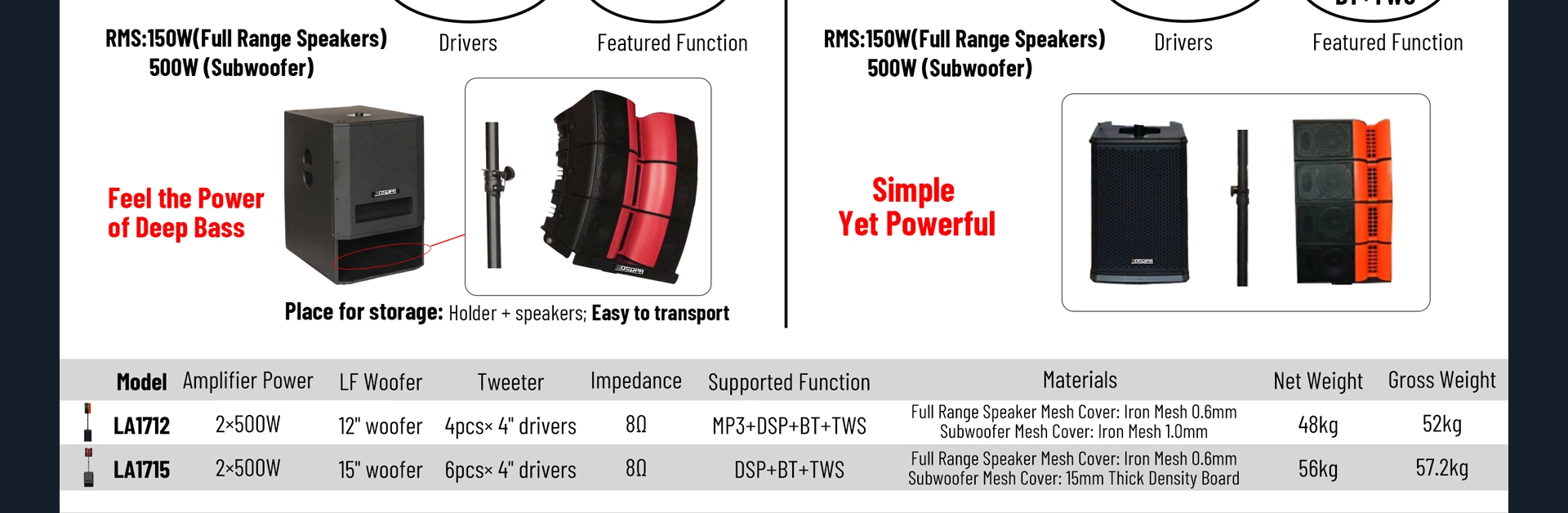

Specifications of 15 Inch Active Array Column Speaker

Model

LA1715

RMS

150W(Full Range Speakers)+ 500W (Subwoofer)

Amplifier Power

2×500W

Music Power

1300W

Peak Power

2600W

Speaker Driver

1 × 15" Subwoofer Driver + 6 × 4" Full-Range Drivers

Frequency Response

38-20kHz

Sensitivity (1W/1m)

97dB

Peak SPL

131dB

Supported Function

DSP+BT+TWS

Materials

Full Range Speaker Mesh Cover: Iron Mesh 0.6mm

Subwoofer Mesh Cover: 15mm Thick Density Board
