Full waterproof and phase-inverted low-frequency radiation two-way full-range system.
The surface of the wooden box is sprayed with large black spots and water-based paint, and the back of the perforated metal mesh is pasted with acoustic sound-transmitting cotton.
With high-efficient and high-quality units, support hanging installation.

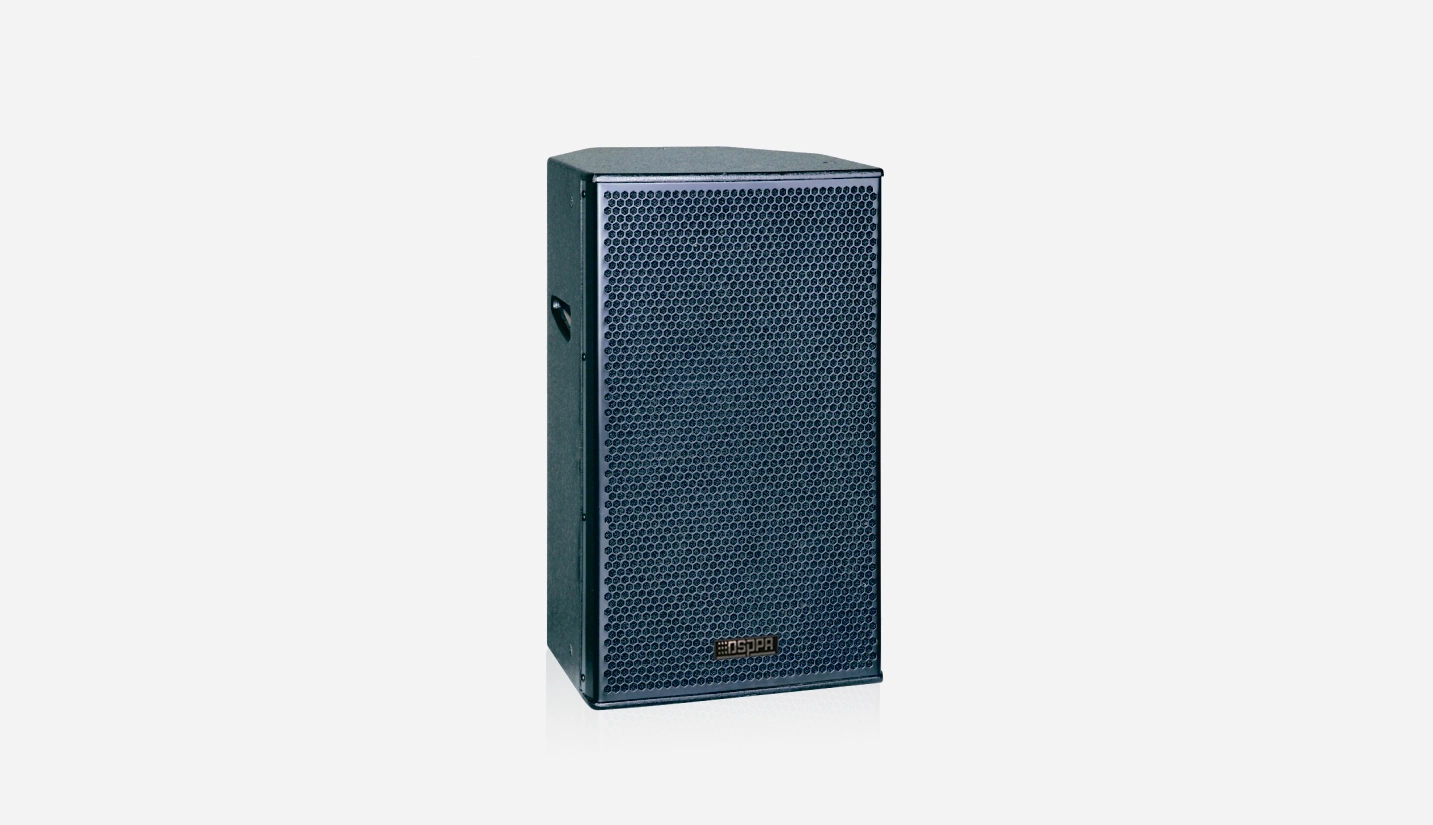

The D6565F is a full waterproof, phase-inverted two-way full-range speaker designed for high-performance audio in both indoor and outdoor environments. Its robust wooden enclosure features a stylish black-spotted, water-based finish, while the perforated metal grille is backed with acoustic sound-transmitting cotton to ensure clear and natural sound reproduction. Equipped with a 12" woofer and 1.75" tweeter, this speaker delivers a wide frequency response from 55 Hz to 18 kHz with a sensitivity of 98 dB and a maximum SPL of 123 dB. The high-efficiency components and optimized directivity of 90°×40° make it ideal for suspended or mounted installations, offering consistent, high-quality audio coverage for professional sound reinforcement applications.
Model | D6565F |
System Component | 12" woofer×1, 1.75" tweeter×1 |
Frequency Response (±3dB) | 55 Hz -18,000Hz |
Sensitivity | 98±2dB |
MAX. SPL. | 123±2dB |
Input Impedance | 8Ω |
Rated Power | 350W |
Directivity (H×V) | 90°×40° |
Dimensions (H×W×D) | 601mm×364mm×385mm |
Weight | 23kg |
