Features eight independent high-power power output channels with universal sockets, compatible with various three-prong plugs such as Chinese, American, and European standards, as well as two-prong round European plugs.
Maximal output of single channel is 10A, total input current capacity is 16A.
Two 5V/1A USB output ports are provided on the front panel.
The on/off status of the eight channels can be controlled and displayed via the front panel. With one-touch control, the panel enables sequential switching, supporting timed power-on and power-off functions.
Power on in sequence from front-end to back-end, and shut down in reverse order, enabling centralized power management and ensuring system stability.
One-click switch to turn on/off each audio processor digital channel

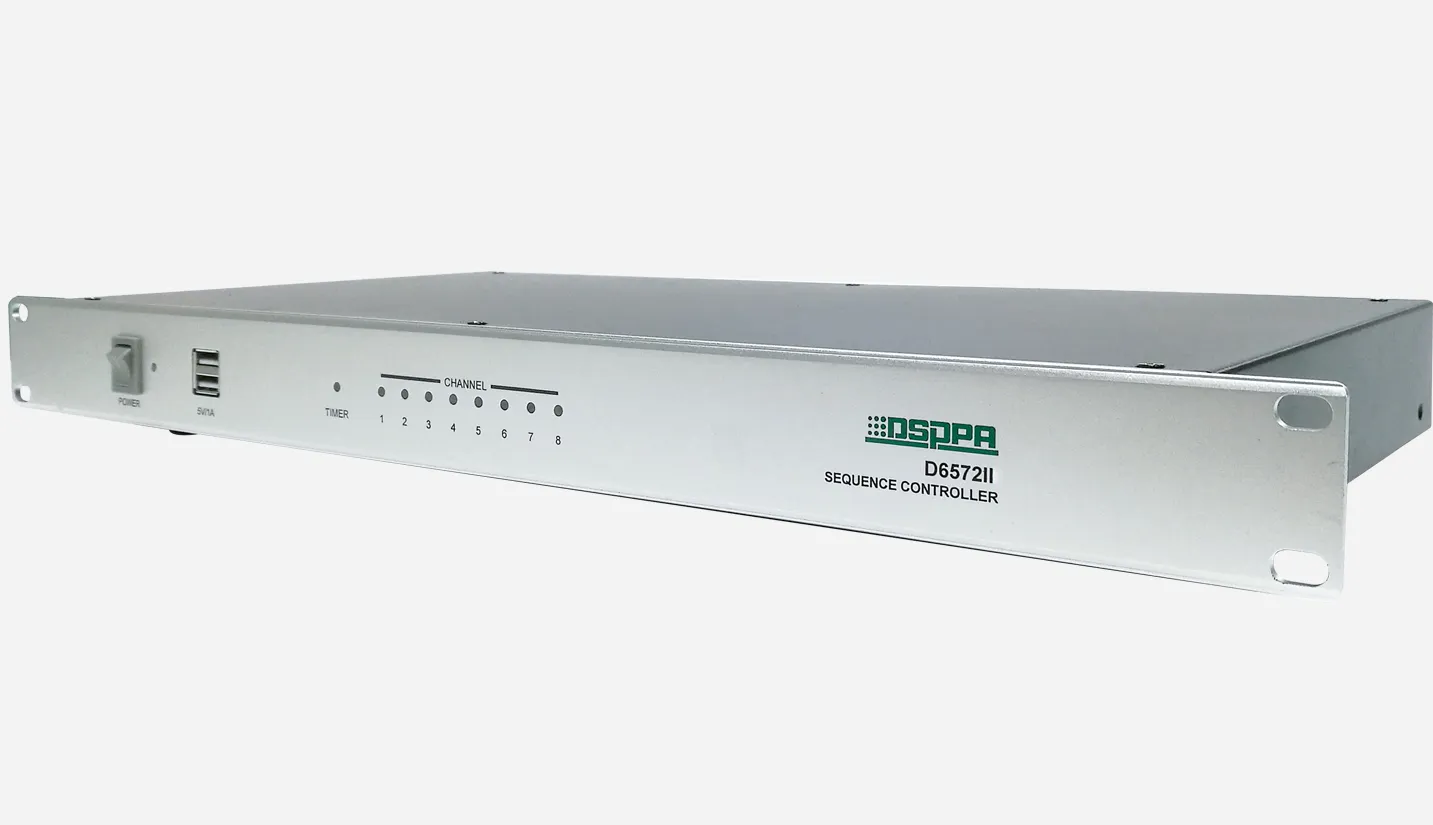

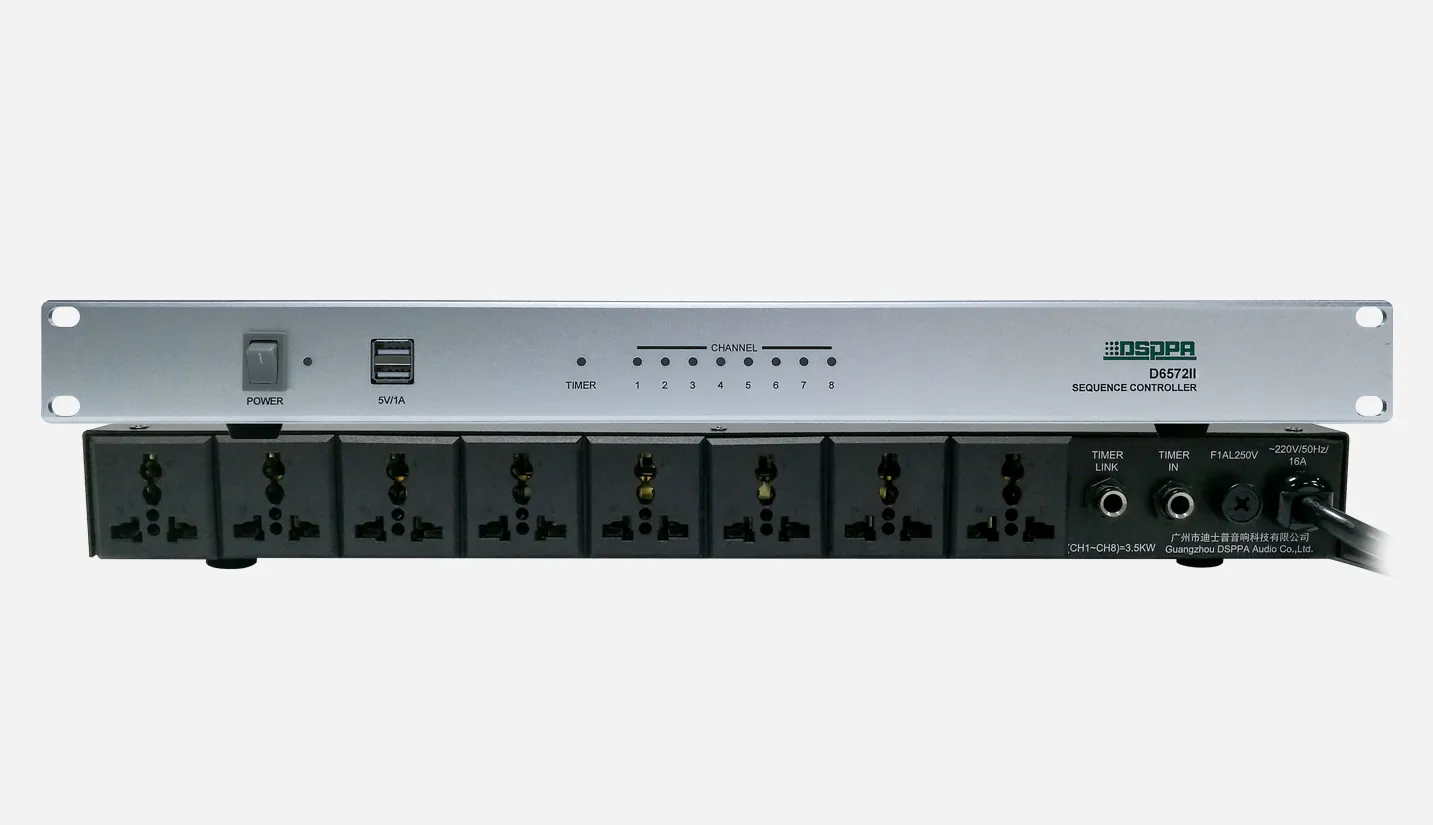

D6572II Sequence Controller support independent eight high-power power output, can meet a variety of three-stage power sockets and two European-style round head sockets. It can be widely used in multimedia classrooms, multi-function halls, conference rooms, projection splicing, video conferencing, monitoring center, building control, management and command center and other fields.
Model | D6572II |
Power Output | 8 channel, universal socket |
Single-channel Maximum load | 10A |
Control Manner | Start up by manual sequence, external short circuit signal trigger |
Power Capacity | Total capacity: 220V, 16A |
Input Power | AC220/50Hz |
Sequence Interval | 0.4-0.5s |
Package Size (L×W×H) (mm) | 560×330×130 |
Machine Size (L×W×H) (mm) | 484×230×44 |
Net Weight | 4kg |
Gross Weight | 6kg |
