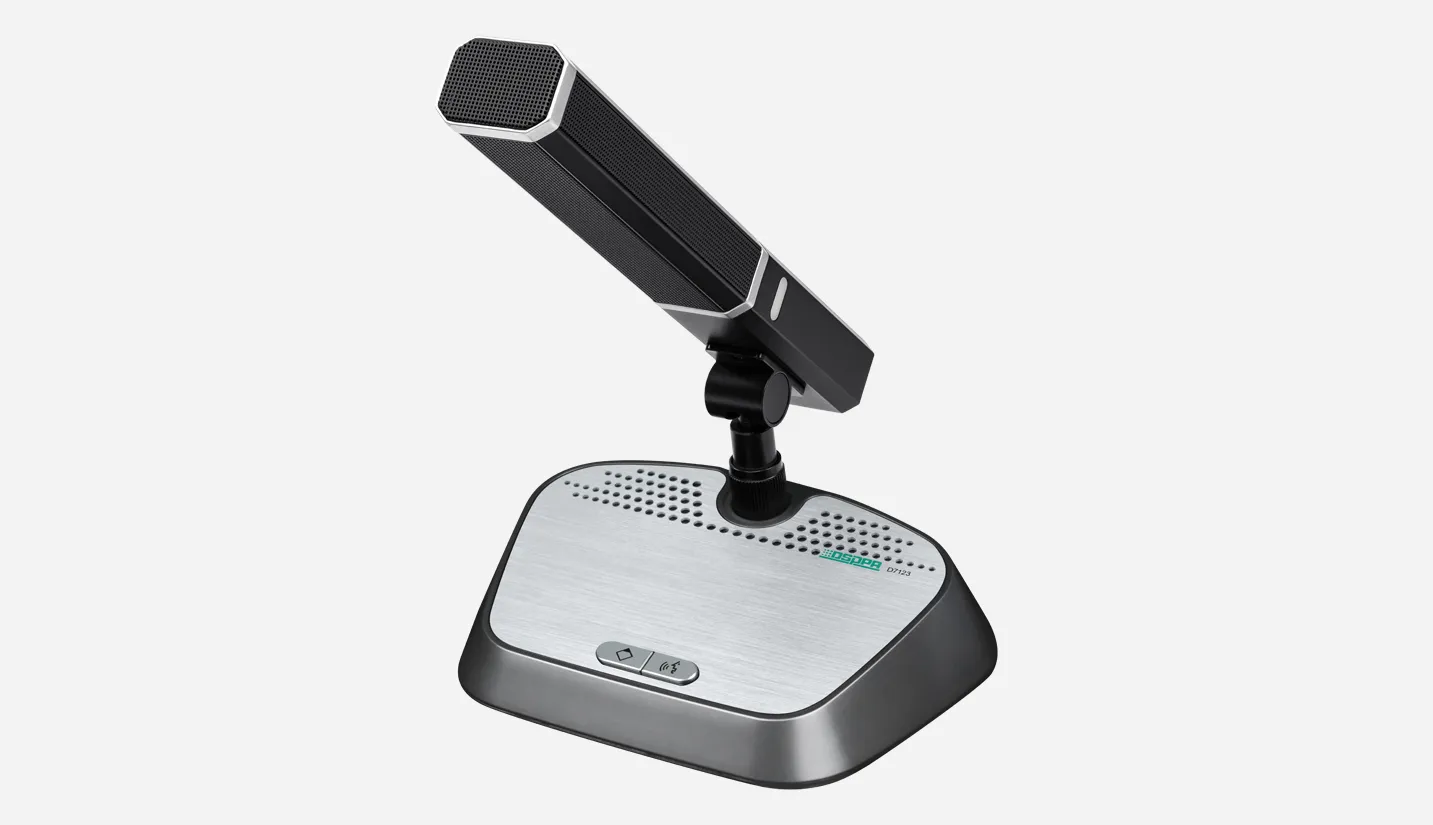

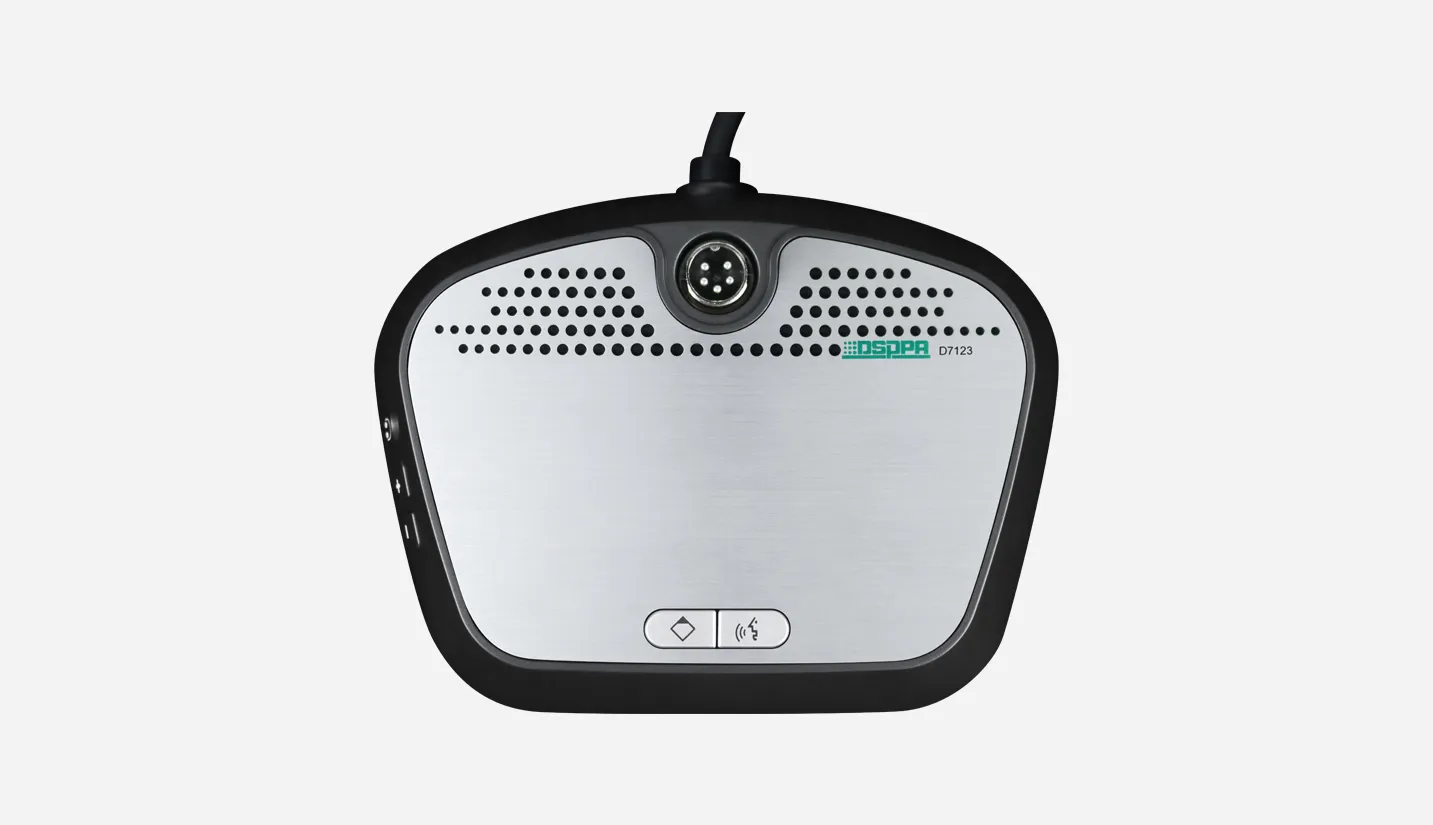

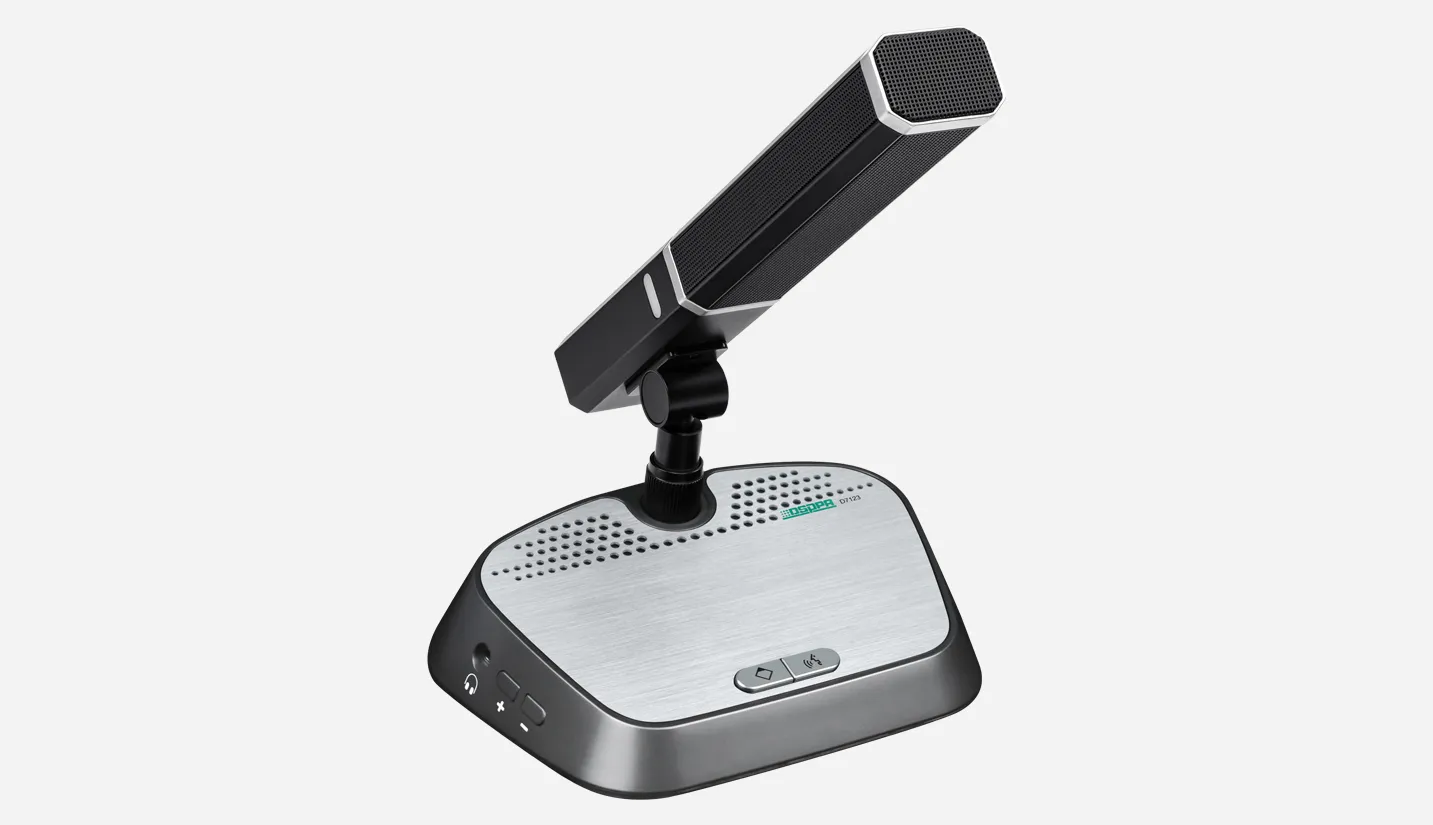

Desktop Digital Conference Meeting Microphone System Chairman Unit D7123

  • Speak-only conference unit.

  • Comes with a 2-meter dedicated high-density cable and an RJ45 universal network plug.

  • The elector core type pointing capacitive pickup with a two-color indicator (red/green). It is red when speaking, and it is green when applying for speaking.

  • A rotary plug microphone rod is adopted, a mini-microphone.

  • There are square, ova land, and goose-neck rod; The square rod is aluminum alloy with186mm in length, the oval microphone rod is 182mm in length, and the goose-neck rod has a black and silver color, with 315mm, 415mm in length.

  • The microphone rod can be dismounted during the adjournment for maintenance and storage.

  • Super anti-interference ability toward mobile phones.

  • There are microphone-on/off touch keys and the chairman unit has the chairman priority touch key.

  • With sign-in function by pressing the button.

  • Each conference unit has a unique ID number.

  • Together with the camera, the camera can be automatically tracked when set up using the digital Conference system host or PC control software.

  • In conjunction with the control panel, the unit has a self-detection function. The items tested are Keys, microphones, LED indicators, and built-in speakers.

  • The unit is a passive device that is powered by the system host or POE switch, and the input voltage is +48V.

  • The chairman unit has a priority function (all delegate units can be muted or turned off), and a lectern mode (the chairman unit is always on) with the host settings.

  • The Chair module has the function of approving a delegate's request to speak.

  • The Chairman unit can be opened freely without limitation on the number of speakers and has unlimited connection locations.

  • The Chairman unit has the priority function of having full control of the order of the conferences.

Datasheet
Get Quotation
DETAILS
SPECS
Diagram
Desktop Digital Conference Meeting Microphone System Chairman Unit

Specifications of Desktop Digital Conference Meeting Microphone System Chairman Unit

Model

D7123/D7124

Structure Type

Desktop

Effective Frequency Range of Gain Limit (±3dB)

MIC A to MIC B

50Hz-14kHz

Host LINE to MIC

30Hz-18kHz

MIC to Host LINE

40Hz-16kHz

Speaker Power

1.5W

Static Power Consumption

<6W

Maximum Power Consumption

8W

SNR

>75dB

Crosstalk Attenuation

>80dB

Harmonic Distortion

<0.5%

Headset Output

9dBu, 8-32Ω, 3.5mm

Working Power

Host +48V power supply or +48VPoE Switch power supply

Unit Interface

Network interface

MIC

Microphone Type

Electret cardioid condenser

Sensitivity

-30dBV/pa

Input Impedance

2kΩ

Equivalent Noise

20dB(SPL)

MAX. SPL.

125dB(THD<3%)

Package Dimensions (W×D×H)

485×280×120 mm (2 PCS/ Per Carton)

Machine Dimensions (W×D×H)

175×133×46mm

Gross Weight

2.4kg

Net Weight

0.62kg
