Conference Tracking: Supports integration with a central control system to enable camera tracking. When the active speaker changes, the camera can automatically locate and focus on the speaker, ensuring that the conference image remains focused on the speaker without manual intervention.
Audio and Video Matrix: Supports flexible combination and separation of the HDMI matrix and digital audio matrix. With built-in DSP processing and professional power amplification, the system provides high-quality conference audio reinforcement. Supports video inputs from computers, conference cameras, network IPCs, and other sources. The video matrix enables flexible source switching and display output.
Programmable Central Control: Features an open programmable central control system supporting multiple interfaces, including RS232, RS485, IR, and I/O.
Video Composition and Operation: Supports 4K video composition with up to six sources composited simultaneously. Users can operate the system directly through a tablet APP to easily control video switching, audio adjustment, conference recording, and other functions without complicated physical button operations.
Video Formats: All video inputs and outputs use HDMI interfaces, supporting resolutions up to 4K with backward compatibility. The built-in video matrix supports seamless switching between inputs and outputs and provides EDID management.
System Architecture: Adopts an advanced embedded dedicated hardware architecture, eliminating traditional hard disk drives and memory modules for enhanced security and reliability.
Supports remote viewing of audio/video live streams, device control, maintenance, and system status monitoring.

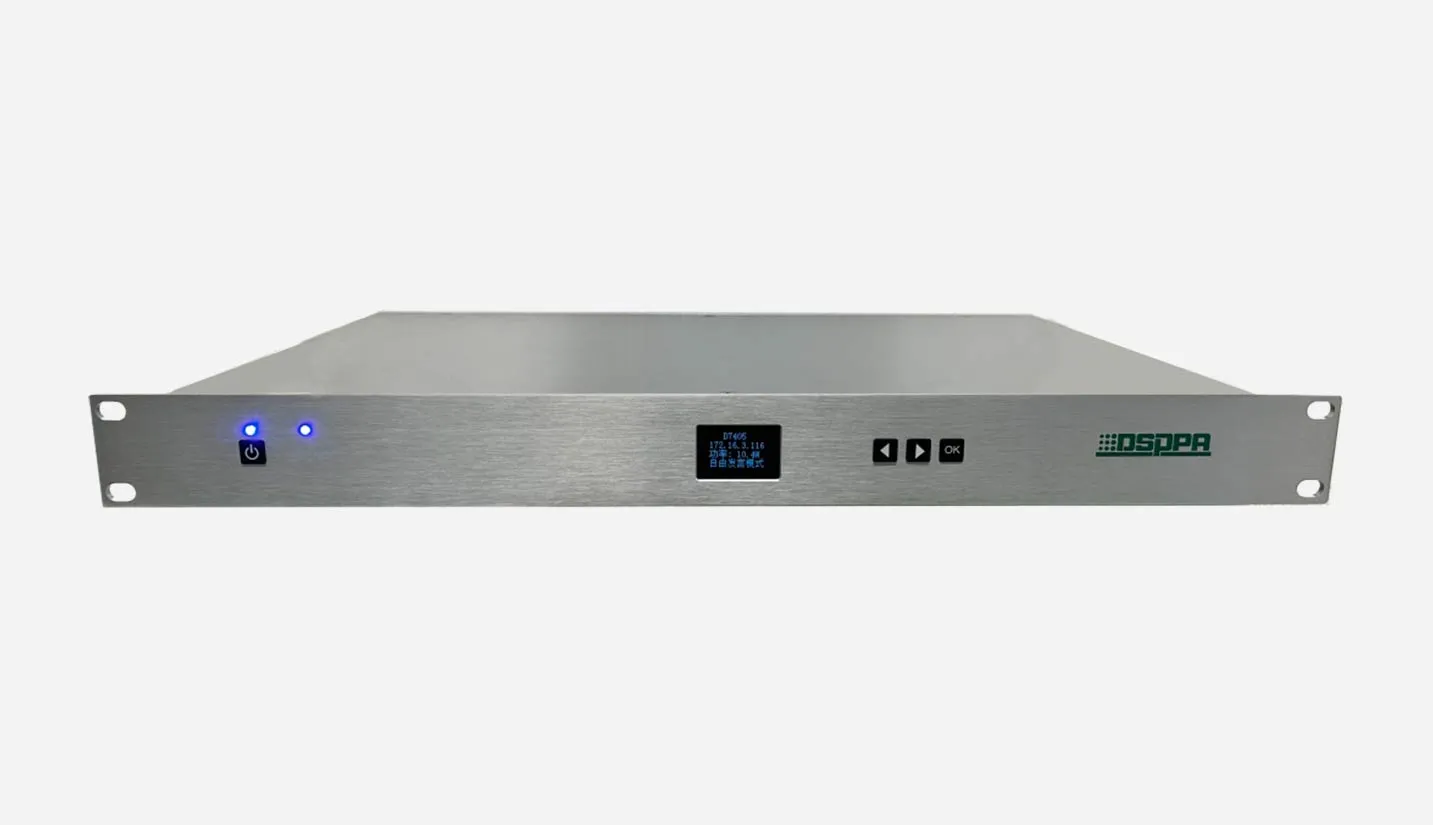

The Multimedia Conference Host is a highly integrated intelligent device based on an ALL-IN-ONE design concept. It integrates multiple functions, including conference audio reinforcement and audio/video processing, providing a one-stop solution for small conference rooms.
Model | D7405 | |
System Architecture | Embedded System | Linux 5.10, 4 × Cortex-A76 + 4 × Cortex-A55 |
Chassis | 1U height | |
Video Interfaces | Video Input | 6 HDMI inputs |
Video Output | 2 HDMI outputs | |
Audio Interfaces | Line Input | 2 RCA connectors (unbalanced inputs) |
MIC Input | 2 inputs | |
Line Output | 1 XLR connector (3-pin balanced output) | |
Control Interfaces | Network | 1 Gigabit Ethernet port |
Central Control | 2 RS232 ports, 2 RS232/RS485 ports (selectable), 1 IR input, 2 IR outputs, 2 relay ports | |
Type-C | 1 Type-C port | |
USB Interface | USB 3.0 | 1 port |
Video Composition | Multi-View | 1 video composition channel |
Network Protocols | Network Protocol | TCP/UDP |
Streaming Protocols | RTSP/RTP/RTMP | |
Panel Display | Front Panel | 0.96-inch OLED display |
Dimensions | Chassis Dimensions | 483 × 274 × 45 mm |
Operating Environment | Power Supply | 150W (AC 220V) |
Power Consumption at Full Load | Less than 15W | |
Operating Temperature | 5°C to +45°C | |
Storage Temperature | 5°C to +45°C | |
Operating Humidity | 80% RH, non-condensing | |
