Front-mounted DP+HDMI 4K display interfaces, rear HDMI supports 4K30Hz
Hardware one-key recovery, Wake-on-LAN, scheduled power-on functionality
Supports - Intel Core Series 4th generation notebook processors
Intelligent fan speed regulation
Onboard antenna enhances WiFi signal output

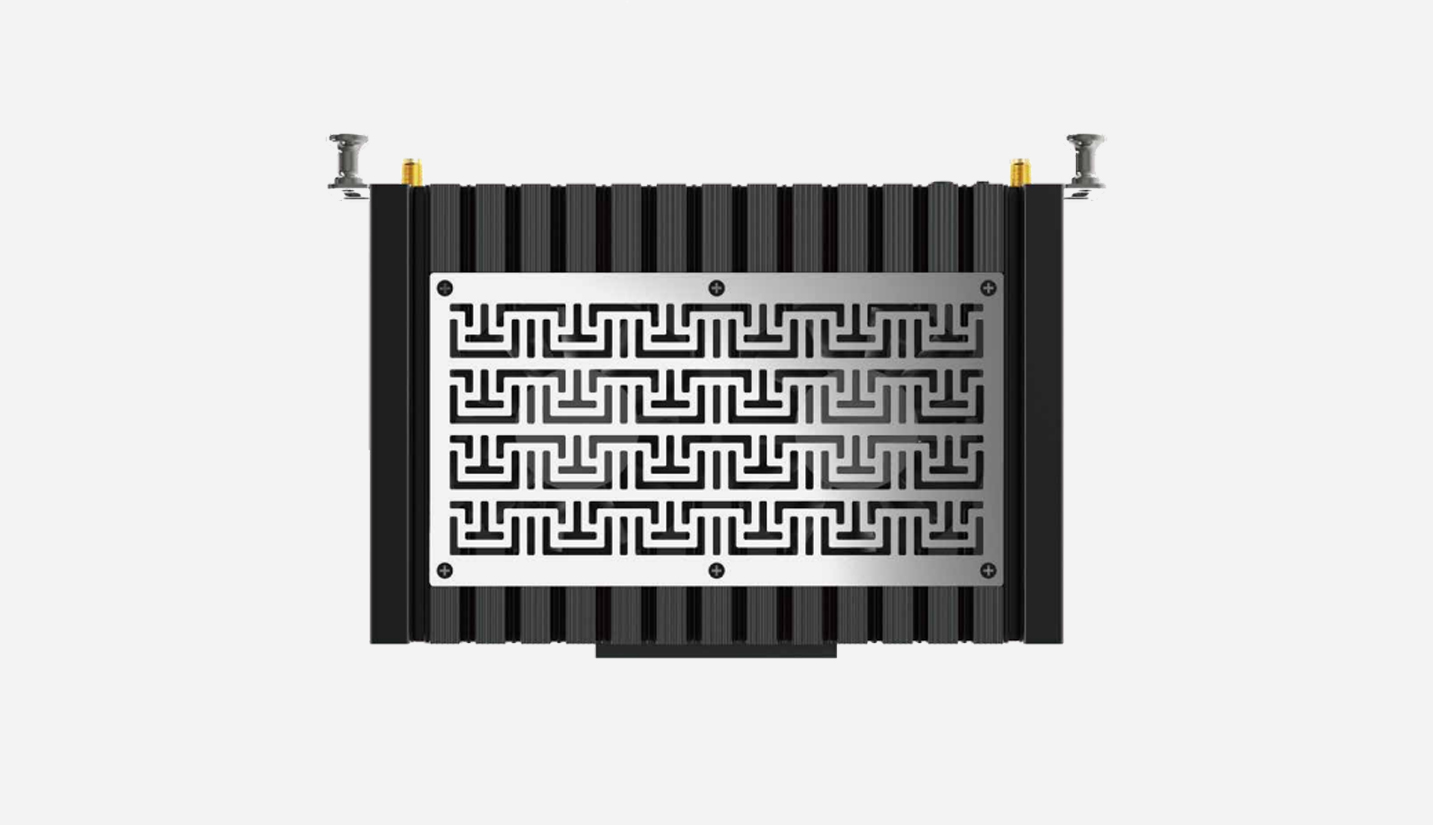

Chinese-style window lattice design

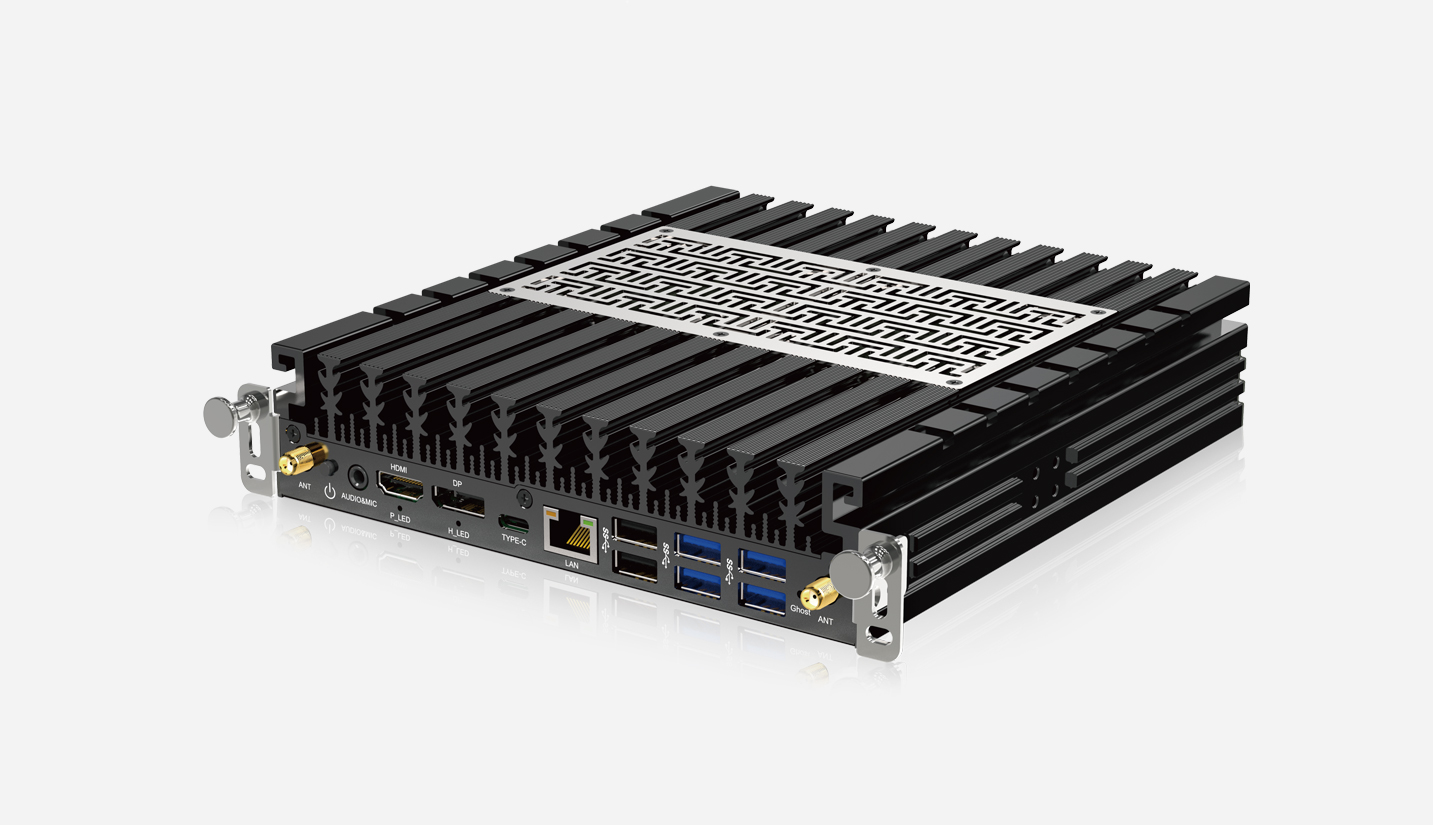

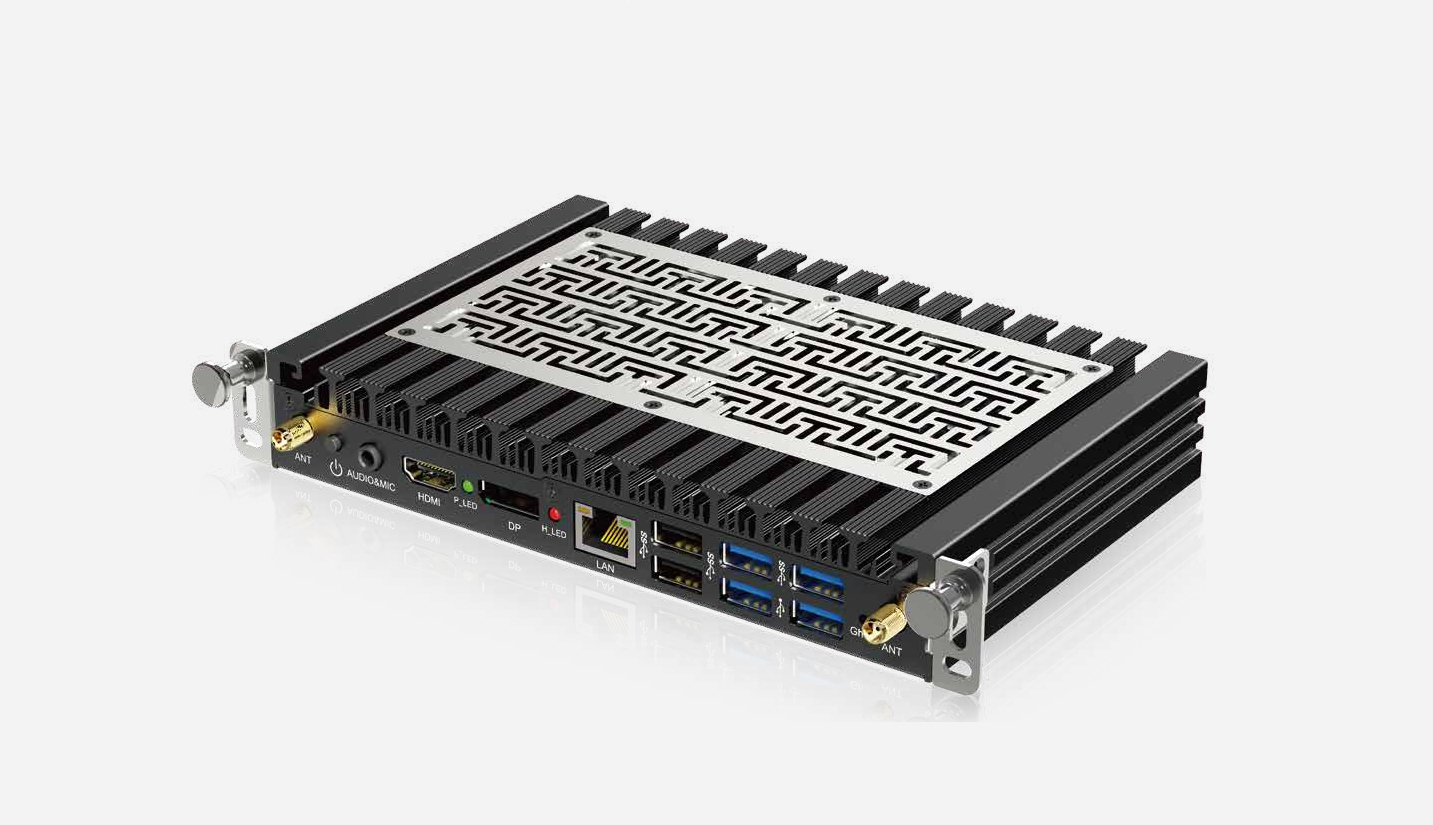

This product belongs to the European standard series, featuring an all-aluminum chassis design that exudes high-end sophistication. It incorporates a fin heat dissipation system coupled with air cooling design, delivering excellent thermal performance through dual cooling mechanisms. The onboard SMA antenna design ensures no signal attenuation, while supporting one-click CMOS clearing and one-click restore functions. The product is primarily applied in smart education, intelligent conferencing, electronic interactive whiteboards, smart healthcare, advertising media, and other fields.
Model | DCP-86P4 |
CPU | (4000M/4340M/4610M) |
Supports Intel*Core 4th Generation Notebook CPUs | |
Memory | 1 x SODIMM DDR3 ( Supports up to 8GB） |
Storage | M.2 2280 Solid State Drive Interface |
WIFI | Standard 2.4G / M.2 2.4G&5G Dual Band WIFI+Bluetooth |
USB | Front end USB3.0 x5、USB2.0 x1、OPS end USB2.0 x2 USB3.0 x1 |
Display Interface | Front-end output: DP 1.2 3840 x 2160 4K60Hz |
HDMI1.4 3840 x 2160 4K30Hz | |
JAE end: HDMI1.4 3840 x 2160 4K30Hz | |
Ethernet Port | 1x10/100/1000Mbps(RJ45) |
COM Port | Implementing serial port functionality (default TTL) with motherboard reserved support for RS232 |
Video | LINE OUT&MIC IN 2-in-1 |
Environment | Working Temperature: 0-50℃；Storage Temperature: -20~70℃； |
Working Humidity: 5%~95%, no condensation; Storage Humidity: 5%~95%, no condensation | |
Dimensions | 119*180*30MM |
