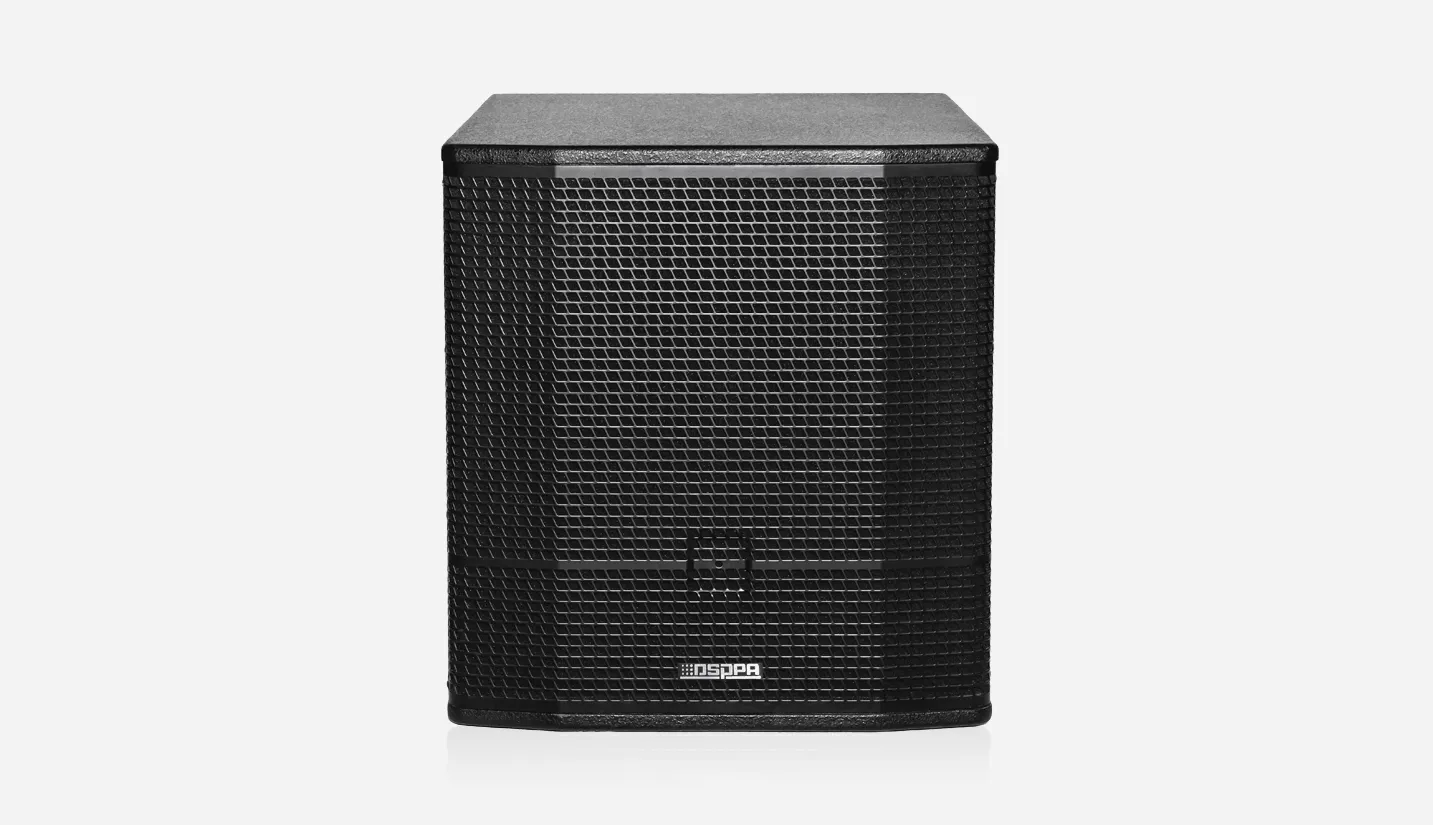

Single 15 Inch Active Subwoofer LA1535S

  • 15'' Woofer

  • With gain adjust

  • With frequency adjust

  • With phase adjust

  • With limit function

  • Pure copper transformer

Datasheet
Get Quotation
DETAILS
SPECS

The LA1535S Single 15 Inch Active Subwoofer is a powerful and durable system designed for ultra-low frequencies, featuring a solid 15-inch low-frequency driver encased in a robust, high-impact shell, which enhances the system's user-friendliness, rendering it an ideal choice for situations that call for energy-efficient and steadfast subwoofer performance.


Specifications of Single 15 Inch Active Subwoofer LA1535S

Model

LA1535S

Rated Power

350W

Driver Units

15” Woofer

Frequency Response

43Hz-200Hz

Max. SPL

120dB

Sensitivity

95dB

Input Voltage

220V AC 50Hz

Phase Adjust

0-180 Degrees

Impedance

8Ω

Speaker Input

1×XLR/2×RCA

Product Size(H*W*D)

540mm×460mm×510mm

Net Weight

26kg
