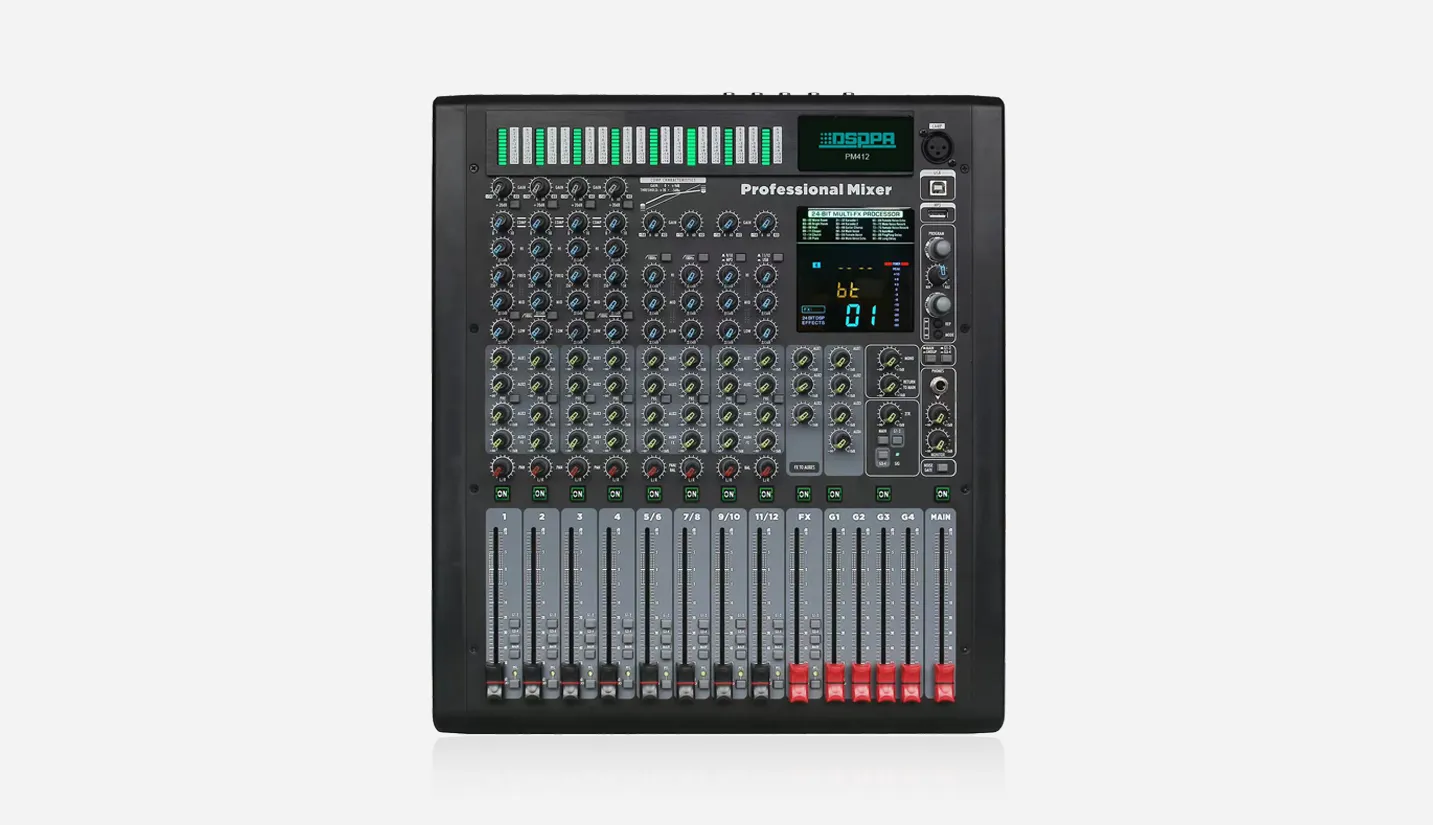

.webp "12-Channel 4-Group Bus Mixing Console")
.webp "12-Channel 4-Group Bus Mixing Console")
6 balanced XLR mono inputs and 4 stereo inputs.
6 independent input channels with 100Hz high-pass filters (HPF).
4 independent input channels with PAD attenuation switches.
4 independent input channels with adjustable COMP compressors.
Independent +48V phantom power switch for each input channel.
3-band EQ adjustment for all input channels.
4 AUX SEND auxiliary outputs.
Built-in DSP with 100 digital effects.
8 input channels with independent 1×10-segment LED level meters for channel level monitoring.
Built-in USB audio playback function, supporting a variety of formats, including WAV, WMA, APE, FLAC, and MP3.
Dual-channel headphone monitoring.
2×10-segment LED level meters.
4 GROUP OUT outputs.
Dual-channel MAIN OUT stereo outputs.
MONO OUT output.
High-reliability 60mm smooth-travel faders.
This series of 4-Group Mixing Consoles are available in 12-channel models, featuring versatile mono and stereo inputs with balanced XLR and line connections. Built-in effects, 3-band EQ, and compressors provide precise control over each channel. With 4 Group Buses, AUX/FX sends, PFL monitoring, and intuitive main/group faders, this series delivers professional-quality mixing for live, studio, and small-to-medium venue applications.
Model | PM412 | PM416 | PM424 |
Maximum Output Level | 13db | ||
Signal-to-Noise Ratio | ≥85dB (1MV IN 1V OUT) | ||
Total Harmonic Distortion | ≤0.02% @ 0dB 1KHz | ||
Frequency Response | 20Hz~20KHz±0.5dB | ||
Channel Crosstalk | <-75dB @ 1KHz | ||
MIC Input Impedance | 600Ω | ||
LINE Input Impedance | 10KΩ | ||
Output Impedance | 75Ω | ||
MIC IN | -60dB | ||
LINE IN | -40dB | ||
Stereo Input Impedance | 10KΩ | ||
Channel Gain Adjustment | -30dB | ||
3-Band EQ Adjustment Range | ±15dB | ||
HIGH Frequency | 12KHz | ||
MID Frequency | 120Hz–4KHz | ||
LOW Frequency | 80Hz | ||
Power Output | 45W | ||
Power Supply | 100V-240V/50Hz | ||
Package Dimensions (1 pc) | 510×240×530 (mm) | 618×240×530 (mm) | 820×240×530 (mm) |
Product Dimensions | 400×450×130 (mm) | 500×450×130 (mm) | 705×450×130 (mm) |
Gross Weight (1 pc) | 8kg | 10kg | 13kg |
Net Weight | 5.8kg | 7.1kg | 9.9kg |
