Four-channel PLL (Phase-Locked Loop) design.
UHF 200-channel PLL digital locking with automatic synchronization and communication.
Infrared (IR) frequency synchronization.
Equipped with a display screen showing frequency, group, signal strength, and volume level.
Independent volume adjustment for each channel.
Dynamic microphone capsule for reliable and natural sound pickup.
Selectable high-power and low-power transmission modes.
Adjustable RF signal strength and volume levels.

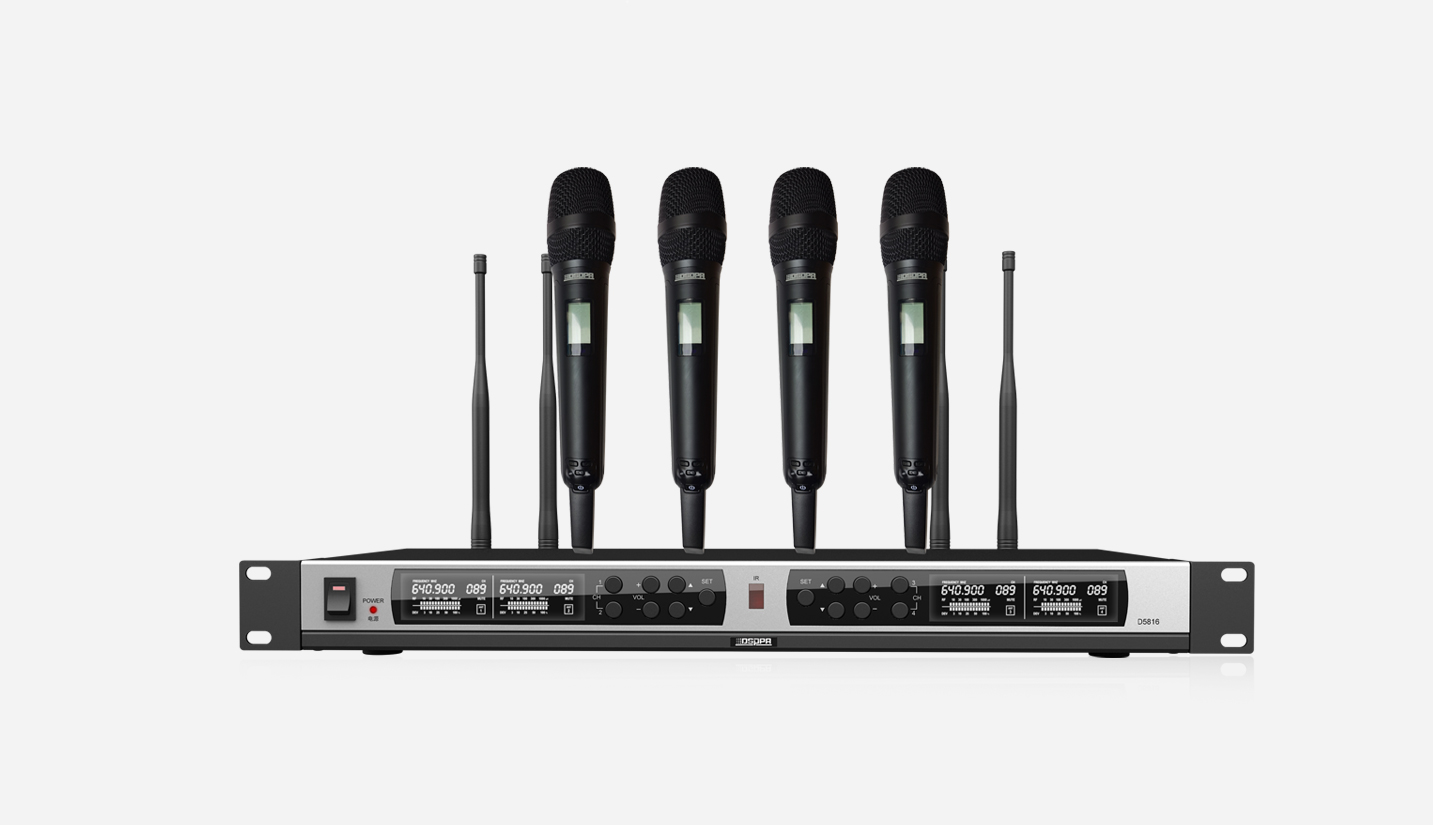

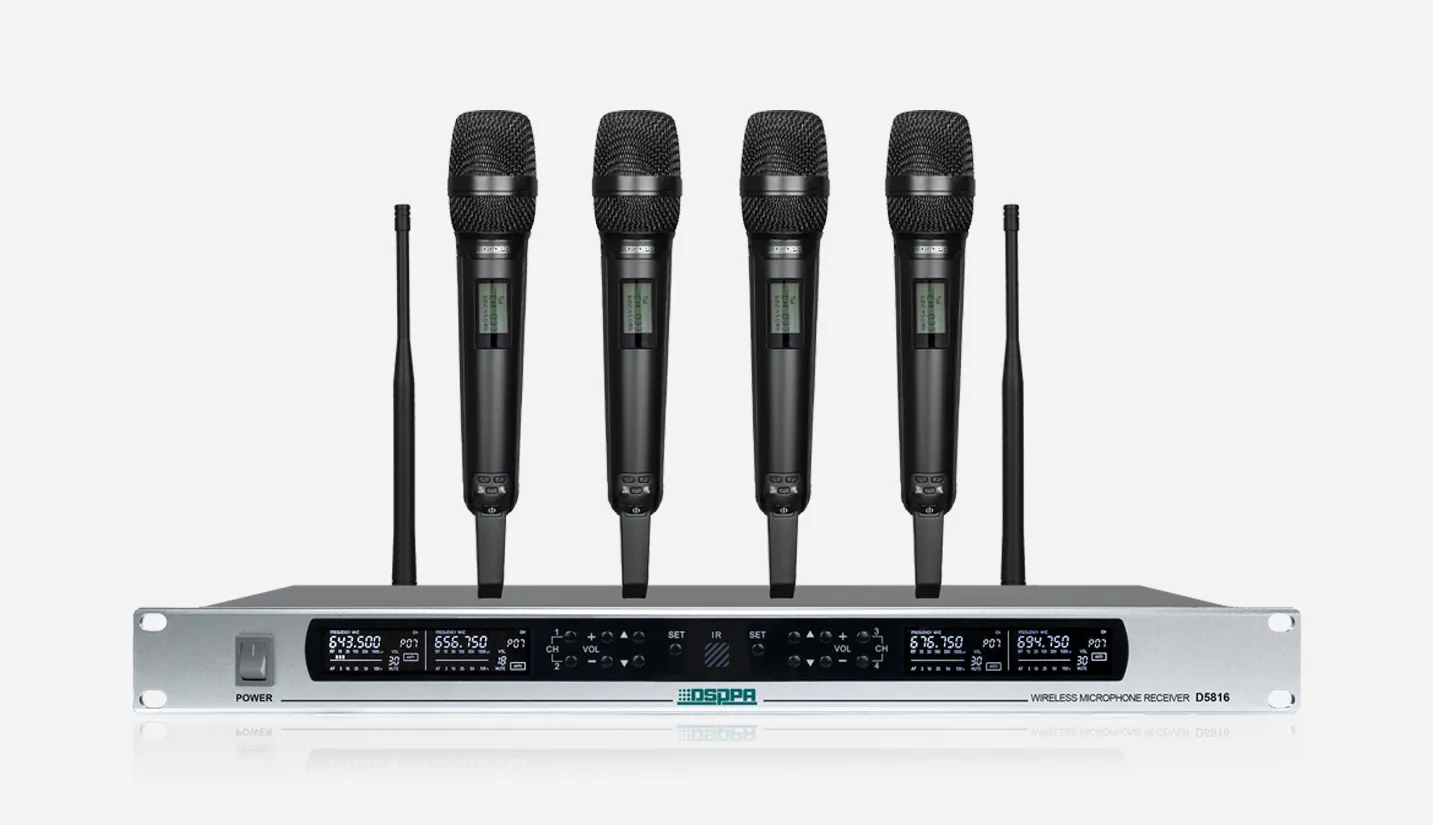

The True Diversity Wireless Microphone System (UHF Wireless Receiver + 4 Handheld Microphones) is a reliable solution for professional audio applications, featuring a four-channel PLL design for stable and interference-resistant transmission. With a 200-channel UHF system and infrared frequency pairing, it enables fast synchronization and flexible multi-device operation. The system is equipped with a clear display for real-time monitoring of frequency, channel, and signal status, along with independent volume control for each channel. The handheld microphones adopt dynamic capsules for natural and clear sound pickup, and support selectable high- and low-power transmission modes to suit different scenarios. Delivering high signal-to-noise ratio and low distortion, it ensures clear and stable sound reproduction, while balanced XLR and 6.35mm mixed outputs provide wide compatibility, making it ideal for conferences, performances, and various live sound applications.
Model | D5841 |
Receiver | |
Frequency Range | 632-695.25MHz |
Number of Channels | 200 |
Frequency Step | 250KHz |
Dynamic Range | 88dB |
Maximum Frequency Deviation | ±45KHz |
Audio Frequency | 120Hz-16KHz (±3dB) |
Signal-to-Noise Ratio (SNR) | ＞73dB |
Total Harmonic Distortion (THD) | ≤1% |
Operating Temperature | -10℃－ +40℃ |
Antenna Interface | BNC / 50 Ω |
Sensitivity | ≤-95dBm |
Display Type | Display Screen |
Operating Power | DC 12 V, 600 mA |
Product Dimension | 483×196×44mm |
Weight | 2.3kg |
Wireless Microphone | |
Antenna Type | Built-in PCB Antenna |
Output Power | High Power: 14dBm; Low Power: 6dBm |
Spurious Suppression | -60dB |
Power Supply Mode | 2 × AA (1.5 V) Alkaline Batteries |
Battery Life | >10 hours at 14dBm; >15 hours at 6dBm |
Display Type | Display Screen |
Product Dimension | 50×265mm |
Weight | 0.45kg |
