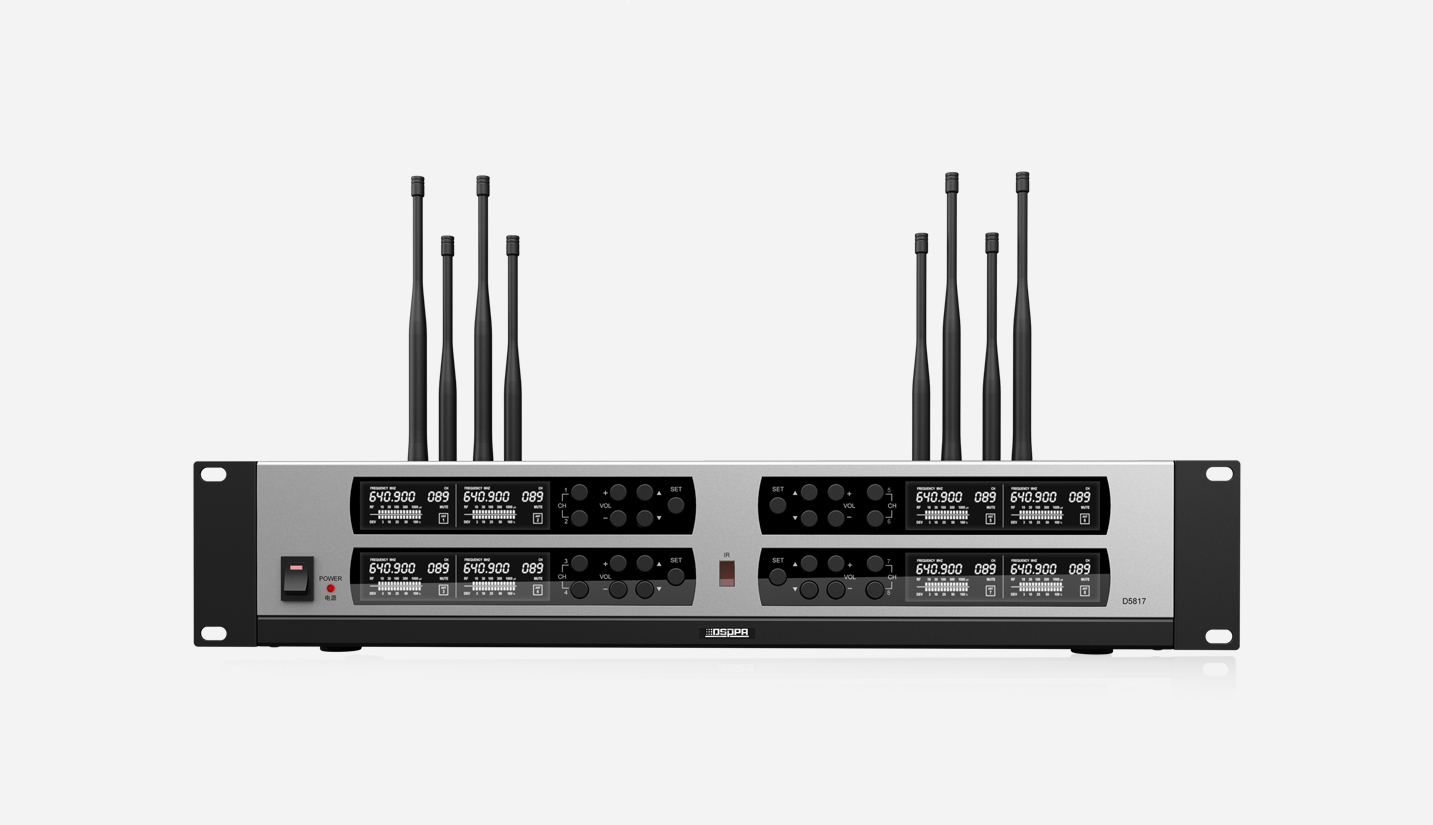

PLL 8-channel phase-locked loop design;
UHF200 channel PLL digital locking automatic communication;
Infrared frequency matching;

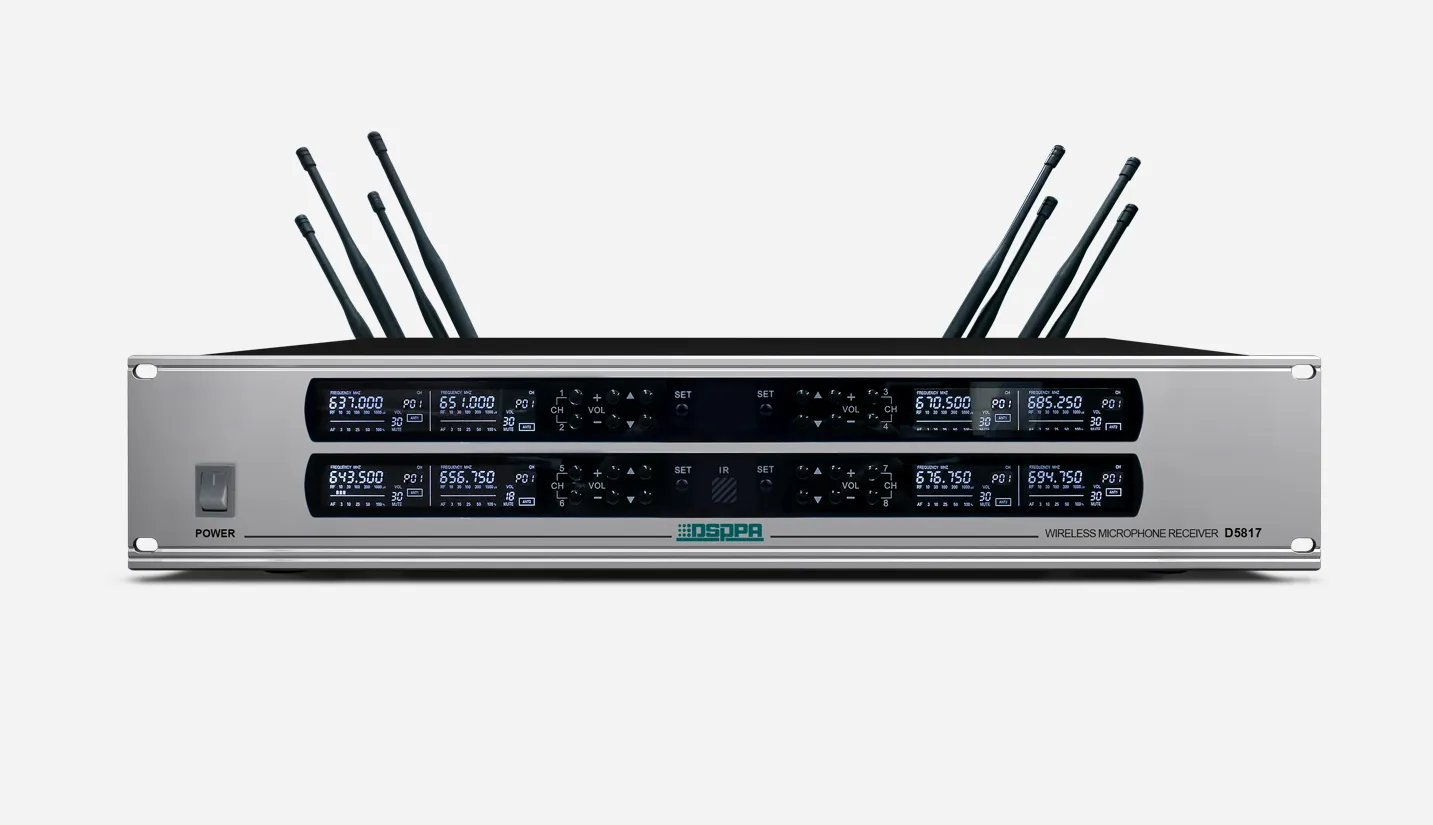

Screen display (display frequency, channel, squelch, electrical level, etc.);
Volume adjustment for per channel;

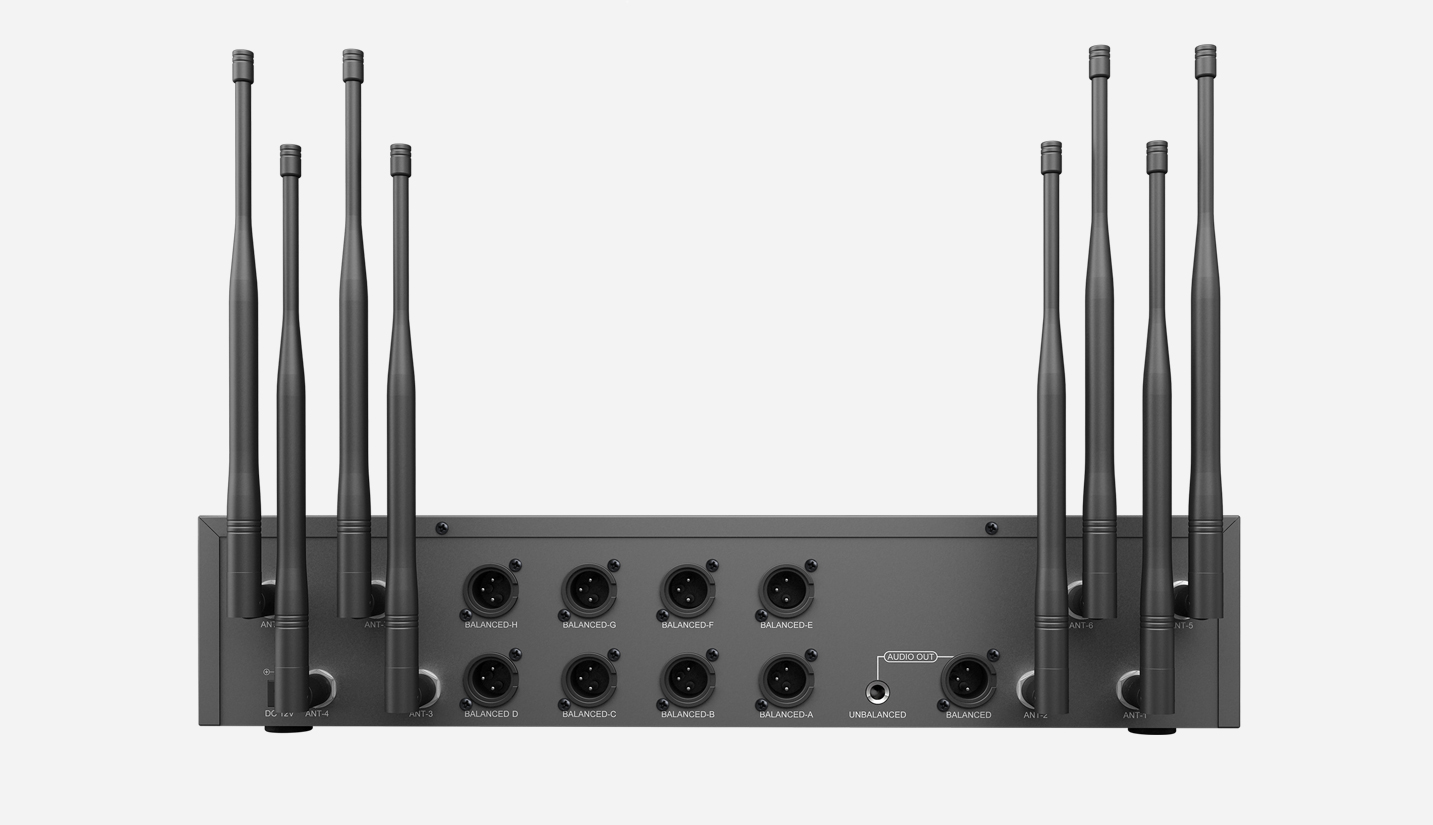

AF output (using the “XLR” socket for separate output, and using the “XLR” socket and microphone interface for mixed output).
System Index | Parameters | |
Frequency Range | 632-695.25MHz | |
Modulation | Broadband FM | |
Adjustable Range | 60 MHz | |
Number of Channels | 200 | |
Channel Interval | 250 KHz | |
Frequency Stability | Within ±0.005% | |
Dynamic Range | 88dB | |
Maximum Frequency Deviation | ±45KHz | |
Frequency Response | 120Hz-16KHz (±3dB) | |
SNR | >73dB | |
Distortion | ≤ 1% | |
Working Temperature | -10℃－ +40℃ | |
Valid Range | 150-200 m (open environment) | |
Package Dimensions (L×W×H) | 530×335×330mm | |
D5881 Gross Weight | 9kg | |
D5882/D5883 Gross Weight | 7.4kg | |
D5884 Gross Weight | 9.6kg | |

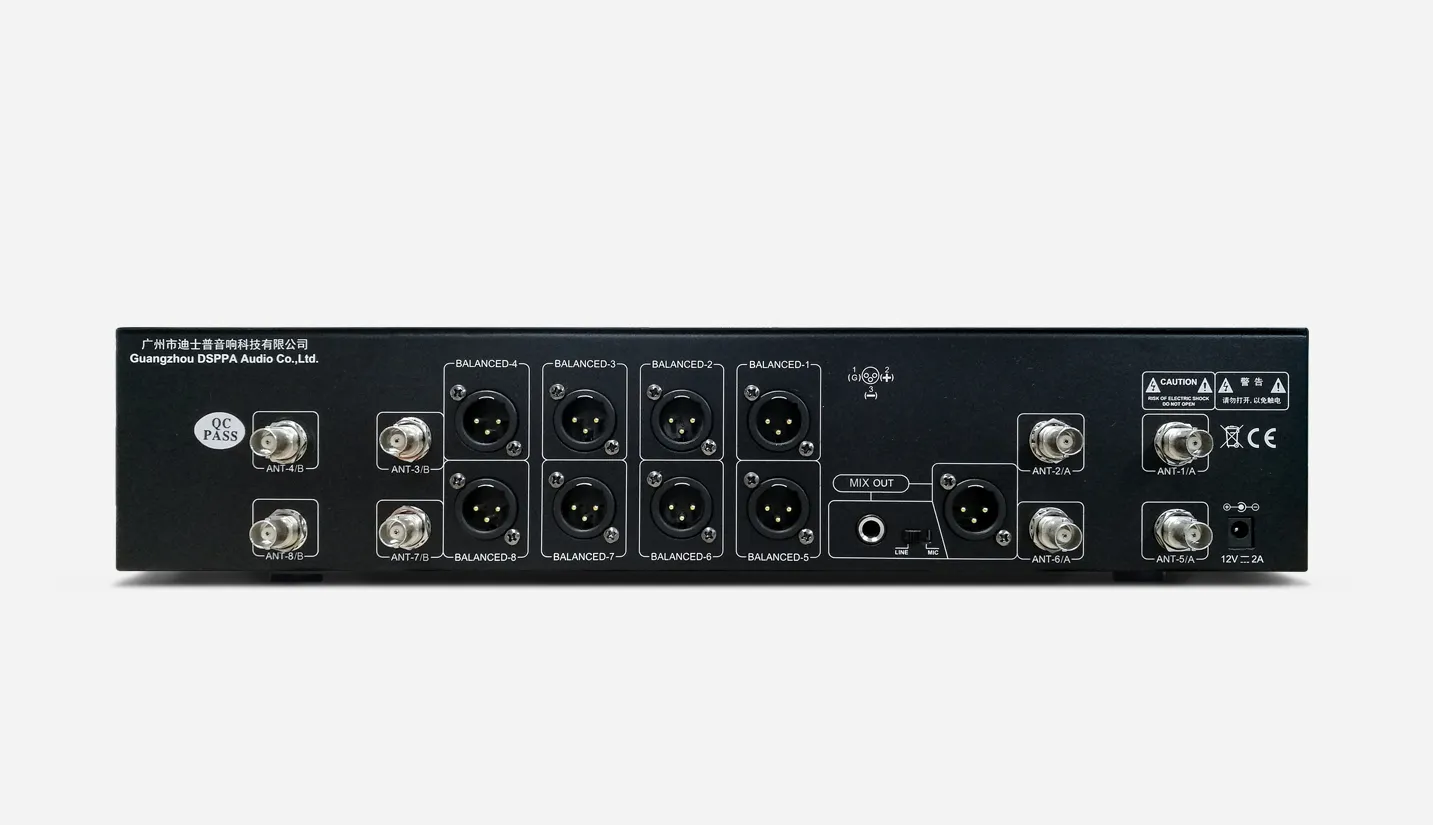

Receiver | Wireless Interface | BNC/50 Ω |
Sensitivity | ≤-95dBm | |
Spur Suppression | ≥ 75dB | |
Function Display Mode | Display | |
Power | DC12V; 600mA | |
Package Dimensions (L×W×H) | 530×335×145mm | |
Machine Dimension | 430×176×88mm | |
Gross Weight | 5.2kg | |
Net Weight | 3.3kg | |
Transmitter | FM Antenna | 1/4 wave whip antenna for the waistband transmitter, and built-in onboard antenna for the handheld microphone. |
Output Power | High power 14dBm; Low power 6dBm | |
Spur Suppression | -60dB | |
Power Supply | 2 x 1.5V Alkaline No.5 Batteries | |
Endurance | More than 10 hours at 14dBm; More than 15 hours at 6dBm | |
Desktop MIC Rod Length | 420mm | |
Function Display Mode | Display | |
Handheld MIC Dimensions (Maximum Diameter × Length) | ∅50×265mm (Handheld part diameter ∅34~38mm) | |

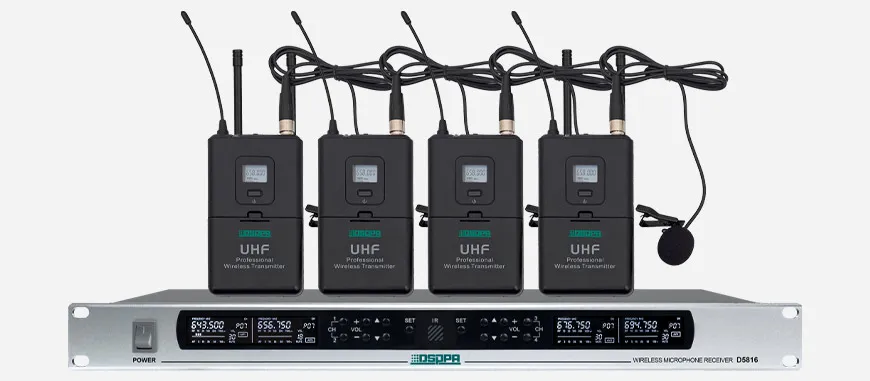

Waistband Transmitter Dimensions | 110×64×25mm ((excluding antenna length, 80mm more if included) | |
Desktop MIC Dimensions | 151×100×55mm | |
Net Weight of Desktop MIC | 0.45kg | |
Net Weight of Handheld MIC | 0.45kg | |
Net Weight of Waistband Transmitter | 0.1kg | |
