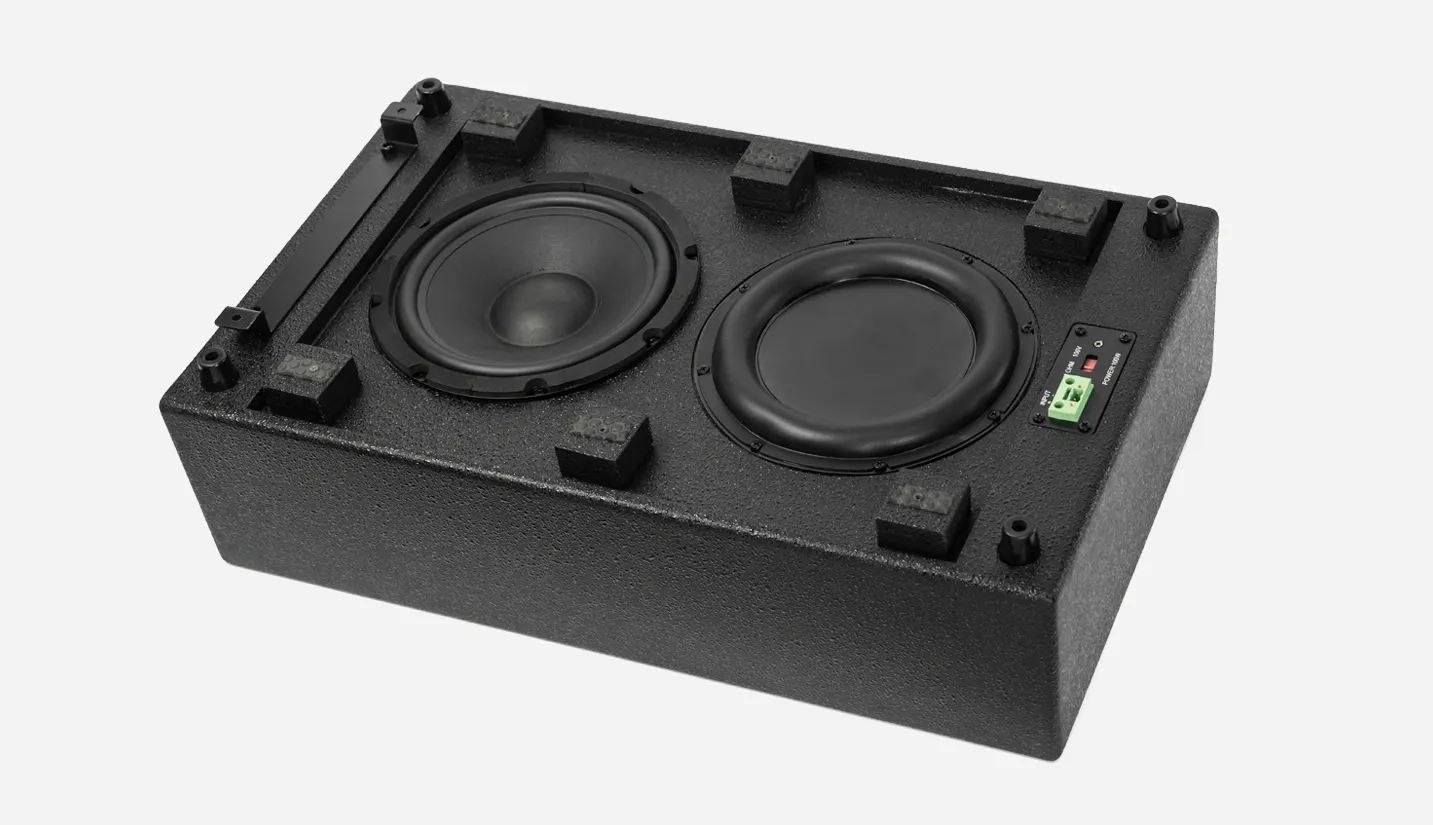

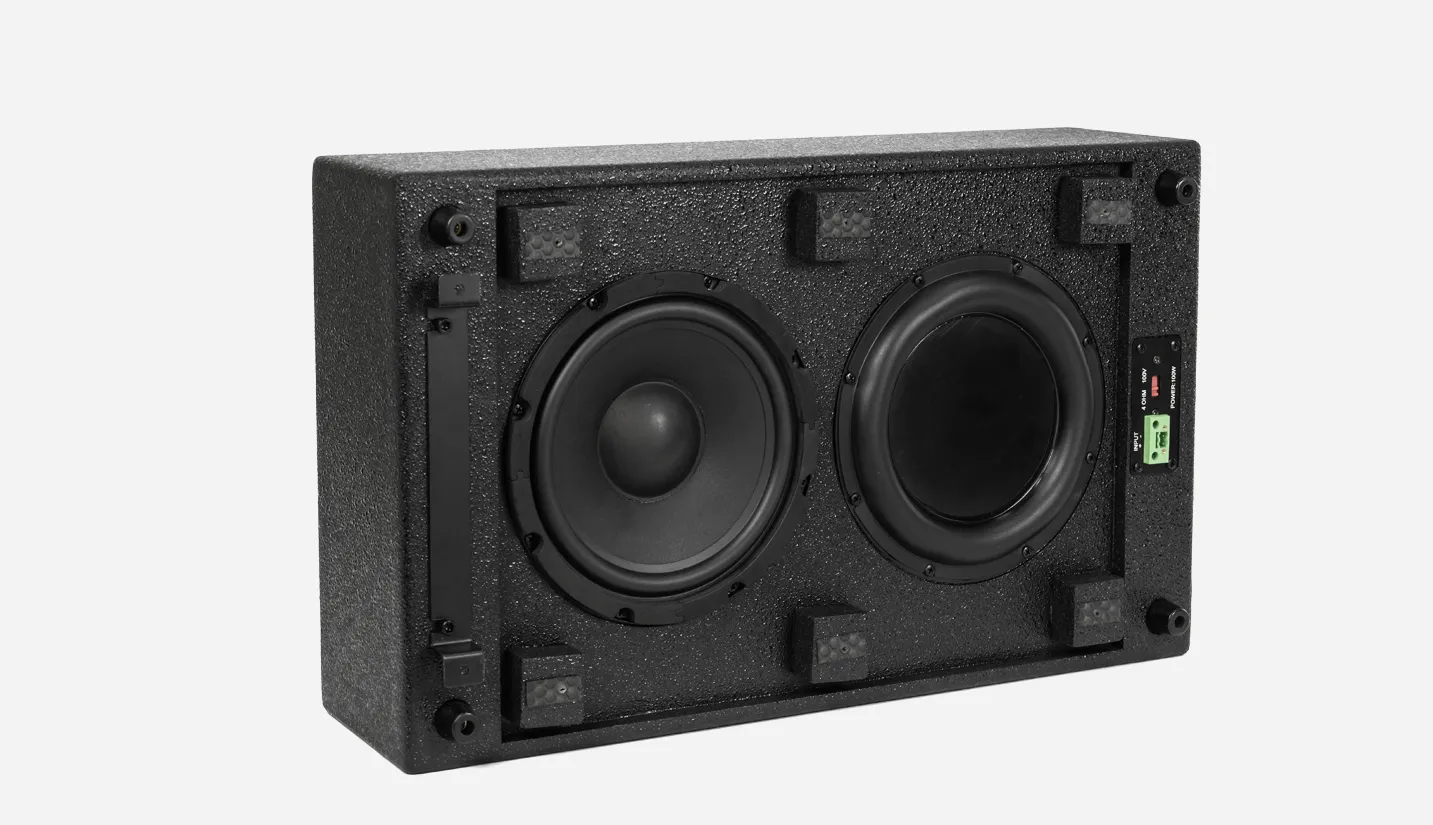

8" direct-driven woofer paired with 8" passive radiator for enhanced deep bass extension
Supports 4Ω / 100V switchable input modes for flexible system integration
High output performance with up to 130 dB maximum SPL
100W rated power ensures stable and efficient low-frequency reproduction
Compact 12 mm plywood enclosure for strong structure and reduced resonance
Sealed cabinet design for tighter, more controlled bass response
Dedicated suspension hardware for safe and flexible installation

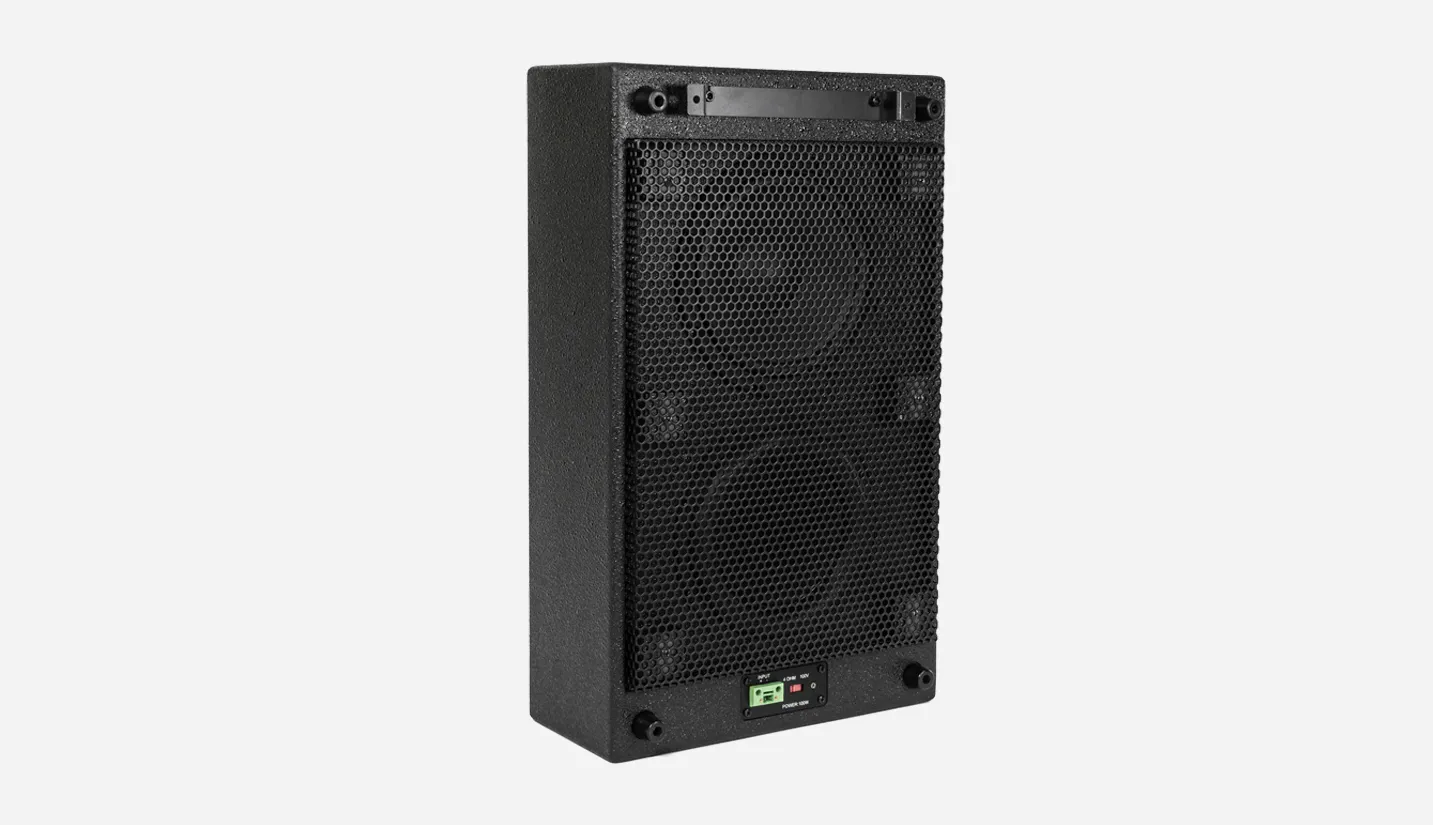

Durable black textured finish with 1.5 mm perforated steel grille
2-pin Phoenix connector for reliable and professional wiring connection

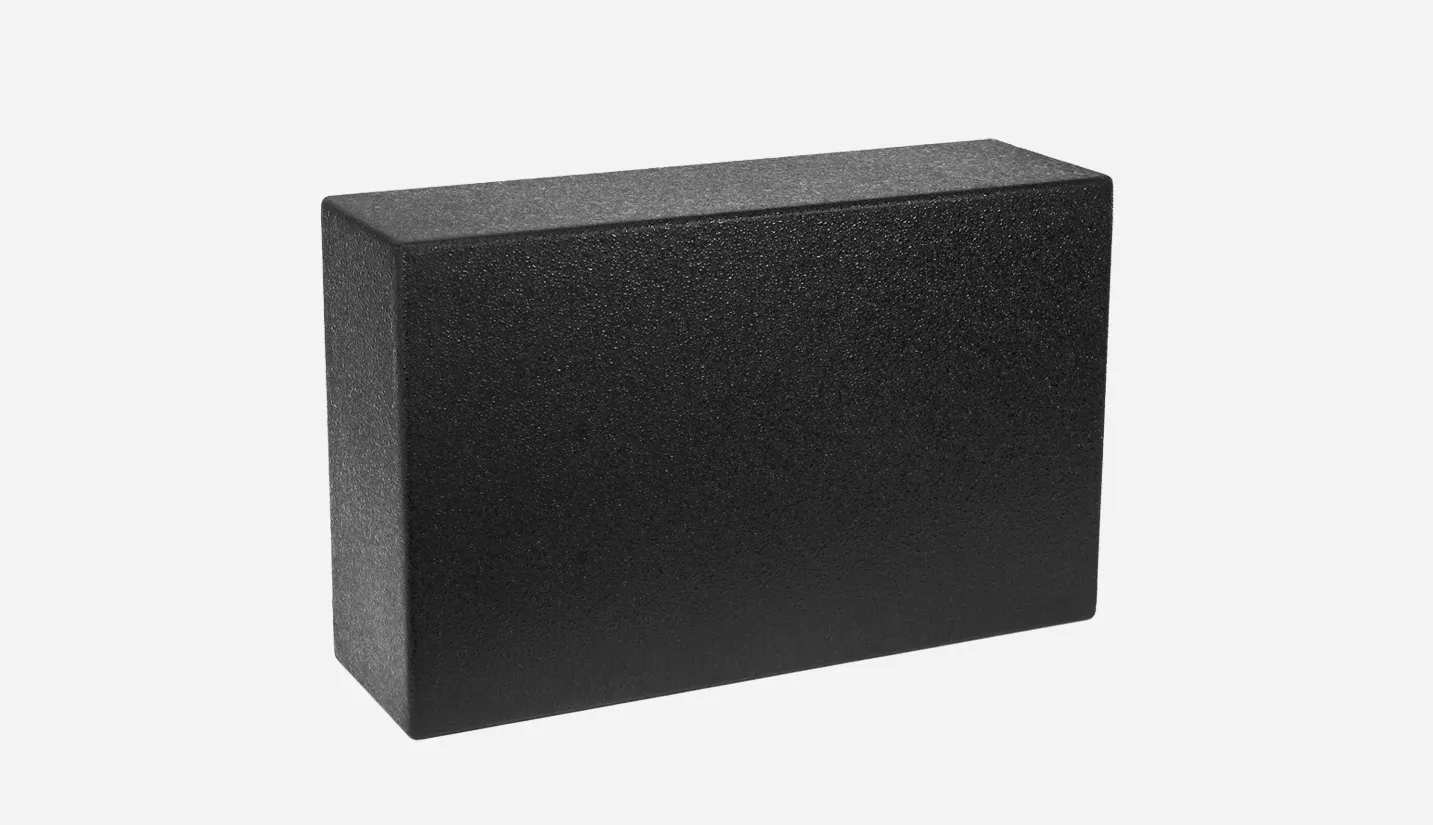

The DSP26V is a compact high-efficiency subwoofer designed for professional fixed installation systems. It features a direct-driven 8-inch woofer paired with an 8-inch passive radiator, delivering deep, powerful, and well-controlled low-frequency performance. With switchable 4Ω and 100V operation, it ensures flexible system integration across various applications. Its robust plywood enclosure provides stable, reliable bass reproduction in commercial environments.
Model | DSP26V |
Driver Units | 1 × 8" Direct-driven Woofer (35mm Voice Coil, 120mm Magnet), 1 × 8" Passive Radiator |
Rated Power | 100W |
Rated Impedance | 4Ω |
Input Mode | Constant Impedance / Constant Voltage: 4Ω / 100V (Switchable) |
Frequency Response | 40Hz-300Hz |
Sensitivity | 93dB |
Max. SPL | 130dB |
Enclosure Materials | Rectangular Structure, 12mm Plywood |
Hanging Hardware | Dedicated Suspension Connectors |
Surface Finish | Black Textured Paint |
Grille | Powder-Coated 1.5mm Perforated Steel Grille |
Input Connector | 2-pin Phoenix Connector |
Dimensions (L×W×H) | 340×162×573mm |
