Triple-tweeter acoustic array provides pristine high-frequency detail and expansive dispersion coverage.
Integrated high-excursion woofer (6.5-inch or 8-inch) ensures well-balanced, full-range audio performance.
Selectable 70V/100V constant-voltage line taps and 8 Ω low-impedance modes offer seamless system integration.
Rapid-mount physical design streamlines setup and significantly boosts installation efficiency.
Versatile application design optimized for background music (BGM), public address (PA), and clear voice reinforcement.
Tailored for commercial environments such as hotels, dining venues, entertainment clubs, and retail outlets.

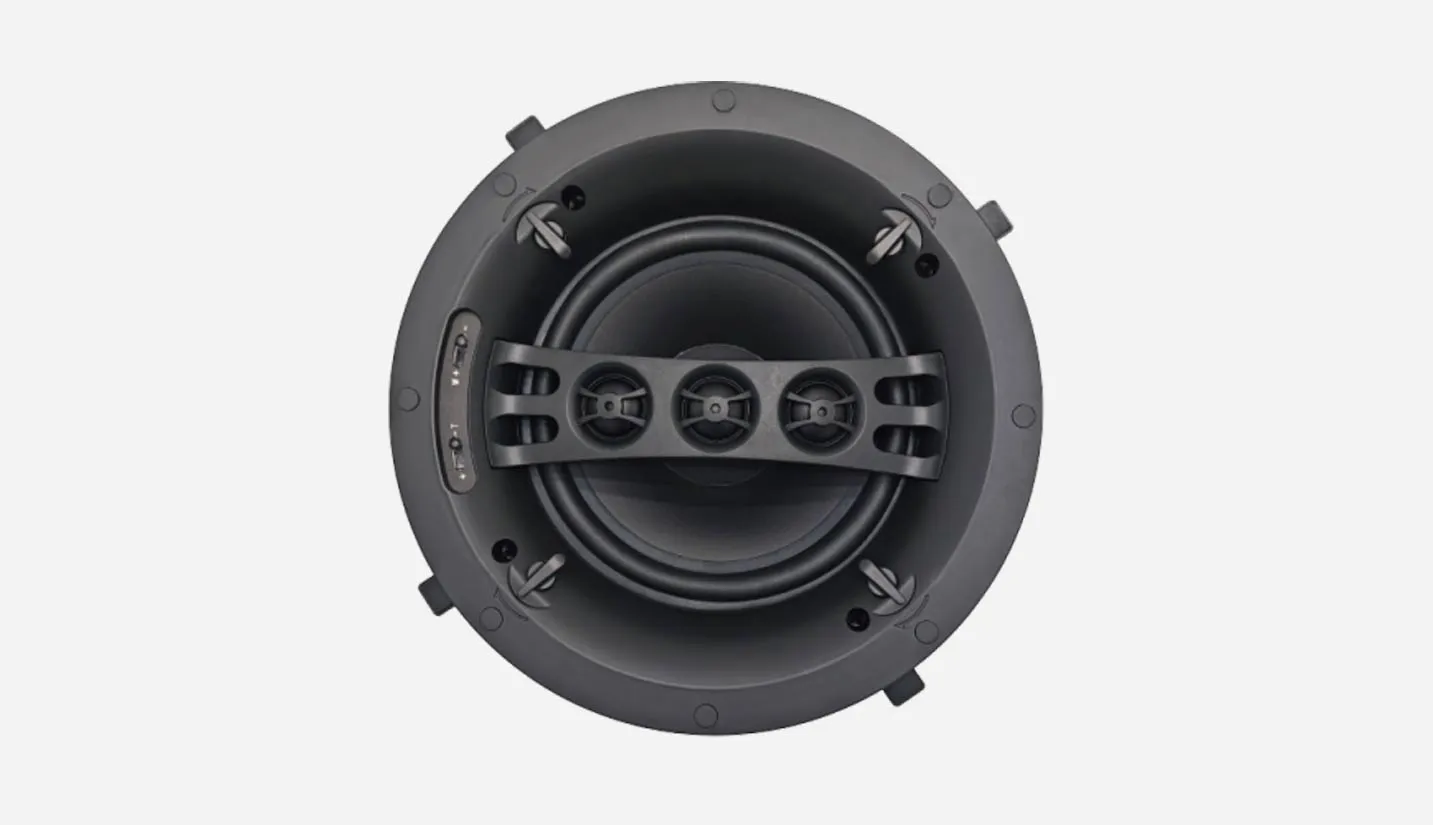

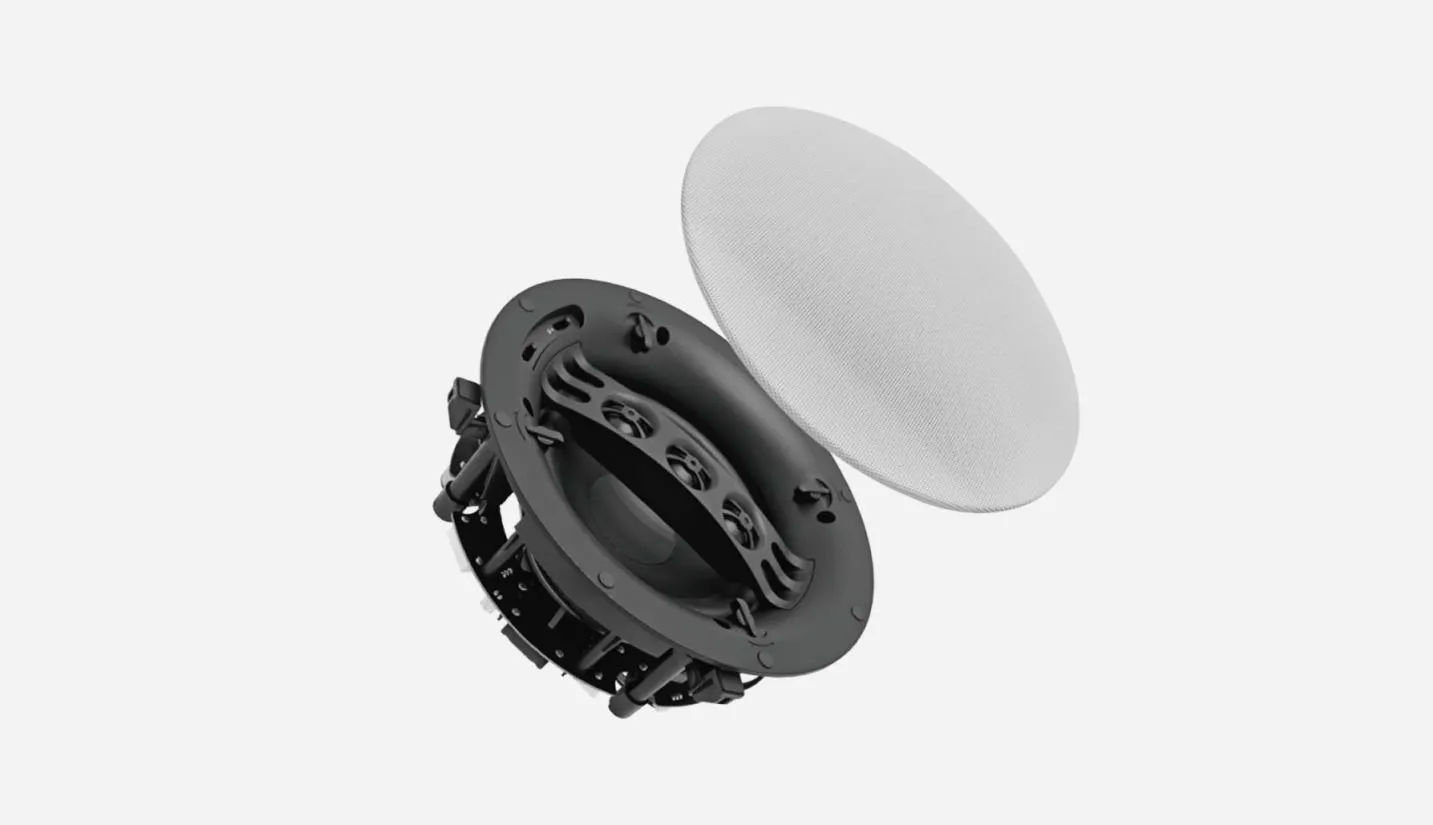

Featuring a robust 8-inch bass woofer paired with a specialized three-tweeter configuration, the DSP8308 in-ceiling speaker delivers extended low-end response alongside pristine wide-band sound reproduction. Designed to adapt to diverse audio infrastructures, it accommodates 70V/100V constant-voltage multi-zone runs as well as direct 8Ω constant-impedance connections, excelling in both high-clarity emergency/paging calls and full-range background music playback. Engineered with a swift-mount clamping system for hassle-free installation, the DSP8308 is ideally suited for modern hotel halls, high-end restaurants, multi-purpose clubs, retail hubs, and expansive commercial architectures.
Model | DSP6306 | DSP8308 | |
Driver Units | 6.5"×1, 0.75"×3 | 8"×1, 1"×3 | |
Rated Power | 40W | 50W | |
Input | Constant Voltage | 70V/100V | 70V/100V |
Constant Impedance | 8Ω | 8Ω | |
Frequency Response | 55 Hz–20 kHz | 50 Hz–20 kHz | |
Sensitivity | 88 dB | 90 dB | |
Maximum SPL | 104 dB | 107 dB | |
Cutout Size | 204 mm | 251 mm | |
Depth | 109 mm | 119 mm | |
Product Dimensions | 231 mm × 114 mm | 281 mm × 128 mm | |
