8 × 3” full-range drivers deliver clear and natural mid-high frequencies.
12” subwoofer provides deep and powerful low-frequency performance.
Built-in DSP with FIR filtering ensures precise and optimized sound tuning.
Supports PEQ, crossover, delay, limiter, phase, and gain adjustment.
High SPL output suitable for professional sound reinforcement applications.
Supports XLR and TRS audio input connections.
Built-in USB playback with MP3 format support.
Integrated Bluetooth for wireless audio streaming.
Supports TWS function for wireless stereo linking between two speakers.
DSP control via PC software for flexible parameter configuration.
Real-time monitoring of input/output levels and system status.
Supports preset saving, recall, upload, and download.
Dual voltage selection (110V / 220V) for flexible power compatibility.
Built-in limiter protection ensures safe and stable operation.
Slim column design with wide horizontal sound coverage.
Compact structure for easy transport and installation.

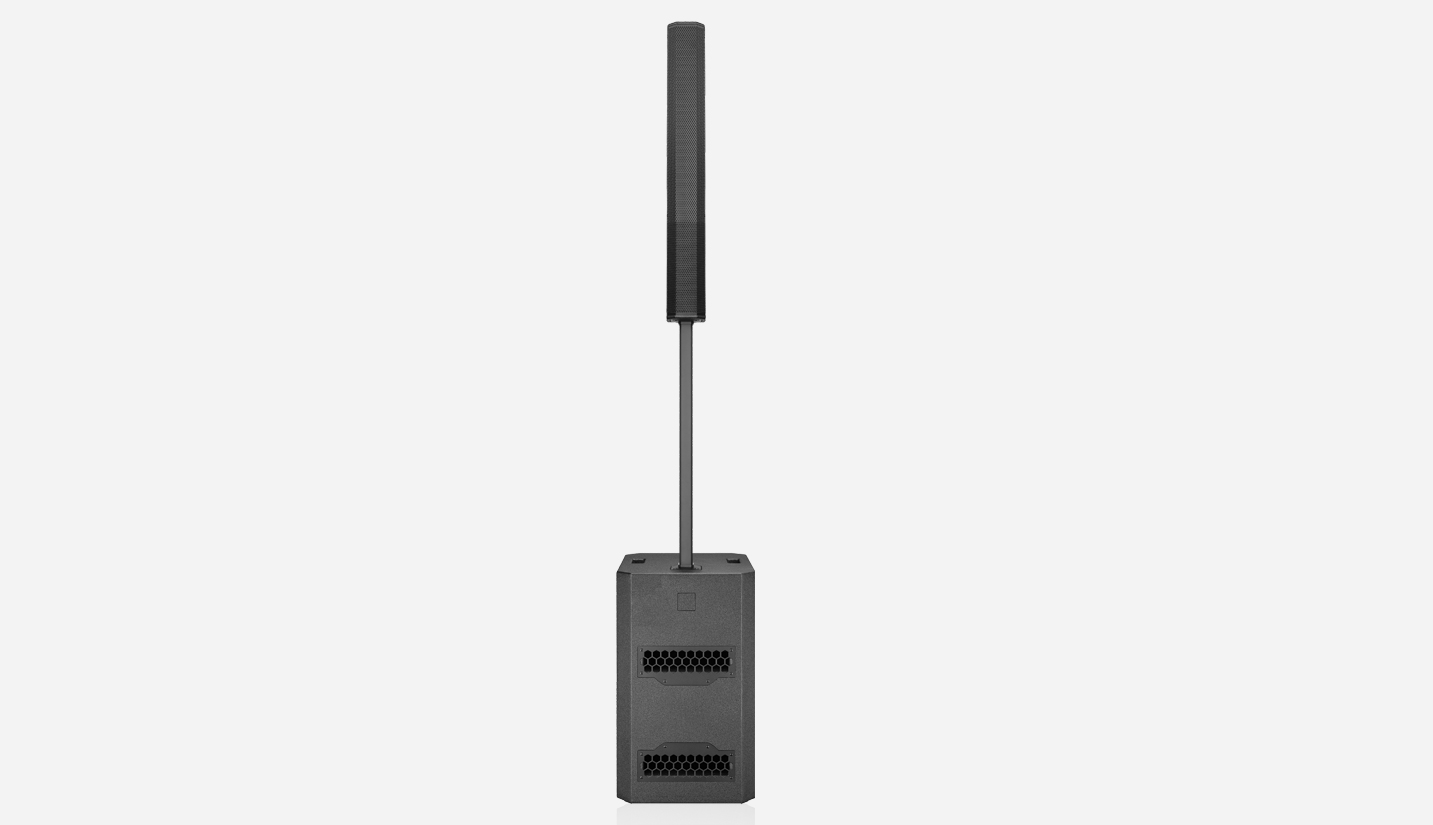

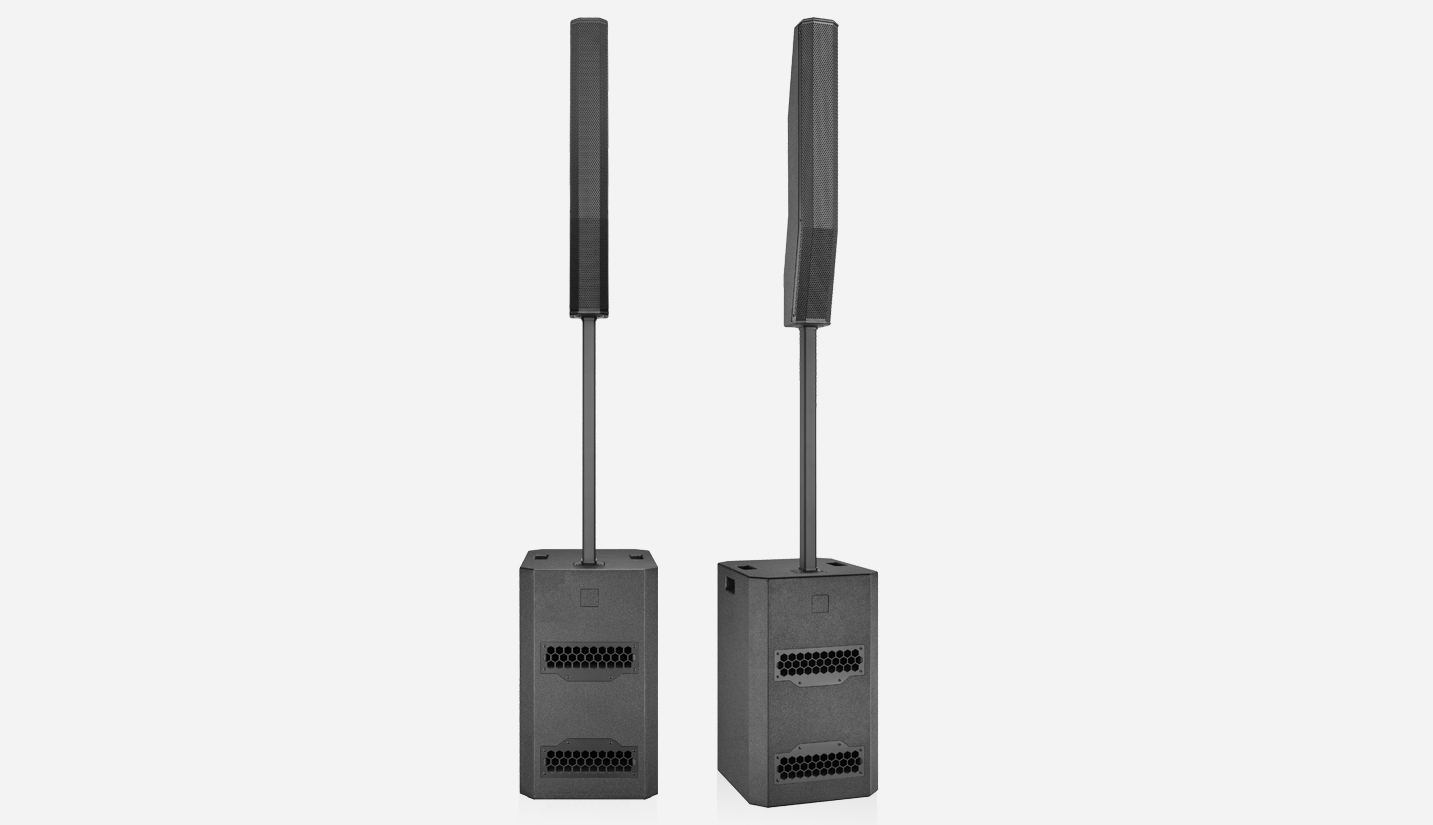

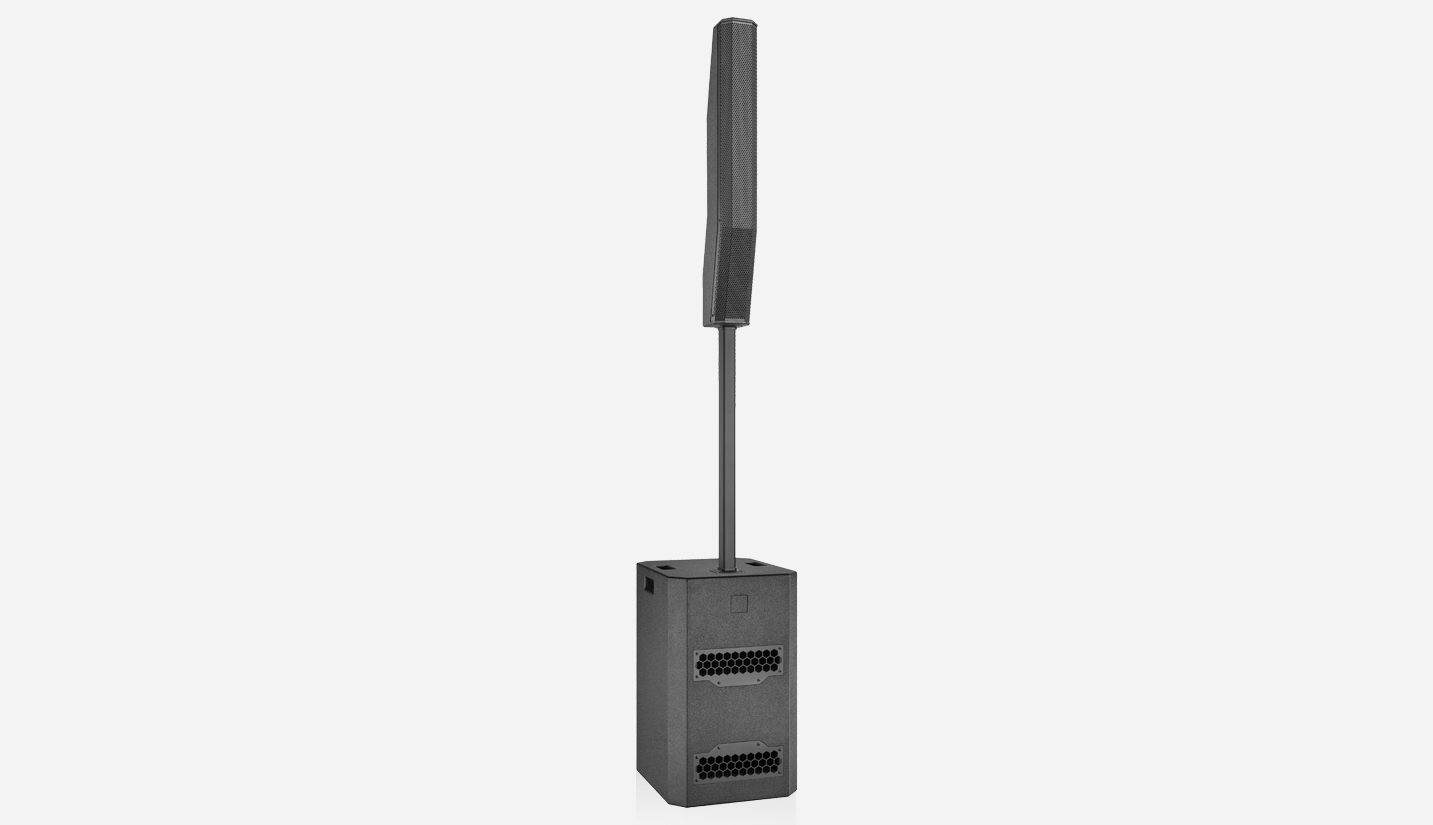

The LA0316 Professional Active Line Array Speaker System is a compact yet powerful audio solution designed for a wide range of applications, including small to medium-sized venues, mobile performances, conferences, and commercial installations.
The system consists of an 8×3” column speaker and a 12” high-power subwoofer, delivering clear, detailed high and mid frequencies along with deep and punchy low-frequency performance.
With a built-in DSP amplifier module, the system provides advanced audio processing capabilities such as FIR filtering, crossover, delay, EQ, and limiting, ensuring precise sound tuning and optimal performance in different environments.
Equipped with Bluetooth, USB playback, and TWS wireless linking, the LA0316 offers flexible audio input options and convenient wireless stereo pairing. Combined with the FIR Active Speaker Editor software, users can easily configure, store, and recall presets, making system setup and management efficient and user-friendly.

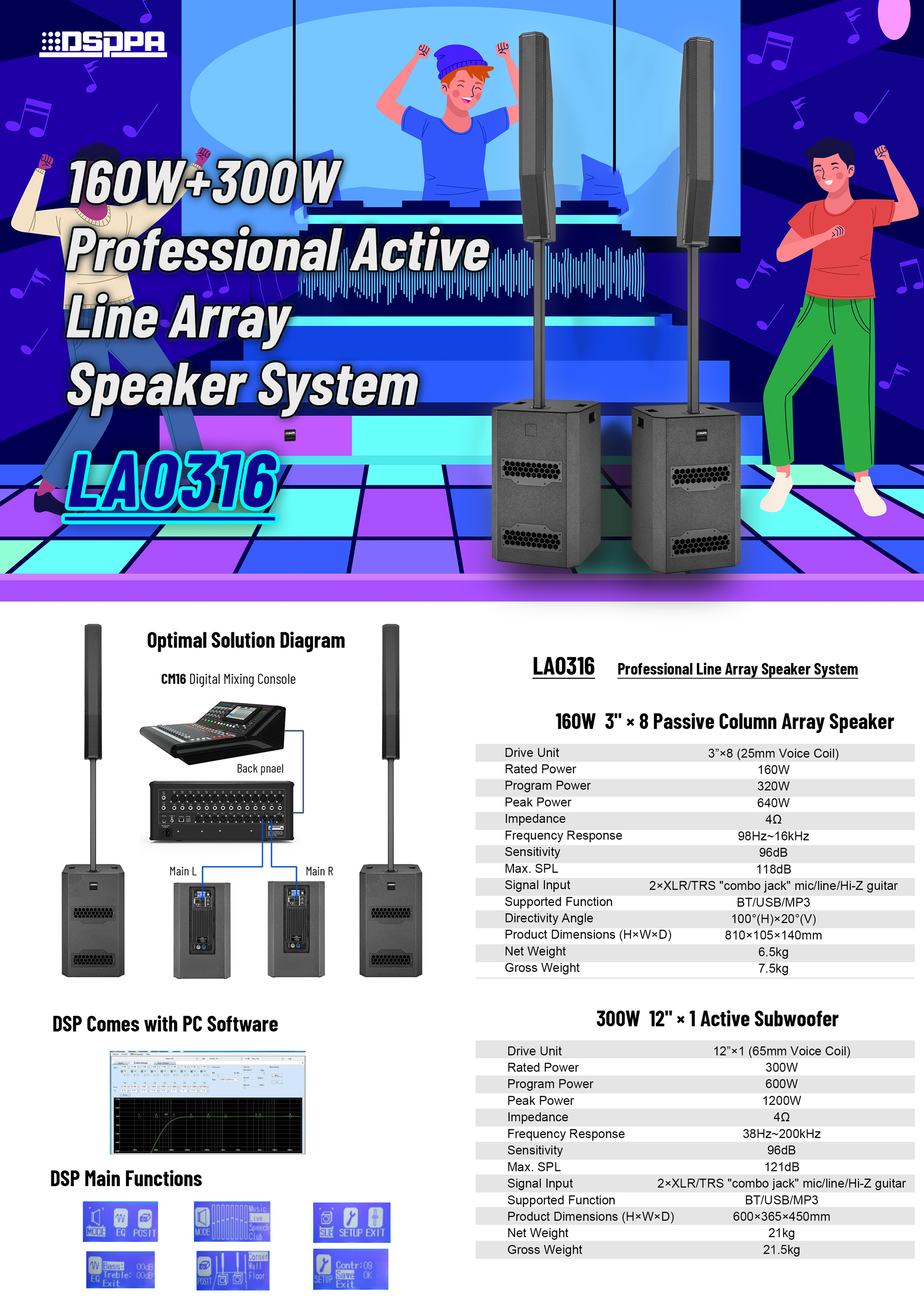

.jpg "-LA0316-160W+300W-Professional-Active-Line-Array--Speaker-System(1).jpg")
Model | LA0316 |
3”×8 Column Speaker | |
Drive Unit | MF: 3”×8 (25mm Voice Coil) |
Rated Power | 160W |
Program Power | 320W |
Peak Power | 640W |
Impedance | 4Ω |
Frequency Response | 98Hz~16kHz |
Sensitivity | 96dB |
Max. SPL | 118dB |
Signal Input | Dedicated Link Connector |
Directivity Angle | 100°(H)×20°(V) |
Product Dimensions (H×W×D) | 810×105×140mm |
Package Dimensions (H×W×D) | 860×360×240mm (2PCS/CTN) |
Net Weight | 6.5kg |
Gross Weight | 18kg |
Single 12” Subwoofer | |
Drive Unit | LF: 12”×1 (75mm Voice Coil) |
Rated Power | 300W |
Program Power | 600W |
Peak Power | 1200W |
Impedance | 4Ω |
Frequency Response | 38Hz~200Hz |
Sensitivity | 96dB |
Max. SPL | 121dB |
Signal Input | 2×XLR / TRS |
Supported Function | BT / USB / MP3 / TWS |
Product Dimensions (H×W×D) | 600×365×450mm |
Package Dimensions (H×W×D) | 686×435×520mm |
Net Weight | 21kg |
Gross Weight | 24kg |
