Enclosure molded from polymer composite materials, with a five-layer waterproof and dustproof grille.
Three-way design, delivering clear and delicate sound with strong penetration.
All-weather design meeting IP66 protection rating.
Three-point suspension mounting for easy installation.

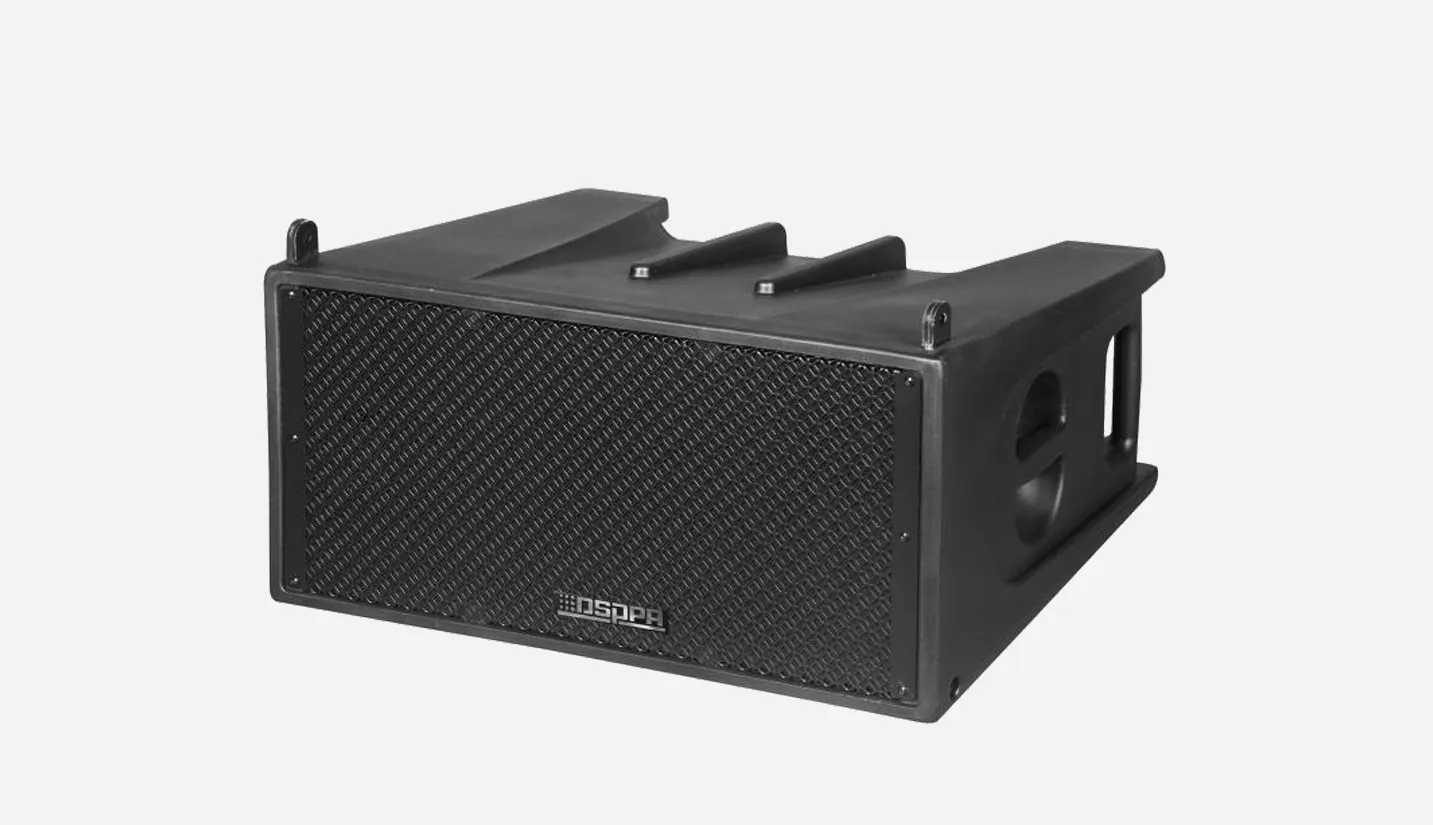

The D7733 All-Weather Passive Line Array Full-Range Loudspeaker features a three-way configuration with dual 10-inch low-frequency drivers, a 3.5-inch mid-frequency driver, and a 1.75-inch high-frequency driver. It delivers natural, high-fidelity sound with strong projection and excellent clarity. With its robust enclosure and IP66-rated all-weather design, it ensures reliable performance in a wide range of indoor and outdoor applications.
Model | D7733 |
System Configuration | 2×10" LF, 1×3.5" MF, 1×1.75" HF |
Frequency Response (±3dB) | 70Hz-18,000Hz |
Sensitivity | 101±2dB |
MAX. SPL. | 128±2dB |
Input Impedance | 8Ω |
Rated Power | 500W |
Directivity (H) | 90° |
Dimensions (H×W×D) | 306×671×458mm |
Weight | 23kg |
