Boost low-power RF signals to higher power levels, extending transmission from the antenna to the receiver and compensating for cable loss.
Effectively increase reception range and transmission stability.
Designed for broadband operation, the amplifier delivers stable performance with minimal signal noise.
Equipped with a dedicated TNC-to-BNC adapter, allowing compatibility with different connector types.
External power supply meets the requirements of various receivers.
Easy installation for convenient setup.
Power indicator light allows quick verification of operational status.

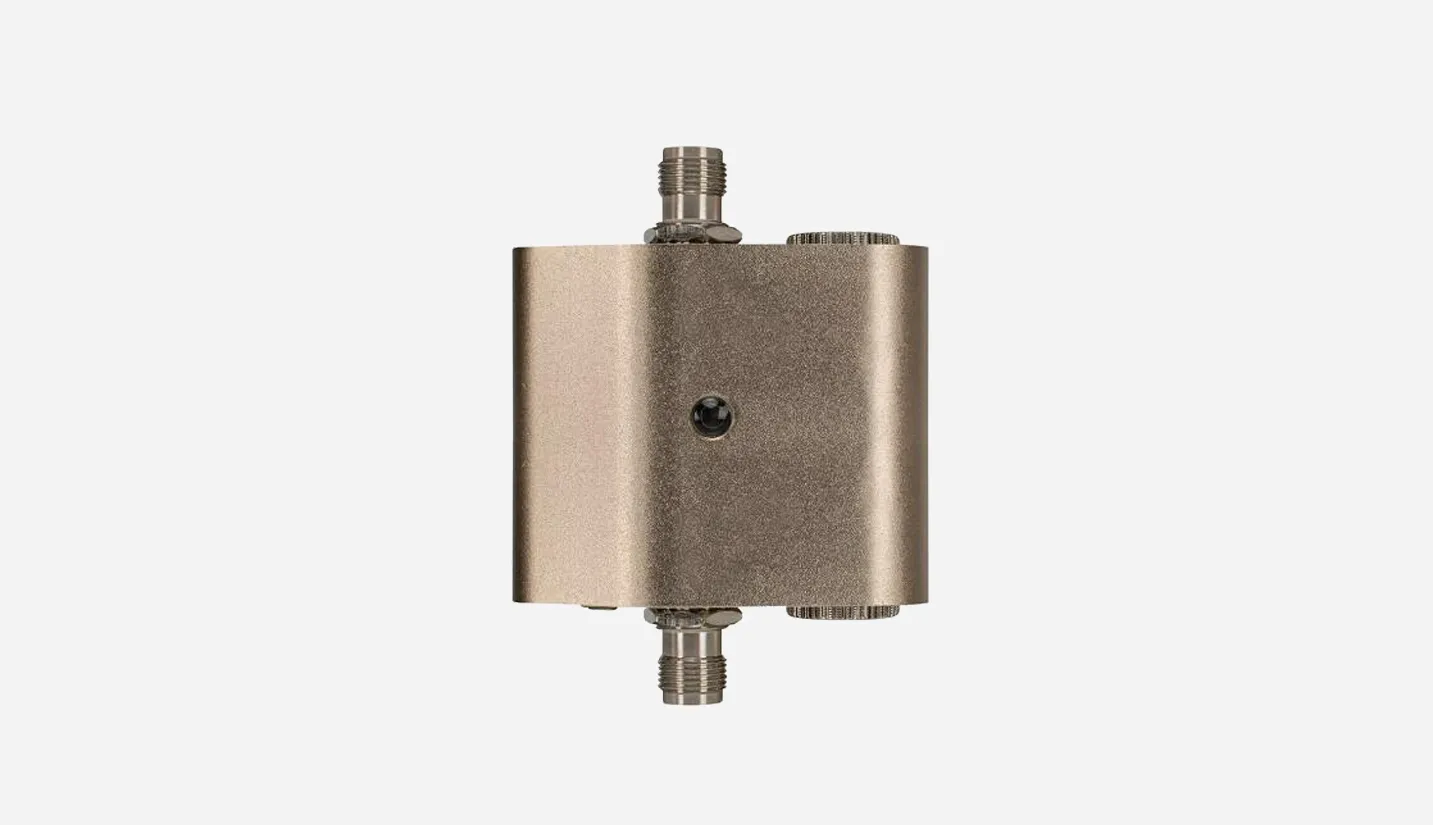

The antenna amplifier provides continuous and stable signal reception/transmission in the frequency range of 500MHz to 1GHz, suitable for use with wireless microphone systems, in-ear monitoring systems, or other UHF products. With compact and lightweight design, it is housed in a small enclosure and can be connected inline along the coaxial cable.
Model | P8810 |
Frequency Range | 500MHz-1GHz |
Connectors | TNC |
VSWR | Input: ≤3:1; Output: ≤3:1 |
Noise | 3.6dB |
Power Supply | 9V DC, 600mA |
Operating Temperature | -20℃~+60℃ |
Dimensions | 65mm×26mm×55mm |
Weight | 136g (excluding bracket) |
Enclosure | Aluminum |
