2.0-inch TFT color display with a simplified user interface and jog dial control for intuitive operation.
Adjustable limit of simultaneous speakers, from 1 to 6 units.
Supports five conference modes: FIFO, FREE, NORMAL, APPLY, and VOICE.
Supports connection of up to 30 D62 Series speaking-only conference units, including chairman, delegate, and VIP units.
Volume control for adjusting the output signal level.
Speaking time limit and end-of-speech reminder functions.
Three selectable speaking notification tones.
The chairman unit supports Podium Mode and Priority functions.
Adjustable screen-off time for energy-efficient operation.
Power-on password function.
2 × 8-pin DIN aviation female sockets for connecting conference units.
The system host features an integrated camera tracking system for automatic camera tracking.
1 × RS-232 serial port for seamless integration with a central control system or camera tracking.
2 × RCA unbalanced outputs and 2 × XLR balanced outputs for connection to professional power amplifiers.
1U rack-mount design, suitable for applications with limited installation space.
The compact digital conference host features a 2.0" TFT screen and jog dial control, offering subtitle options in Chinese and English. It provides 5 speaking modes, supports up to 6 simultaneous speaking units, and includes extensive connectivity options such as RCA, XLR, and RS232 ports. With built-in camera tracking, password protection, and adjustable output volume, it ensures seamless and intelligent meeting management.

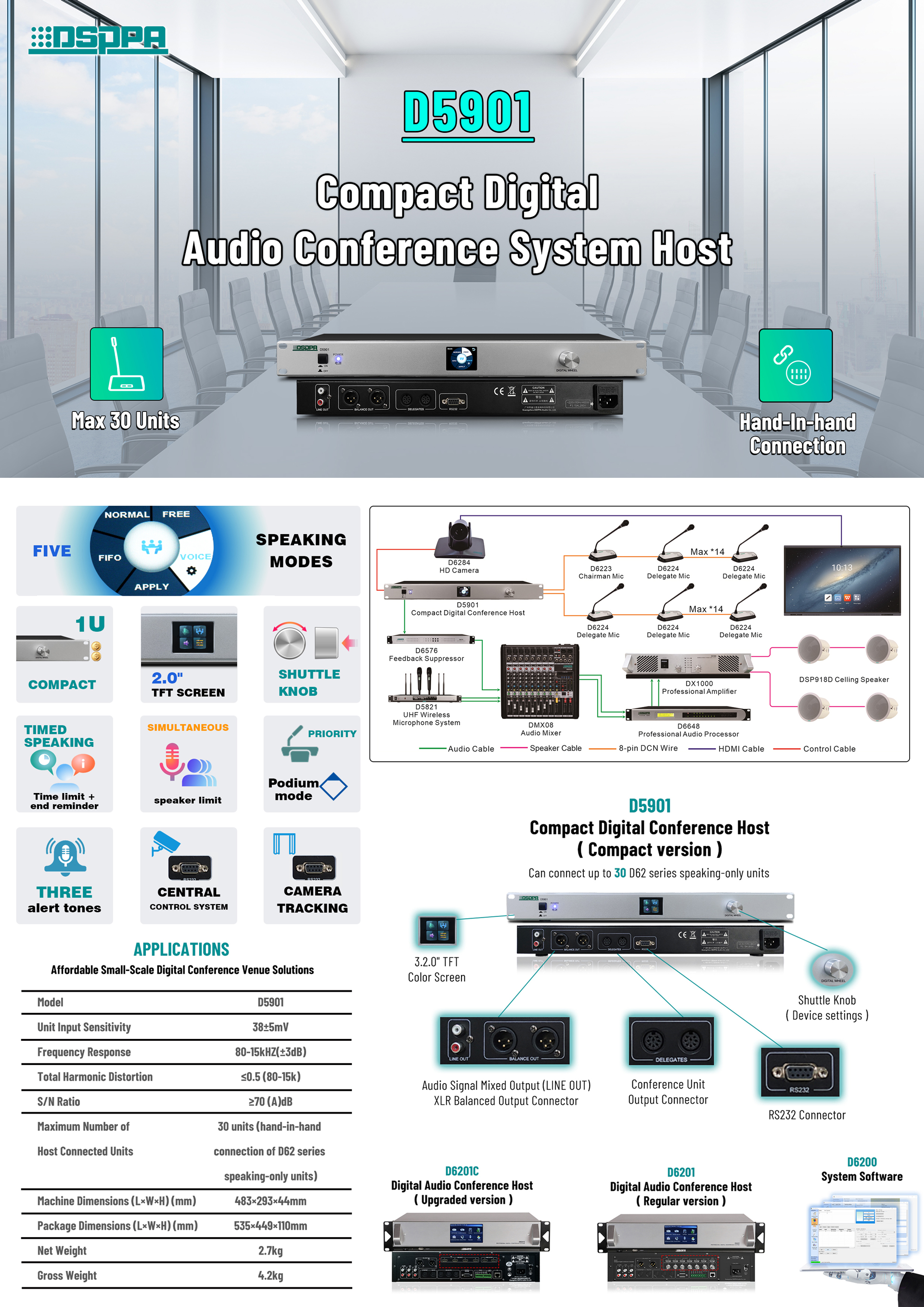

.jpg "A4-Brochure---D5901-Compact-Digital-Audio-Conference-System-Host(5).jpg")
Model | D5901 |
Unit Input Sensitivity | 38±5mV |
Frequency Response | 80–15kHZ(±3dB) |
Total Harmonic Distortion | ≤0.5 (80-15k) |
S/N Ratio | ≥70 (A)dB |
Maximum Number of Host Connected Units | 30 units (hand-in-hand connection of D62 series speaking-only units) |
Machine Dimensions (L×W×H) (mm) | 483×293×44mm |
Package Dimensions (L×W×H) (mm) | 535×449×110mm |
Net Weight | 2.7kg |
Gross Weight | 4.2kg |
