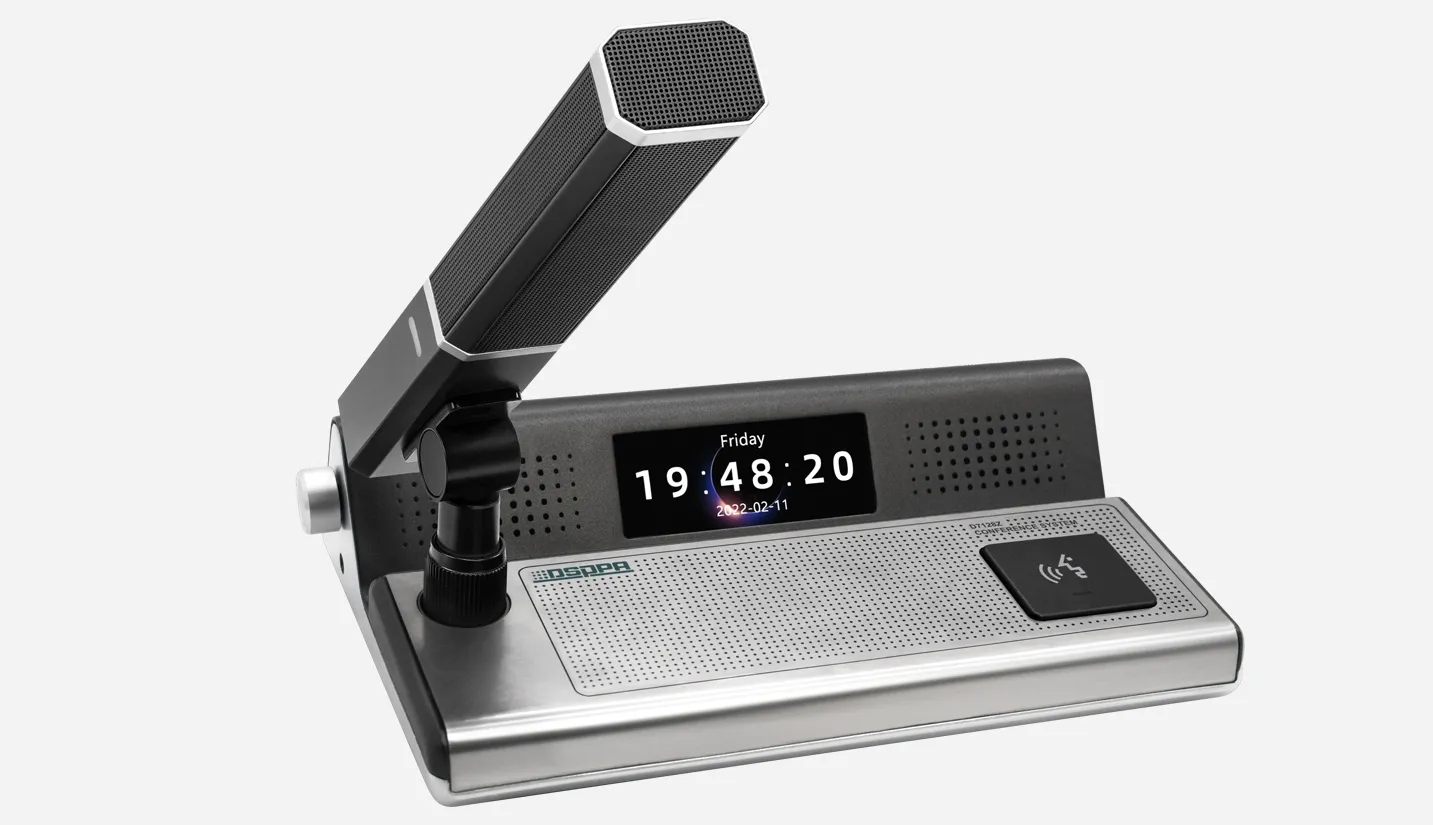

Desktop IP Conference System Delegate Microphone with Nameplate D7128Z

  • With the function of an electronic table card.

  • Speak-only Conference unit.

  • It comes with a 2-meter dedicated high-density cable and an RJ45 universal network plug.

  • The elector core type pointing capacitive pickup with a two-color indicator (red/green). It is red when speaking, and it is green when applying for speaking.

  • A rotary plug microphone rod is adopted, a mini-microphone.

  • The standard microphone rod is an aluminum alloy one-piece square microphone rod, 186mm in length. Other options: gooseneck microphone rod, oval microphone rod, square microphone rod with analog backup, square microphone rod with dual mics, and square microphone rod with dual mics and analog backup. See “Chapter 5 Accessories” below for details.

  • The microphone rod can be dismounted during the adjournment for maintenance and storage.

  • Super anti-interference ability toward mobile phones..

  • There is a microphone on/off keys and the chairman unit has the chairman priority button.

  • With sign-in function by pressing the button.

  • Each Conference unit has a unique ID number.

  • The 4.0" RGB color LCD screen is used for electronic nameplate display, and the electronic nameplate editing is processed and issued by the PC background.

  • With a high-brightness 2.9" LCD screen, it can display the following information in real-time when the mic is working:

  • The ID number of the conference mic, the number of mics applying for speaking, the voting results, the number of attendants who have checked in, and various operation information, etc.;

  • The mic information is in simplified Chinese or English.

  • Together with the camera, the camera can be automatically tracked when set up using the digital Conference system host or PC control software.

  • In conjunction with the control panel, the unit has a self-detection function. The items tested are Keys, microphone, LED indicators, LCD screen, and built-in speaker.

  • The unit is a passive device that is powered by the system host or a PoE switch and has an input voltage of +48V.

  • The chairman unit has a priority function (all delegate units can be muted or turned off), and a lectern mode (the chairman unit is always on) with the host settings.

  • The Chair module has the function of approving a delegate's request to speak.

  • The Chairman Unit can be opened freely without limitation on the number of speakers and has unlimited connection locations.

  • The Chairman Unit has the priority function of having full control of the order of the Conferences.

Datasheet
Get Quotation
DETAILS
SPECS
Diagram
Desktop IP Conference System Delegate Microphone with Nameplate

Specifications of Desktop IP Conference System Delegate Microphone with Nameplate

Model

D7127Z/D7128Z

The structure type

Desktop

Effective frequency range of gain limitation (±3dB)

Unit A to Unit B.

100Hz-16kHz

Host to unit line

80Hz-18kHz

Unit to host line output

100Hz-16kHz

Speaker power

1.5W

Static power consumption

<6W

Maximum power consumption:

8W

Signal-to-noise ratio

>70dB

Harmonic distortion

<0.5%

Headphone output

9dBu, 8-32 Ω, 3.5mm

Power

The host +48V power supply or +48V PoE switch

Unit interface

Network interface

Microphone transmitter type



Elector cardiac capacitive type

Sensitivity

-30dBV/pa

input resistance

2kΩ

Equivalent noise

20dB(SPL)


Maximum sound pressure level

125dB(THD<3%)

Package Dimensions

515×280×124mm (2pcs)

Machine Dimensions (W × D × H)

135×210×53mm

Gross Weight

2.1kg

Net Weight

0.65 kg
