Log-periodic dipole array design for directional and optimal RF reception
Integrated low-noise amplifier with four adjustable gain levels (-6 dB / 0 dB / +6 dB / +12 dB)
Gain switch compensates for different coaxial cable lengths and losses
RF overload indicator prevents distortion from strong signals
Operates with receivers or distribution systems providing 12 V DC bias
Wide frequency range from 470–950 MHz with linear polarization
Low amplifier noise figure (<2.6 dB) ensures clear signal transmission
Waterproof BNC connector for secure and reliable outdoor use
Durable construction designed for outdoor installation in varied environments

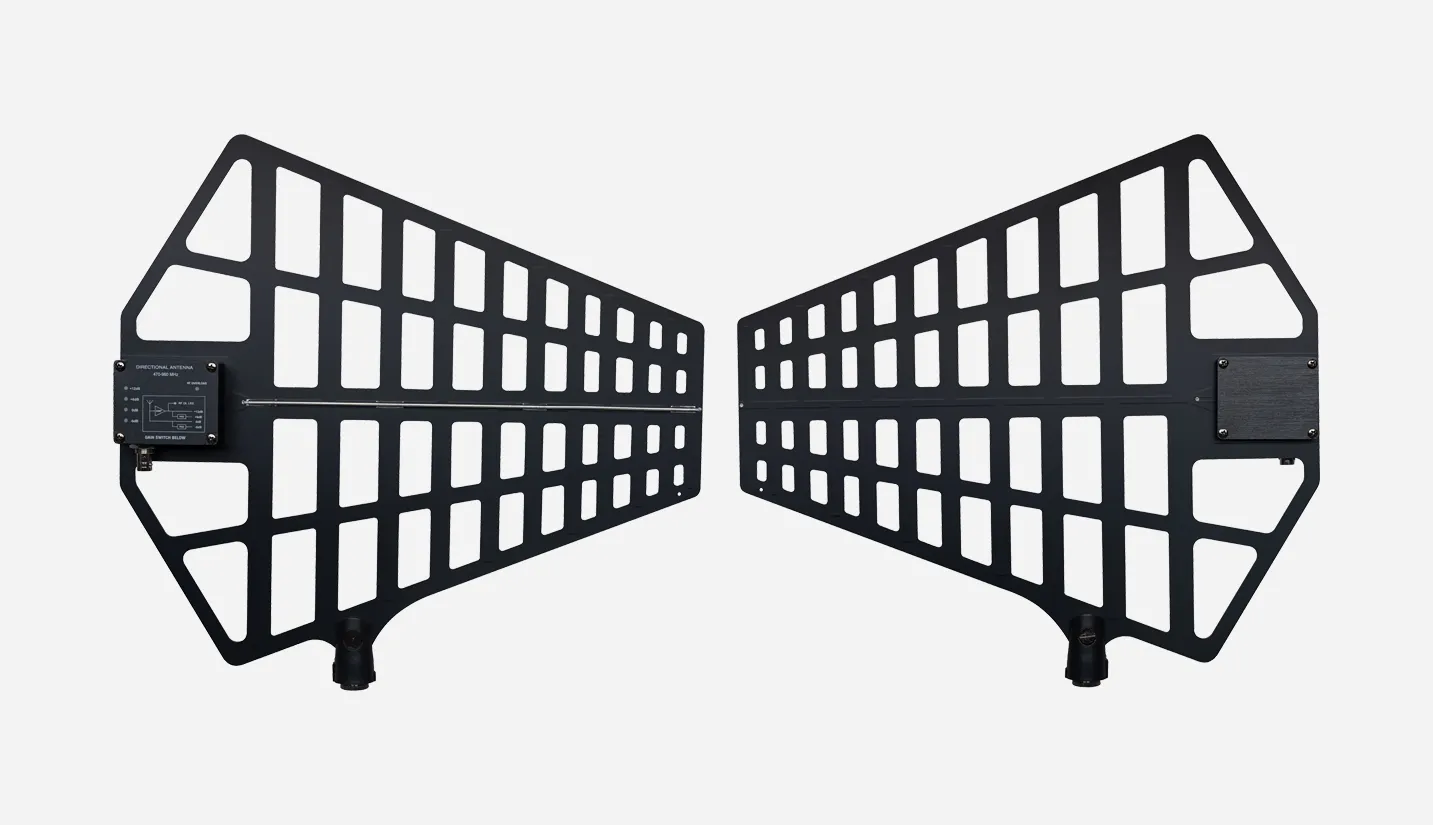

The P8801 Directional Antenna is a log-periodic dipole array designed to provide optimal reception when aimed at the desired coverage area. It features an integrated low-noise amplifier with a four-position gain switch to compensate for coaxial cable signal loss. The antenna connects via a 50 Ω coaxial cable to receivers or distribution systems with 12 V DC bias, and its gain and RF overload indicators ensure reliable performance while preventing distortion.
Model | P8801 |
Frequency Range | 470–950 MHz |
Antenna Polarization | Linear |
Amplifier Gain | Four Adjustable Levels (-6 dB / 0 dB / 6 dB / 12 dB) |
Antenna Voltage Standing Wave Ratio | <2 |
Amplifier Noise Figure | <2.6 dB |
External Power Supply | DC 6-12V |
Current | 80mA |
Connector | BNC |
