HDMI 4×2 Video Matrix Module
HDMI 4×2 Video Matrix Module
  • HDMI 4×2 Video Matrix Module

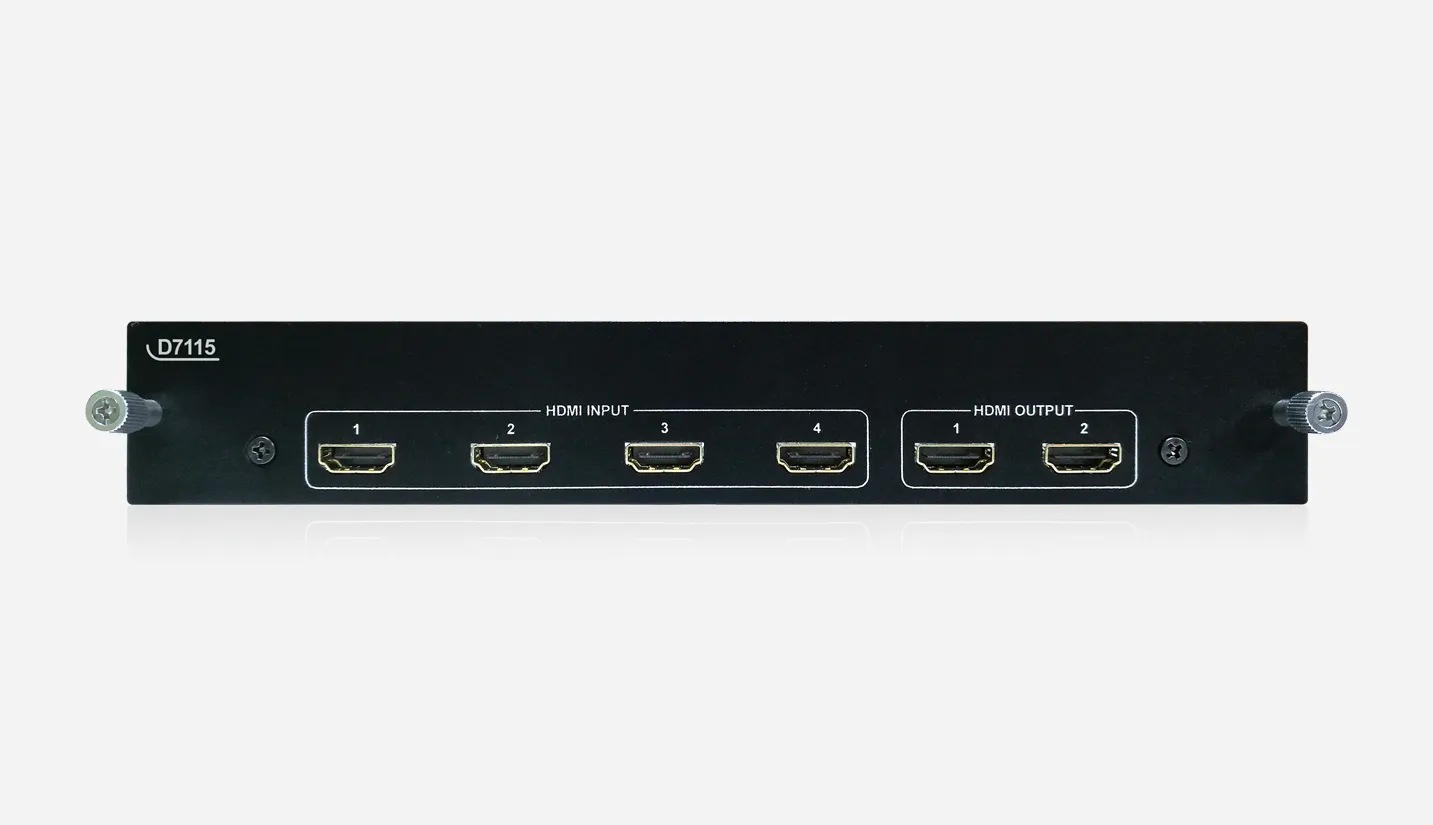

HDMI 4×2 Video Matrix Module D7115

  • Optional configuration for flexible combination use.

  • 4 HDMI inputs and 2 HDMI outputs.

  • Seamless matrix switching, input / output resolution supports 4K@30Hz.

  • Output 1 supports split modes (including single-screen / dual-screen / triple-screen / quad-screen modes).

  • Outputs 1 and 2 support seamless image matrix switching.

  • Signal amplitude: 500mV.

  • Complies with HDMI 1.4b standard.

  • Supports HDCP 1.4.

  • Supports power-off memory settings.



Datasheet
Get Quotation
DETAILS
SPECS

The D7115 HDMI 4×2 Video Matrix Module is a plug-in expansion module designed for the D7111 full digital conference system. It features 4 HDMI inputs and 2 HDMI outputs, supporting flexible configuration and seamless matrix switching up to 4K@30Hz. Output 1 supports multiple split-screen modes, including single, dual, triple, and quad display. The module also supports seamless switching between outputs and power-off memory for convenient operation. With stable performance and compact design, it provides efficient video signal management for conference applications.


Specifications of HDMI 4×2 Video Matrix Module D7115

Model

D7115

Input Voltage

DC 5V

Input / Output Resolution

4K@30Hz

Product Dimensions (L × W × H)

232×35×79mm

Product Weight

100g
