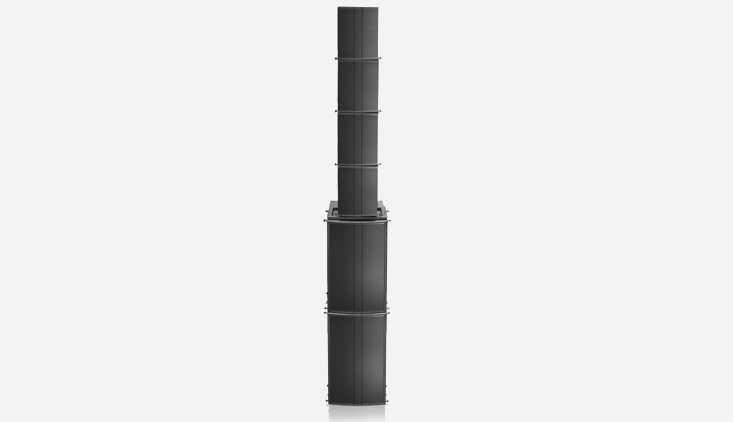

Professional Active Line Array Loudspeaker System LA-8300 LA-212SUB

  • Using imported neodymium magnetic units.

  • With a built-in DSP audio processing module for precise debugging.

  • Using a high-power single-channel class-D active amplifier module.

  • Small in size, light in weight, and high in efficiency.

  • Portable and easy to install.

  • Product applications: Churches, Conference Rooms, Theaters, Theme Parks, Museums, and Hotels.


Datasheet
Get Quotation
DETAILS
SPECS
Professional Active Line Array Loudspeaker System
Professional Active Line Array Loudspeaker System
Professional Active Line Array Loudspeaker System
Professional Active Line Array Loudspeaker System
Professional Active Line Array Loudspeaker System
Professional Active Line Array Loudspeaker System
Professional Active Line Array Loudspeaker System
Professional Active Line Array Loudspeaker System

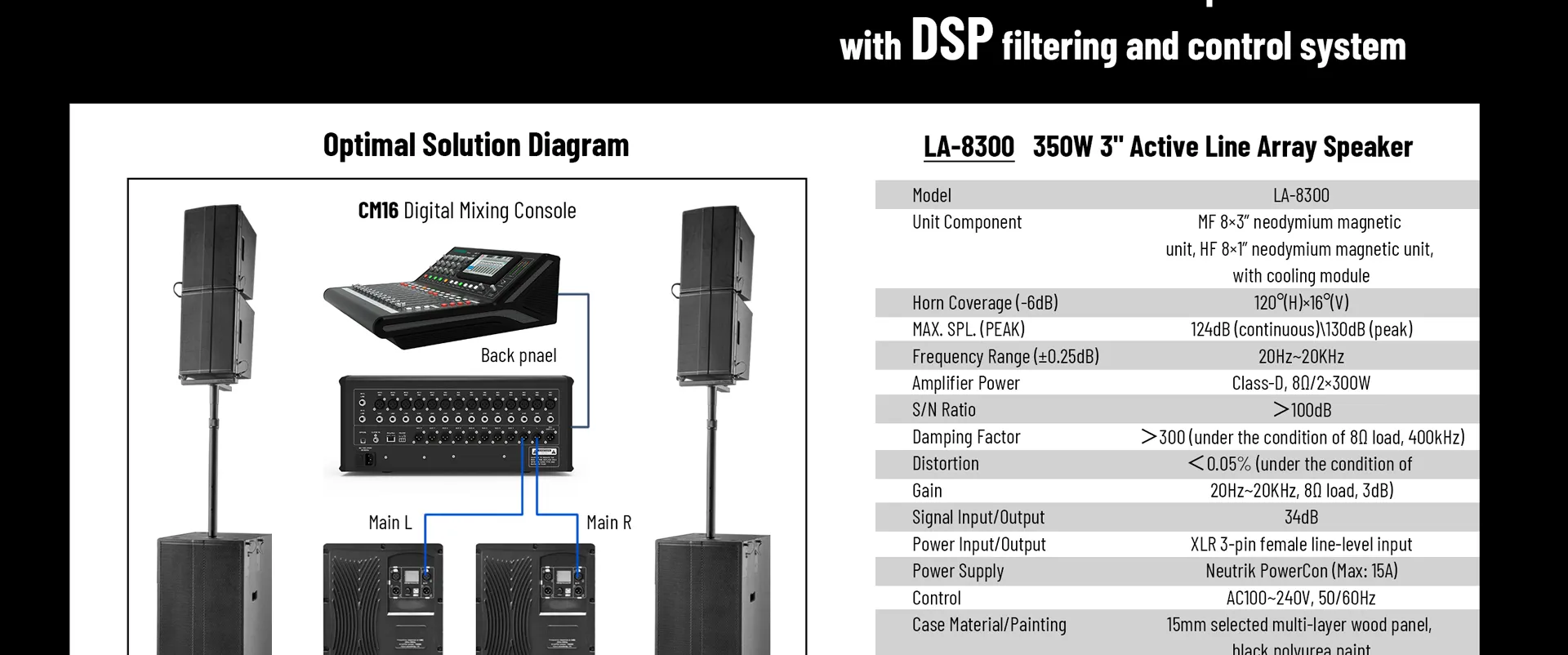

Specifications of Professional Active Line Array Loudspeaker System

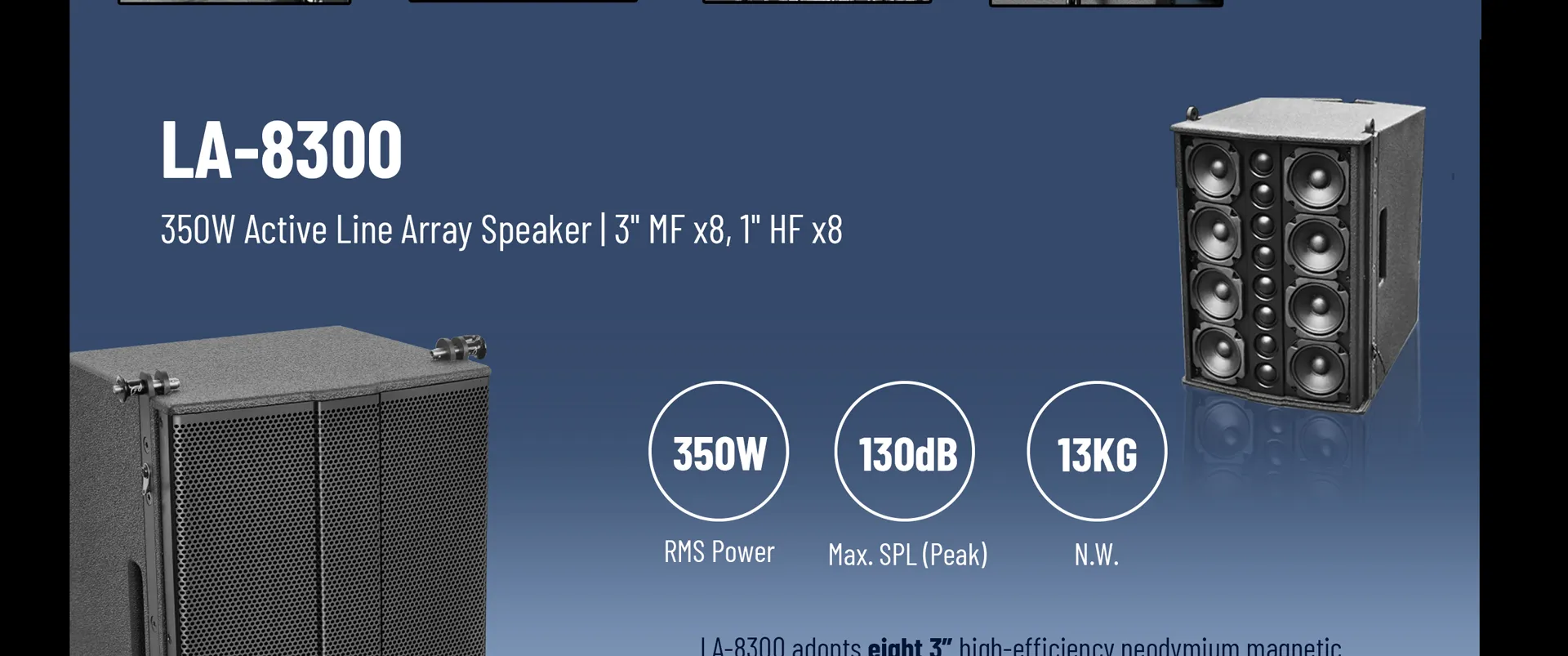

Model

LA-8300

Unit Component

MF 8×3” neodymium magnetic unit, HF 8×1” neodymium magnetic unit, with cooling module

Horn Coverage (-6dB)

120°(H)×16°(V)

MAX. SPL. (PEAK)

124dB (continuous)\130dB (peak)

Frequency Range (±0.25dB)

20Hz~20KHz

Signal Processing

48kHz, 24-bit DSP processor, delay: input 120ms/output 20ms, filter, EQ, compressor, limiter

Amplifier Power

Class-D, 8Ω/2×300W

S/N Ratio

>100dB

Damping Factor

>300 (under the condition of 8Ω load, 400kHz)

Distortion

<0.05% (under the condition of 20Hz~20KHz, 8Ω load, 3dB)

Gain

34dB

Signal Input/Output

XLR 3-pin female line-level input

Power Input/Output

Neutrik PowerCon (Max: 15A)

Power Supply

AC100~240V, 50/60Hz

Control

On/Off switch

Protection

Input current limiter, short circuit protection, on/off mute, DC fault protection, power limiter

Case Material/Painting

15mm selected multi-layer wood panel, black polyurea paint

Product Dimensions (H×W×D)

360mm×260mm×288mm

Net Weight

13Kg

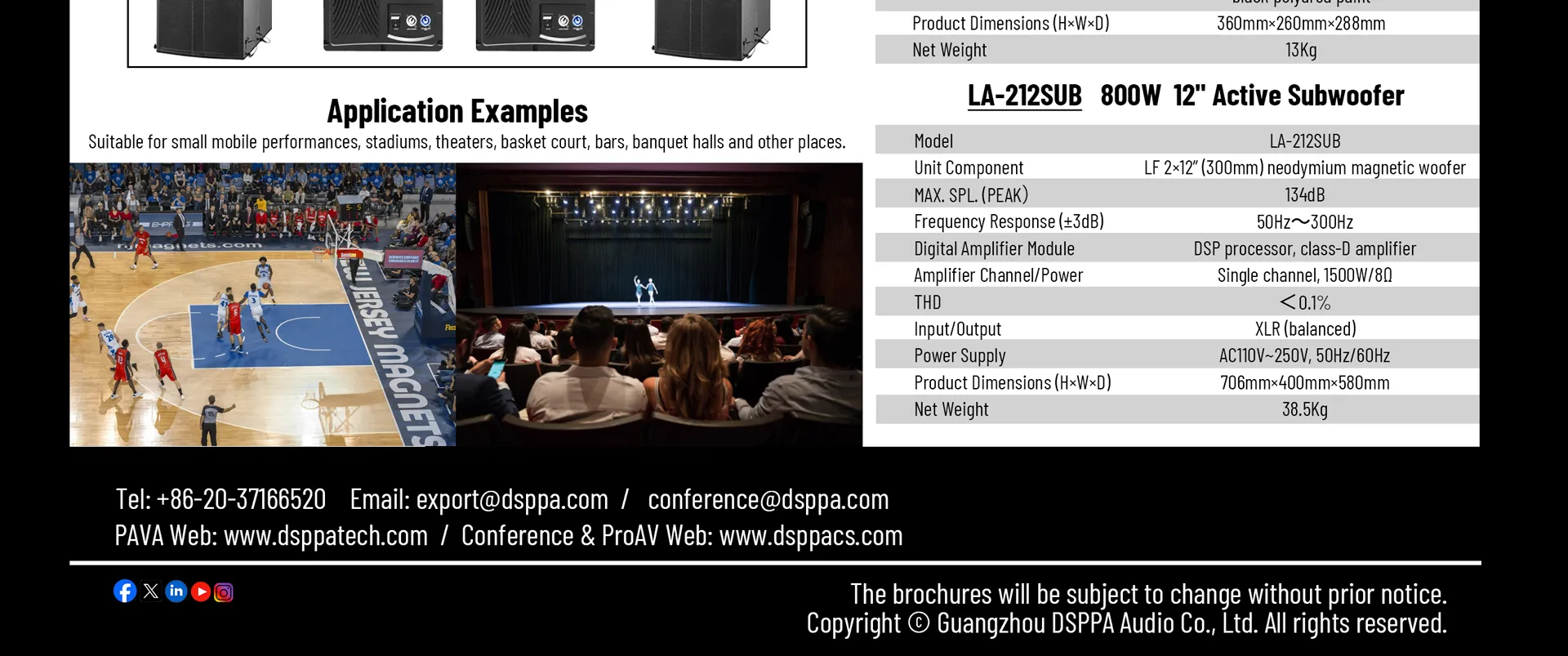

Model

LA-212SUB

Unit Component

LF 2×12” (300mm) neodymium magnetic woofer

MAX. SPL. (PEAK)

134dB

Frequency Response (±3dB)

50Hz~300Hz

Digital Amplifier Module

DSP processor, class-D amplifier

Amplifier Channel/Power

Single channel, 1500W/8Ω

THD

<0.1%

Input/Output

XLR (balanced)

Power Supply

AC110V~250V, 50Hz/60Hz

Product Dimensions (H×W×D)

706mm×400mm×580mm

Net Weight

38.5Kg
