7° inclined ergonomic desktop design for comfortable presentation operation.
Foldable structure with compact storage size and expanded working space when deployed.
Aircraft-grade aluminum profile and cold-rolled steel structure for durable construction.
5 mm thick aluminum sliding panel with integrated retaining strip for laptop placement stability.
Heavy-duty 2.0 mm guide rail system for smooth pull-out operation.
1.2–1.5 mm cold-rolled steel body with pickling, phosphating, and high-temperature coating treatment.
9 mm E1-grade high-density fiberboard with melamine surface for structural support.
Aluminum support columns with brushed finish and arc chamfer design for structural stability.
Rear cabinet door with mechanical lock for internal equipment installation and maintenance.
Side access door design for convenient host access and control.
Built-in ventilation holes on both sides for equipment heat dissipation.
3 mm aluminum base with curved structure and integrated φ50 mm cable routing holes.
Four bottom-mounted wheels for flexible mobility.
Built-in 80 cm gooseneck microphone for speech pickup.
Dual HDMI output for display and monitor connection.
6.35 mm microphone output and AC power connection for system integration.
Supports optional 21.5-inch touch all-in-one PC with OPS-style configuration.
Supports optional 32-inch front advertising display for information presentation.

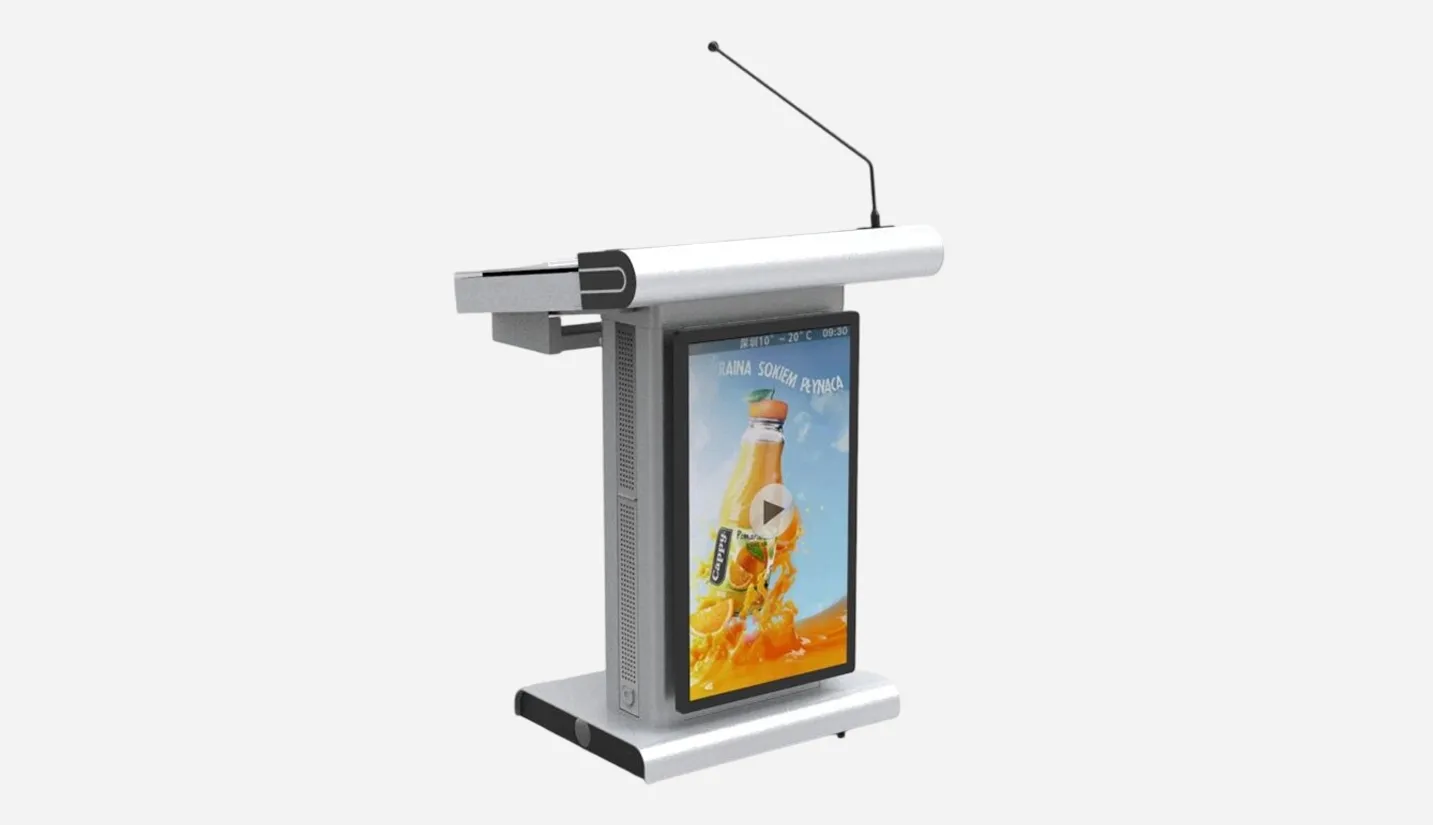

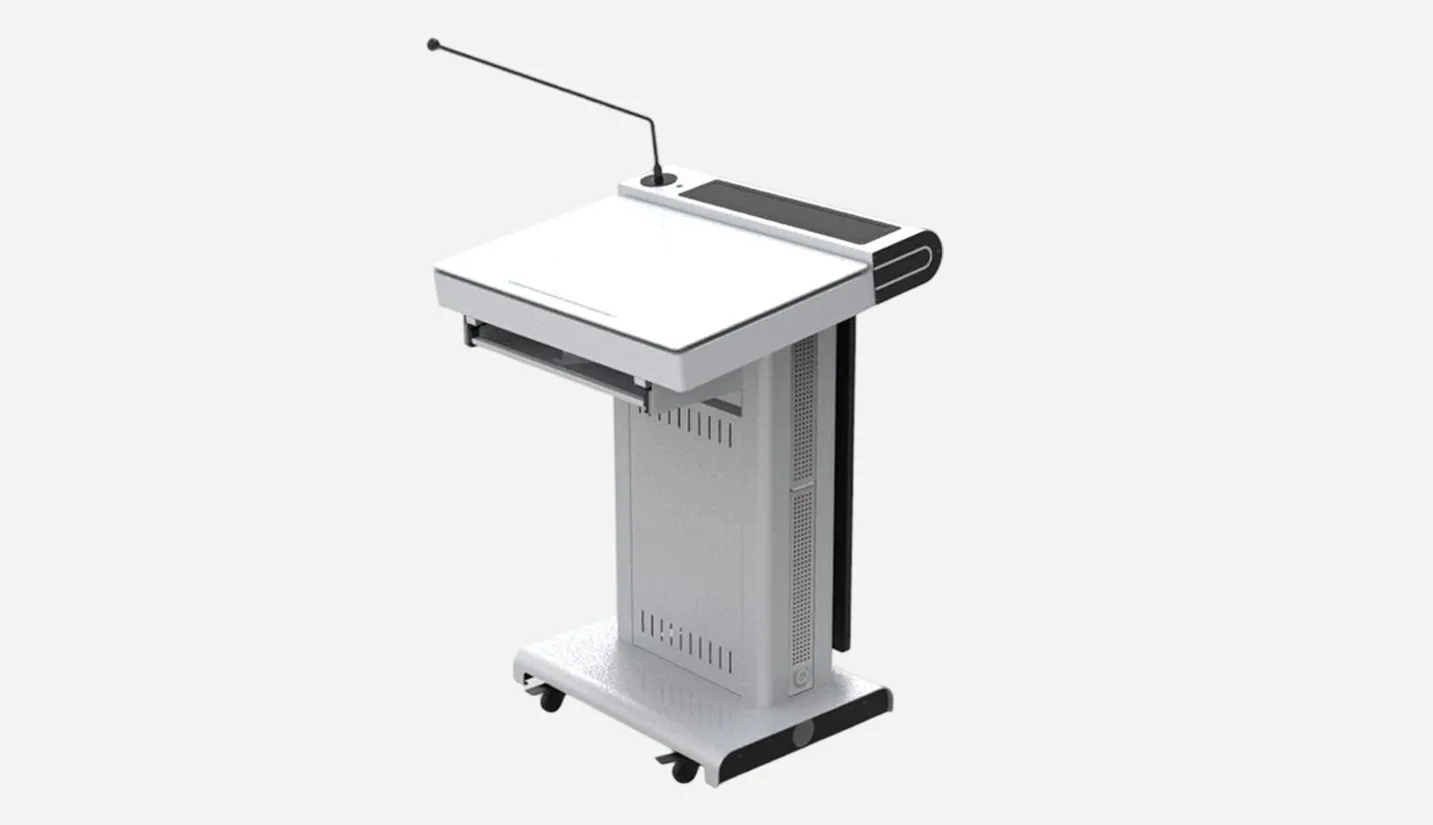

The DP503 Smart Multimedia Podium is an all-in-one presentation solution designed for conference rooms, lecture halls, auditoriums, academic venues, and government meeting spaces. Combining ergonomic design, durable construction, comprehensive audio and video connectivity, and flexible expandability, the DP503 integrates presentation, signal transmission, equipment storage, and intelligent control into a single platform, providing a stable, convenient, and professional multimedia solution for a wide range of presentation and conferencing applications.
Model | DP503 |
Closed Dimensions (L×W×H) | 735mm× 665mm×1055mm |
Unfolded Dimensions (L×W×H) | 1450mm× 850mm× 1095mm |
Base Dimensions | ≤640mm × 480mm × 70mm |
Max Compatible Keyboard Size | ＜450mm × 180mm × 40mm |
Max Compatible Host Size | ≤360mm × 140mm × 390mm |
Base Cable Hole Diameter | φ50mm |
Upper Deck Tilt Angle | 7° ergonomic horizontal tilt |
Material | Aviation aluminum profile, cold rolled steel, E1 high density fiberboard |
Standard Gooseneck Mic | 80cm Length |
Standard Cables | HDMI ×1, USB ×1 |
Output Interfaces | HDMI ×2, 6.35mm audio ×1, 3 pin power ×1 |
Casters | 4× hidden silent casters |
Optional 21.5” Touch PC | Intel i5 4th Gen, 8G DDR4, 256G SSD |
Optional 32” Front Screen | Android 9.0, 2+16GB, tempered glass |
