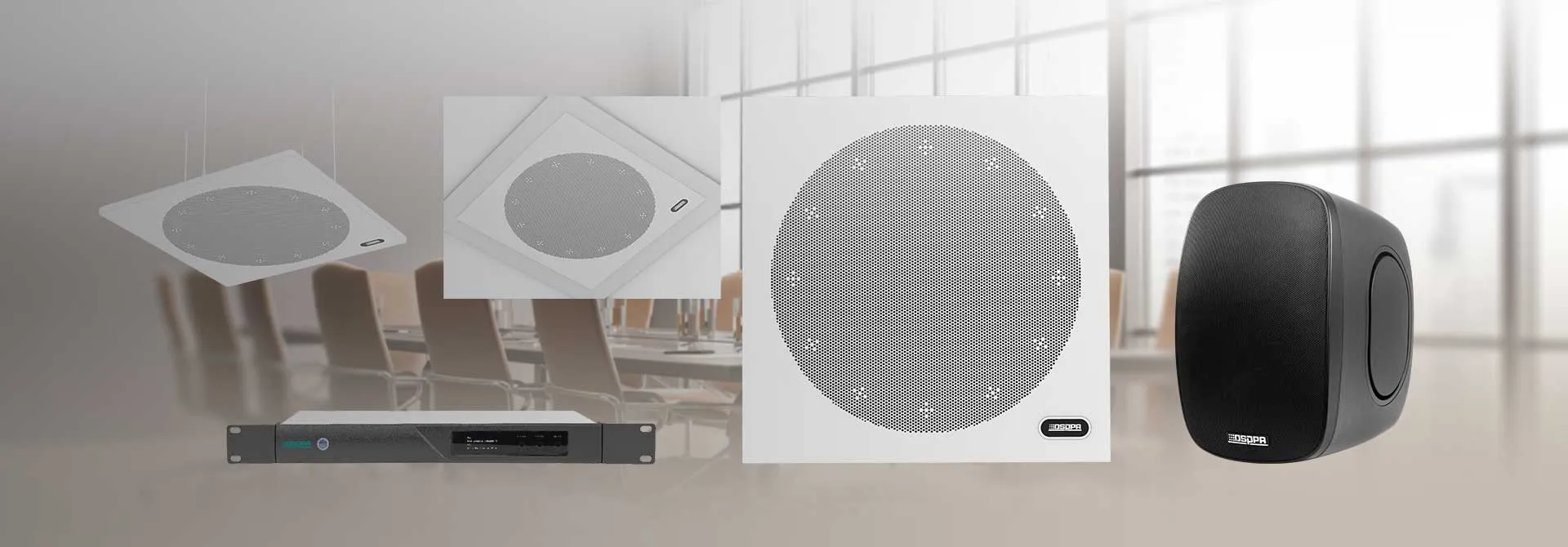

Ceiling Array Conference System Solutions for All-Scenario Smart Conferencing D7702

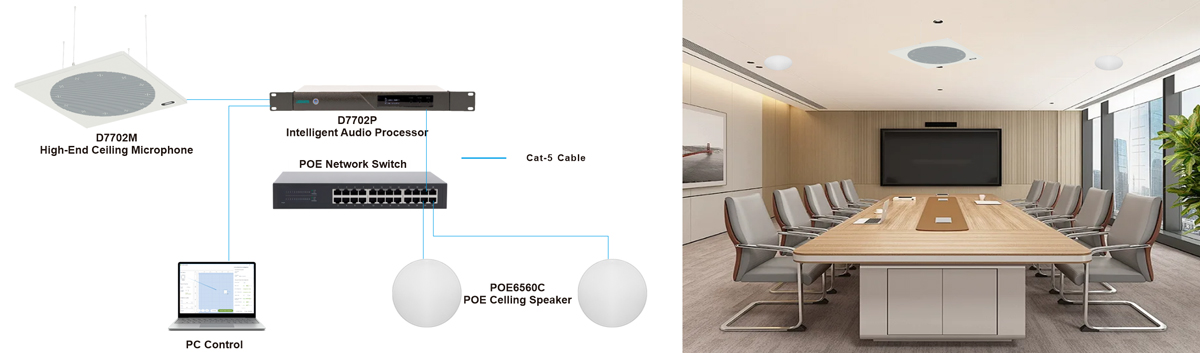

II. Solution Configuration – Small Conference Room (50 m²)

Single D7702M Unit:

It is suitable for corporate departmental meetings, project discussions, small-scale training sessions, and remote video conferences. Designed for compact spaces, it prioritizes clear audio performance, easy installation, and overall aesthetic integration, ensuring efficient and productive meetings.

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

Advantages and Core Value of the Solution

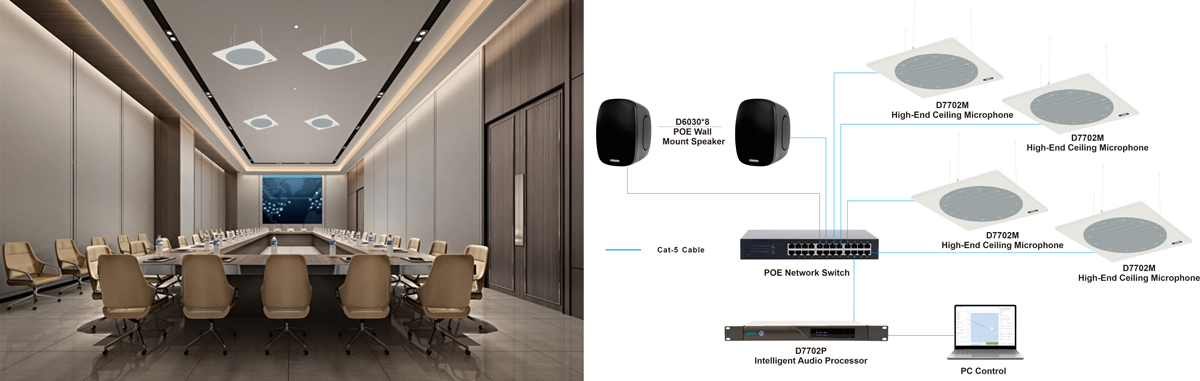

III. Solution Configuration – Large Conference Room (180 m²)

Four D7702M Units:

It is suitable for large-scale corporate annual meetings, all-hands conferences, and academic lectures. Designed for spacious environments with a large number of participants, it focuses on ensuring uniform audio coverage across a wide area, maintaining clear speech intelligibility, and delivering long-term system stability.

Advantages and Core Value of the Solution

IV. Summary of Smart Conference System Solution

All-Scenario Smart Conference System Solution

Whether addressing the need for convenience and efficiency in small and medium-sized meeting rooms or meeting the professional full-coverage requirements of large venues, the DSPPA D7702 system delivers outstanding performance. Through the deep integration of hardware and software, it overcomes the limitations of traditional audio equipment, ensuring every remote or on-site communication is clear, smooth, and efficient.

V. D7702 Smart Conference System Introduction

VI. All-Scenario Smart Conference System

VII. D7702 Smart Ceiling Array Conference System Features

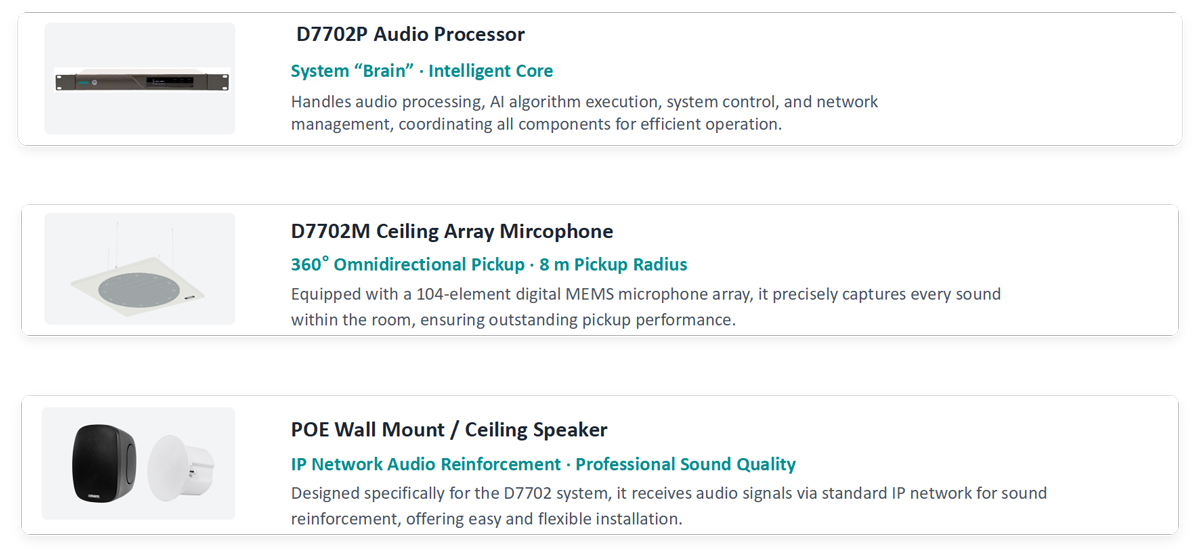

The D7702 Smart Conference System is an integrated solution consisting of two core components: the D7702P audio processor and the D7702M ceiling array microphone. Power supply and data transmission are both achieved through a single network cable, greatly simplifying system deployment. The system delivers seamless local sound reinforcement with natural, unobtrusive audio, ensuring clear on-site communication. It also integrates smoothly with remote conferencing platforms, providing both local and remote participants with an equally clear and consistent communication experience.

D7702 Smart Ceiling Array Conference System Features

AI De-Reverberation Technology—8m Long-Range High-clarity Voice Pickup

It reduces echo and reverberation in large or acoustically challenging spaces, ensuring high-quality voice clarity in any environment.

AI Noise Cancellation

With over 300 types of environmental noise profiles, the system efficiently eliminates unwanted noise from meetings, classrooms, factories, and other environments, ensuring clear and uninterrupted audio quality.

VIII. D7702 PC Software

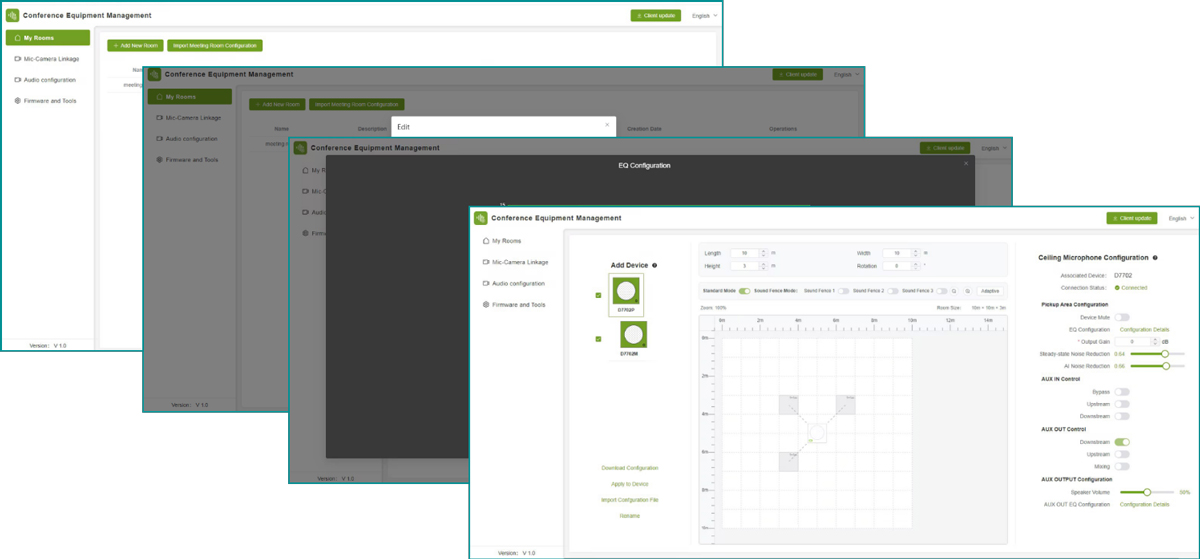

PC Control Software:

On the PC side, users can operate, configure, manage, and perform upgrade and maintenance of the ceiling microphone system via dedicated control software

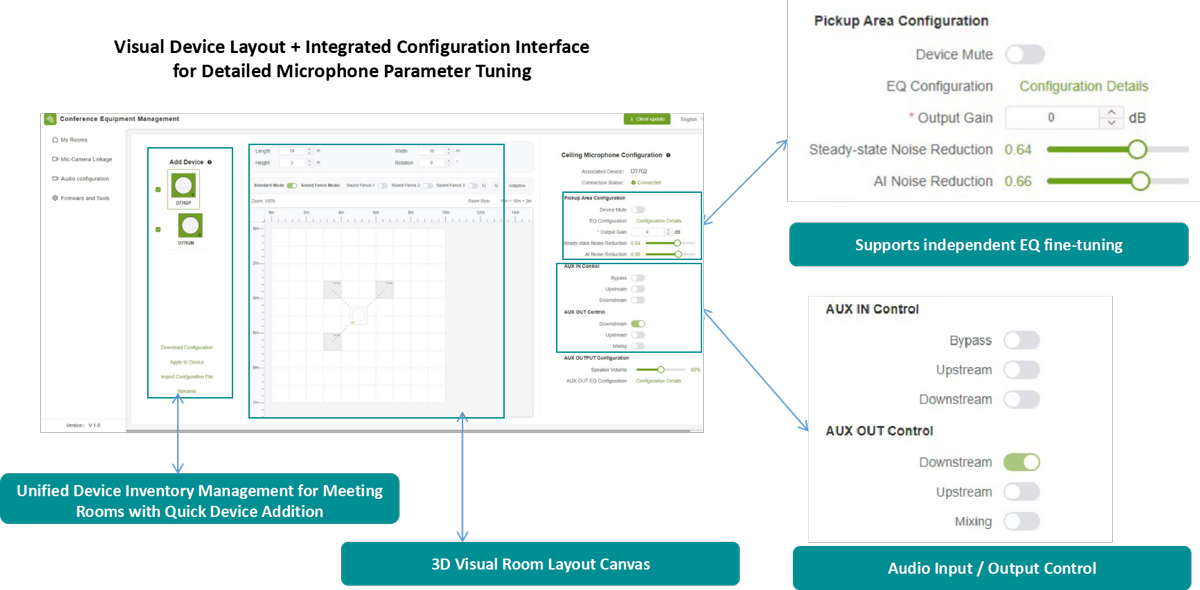

Visual Debugging Interface

IX. Core Product_D7702P Audio Processor

The D7702P serves as the intelligent “brain” of the entire audio system. It handles high-speed audio signal processing, real-time execution of advanced AI algorithms, and centralized control of all connected devices, acting as the core hub that ensures stable system operation.

X. Core Product_D7702M Ceiling Array Microphone

The D7702M is the core audio capture unit, specially designed for modern conference rooms. With a sleek, space-saving design, it integrates seamlessly into the environment while delivering an exceptional audio experience.

Intallation Method_D7702M

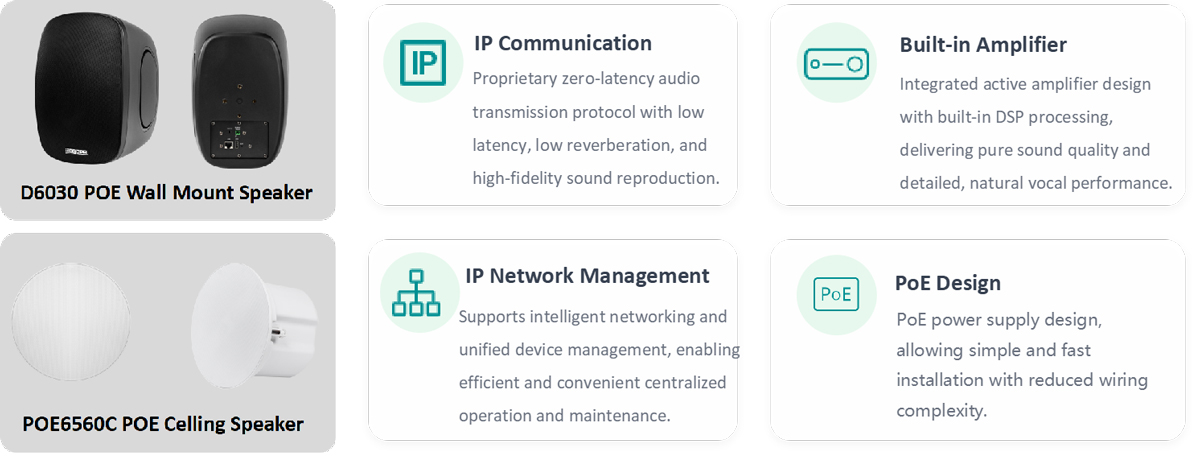

XI. Core Product_POE Speaker

DSP Integrated IP Sound Reinforcement, Seamlessly Compatible with the D7702 System

• Built on a standardized IP audio transmission architecture with integrated DSP processing, it enables seamless zero-latency audio reinforcement integration with the D7702P processor. The system is plug-and-play, greatly simplifying installation and setup.

XII. Application Scenarios

The all-scenario smart conference system, with AI-powered processing, flexible deployment, and seamless coverage capabilities, is suitable for a wide range of applications ranging from small and medium-sized departmental meetings to large-scale corporate conferences, ensuring clear and efficient communication across all meeting sizes.
