D7702 Omnidirectional Ceiling Microphone Solutions for Conference Rooms

 II. Market Demands

Drawbacks of Traditional Handheld Microphones

• Limited pickup range: Handheld microphones need to be aimed directly at the speaker’s mouth, resulting in a relatively narrow pickup range, which is not suitable for meetings or discussions with multiple speakers.

• Frequent passing requirements: In meetings with several participants, the handheld microphone must be passed between different speakers, which may interrupt the flow of the meeting.

• More susceptible to echo and interference: Due to their directional nature, handheld microphones are more likely to be affected by echoes and background noise from the surrounding environment.

• Complex installation and usage: Handheld microphones may need to be connected to complex sound systems and require adjustments and testing during use.

• Narrow applicability: Handheld microphones are better suited for performances and speeches, making them less versatile in meetings with multiple participants.

Launch of the D7702 Omnidirectional Ceiling Microphone

• Wide pickup range: The omnidirectional microphone can evenly capture sound within a 360-degree radius, eliminating the need to aim directly at the speaker, making it suitable for meetings or discussions involving multiple participants, unlike handheld microphones that require direct alignment with the speaker’s mouth.

• Reduced passing requirements: In traditional handheld microphone scenarios, microphones often need to be passed between different speakers. The omnidirectional microphone eliminates this need, enhancing the flow of the meeting.

• Minimized echo and interference: Omnidirectional microphones are typically designed to reduce echo and background noise, providing clearer audio quality.

• Easy installation: Omnidirectional microphones are generally easy to install. It can be installed at the center of the conference table or on the ceiling without the need for complex wiring and setup.

• Facilitated recording and transcription: Omnidirectional microphones can be easily connected to recording devices or meeting documentation systems, making it convenient to record and transcribe meeting content.

 III. Solution Configuration - Small Conference Room (50㎡)

Single D7702 Unit: Remote Conferencing + Local Sound Reinforcement

System Design Concept

• A single D7702 omnidirectional ceiling microphone is used for full-room voice capture.

• Two Dante DT4100 speakers provide local sound reinforcement.

• The D7702’s AI noise reduction, echo cancellation, and multi-zone pickup features ensure clear and intelligible audio.

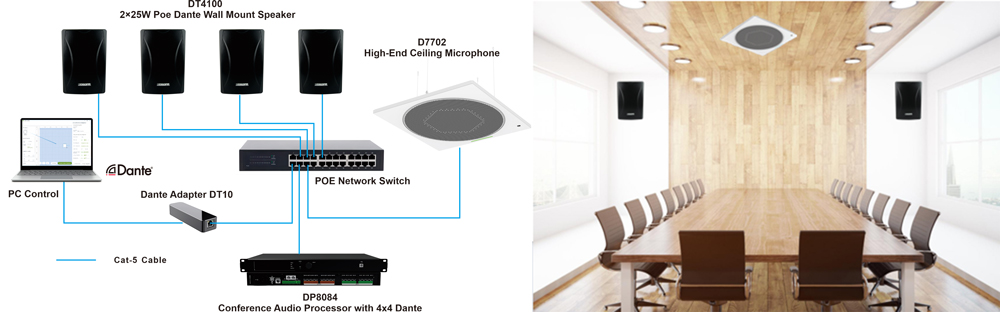

Device Layout Plan

• The D7702 is installed at the center of the room to cover the entire conference area.

• Two Dante speakers are symmetrically placed on either side of the room to achieve stereo sound reinforcement.

• All devices are powered via PoE switch and transmit Dante audio signals over the network.

IV. Solution Configuration - Medium-Sized Conference Room (80~120㎡)

Single D7702 Unit: Remote Conferencing + Local Sound Reinforcement

Conference Room Overview:

• Primary Usage: Department meetings, training sessions, and multi-room linked conferences.

System Design Concept:

• A single D7702 Omnidirectional Ceiling Microphone is used for intelligent voice capture.

• One Dante audio processor DP8084 handles audio routing and processing.

• Four Dante speakers are configured to achieve more uniform sound coverage.

Device Layout Plan:

• The D7702 is installed slightly forward of the center of the room to cover the main speaking area.

• Four Dante speakers are placed at the corners or symmetrically to enhance voice clarity and coverage.

• The Dante audio processor is connected to a PoE switch to centrally manage all audio signals.

 V. Solution Configuration - Large Conference Room (200㎡)

Multiple D7702 Units Cascaded: Remote Conferencing + Local Sound Reinforcement

Conference Room Overview:

• Primary Usage: Large conferences, presentations, training sessions, and multi-location video-linked meetings.

System Design Concept:

• Three D7702 Omnidirectional Ceiling Microphone are cascaded to achieve seamless full-room voice coverage.

• One Dante audio processor D6642HD provides multi-channel mixing.

• Eight Dante DT4100 speakers deliver uniform sound reinforcement across the room.

Device Layout Plan:

• The three D7702 microphones are installed in a triangular or linear arrangement to cover the entire room.

• Eight Dante speakers are distributed by zone to achieve zoned reinforcement and balanced sound coverage.

• All devices are cascaded via PoE switches, supporting Dante network audio transmission.

Software Configuration Plan:

• Each D7702 is configured with independent pickup zones, supporting up to 8 zones per unit.

• Enable full AI functions: noise reduction, reverberation suppression, AFC, and echo cancellation.

• Use Dante Controller for unified management of multiple devices, supporting independent channels for remote conferencing and local sound reinforcement.

 VI. Product Highlights

 VII. Camera Tracking

System Connection Diagram

The D7702 omnidirectional ceiling microphone needs to be integrated with the central control system to achieve camera linkage and face tracking functionality. The D7702 device has a built-in TCP server (see red box below), and the central control system needs to implement a TCP client (see yellow box) to communicate according to the agreed protocol.

 VIII. Functional Features - D7702

D7702 is a newly launched high-end ceiling conference microphone. It integrates up to 128 units of omnidirectional microphone array, providing 16 independent configurable pickup zones for refined pickup configuration. It adopts Dante digital audio technology to ensure stable audio transmission and wide compatibility. DMC700 incorporates AI algorithms, providing functions such as AI noise suppression, AI reverberation suppression, AI adaptive feedback control (AI-AFC), and AI echo cancellation, effectively improving meeting efficiency.

 IX. Functional Features - D7702

The Audio Controller is an interface configuration tool for Ceiling Microphones. Use this tool to adjust the sound pickup area of the conference room and configure different parameters for different conference rooms. (Current software version is only available for WINDOWS system.)

 X. Product Features - D7702

 XI. Installation Methods - D7702

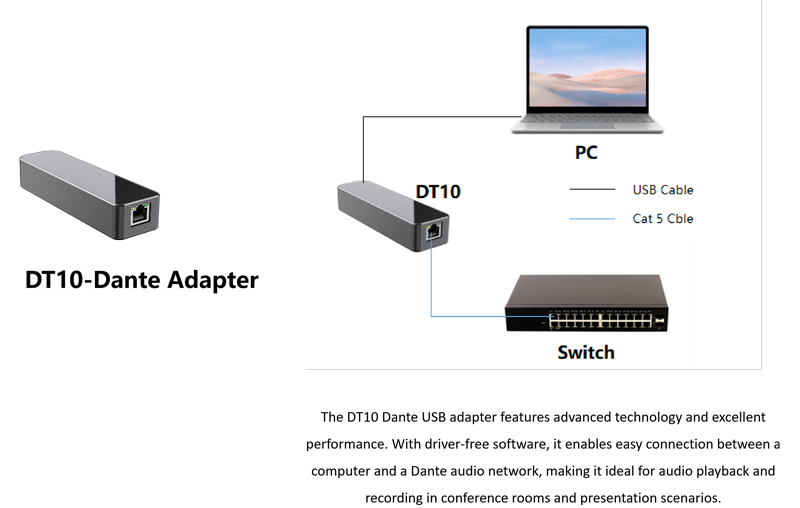

XII. DT10_Dante Adapter

 XIII. Application Scenarios

Leveraging the D7702 omnidirectional microphone’s sleek design, durability, and outstanding sound performance, it effectively resolves the problem of unclear audio pickup for participants. This microphone is suitable for a variety of places such as training rooms, smart classrooms, high-end conference rooms, interactive meeting spaces, and courtrooms.
