Digital Conference System Solution for Small and Medium-Sized Conference Rooms MP9866

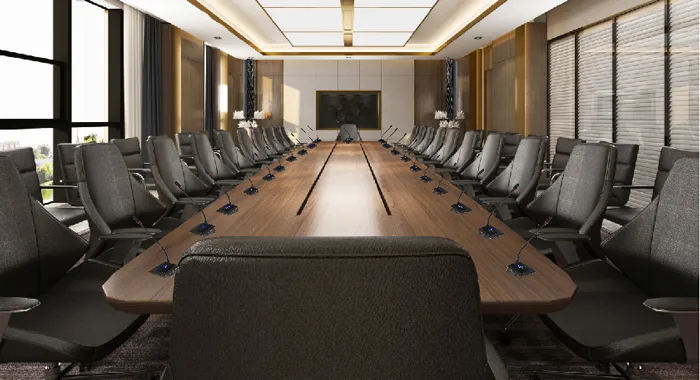

 II. Application Solution for Small and Medium-Sized Conference Rooms (120 ㎡)

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

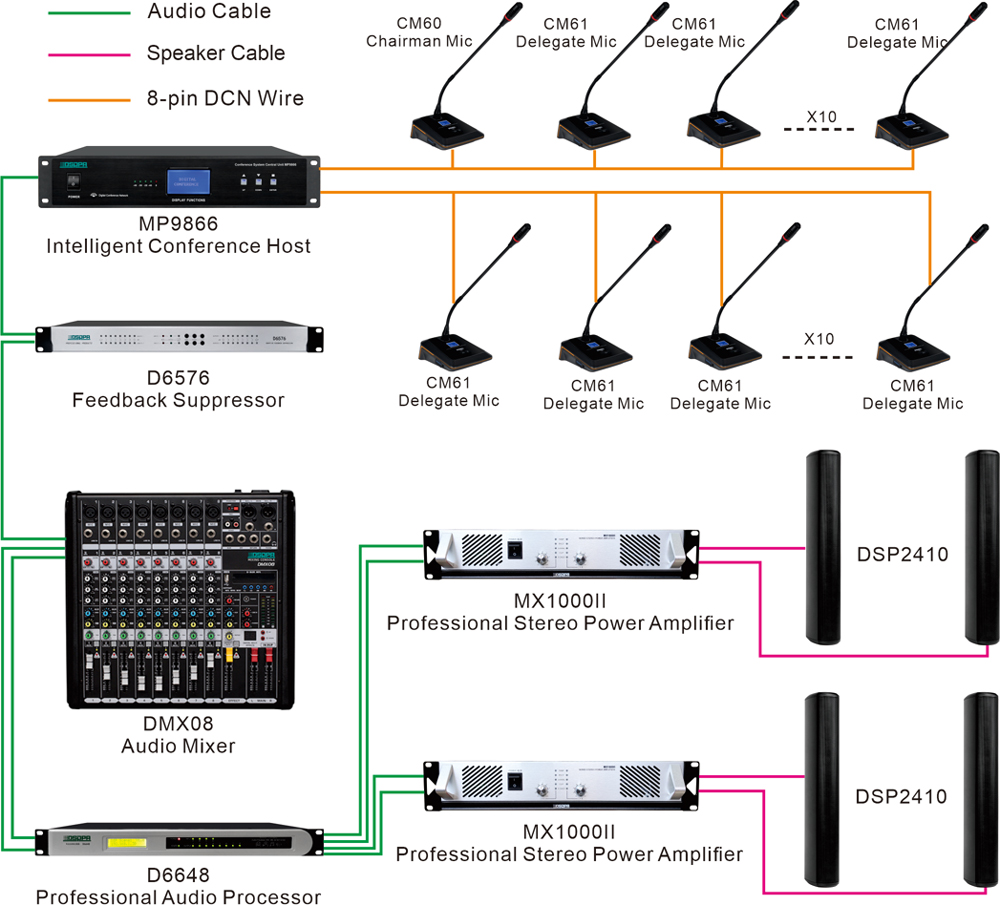

 III. Solution Configuration Overview

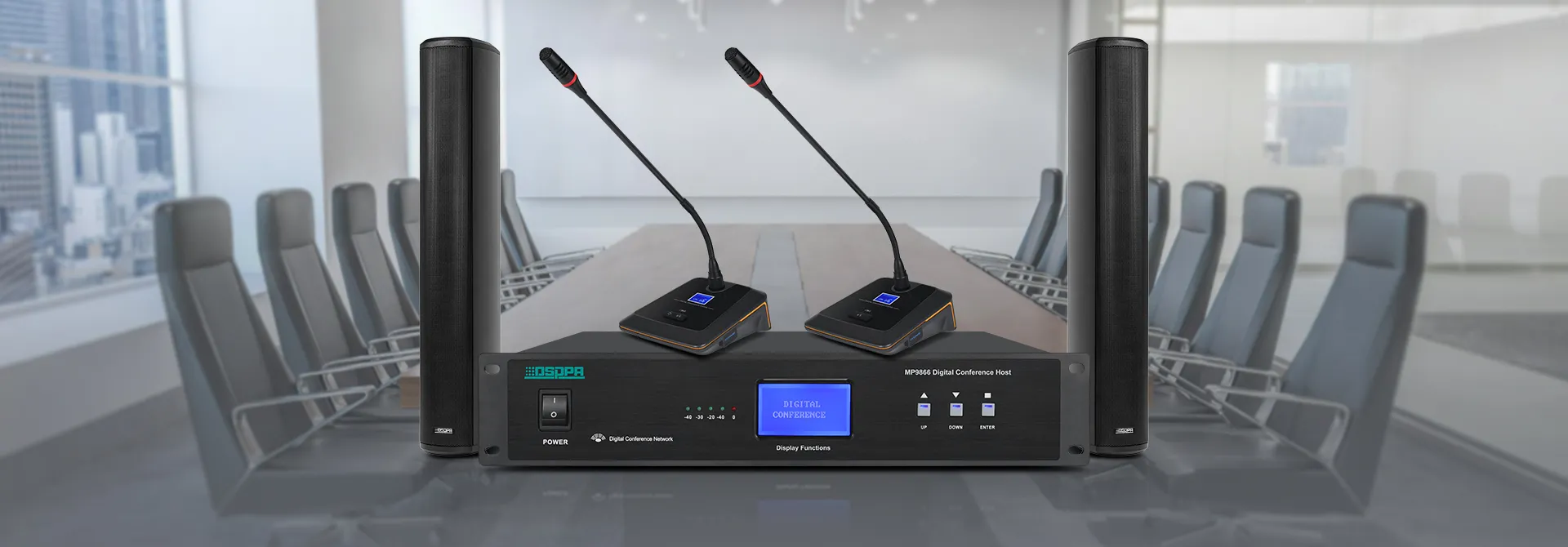

Conference System: MP9866 Digital Conference System

• Full Digital Audio Transmission for Superior Sound Quality: The system uses 8-core professional cables for full digital signal transmission, delivering strong anti-interference performance.

• “Daisy-Chain” Connection for Simplified Wiring: All conference units (chairman and delegate units) are connected in series through a single cable, greatly simplifying the cabling process.

• Intelligent Conference Management: Multiple Conference Modes: Supports FIFO (First-In-First-Out), Free Mode, and Chairman Priority Mode to adapt to different meeting formats.

• Speaking Unit Limitation: Allows configuration of 1–6 simultaneous speaking units, effectively controlling meeting flow and preventing disorderly discussion.

• Chairman Priority: The chairman unit holds the highest priority and can mute all delegate microphones at any time to maintain meeting order.

Sound Reinforcement System: DSP2410 Series Professional Conference Column Speakers

• Emphasizes high sensitivity, low distortion, and strong directivity for optimized speech clarity.

• DMX08 8-Channel Mixer: Provides audio input access for the meeting room.

• D6675 Professional Audio Processor: Ensures clear speech with no distortion and eliminates acoustic feedback.

• 4×DSP2410 Professional Column Speakers: Deliver uniform sound coverage throughout the room.

• 2×DX1500 Dual-Channel Constant-Impedance Amplifiers: Provide ample sound pressure levels, even sound distribution, and accurate sound imaging.

 IV. MP9866 Digital Conference System

 Features

 Connection Methods

 MP9866 Panel Description

 CM60/CM61 Digital Conference System Microphone

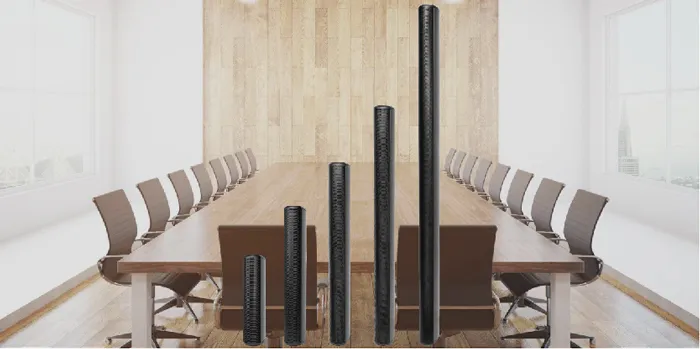

 V. DSP2405 Series Professional Column Speaker

Driver Unit Design

• Racetrack-shaped bass driver: Equipped with a 50×90mm (equivalent to 2.5") paper-cone bass driver paired with a 1" tweeter.

• High Sensitivity & Low Distortion: The unique design offers high sensitivity and low distortion, delivering natural, smooth, and well-balanced sound quality.

Acoustic Performance

• Linear acoustic structure: Enhances mid-to-high frequency reproduction with improved directivity, providing more focused sound energy and clearer, more balanced audio output.

• Frequency response: 120Hz–20kHz across the entire series, covering key vocal and music frequency bands.

• Maximum SPL: Ranges from 105dB (DSP2405) to 115.7dB (DSP2430), suitable for medium to long-distance sound reinforcement.

Structure and Appearance

• Aluminum alloy enclosure: Sealed design for durability and reduced interference noise.

• Streamlined metal grille: Integrated with the enclosure for a modern and elegant appearance.

Power & Model Range

• Power options range from 50W to 300W, with a total of five models available to suit different room sizes and installation needs.

Installation & Application Scenarios

• Flexible installation: Supports multi-power level adjustments (e.g., optional 100V/8Ω configuration).

• Applicable venues: Ideal for small and medium-sized venues such as restaurants, tea houses, stations, schools, plazas, office buildings, medium-sized conference rooms, home theaters, and churches

 VI. Case Studies

The MP9866 Digital Conference System is a comprehensive solution that integrates advanced technology, practical functionality, and reliable performance. It not only meets the core requirements of modern meeting rooms for superior audio quality and efficient management, but also adapts to evolving meeting needs through  its flexible configuration and powerful features, making it an ideal choice for enhancing meeting efficiency and overall quality.
