Intelligent Conference System Solution for Conference D6201

2023 Guangzhou DSPPA Audio Co., Ltd.
System Diagram

Based on ARM9 embedded system platform, using high-performance DSP digital audio processing technology and high-fidelity line design, D62 series digital conference system integrates the advanced control technology with audio processing technology to achieve a digital, visual audio and video conference system.

D62 series digital conference system features discussion, voting, meeting sign-in, simultaneous interpretation, teleconference, automatic camera tracking, and recording of the whole meeting. It supports PC-based remote control and Android tablet wireless control.

Using "cross-shaped" adapters, the conference units are connected to each other by 8-pin wires in a hand-in-hand manner, with simple installation and strong anti-interference ability.


Click on conference system supplier to learn more.


Request a demo

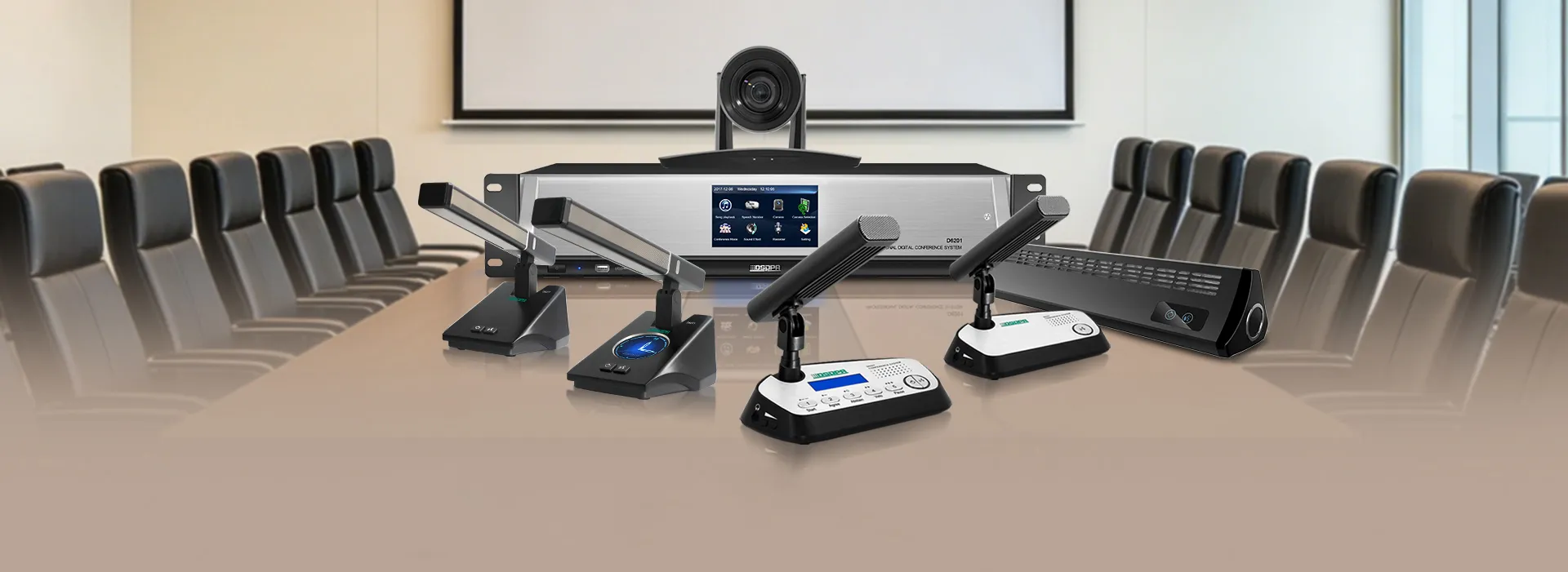

Intelligent Conference System Solution for  Conference D6201
Intelligent Conference System Solution for  Conference D6201

● Conference speech and discussion function

The chairman unit has the priority to speak, which supports four conference speech modes: first-in-first-out mode, normal mode, free mode, and application mode

● System recording and Camera Tracking

Plug a USB flash disk into the host D6201 to record the whole conference audio for easy archiving. Connected with digitalConference System to achieve camera tracking, which can provide close-ups of the speakers.

● PC and mobile phone control function

It supports TCP/IP protocol, and all functions of the system can be remotely controlled through the PC software and mobile phone software, realizing the efficiency of the system.

● Video Seamless Switch System D6108

The D6108 video matrix system can switch any camera video signals, or video conference terminal signals,  to the corresponding display terminals as needed to ensure the orderly progress of the conference. It adopts a matrix signal switcher seamless switching of various video signal sources  to achieve lossless signal transmission,

● Central Control System D6401

DSPPA Central Control System is the core of the audio and video system. It can achieve conference system device control and management. By wireless touch screen (IPAD or mobile phone control) to realize environmental control, such as Audio-Video Switching, Projector Control, Volume Control, Scene Switching, audio and video switching controlLight /air conditioning/curtain  Control


D6201 Series Conference System Diagram


Small Conference System:

Conference Units + Pro Sound Reinforcement System









Model

Name

QTY

D6201

Intelligent Conference Host

1


D6221

Desktop Chairman Microphone with Voting Function

1


D6222

Desktop Delegate Microphone with Voting Function

10

DMX12

12 channels Audio Mixer

1

D6223

Desktop Chairman Microphone

1

D6224

Desktop Delegate Microphone

10

D6237

Connecting Box for Embedded Units

1

D6231

Embedded Chairman Microphone with Voting Function

1

D6262

Embedded Delegate Microphone with Voting Function

1

MX1500II

Professional Stereo Amplifier(8Ω;2x230W)

2

D6563

8'' 150W Professional Two-Way Cabinet speaker

4

D3A

Wall mount bracket

4

MP20U

20U 19" Rack with Door and Fan

1





D6201 Intelligent Conference System & Simultaneous Interpretation System


Medium and large meeting rooms:

With voting, sign-in, automatic camera tracking function and simultaneous interpretation system










Model

Name

QTY

D6201

Intelligent Conference Host

1

D6241

Desktop Chairman Microphone with Voting Function

1

D6242

Desktop Delegate Microphone with Voting Function

13

D6251

Embedded Chairman Microphone with Voting Function

1

D6252

Embedded Delegate Microphone with Voting Function

13

D6284

High Definition Camera

1

D6215II

Digital conference system interpretation host

1

D63R

Repeater unit


D6229II

Digital  Interpretation Unit

4

D6229

Conference headset for Translator

4

D6324II

Digital Infrared radiator Pane

8

D6324K

Bracket for Radiation panel

8

D6325II

Digital infrared receiver

100

D6330

Conference Single Hanging Earphone for the listener

100

D6108

8 Channel HD seamless mixed matrix host box

1

D6104HR

4 Channel Digital HD audio & video input card

1

D6104HC

4 Channel Digital HD audio & video output card

1

D5821

UHF Wireless Microphone System

1

DMX12

12 channels Audio Mixer

1

D6573

Feedback Suppressor

1

D6575

Digital Audio Processor

1

MX2500II

Professional Stereo Amplifier(8Ω;2x2400W)

4

D6564

8'' 250W Professional Two-Way Cabinet speaker

8

D5A

Wall mount bracket

8

D6572II

8 Channel Power Supply Sequence Controller

2

MP40U

40U 19" Rack with Door and Fan

1




D6201 Intelligent Conference System & Central Control System


Multifunctional conference hall:

conference unit system + video matrix system + central control system + professional sound reinforcement system. With automatic camera tracking, video switching function, one-touch control of lighting, air conditioning, curtain switch etc.












Model

Name

QTY

D6201

Intelligent Conference Host

1

D6222

Desktop Chairman Microphone with Voting Function

1

D6222

Desktop Delegate Microphone with Voting Function

13

D6284

High Definition Camera

1

D6108

8 Channel HD seamless mixed matrix host box

1

D6104HR

4 Channel Digital HD audio & video input card

1

D6104HC

4 Channel Digital HD audio & video output card

1

D5821

UHF Wireless Microphone System

1

D6401

Multimedia Central Control Host

1

D6421II

Power controller

1

Pad

Purchase separately

1

Router

Purchase separately

1

DMX12

12 channels Audio Mixer

1

D6573

Feedback Suppressor

1

D6575

Digital Audio Processor

1

MX2500II

Professional Stereo Amplifier(8Ω;2x2400W)

4

D6564

8'' 250W Professional Two Way Cabinet speaker

8

D5A

Wall mount bracket

8

D6572II

8 Channel Power Supply Sequence Controller

2

MP40U

40U 19" Rack with Door and Fan

1





D6201 Intelligent Conference System Highlight Functions
