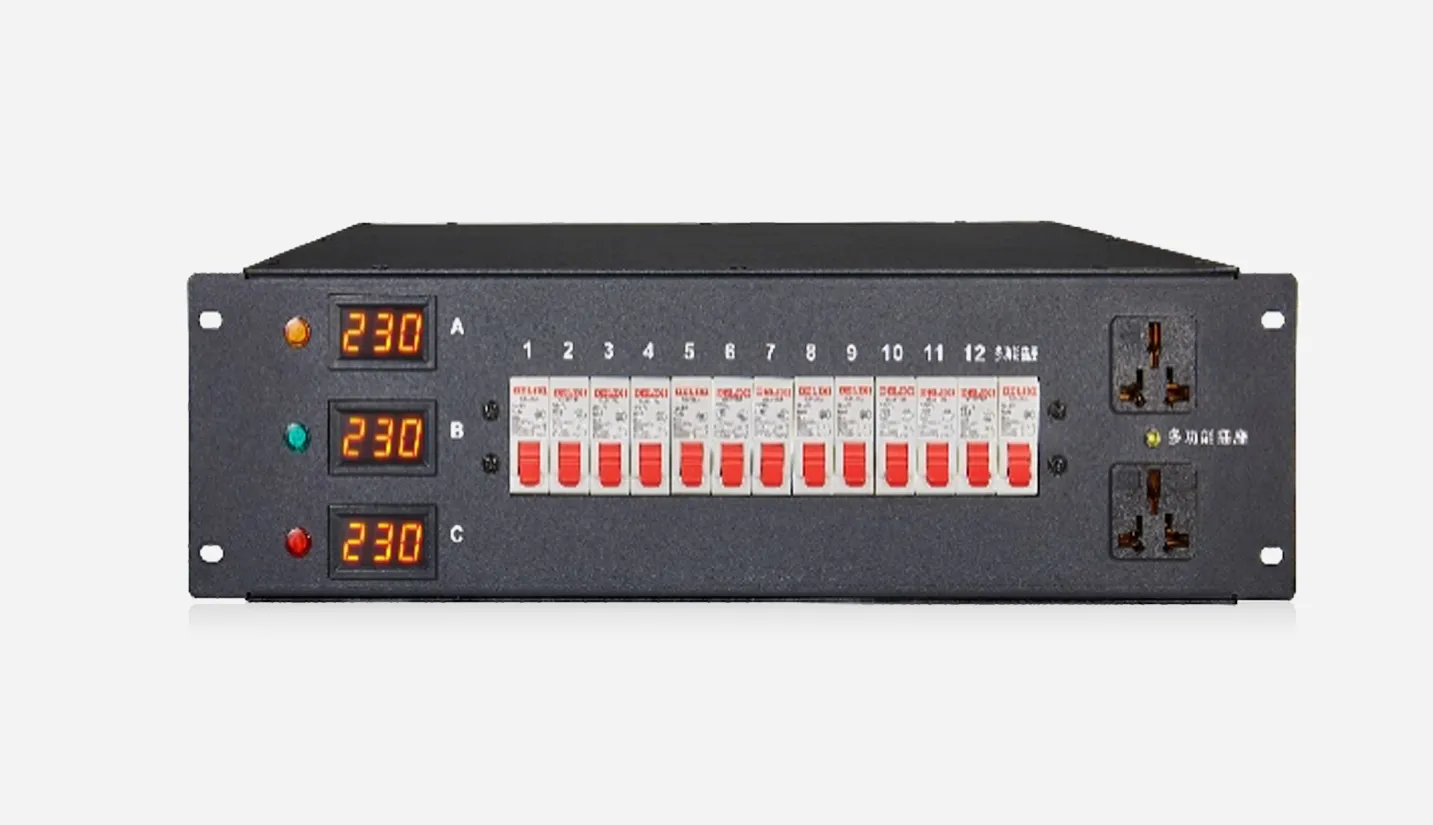

.webp "12-Channel Power Distribution Box")

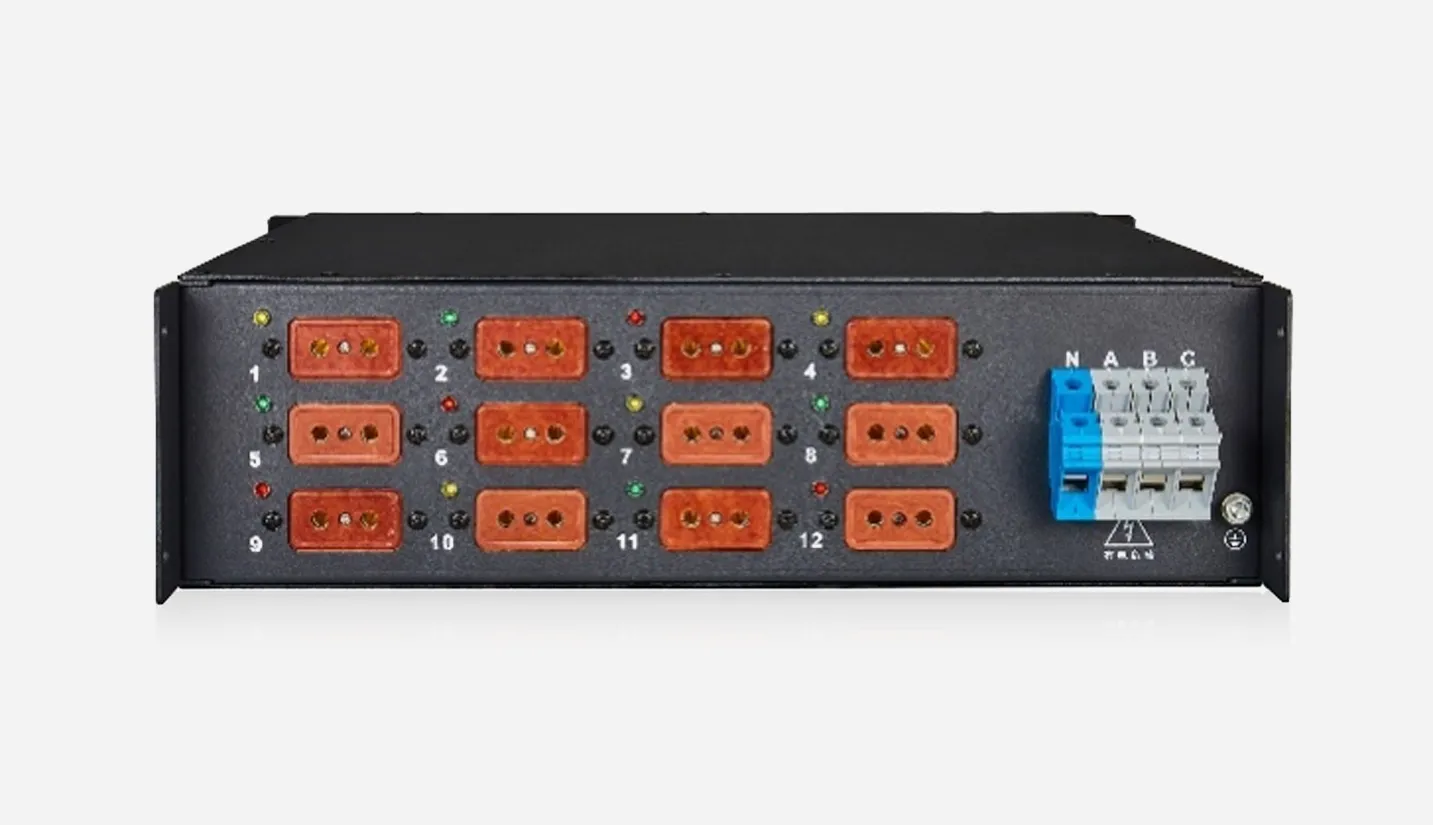

.webp "12-Channel Power Distribution Box")
12 independent output channels, each rated at 4 kW
Main circuit wired with 16 mm² copper cable and 4 mm² for branch circuits
4-pole 35 mm² terminal block input for secure connection
12 × 32 A bakelite sockets for output, suitable for any load type
Individual 1P C32 air switch with dual overload and short-circuit protection
ABC three-phase indicator lights with LED indicators for each channel
Built-in three-phase voltage monitoring
Standard 3U rack-mount design for easy installation
The ZT1204-P1 is a professional 12-channel power distribution box designed for reliable and safe power management in audio-visual, stage, and industrial applications. It features high-quality copper wiring, multiple output channels with overload protection, and real-time three-phase voltage monitoring to ensure stable operation. With its standard 3U rack-mount design and durable bakelite sockets, it provides an efficient and organized power distribution solution for various load types.
Model | ZT1204-P1 |
Type | 12-Channel Power Distribution Box |
Power Supply | Three-Phase Four-Wire System, AC380V±10%, 50Hz±5% |
Rated Power | 12×4kW |
Input | 4P 35 mm² Terminal Block (UK-35) |
Output | 12 × 32 A Bakelite Sockets (AC 220V) |
Protection | Dual Overload and Short-Circuit Protection via 1P C32 Air Switches |
Indicators | ABC three-phase indicator lights + LED indicators per channel |
Voltage Monitoring | Three-phase voltage monitoring module |
Wiring | 16 mm² main cable / 4 mm² branch cable |
Dimensions | Standard 3U rack-mount design |
