Dante 4×3 wall panel with Bluetooth;
One-key pairing with back-lit indication;
Supports Bluetooth 5.3, complaint with V5.0/4.0/2.1+EDR
Transmission without obstruction distance up to 20m;
Compatible with most smartphones, Apple iPads, and Android tablets;
Controllable by Web-UI, Dante Controller or Dante Director software;
Supports API for control center for system control usage;
Powered by network switch via PoE(IEEE 802.3af).

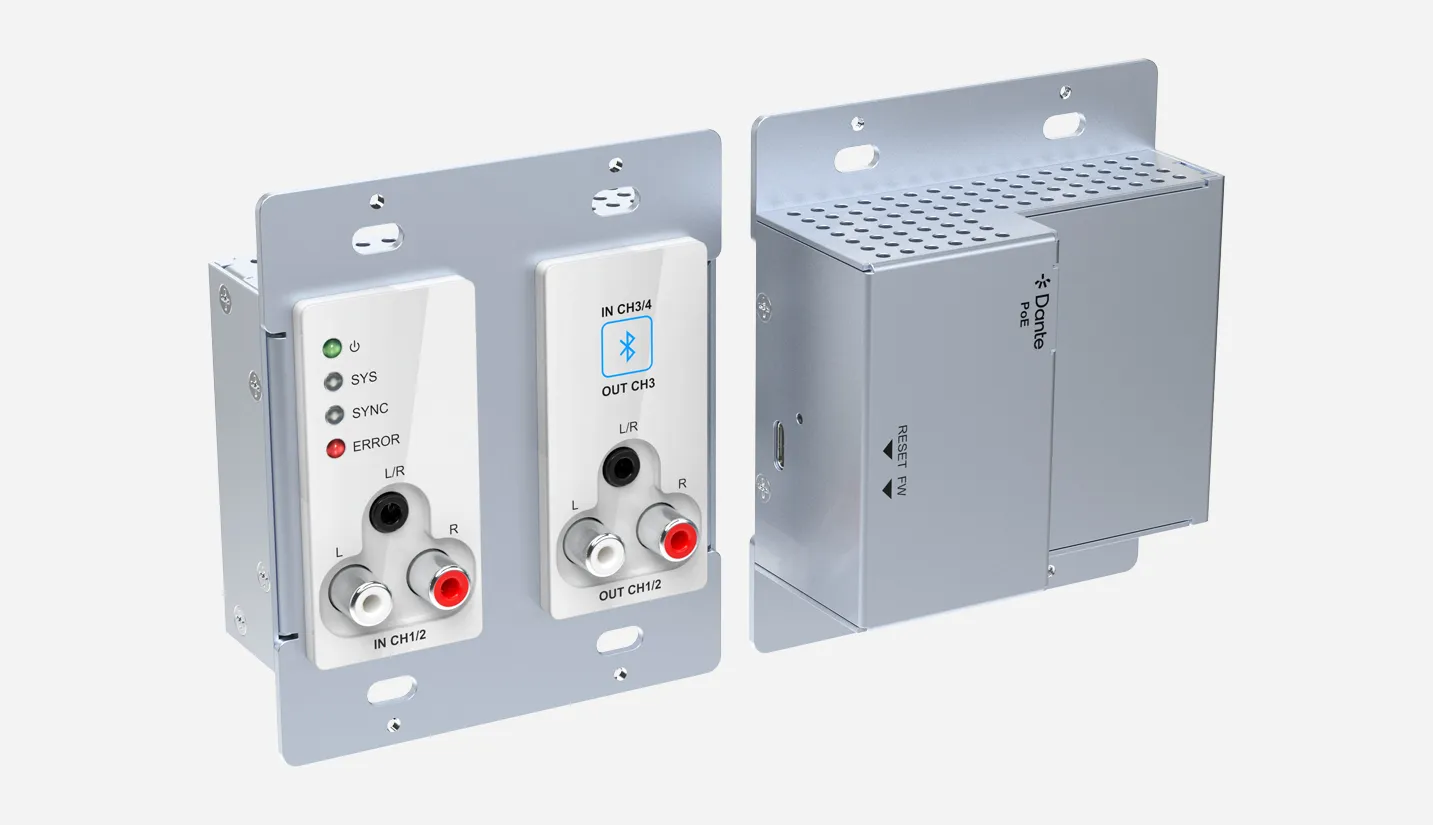

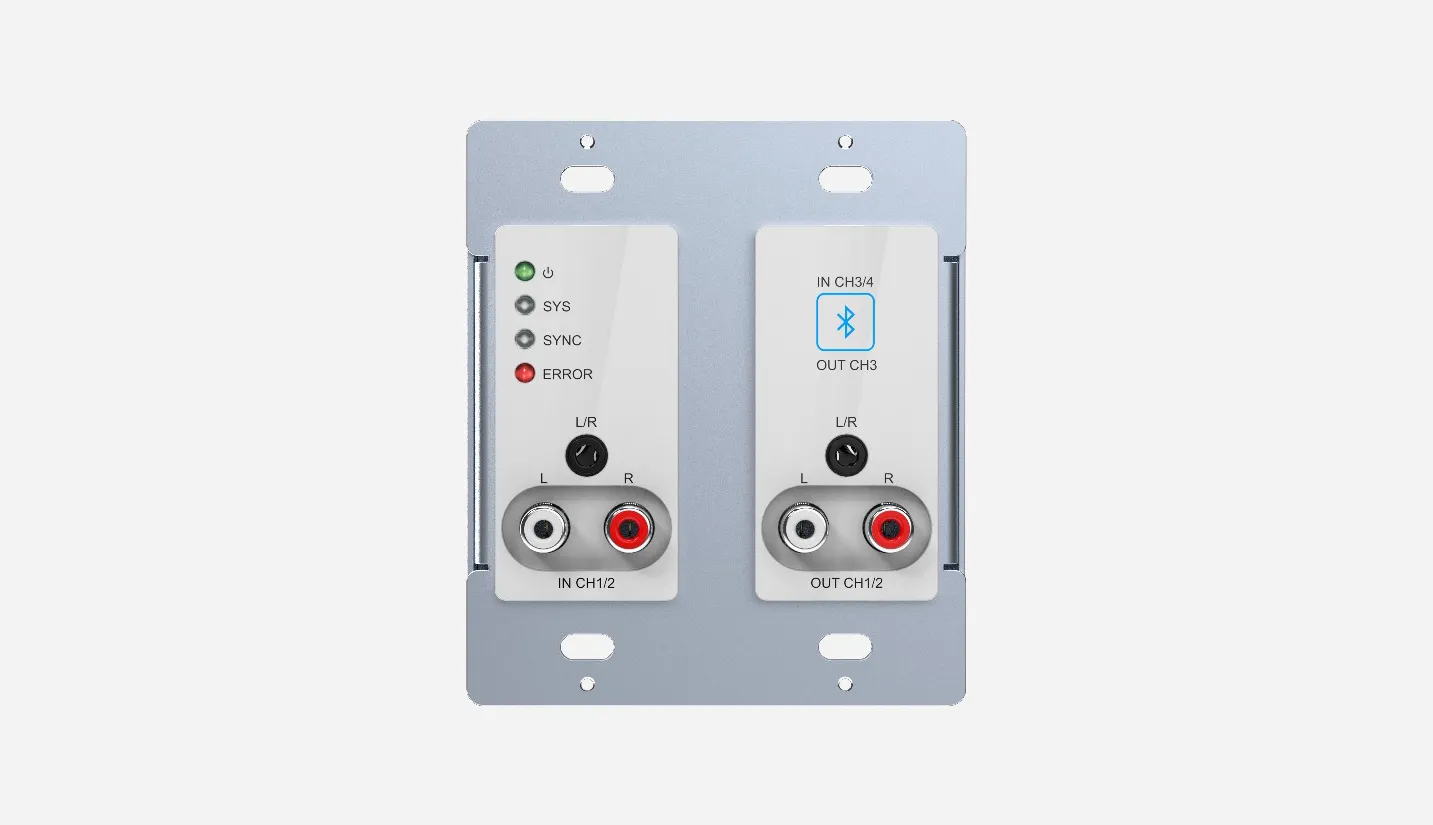

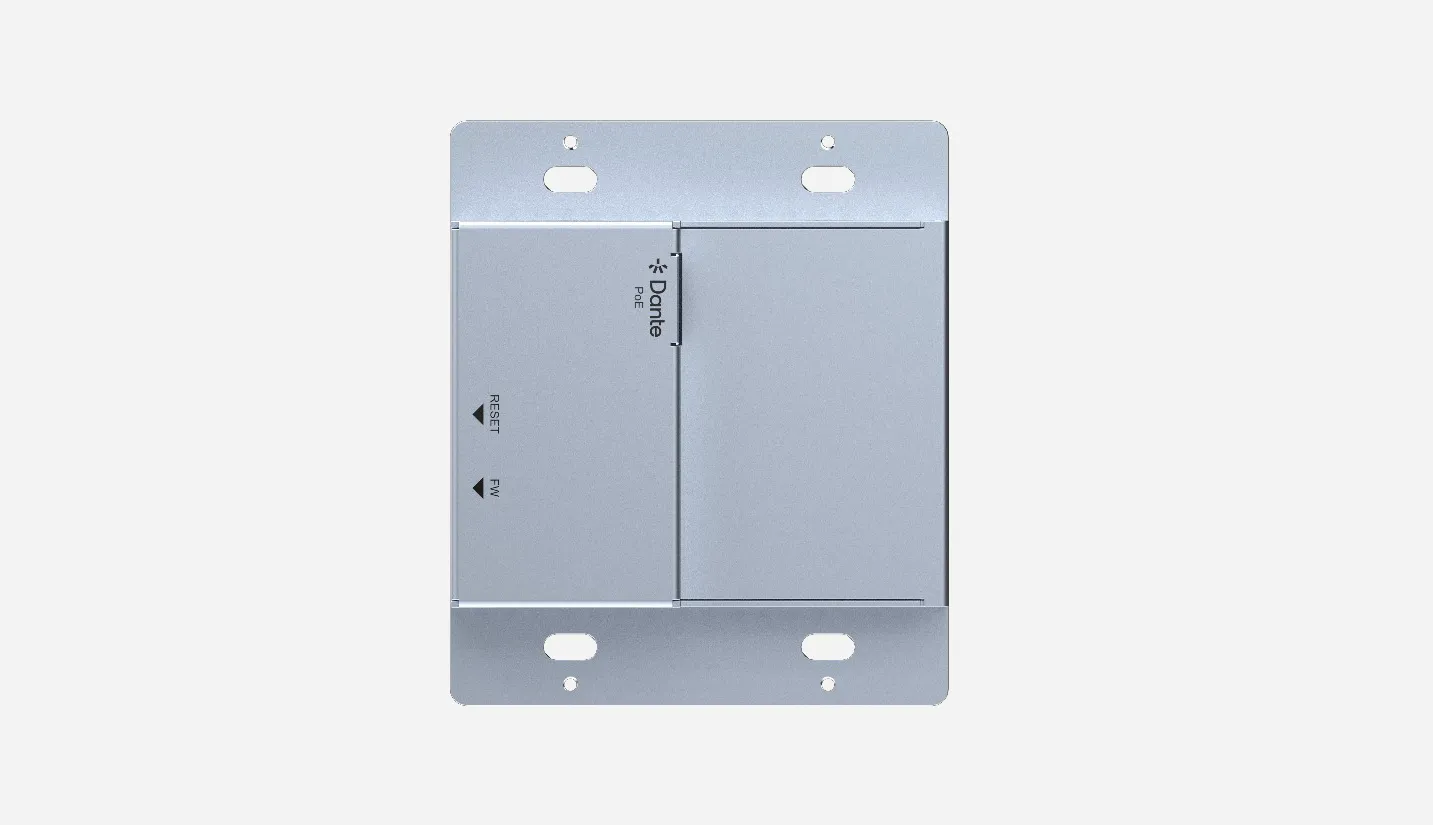

The DT2003 professional 4×3 Bluetooth Panel with Dante/AES67 includes stereo Bluetooth wireless audio input, a 3.5mm jack, and RCA jacks for line-level inputs, and supports the transmission of uncompressed audio over standard Ethernet networks with near-zero latency. The unit also includes a 3.5mm jack and RCA jacks for line-level outputs. Powered by PoE, the panel supports configuration and control via a Web UI and Dante software.
Model | DT2003 |
Input | |
Input | 1×L+R unbalanced analog audio, 1×3.5mini unbalanced analog audio |
Input Connector | 2× RCA jacks, 1×3.5mm mini jack |
Output | |
Output | 1×L+R unbalanced analog audio, 1×3.5mini unbalanced analog audio |
Output Connector | 2× RCA jacks, 1×3.5mm mini jack |
Audio Performance | |
Gain | 0 dB |
Volume | Input: -12 ~ +18dB, 6dB per step Output: -60 ~ 0dB, 1dB per step |
Max. Level | Input: +12dBu @ 0dB input gain Output: +12dBu @ 0dB output gain |
SNR | > 90dB @ Max Level (A-weighted) |
Output Noise | < -79dBu @ 0dB gain (A-weighted) |
THD | < 0.05% at 0dBu,1kHz, 0dB gain (A-weighted) |
Sampling Rate | 44.1kHz~48kHz |
Control | |
Control Methods | 1×Web-UI and Dante control, 1×Pair button |
Control Connector | 1×RJ45, 1×Bluetooth button |
General | |
External Power Supply | PoE (IEEE 802.3af) |
Operation Temperature | - 5℃ ~ + 55℃ (23℉ ~ 131℉) |
Storage Temperature | - 25℃ ~ + 70℃ (-13℉ ~ 158℉) |
Relative Humility | 90% RH or less (No Condensation) |
Power consumption | 4.22W (Max) |
Dimension (W*H*D) | 104.5 × 89.0 × 43.7 mm |
Net Weight | 265g |
