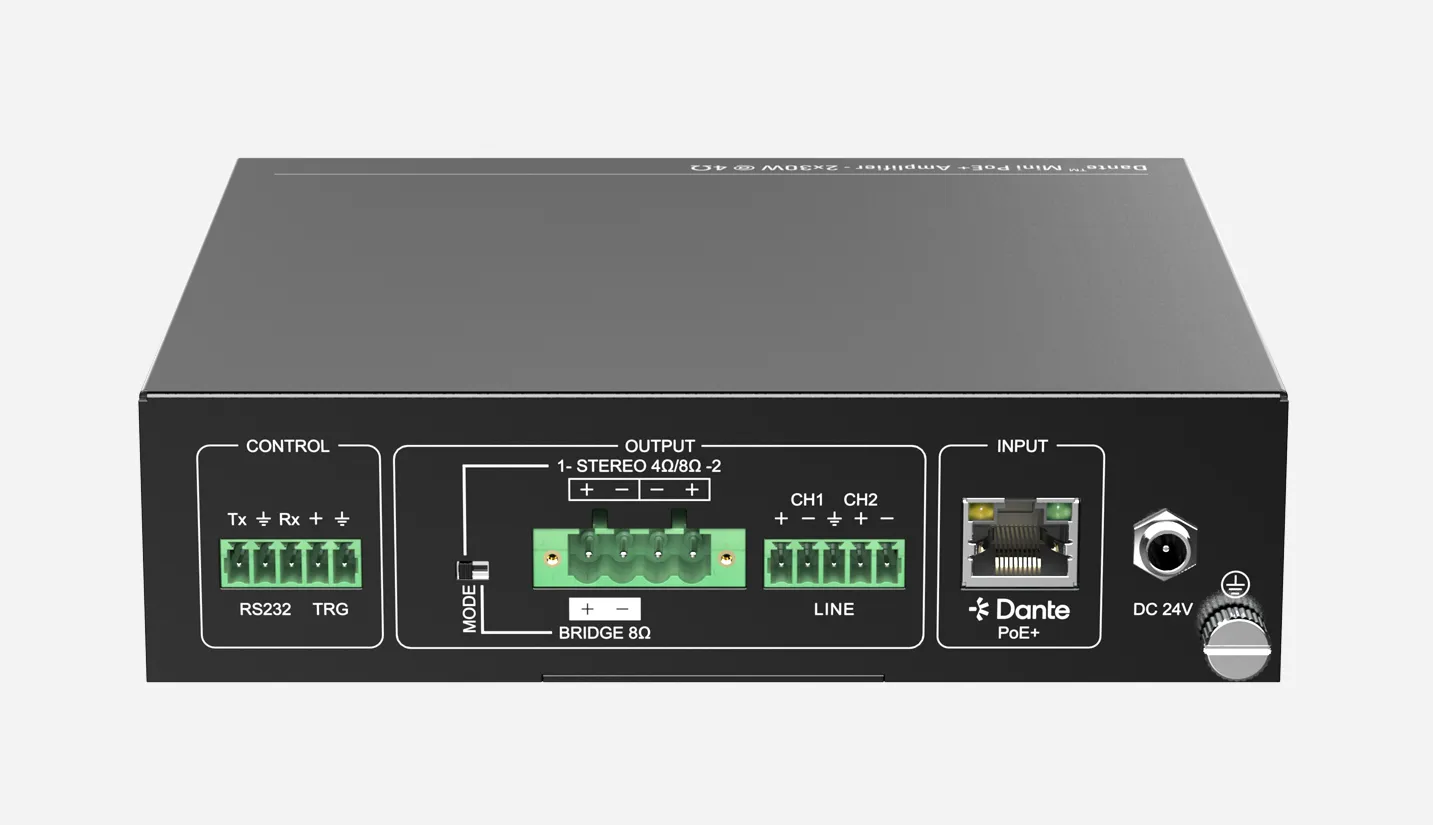

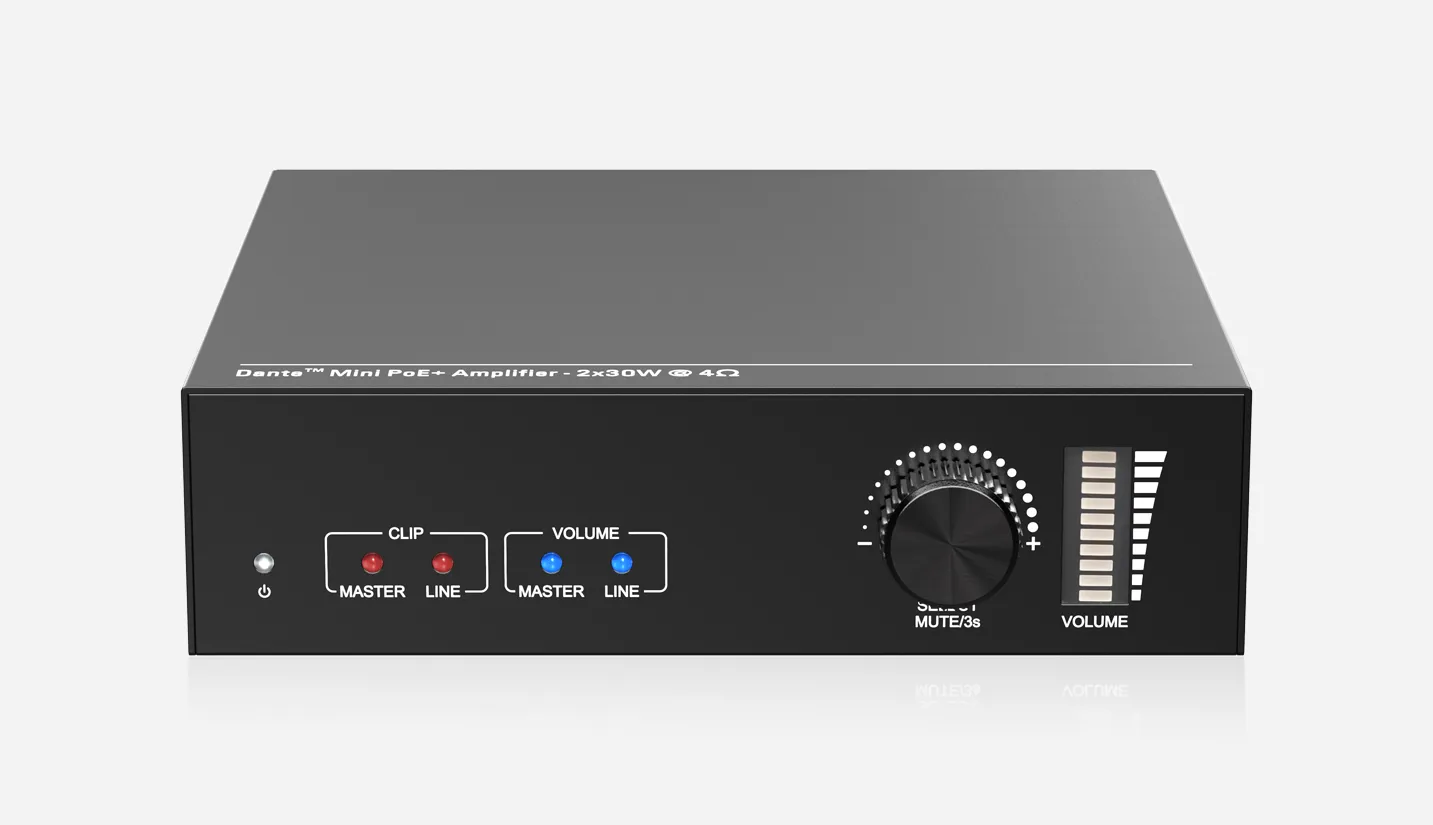

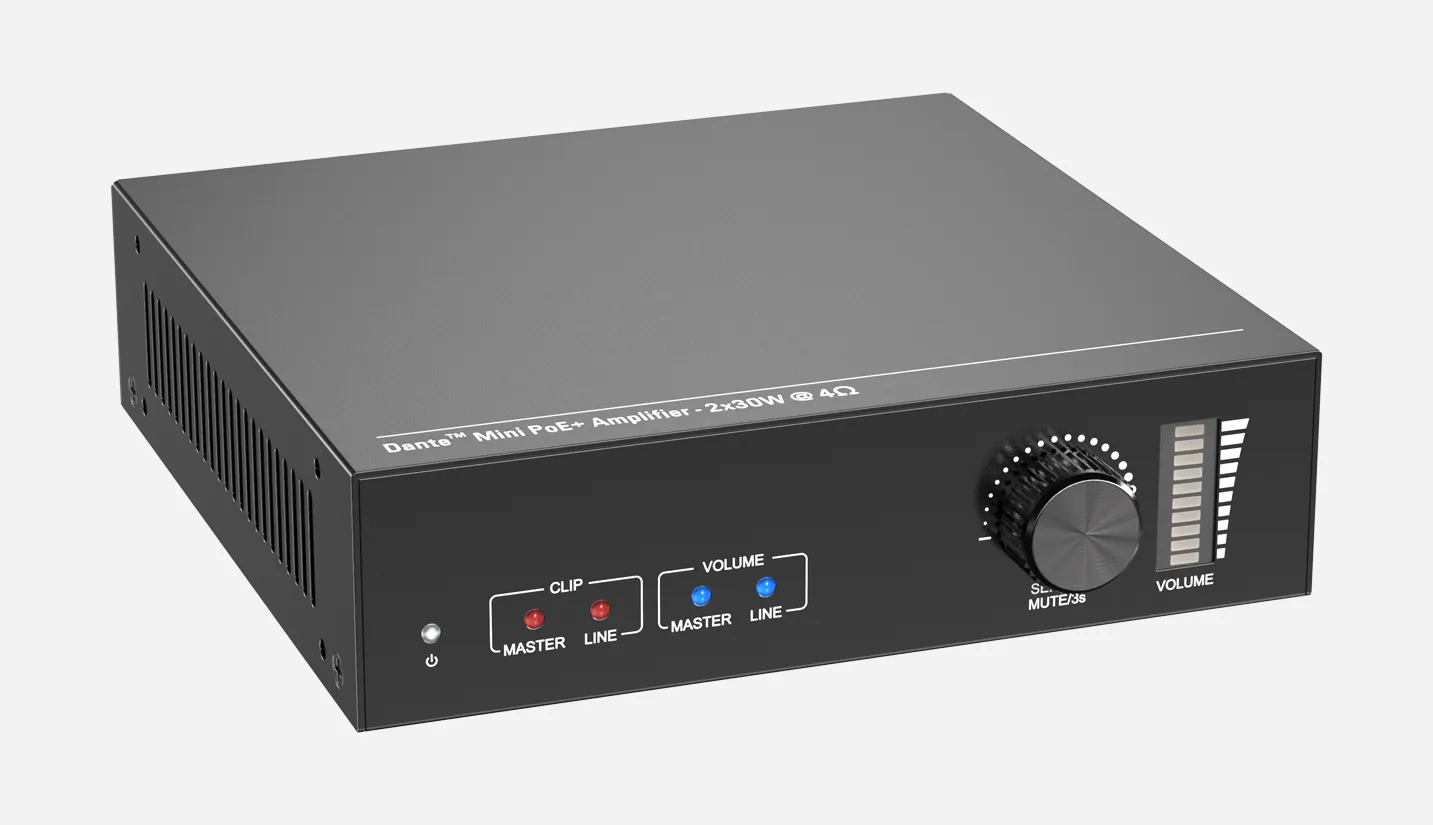

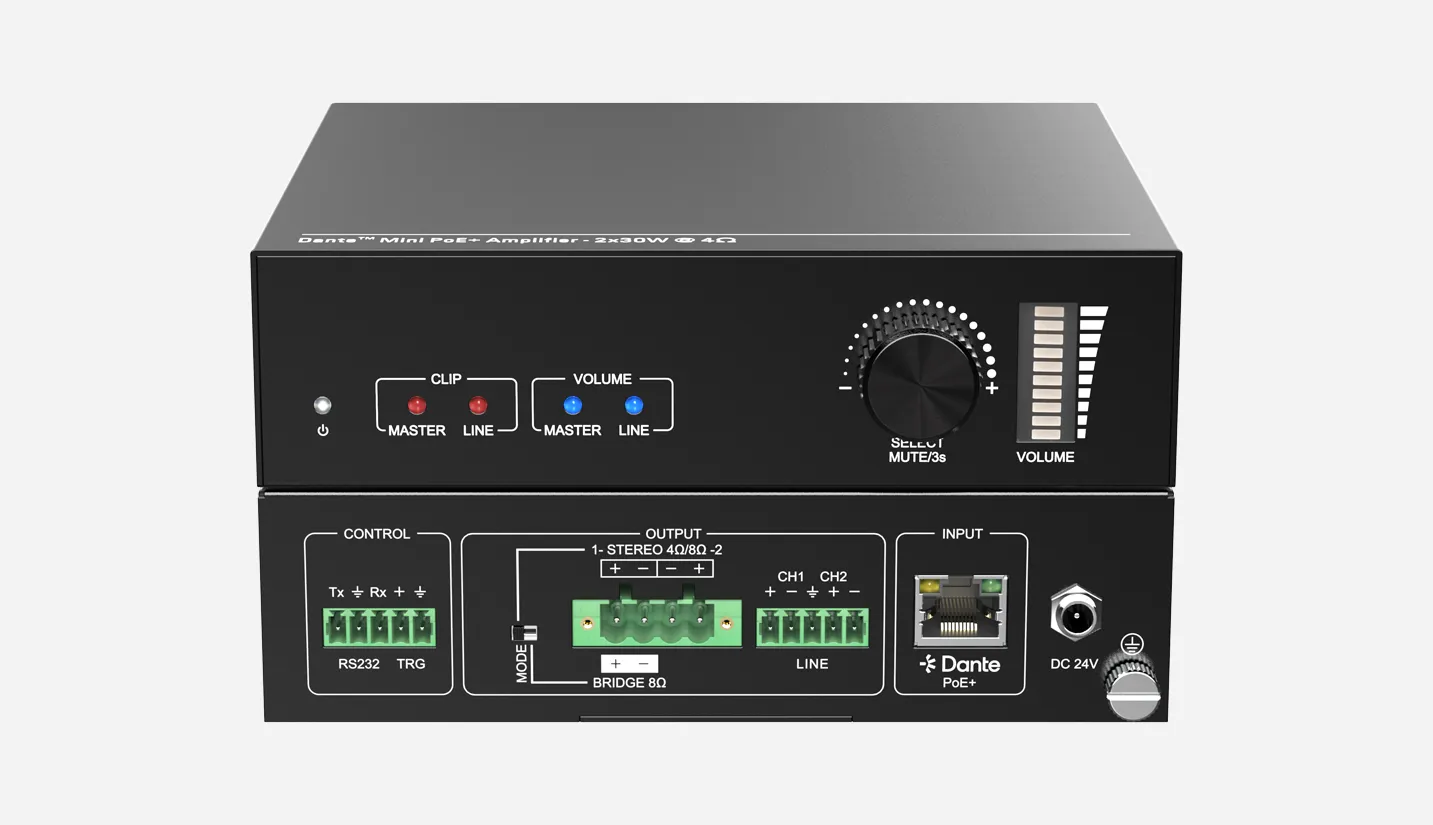

.webp "2x30@4Ω Mini Dante Amplifier")
.webp "2x30@4Ω Mini Dante Amplifier")
.webp "2x30@4Ω Mini Dante Amplifier")
.webp "2x30@4Ω Mini Dante Amplifier")
The Dante 2-channel mini power amplifier supports output volume adjustment.
Stereo output: 2x30W@4Ω or 2x30W@8Ω;
Supports bridge output at 1×60 W @ 8 Ω;
Controlled by the Dante Controller;
Provide a Line Out auxiliary output port;
Supports RS-232 control and remote triggering of amplifier power;
Powered by DC 24V 2.71A or PoE+.
The Mini Digital Power Amplifier is a compact Class D digital amplifier featuring two Dante inputs. It integrates advanced capabilities such as bridge connectivity, stereo mono output, and volume control. The device supports PoE+ or adapter power supply, delivering 2×30 W at 4 Ω or 2×30 W at 8 Ω to speakers, with additional support for bridge-mode output of 1×60 W at 8 Ω.
Widely used in classrooms, small meeting rooms, lecture halls, bars, taverns, and similar venues.
Model | DT2004 |
Audio Input | |
import | 1 x Dante |
Enter Connector | 1 RJ45 port |
Audio Output | |
output | 1 x Power amplifier, 1 x Stereo audio |
Output Connector | 1 x Pluggable terminal (5P,3.81 mm) 1 x Pluggable terminal (4P,5.08 mm) |
Audio Input Parameters | |
Dante import | 24-bit uncompressed, with optional sampling rates of 44.1 kHz, 48 kHz, or 96 kHz |
Main Output Parameters | |
output impedance | 4/8Ω speaker output |
rated power output | Stereo output: 2x30W@4Ω or 2x30W@8Ω Bridge output: 1 x 60 W @ 8 Ω |
frequency response | 20Hz ~ 20kHz，± 3dB |
noise-signal ratio （SNR） | DC Power:>85 dB (A-weighted) |
Total Harmonic Distortion + Noise (THD+N) | At 1/8 rated power output, the value is<0.05%; at normal power output, it is 0.5%. The LPF has a cutoff frequency of 20 kHz and a notch depth of 3 dB. |
Line Output Performance | |
Rated output level | 1.0Vrms ± 0.5dB |
Maximum Output Level | The voltage level is 3 V = 16 dB, which exceeds the nominal signal level of-10 dBV (316 mV) for standard electrical circuits. |
frequency response | 20Hz ~ 20KHz，± 3dB |
noise-signal ratio （SNR） | >85 dB (A-weighted), bandwidth: 20 Hz to 20 kHz |
Total Harmonic Distortion + Noise (THD+N) | <0.05% （-80 dB） |
Crosstalk Isolation | >70dB |
Regular | |
Amplifier Type | D class |
source | DC 24V 2.71A IEEE 802.3at Type 2, PoE+ |
AC Power Consumption | 18 W @ 1/8 maximum output level 85 W @ maximum output level |
working temperature | -10°C ~ +55°C |
storage temperature | -25°C ~ +70°C |
Storage Humidity | 10% - 90% |
Size (W*H*D) | 166mm x 44mm x 160mm |
net weight | 895g |
