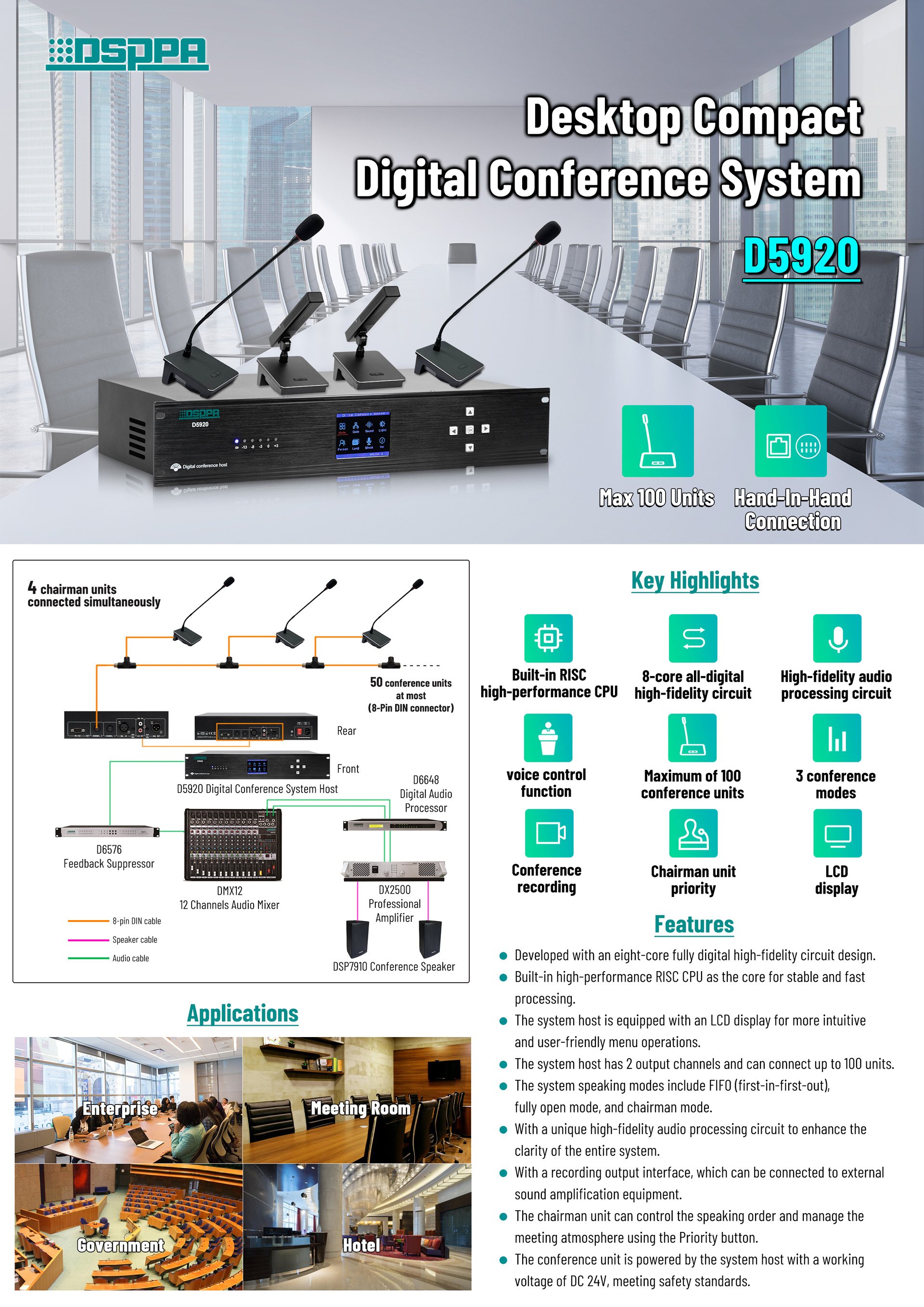

Developed with an eight-core fully digital high-fidelity circuit design.
Built-in high-performance RISC CPU as the core for stable and fast processing.
The system host is equipped with an LCD display for more intuitive and user-friendly menu operations.
The system host has 2 output channels and can connect up to 100 units.
The system speaking modes include FIFO (first-in-first-out), fully open mode, and chairman mode.
With a unique high-fidelity audio processing circuit to enhance the clarity of the entire system.
With a recording output interface, which can be connected to external sound amplification equipment.
The chairman unit can control the speaking order and manage the meeting atmosphere using the Priority button.
The conference unit is powered by the system host with a working voltage of DC 24V, meeting safety standards.
The system features hand-in-hand single-line eight-core digital intelligent control and analog differential audio transmission technology, offering simple operation and easy and quick installation. The system utilizes a high-speed CPU for program editing and control, along with a high-fidelity circuit design to ensure original sound reproduction. It includes automatic system unit detection and innovative speaking mode settings, making it a new generation of multi-functional conference systems. This system is an ideal solution for various types of projects, such as hotels, government agencies, corporate and institutional conference rentals, and multi-functional conference rooms.
Model | D5920 |
Unbalanced Input Voltage | Input voltage 315 (±20) mV |
Balanced Input Voltage | Input voltage 315 (±20) mV |
Unbalanced Output Voltage | Output voltage 1000 (±100) mV |
Balanced Output Voltage | Output voltage 2000 (±100) mV |
Frequency Response | 120Hz-16KHz |
S/N Ratio | ≥75dB |
Harmonic Distortion | ≤0.5% |
Maximum Power | 75W |
Static Power Consumption | 0.85W |
Control Interface | RS232/RS485 |
Power Supply | AC100-240V/50Hz/4A |
Package Dimensions (L×W×H) | 525*382*146mm |
Machine Dimensions (L×W×H) | 430*250*88mm |
Gross Weight | 3.5kg |
