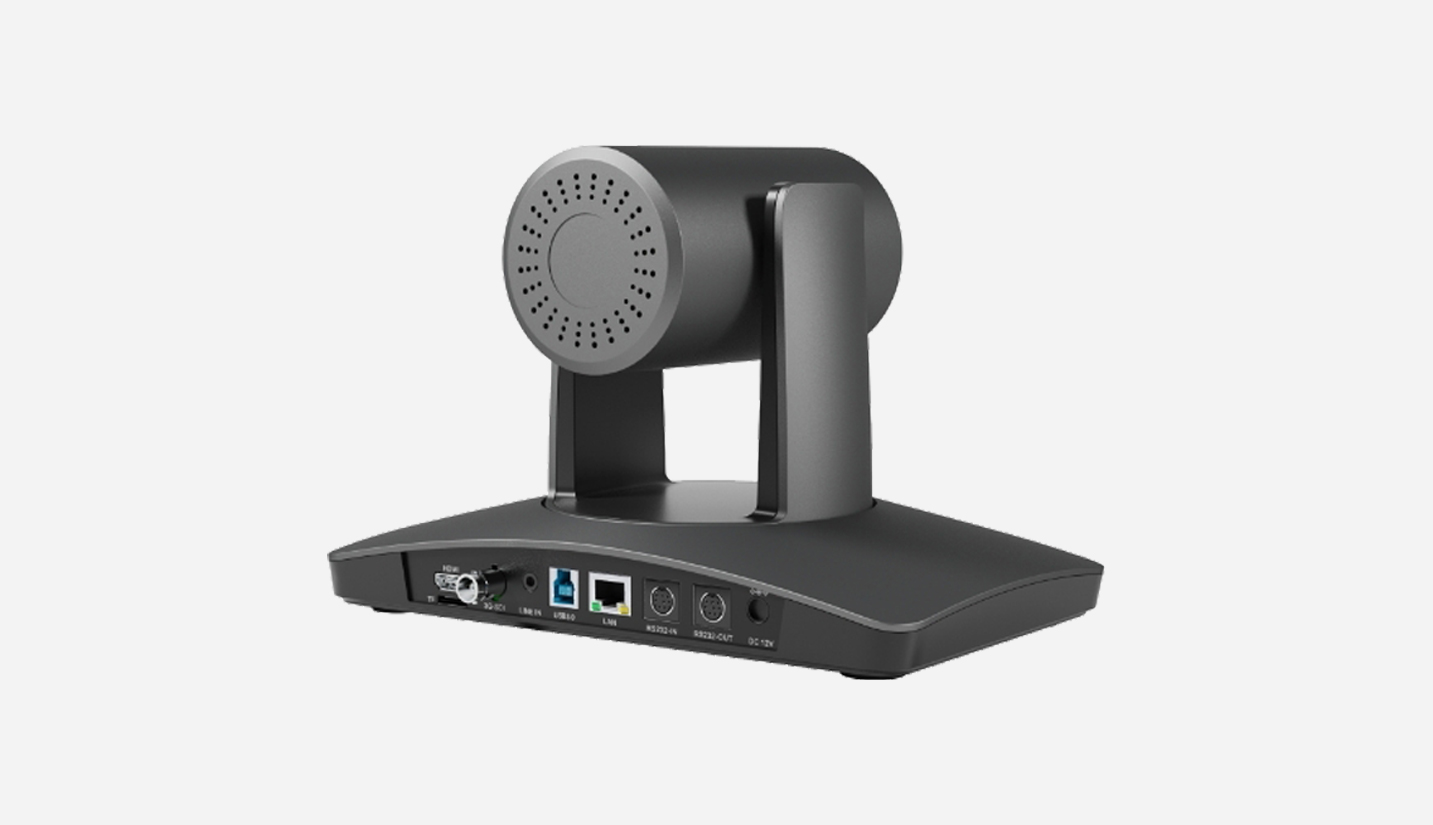

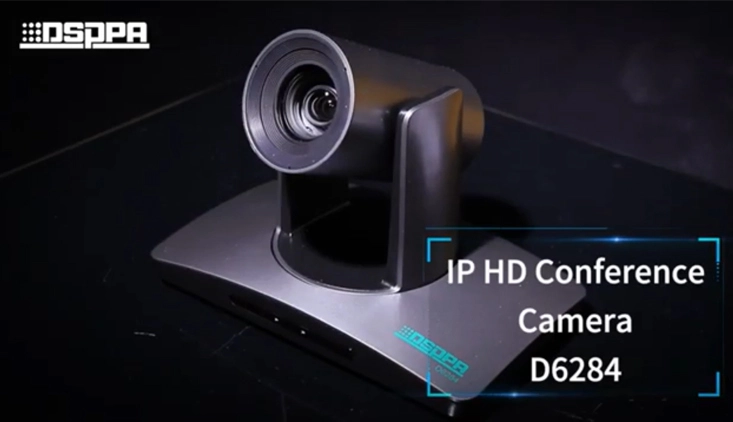

HD Conference Camera D6284

  • 1/2.8-inch 2.14-megapixel HD CMOS sensor.

  • Optical zoom lens available in multiple models: 12x and 20x.

  • Support SDI, HDMI, network and USB3.0 video output simultaneously.

  • Support UVC and UAC protocols for USB3.0.

  • Support up to 1080P60 HD video output.

  • Support H.265 and H.264 network video encoding.

  • Support dual streaming and multi-level video quality configuration.

  • Support NDI protocol (optional).

  • Support 1 audio input.

  • With RS-232 IN/OUT, support daisy chain.

  • Support multiple protocols and various control interfaces for daisy-chain networking.

  • Precision drive system, with accurate positioning and smooth operation.

  • With multi-function IR remote controller.

  • With built-in Chinese and English operation menu.

  • With intelligent exposure to effectively solve the impact of projections, TVs and other equipment on shooting people.

  • Support three mounting modes, including desktop, wall-mounted and ceiling-mounted.


Datasheet
Get Quotation
DETAILS
SPECS
Diagram
HD Conference Camera
HD Conference Camera
HD Conference Camera
HD Conference Camera
HD Conference Camera
HD Conference Camera

Specifications of HD Conference Camera

Model

D6284

Image Sensor

1/2.8-inch CMOS, 2.14 megapixels

Focal Length

f=4.7mm~94mm

f=3.9mm~46.8mm

Iris

F1.6~F3.5

F1.6~F2.8

Field of View

59.5°~2.9°

72.5°~6.3°

Optical Zoom

20x

12x

Focusing System

Auto, Manual, One-Push, PTZ-Triggered

Gain

Auto, Manual

White Balance

Auto, Manual, One-Push, Auto Track, Static Color Temperature

Exposure Control

Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority

Backlight Compensation

Support

Wide Dynamic

Support

Digital Noise Reduction

2D/3D

S/N Ratio

≥50dB

Menu

English/Chinese

PTZ Parameters

Horizontal Range

-170°~+170°

Vertical Range

-30°~+90°

Horizontal Rotation Speed

0.1°/s~120°/s

Vertical Rotation Speed

0.1°/s~80°/s

Inverted Installation

Support

Image Flip

Support

Number of Presets

256 presets

Interface

HDMI

1 HDMI

Video resolutions 1080P60/P50/P30/P25, 720P60/P50.

Network

1 RJ-45, 10M/100M adaptive Ethernet port, optional POE.

1) Video resolution up to 1080P60.

2) Video format supports H.264 and H.265.

3) Network protocols ONVIF, RTSP, RTMP, SRT, TCP, UDP.

4) Audio compression AAC.

5) Support multiple streams.

6) Support NDI (optional).

USB

1 USB3.0

1) UVC supports the UVC1.1 protocol.

2) UVC video format supports H.264/H.256/MJPEG, video resolution 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25, 360P60/P50/P30/P25.

UVC video format supports YUY2/NV12, video resolution 1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25.

3) UAC audio format PCM.

3G-SDI

1 3G-SDI, video resolution 1080P60/P50/P30/P25, 720P60/P50.

Audio Interface

1 LINE IN, 3.5mm audio interface.

Control Interface

1 RS-232 IN, 1 RS-232 OUT / RS-485.

Storage Interface

Up to 256G

Power Connector

DC12V

General Specifications

Control Protocol

VISCA and support daisy chain / PELCO-P / PELCO-D.

Address Range

1-7

Power Consumption

<15W

Operating Environment

Operating temperature 0~40°C

Operating Humidity

10%RH~90 %RH

Storage Environment

-20℃~40°C

Storage Humidity

10%RH~95 %RH

Dimensions (L×W×H)

242×145×163mm

Weight

≤1.2kg

Color

Silver gray
