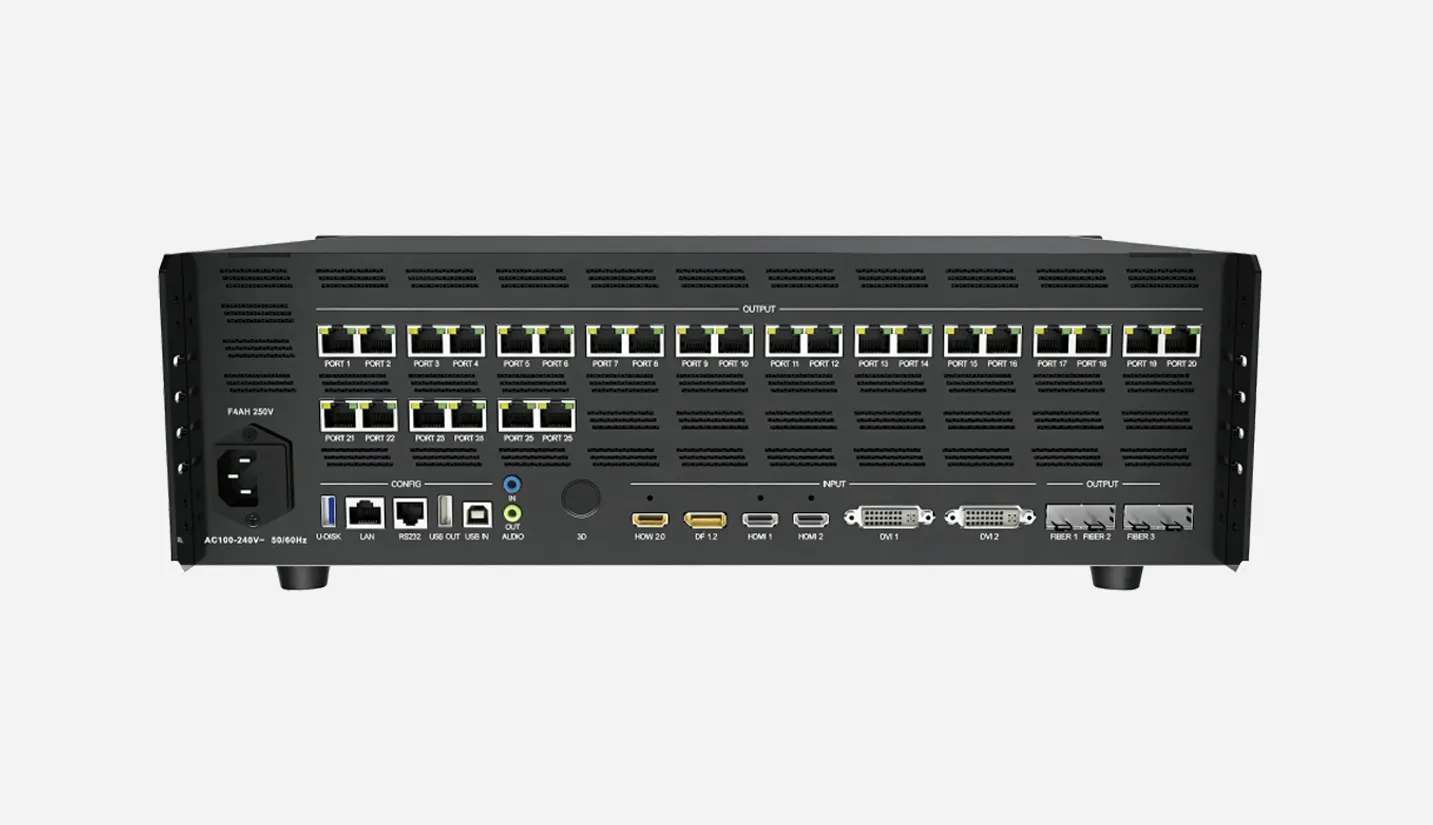

.webp "LED Video Controller DP-X26m")

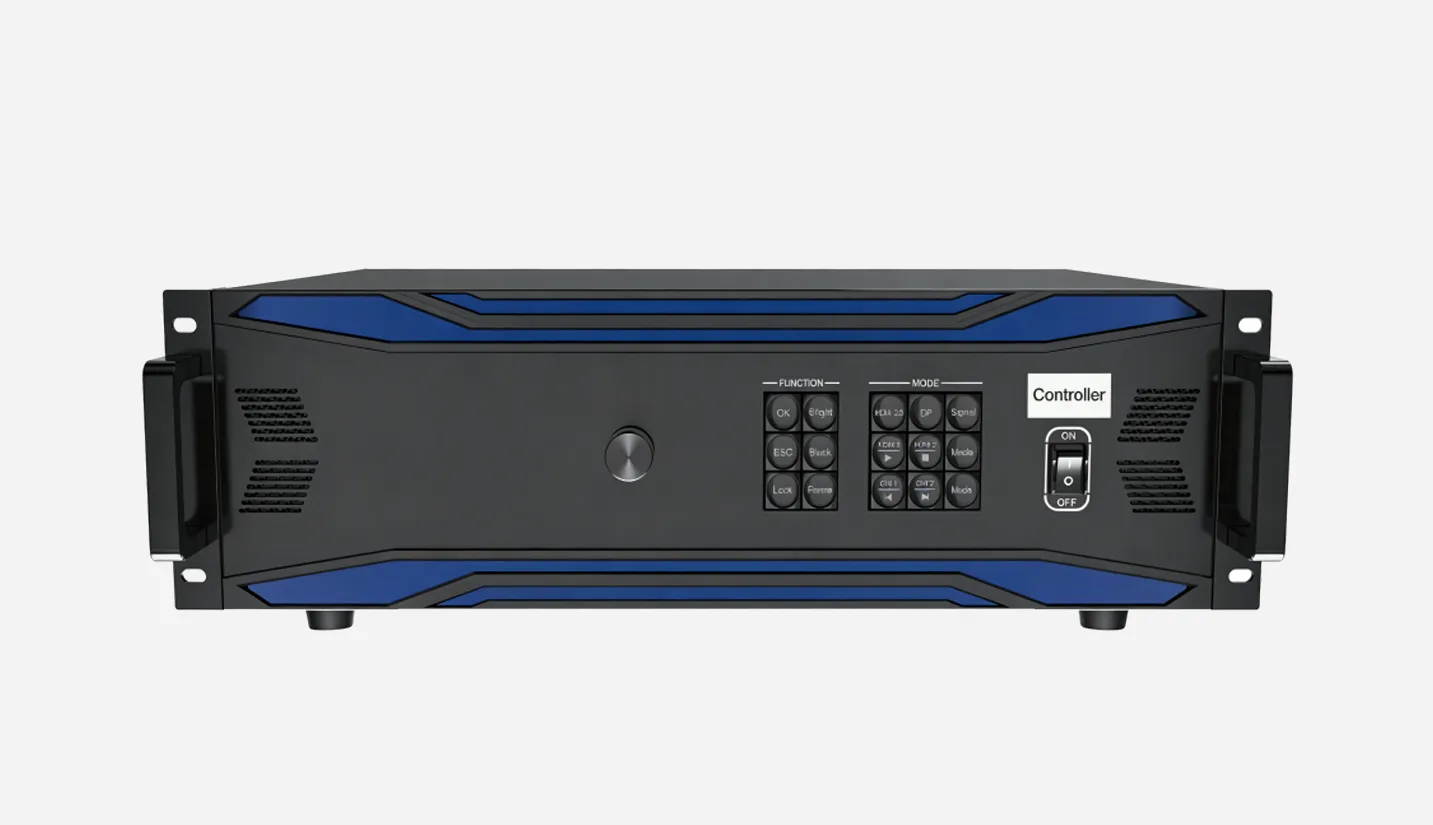

.webp "LED Video Controller DP-X26m")
Delivers up to 4096 × 2160 @ 60Hz input resolution.
Equipped with 2 × 4K inputs (DP 1.2 and HDMI 2.0) and 4 × 2K inputs (HDMI 1.4 and DVI).
Includes a USB port for USB flash drive playback.
Provides output via 26 Gigabit Ethernet ports or 3 optional 10G optical ports.
Handles a maximum loading capacity of up to 17.03 million pixels.
Features independent audio input and output.
Enables audio extraction from HDMI and DP signals.
Allows up to 6 display windows with layering and overlay.
Enables flexible window roaming and scaling with a minimum resolution of 64 × 64.
Supports video cropping and seamless switching with adjustable cropping size.
Provides precise color management with adjustable color gamut (requires compatible receiving cards).
Integrates video synchronization and phase-lock technology.
Allows brightness and color temperature adjustment.
Offers 3D display (optional).
Incorporates low-brightness high-grayscale technology.
Allows saving and recalling up to 128 scenes.
Supports USB playback and firmware upgrade.
Offers Bluetooth remote control (optional).
Enables control via USB, RS232, LAN, and mobile APP.
The DP-X26m is an Ultra-4K LED video controller featuring powerful video signal input and processing capabilities. It supports both 4K and 2K video signal inputs and offers a maximum loading capacity of up to 17.03 million pixels. The controller provides two output options: Ethernet port output and optical port output, enabling flexible configuration to meet diverse user requirements. In addition, the DP-X26m integrates a range of rich and practical features, delivering flexible screen control and high-quality image display for professional LED display applications.
Model | DP-X26m |
Video Input | 2 × 4K (DP 1.2, HDMI 2.0); 4 × 2K (HDMI 1.4, DVI) |
Max. Input Resolution | 4096 × 2160 @ 60Hz |
Output | 26 × Gigabit Ethernet or 3 × 10G Optical Ports (Selectable) |
Loading Capacity | 17.03 Million Pixels |
Audio | 1 × Audio Input, 1 × Audio Output; HDMI/DP Audio Extraction |
Display Functions | Up to 6 Windows, Layering & Overlay, Roaming & Scaling (min. 64 × 64) |
Video Processing | Cropping and seamless switching |
Image Adjustment | Color management, brightness & color temperature adjustment |
Advanced Features | Video sync & phase-lock, low-brightness high grayscale, 3D (optional) |
Control | USB, RS232, LAN, Mobile APP; Bluetooth (optional) |
Power Supply | AC 100–240 V~, 50/60 Hz |
Power Consumption | 80W |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -30°C to 80°C |
Humidity | 0–80% RH (working), 0–90% RH (storage), non-condensing |
Product Dimensions (W×H×D) | 482.6 mm (19") × 133.3 mm (5.3") × 385.0 mm (15.2"), Excluding Feet Pads |
Package Dimensions (W×H×D) | 560.0 mm (22.1") × 240.0 mm (9.5") × 480.0 mm (18.9") |
Net Weight | 6.25kg |
Gross Weight | 8.95kg |
