Ultra-fine 1.25 mm pixel pitch for high-definition indoor displays.
SMD1010 RGB LEDs with a wide 110° viewing angle, delivering high brightness of ≥600 cd/m² and a wide 170° field of view.
16-bit grayscale, high refresh rate of ≥3,840 Hz (PWM driving), high precision, high contrast, and high color reproduction for smooth and clear images.
Adjustable color temperature from 1,000 K to 20,000 K and brightness from 0 to 255.
Supports a wide range of video signal sources and interfaces, including DVI, HDMI, DP, SDI, and VGA.
Supports multi-window and multi-layer display, window roaming, and flexible screen splicing. Cross-card and cross-interface output is supported without reducing the number of layers when windows span multiple cards or interfaces.
Supports custom preset modes for saving multiple scenes and convenient scene switching.
Supports a wide range of content, including video surveillance, remote video, military maps, 3D buildings, data charts, emergency cloud broadcasting, and paperless meetings.
Provides flexible control via computers or tablets, with convenient one-click operation.
Supports KVM workstation management, enabling one operator to control multiple computers or one computer to manage multiple displays.
Supports brightness and chroma calibration for consistent display performance.

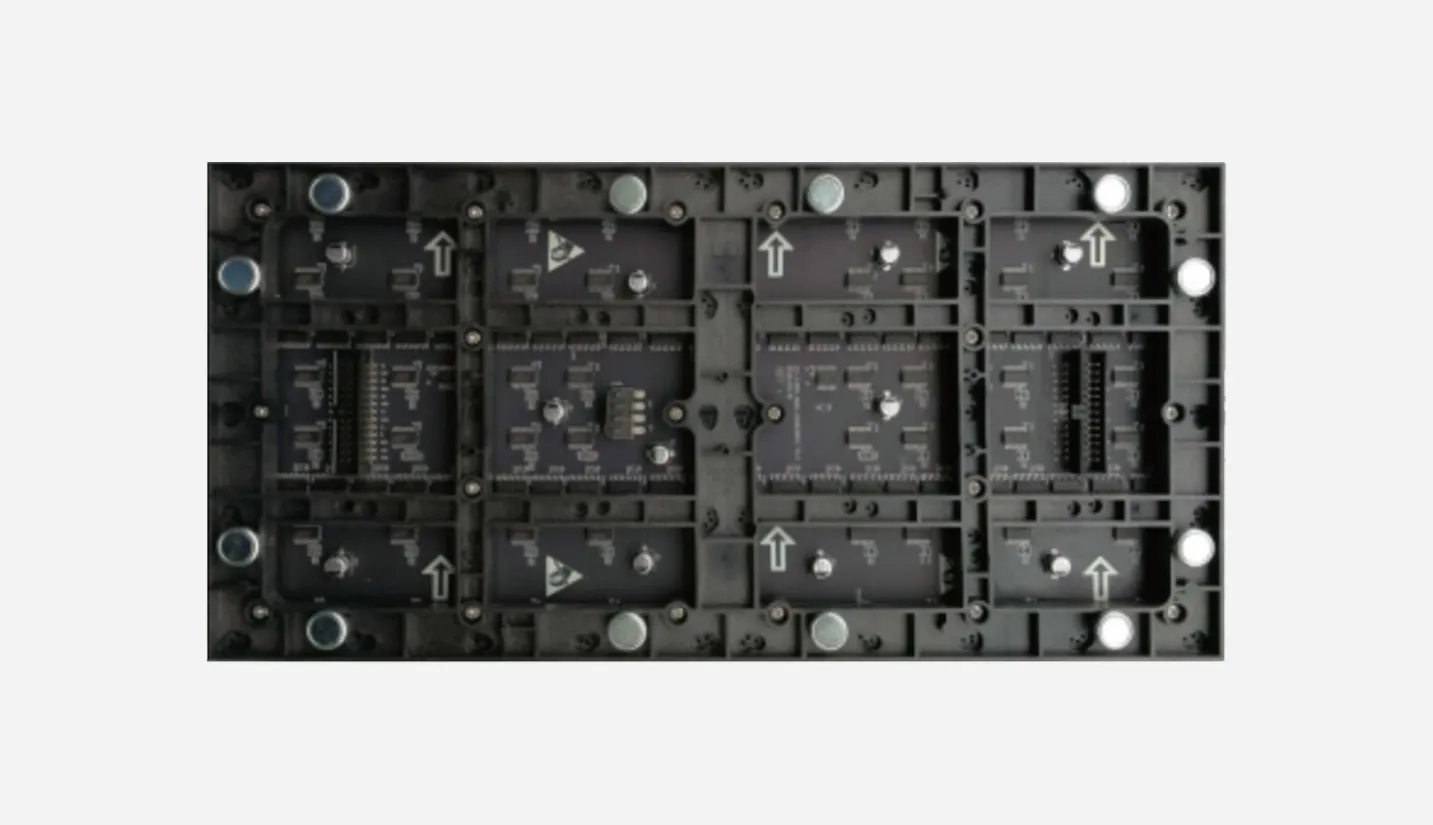

The DP-N125CC P1.25 Indoor Screen is a high-definition, ultra-fine-pitch indoor fixed-installation LED display with magnetic modules, designed for applications requiring exceptional image clarity at close viewing distances. Featuring a 1.25 mm pixel pitch and SMD1010 RGB LEDs, it delivers vibrant colors, high brightness, and wide viewing angles. With a high refresh rate, 16-bit grayscale, and adjustable color temperature, it is suitable for indoor environments such as control rooms, exhibition halls, conference rooms, and other high-resolution display applications.
Product Model | Color | IF (mA) TEST | Rd (nm) Typ | Iv (mcd) Typ | Vf (V) Typ | View Angle (deg.) |
SMD1010 | Red | 8 | 620 | 22 | 2.0 | 110 |
Green | 5 | 525 | 38 | 3.0 | 110 | |
Blue | 3 | 470 | 5 | 3.0 | 110 | |
Pixel Pitch | 1.25mm | |||||
Pixel Density | 640000dots/㎡ | |||||
Unit Board Resolution | Width 256 dots × Height 128 dots | |||||
Unit Board Dimensions | Width 320mm×Height 160mm | |||||
Unit Board Weight | Around 400g | |||||
Drive Type | 16-bit constant current driver (PWM) | |||||
Scanning Method | 1/64 | |||||
Operating Voltage | DC5V±10% | |||||
Maximum Current | 5.6A (Typical Value) ① | |||||
Maximum Power Consumption | 28W (Typical Value) ② | |||||
Power Interface | VH4 | |||||
Signal Interface | HUB320 (IDC320) | |||||
Max. Brightness | ≥600cd/㎡ | |||||
Color Temperature | 1000K-20000K (Adjustable) | |||||
Field of View | 170° | |||||
Optimal Viewing Distance | ≥1.2m | |||||
Grayscale Level | 16Bit | |||||
Brightness and Chroma Calibration | Support | |||||
Refresh Frequency | ≥3840Hz③ | |||||
Operating Temperature | Indoor | |||||
Brightness Range | 0 to 255 adjustable | |||||
Service Life | 100,000 hours | |||||
Operating Temperature | -20℃~60℃ | |||||
Operating Humidity | 10%-90%RH non-condensing | |||||
Storage Temperature | -40℃~80℃ | |||||
