Fine-Pitch Display: Delivers sharp and detailed visuals for close-range viewing.
Smooth Visual Performance: High refresh rate ensures smooth and stable image playback.
Wide Viewing Angle: Provides a clear and consistent viewing experience from different positions.
Brightness and Color Correction: Helps maintain uniform brightness and vivid, consistent colors.
Versatile Indoor Applications: Suitable for meeting rooms, control rooms, commercial spaces, and other professional display environments.

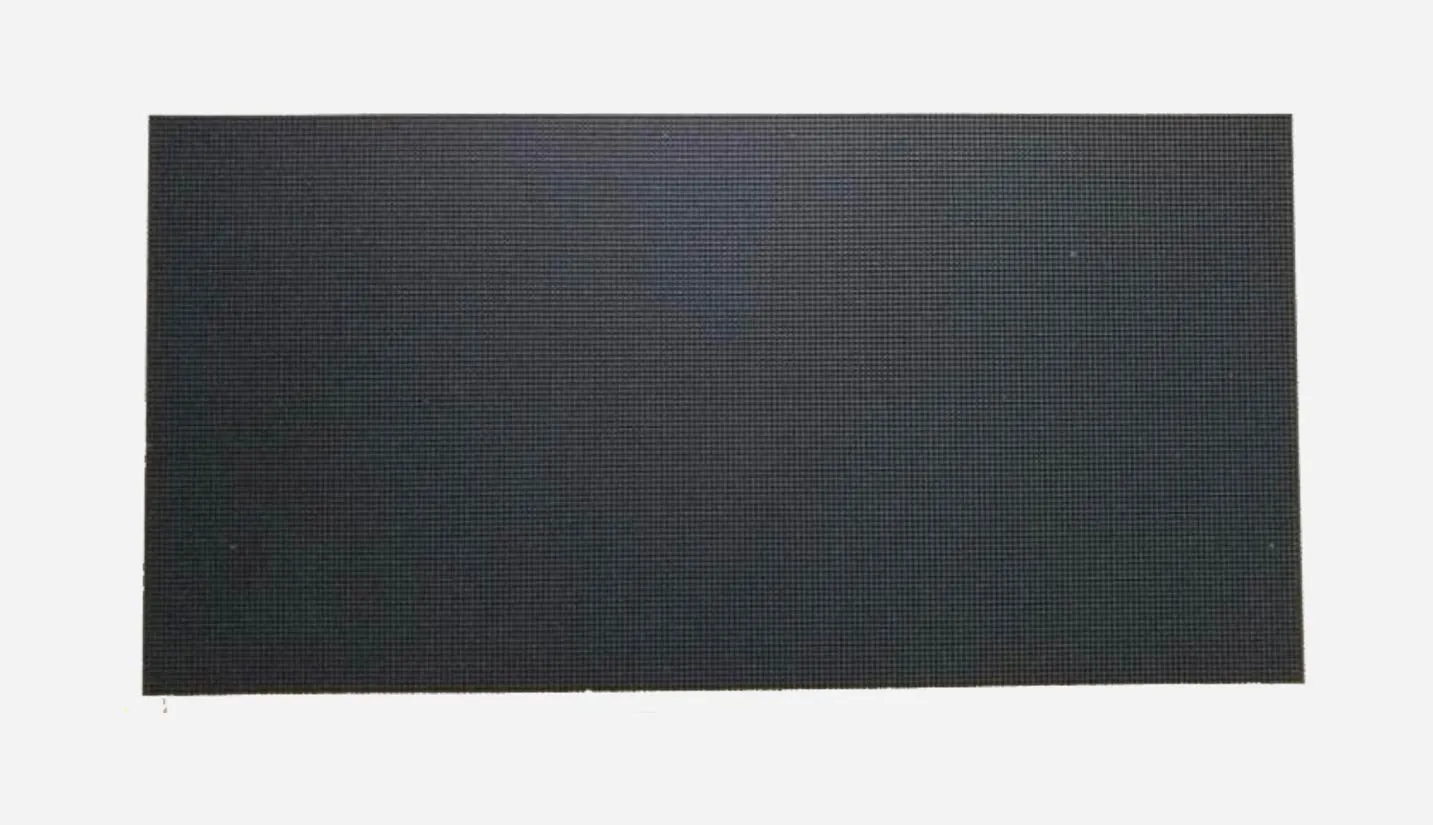

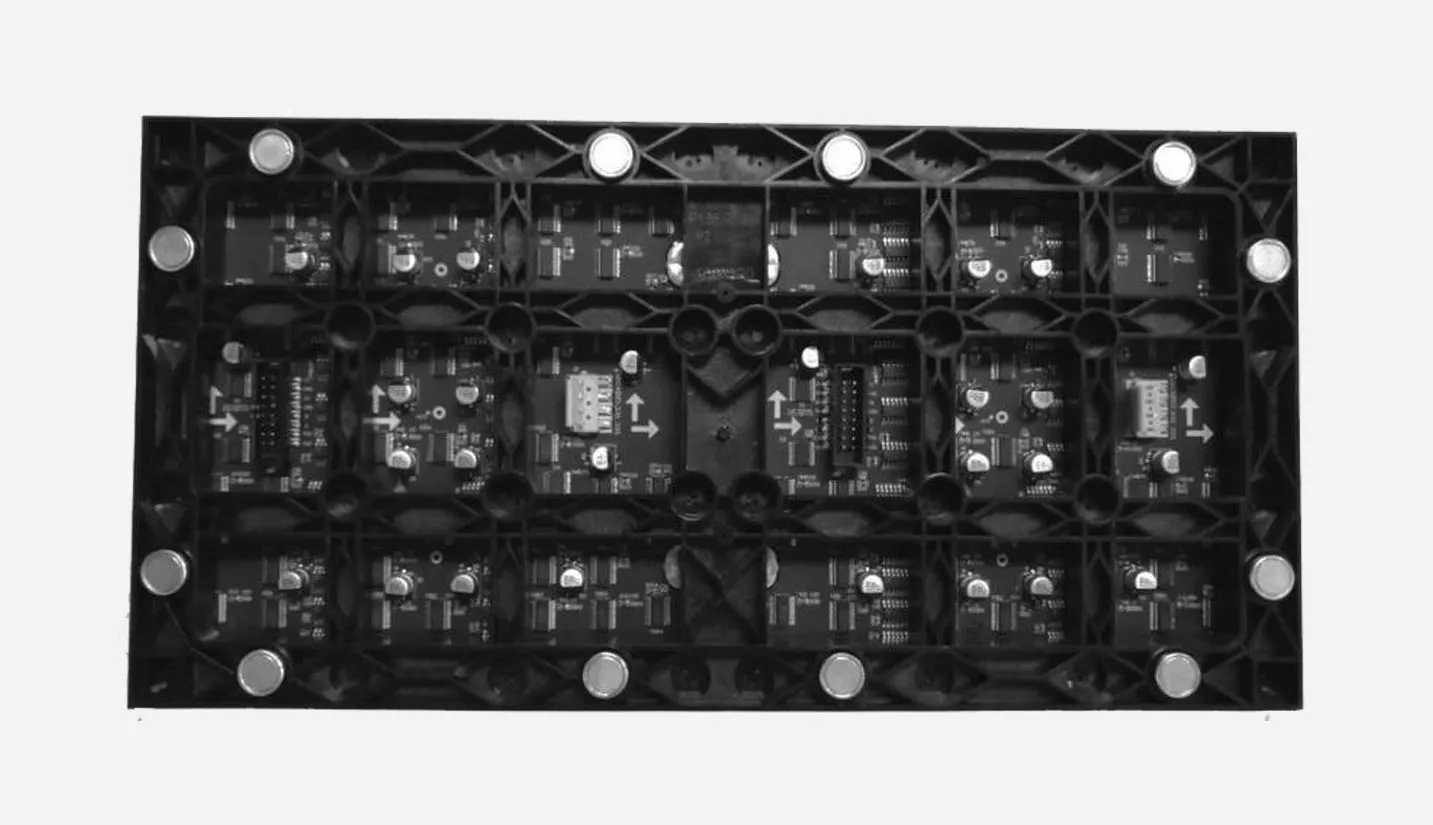

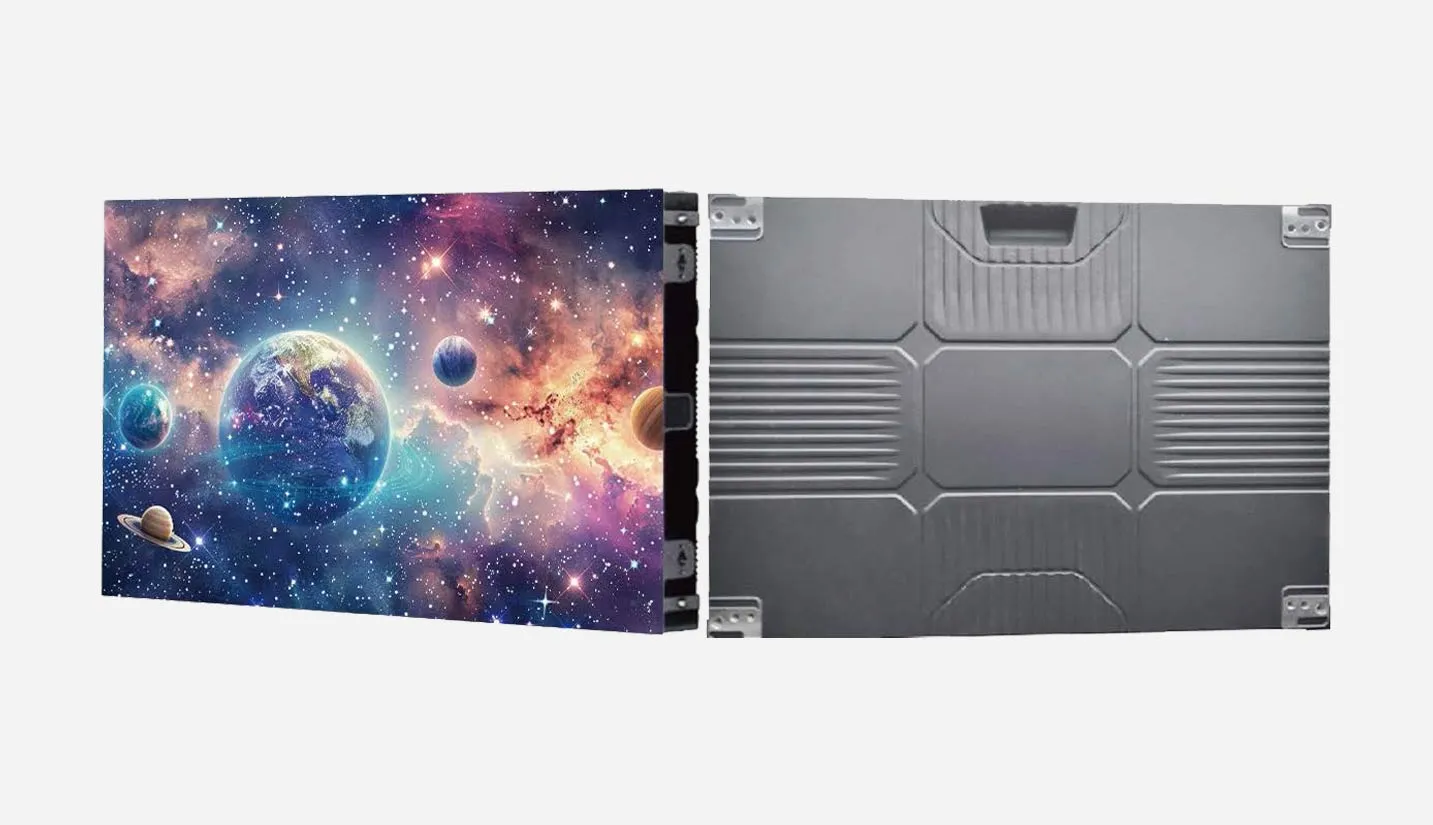

The DP-N153CY is an indoor fine-pitch LED display designed to deliver sharp, detailed, and smooth visual performance. Featuring a 1.538 mm pixel pitch, it provides fine image details and a seamless viewing experience at close distances. With a high refresh rate and precise brightness and color control, it ensures vivid and consistent image quality, making it suitable for professional indoor displays, meeting spaces, control rooms, and commercial applications.
Model | DP-N153CC | |||||
LED SMD1010 | Color | IF (mA) TEST | Rd (nm) Typ | Iv (mcd) Typ | Vf (V) Typ | View Angle (deg.) |
Red | 8 | 620 | 22 | 2.0 | 110 | |
Green | 5 | 525 | 38 | 3.0 | 110 | |
Blue | 3 | 470 | 5 | 3.0 | 110 | |
Pixel Pitch | 1.538mm | |||||
Pixel Density | 422500 dots/㎡ | |||||
Module Resolution | 208 dots (W)×104 dots (H) | |||||
Module Dimensions | 320mm (W)×160mm (H) | |||||
Module Weight | Approximately 400g | |||||
Drive Method | 16-bit constant current drive (PWM) | |||||
Scan Mode | 1/52 | |||||
Operating Voltage | DC5V±10% | |||||
Maximum Current | 5.6A (typical) ① | |||||
Maximum Power Consumption | 28W (typical) ② | |||||
Power Interface | VH4 | |||||
Signal Interface | HUE75E (IDC320) | |||||
Maximum Brightness | ≥600cd/㎡ | |||||
Color Temperature | 1000–20000K | |||||
Viewing Angle | 170° | |||||
Optimal Viewing Distance | ≥1.5m | |||||
Gray Scale | 14 bit | |||||
Brightness and Color Correction | Support | |||||
Refresh Rate | ≥3840Hz③ | |||||
Operating Environment | Indoor | |||||
Brightness Adjustment Range | Adjustable from 0~255 | |||||
Typical Lifespan | 100,000 hours | |||||
Operating Temperature | -20℃~60℃ | |||||
Operating Humidity | 10%-90%RH, non-condensing | |||||
Storage Temperature | -40℃~80℃ | |||||
