Wireless Conference System 5G WiFi Wireless Discussion Chairman Unit D7323

  • Speak-only Conference unit.

  • It adopts WPA/WPA2 wireless security with 128-bit AES encryption to prevent eavesdropping and unauthorized access, providing greater confidentiality of the wireless audio system for conference room;

  • The elector core type pointing capacitive pickup with a two-color indicator (red/green). It is red when speaking, and it is green when applying for speaking.

  • A rotary plug microphone rod is adopted, mini-microphone.

  • There are square, ova land, goose-neck rod; The square rod is aluminum alloy with186mm in length, the oval microphone rod is 182mm in length, and the goose-neck rod has black and silver color, with 315mm, 415mm in length.

  • The microphone rod can be dismounted during the adjournment for maintenance and storage.Features an internal magnetic high-fidelity speaker that automatically mutes the sound when the microphone is turned on, making it difficult to howl.

  • The 3.5mm stereo headphone jack connects to the headset and the headset volume is adjustable.

  • Super anti-interference ability toward mobile phones..

  • Equipped with microphone switch key, and 5 voting keys, and chairman unit has chairman priority keys.

  • Key check-in function.

  • With 5-stage EQ adjustment (password adjustable for PC software input), different sound effects can be adjusted to match the speaker's voice characteristics until they are perfect.

  • High-fidelity sound,the wireless unit supports up to 6 microphones simultaneously;

  • Each Conference unit has a unique ID number.

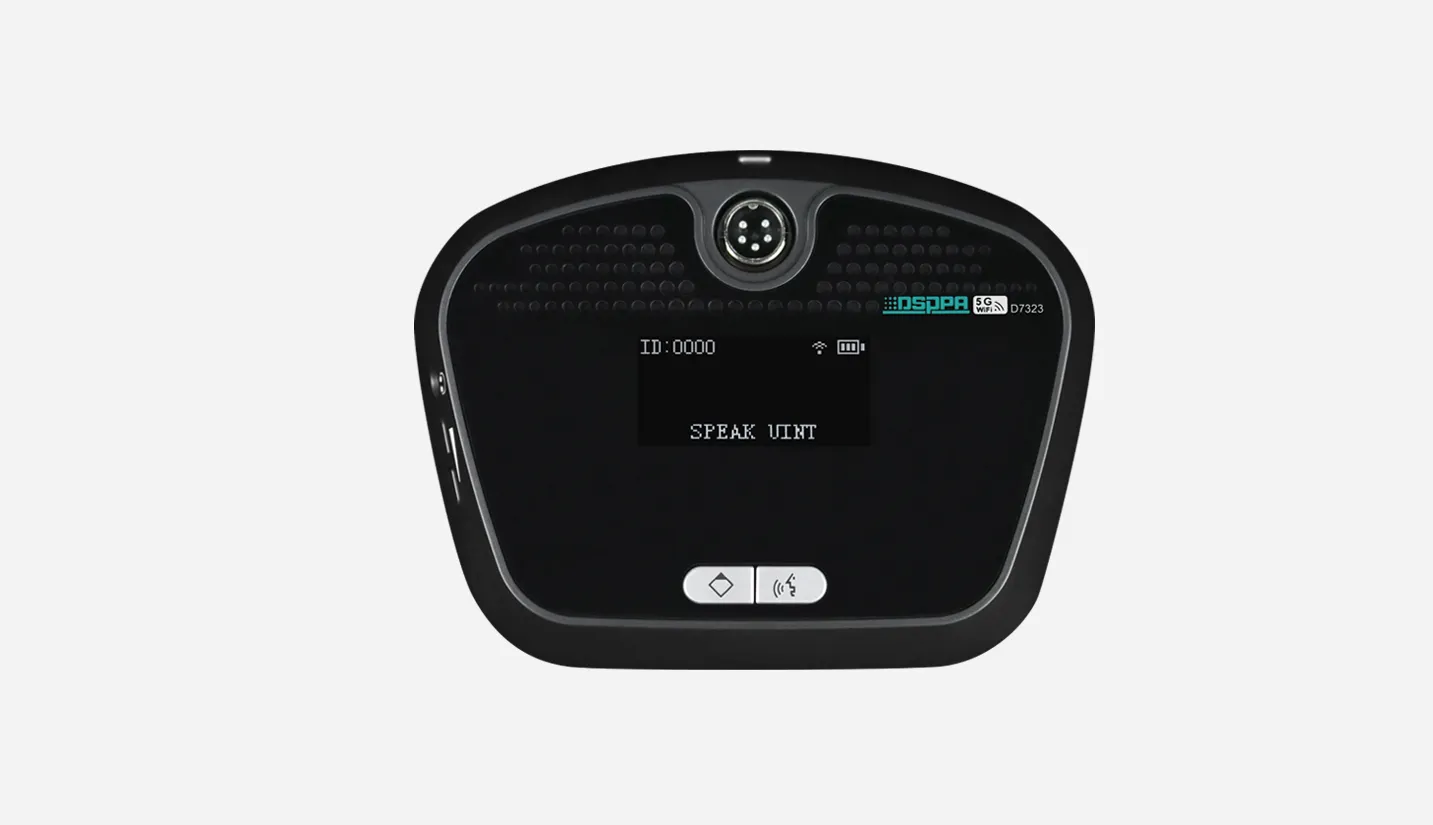

  • 2.4" OLED display with real-time display when the unit is operating:

  • The ID number of the conference unit, the number of applicants, the voting results, the number of people checking in, and various operational information;

  • Chinese Simplified and English bilingual display unit information.

  • With status display features such as WIFI signal strength, battery charge, cell information, and speaking timing,

  • The PC side can also remotely monitor status information;

  • Together with the camera, the camera can be automatically tracked when set up using the digital Conference system host or PC control software.

  • In conjunction with the control panel, the unit has a self-detection function. The items tested include: Keys, microphone, LED indicators, OLED screen, and internal speaker.

  • Powered by a lithium-ion battery, charged by the D7331 charging box via the USB interface;

  • With a high-capacity battery, you can get long-lasting battery life.

  • When the microphone is turned on, the local speaker automatically switches off to prevent sound playback.

  • The microphone is switched on with a tone that sets the switch status.

  • The chairman unit has a priority function (all delegate units can be muted or turned off), and a lectern mode (the chairman unit is always on) with the host settings.

  • The Chair module has the function of approving a delegate's request to speak.

  • The chairman unit can be opened freely without being restricted by the number of speakers.

  • The Chairman Unit has the priority function of having full control of the order of the Conferences.

  • The Chairman Unit is connected freely.

  • It supports roaming capabilities,allows roaming between multiple AP, increases Wi-Fi coverage,and enables conference units to be used in large conference rooms or multiple conference rooms;

Datasheet
Get Quotation
DETAILS
SPECS
Diagram

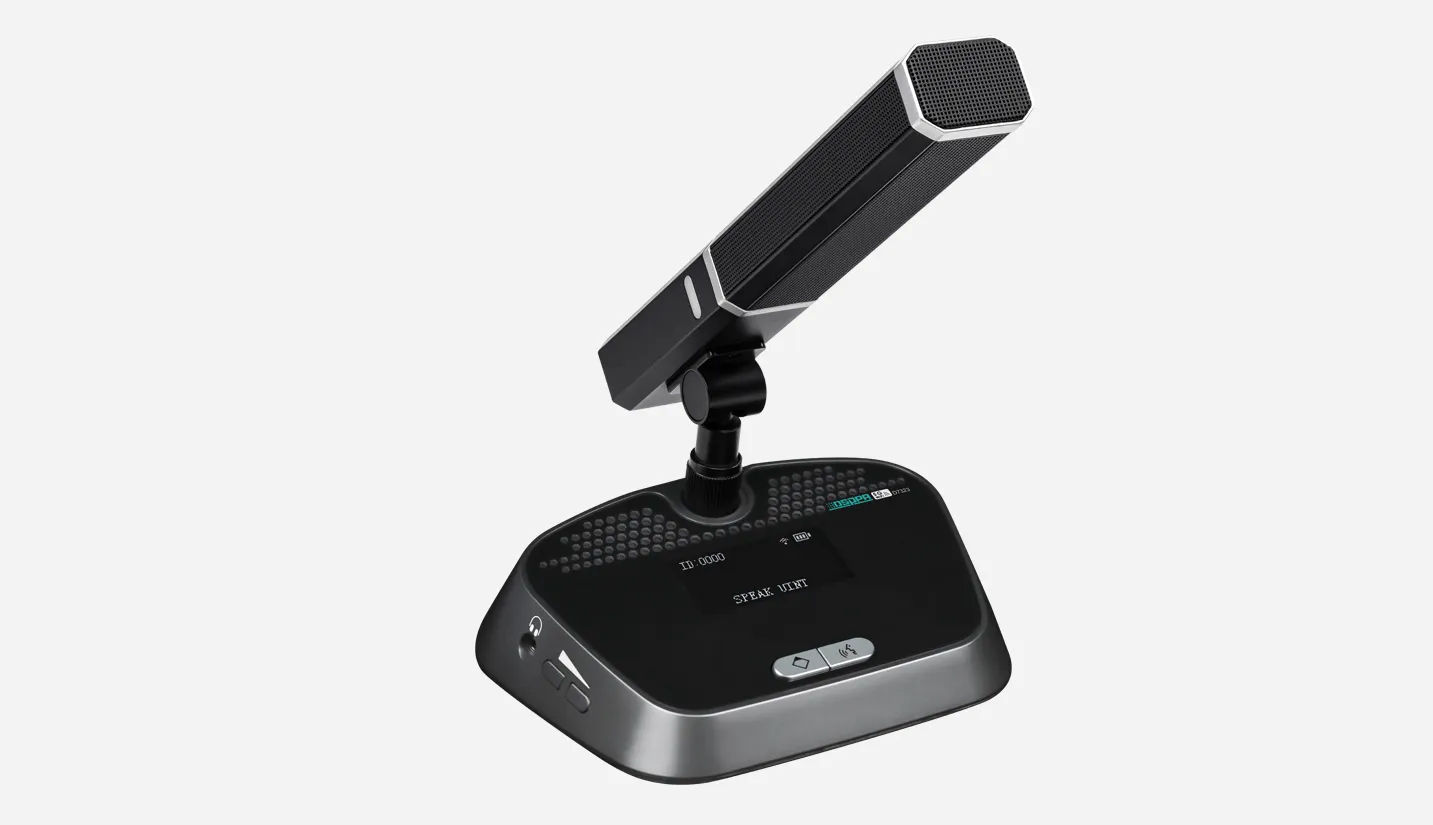

Wireless Conference System 5G WiFi Wireless Discussion Chairman Unit
Wireless Conference System 5G WiFi Wireless Discussion Chairman Unit
Wireless Conference System 5G WiFi Wireless Discussion Chairman Unit
Wireless Conference System 5G WiFi Wireless Discussion Chairman Unit
Wireless Conference System 5G WiFi Wireless Discussion Chairman Unit

Specifications of Wireless Conference System 5G WiFi Wireless Discussion Chairman Unit

Model

D7323/D7324

The structure type

Desktop

Effective frequency range of gain limitation (± 3dB)

Unit A to Unit B.

130Hz-14kHz

Host to unit line

130Hz-14kHz

Unit to host line output

50Hz-14kHz

Speaker power

1.2W

Static power consumption

<3.2W

Maximum power consumption:

4.5W

Signal-to-noise ratio

>81dB

Crosstalk attenuation

>80dB

Harmonic distortion

<1%

Headphone output

9dBu, 8-32 Ω, 3.5mm

Operating Power Supply(Battery Pack)

DC5V is charged by Type-C port (more efficient charging in off state)

Microphone type


Elector cardiac capacitive type

Sensitivity

-30dBV/pa

input resistance

2kΩ

Equivalent noise

20dB(SPL)

Maximum sound pressure level

125dB(THD<3%)

Package dimensions:

485×280×120mm (with two in a bpx)

Machine Dimensions (W × D × H)

175×133×46mm

Gross weight

2.0kg

Net weight

0.6kg
