5G WiFi Encrypted Wireless Conference Delegate Unit D7326

  • A 5G WiFi encrypted wireless conference unit integrating speaking, sign-in, voting, rating, SMS, and tea service functions.

  • Adopt 128-bit AES digital encryption technology, with WAP/WAP2 secure connection, MAC address filtering, and hidden SSID security to prevent eavesdropping and unauthorized access.

  • Adopt integrated square microphone rod (240mm in length, non-removable), electret cardioid directional condenser pickup microphone, with two-color indicator ring (red/green), red for speaking, green for applying for speaking.

  • Adopt 4" square LCD display touch screen to display the working status of the unit in real time. The battery power status, WiFi status, voting, rating, language switching between Chinese and English, volume level adjustment, backlight time setting, theme switching, SMS viewing, and tea service application can be completed through the display screen.

  • With a 3.5mm stereo headphone jack for headphone connection to monitor the speech of other units.

  • Can adjust the microphone volume and headphone monitoring volume independently. Long press the V+ button to enter the microphone volume adjustment, and long press the V- button to enter the headphone monitoring volume adjustment; or adjust the volume on the touch screen.

  • With microphone on/off button, with a chairman priority button for the chairman unit. Can speak, sign in and number through the microphone on/off button.

  • With a unique ID for each conference unit. Long press the microphone on/off button to delete the ID number and restore factory settings.

  • Come with 3 sets of theme UI, two modes: free mode and locked mode. In free mode, the theme of each unit can be changed freely, or the themes of all units can be changed uniformly in the PC background. In locked mode, the theme of the unit cannot be changed.

  • Display the ID number of the conference unit, the number of mics applying for speaking, the voting results, the number of attendees who have signed in and various operation information on the LCD screen.

  • With tea service function, including paper, pen, tea, coffee, and manual service.

  • With language switching function, bilingual switching between Simplified Chinese and English.

  • Combined with a camera, it can realize automatic camera tracking after set by the digital conference system host or PC control software.

  • Used in conjunction with the control host, the unit can realize the self-test function. The items to be tested include buttons, MIC, LED indicator, and LCD screen.

  • Through the host settings, the chairman unit is endowed with a priority function (to mute or turn off all delegate units) and a podium mode (the chairman unit is normally on).

  • The chairman unit has the authority to approve the application for speaking from the delegate unit.

  • The chairman unit has the function of initiating a voting.

  • The chairman unit can be turned on freely without being restricted by the number of speaking units.

  • The chairman unit has the priority function of having full control over the order of the conference.

  • There is no restriction on the location of the chairman unit when connected to the system.

  • With a built-in rechargeable lithium battery, which supports 18W fast charging. Also, it can be charged by the D7331 charging box through the Type-C interface of the unit.

  • Adopt 10000mAH large-capacity lithium battery, with a charging time of 4H and a battery life of ≥8H.

  • The unit has a status display of power-off charging, fast charging and normal charging (ordinary charging), and a 100% full power prompt. The screen lights up for 10 seconds each time you click on it. When it is turned on, there is a charging icon displayed, and a 100% full power prompt.

  • Support roaming function, which allows you to roam between multiple APs for increased Wi-Fi coverage, enabling the conference unit to be used in a large conference room or multiple conference rooms.


Datasheet
Get Quotation
DETAILS
SPECS

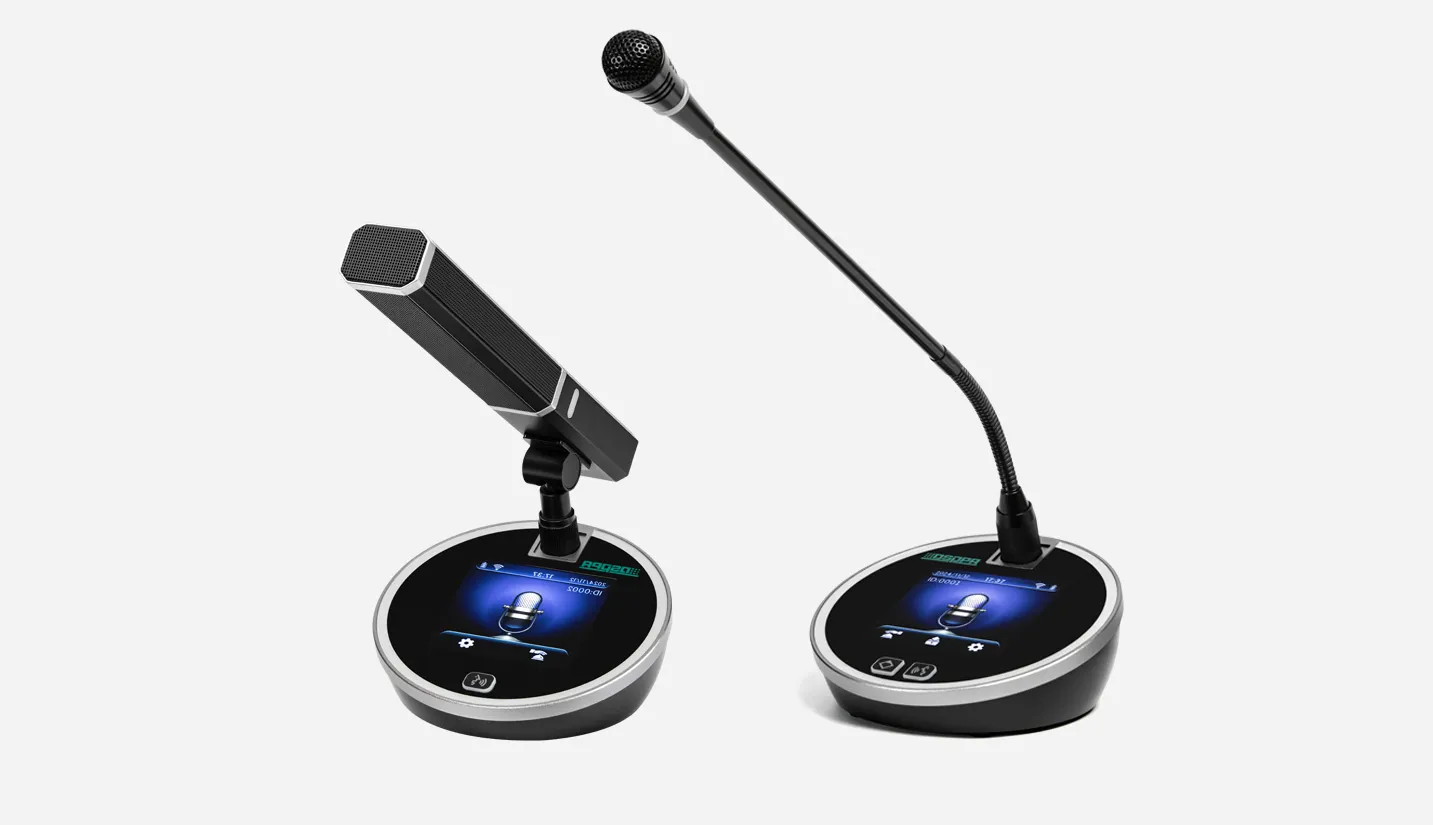

The conference unit is a 5G WiFi encrypted wireless conference unit with a round microphone base and features functions such as speaking, sign-in, voting, rating, SMS, and tea service. It uses 128-bit AES digital encryption technology for secure and enhanced communication and conference. It is provided with a 4" square LCD display touch screen to display the working status of the unit in real time. With roaming function, it allows you to roam between multiple APs for increased Wi-Fi coverage and use in a large conference room or multiple conference rooms.

Specifications of 5G WiFi Encrypted Wireless Conference Chairman Unit


Model

D7325/D7326

Structure Type

Desktop

Effective Frequency Range of Gain Limit (±3dB)

Unit A to Unit B

130Hz-10kHz

Host Line to Unit

130Hz-10kHz

Unit to Host Line

80Hz-16kHz

Static Power Consumption

<3W

Maximum Power Consumption

<4W

S/N Ratio

>80dB (A-weighted)

Harmonic Distortion

<0.3%

Headphone Output

9dBu, 8-32Ω, 3.5mm

Operating Power (Battery Pack)

3.7V/10000mAH lithium battery

Microphone

Microphone Type

Electret cardioid condenser

Sensitivity

-45dBV/pa

Input Impedance

2kΩ

Equivalent Noise

20dB (SPL)

MAX. SPL.

125dB (THD<3%)

Package Dimensions

385×345×181mm (two pcs/CTN)

Machine Dimensions (Excluding MIC Rod, W×D×H)

142×139×65mm

Gross Weight

2.3kg

Net Weight

0.74kg
