Professional Mobile Audio System Solution for Outdoor Performances D5501C+DSP1280F

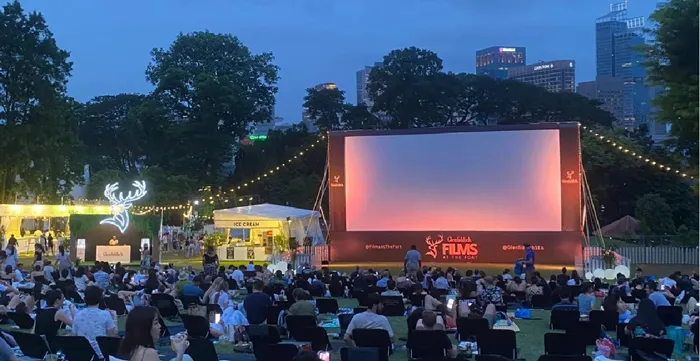

 II. Outdoor Small-Scale Event Solution

Application Scenarios: Outdoor music festivals, street performances, small-scale celebrations, commercial roadshows, community events, and more.Coverage Area & Capacity: 300–750 m², accommodating approximately 300–800 people.

System Configuration: Speech system + sound reinforcement system.

System Advantages:

Rapid Deployment: Modular connection design enables system setup within 30 minutes, well-suited for touring and mobile performances.

High SPL Coverage: A maximum sound pressure level of 130 dB ensures clear speech and music even in noisy outdoor environments.

Water and Dust Protection: IP66-rated design withstands sudden weather changes without the need for additional rain protection.

Uniform Sound Coverage: A 140° horizontal dispersion angle delivers consistent sound across wide audience areas, minimizing dead zones.

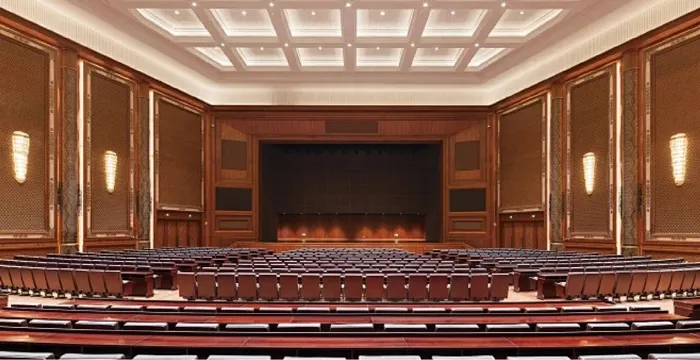

 III. School Auditorium Solution

Application Scenarios: School auditoriums, theaters, mid-sized conference halls, indoor gymnasiums, exhibition centers.

Coverage Area & Capacity:

700–1,800 m², accommodating approximately 800–2,000 people.

System Configuration:

Speech system + sound reinforcement system.

System Advantages:

Precise Sound Field Control: Supports RS485-based software tuning to optimize frequency response for the specific acoustic conditions of auditoriums.

High Scalability: For larger venues, multiple DSP1280F units can be cascaded to expand system capacity.

Rapid Deployment: Integrated mixer rack design enables fast setup and commissioning.

Uniform Coverage: A 140° horizontal dispersion angle ensures even sound distribution across wide audience areas, minimizing dead zones.

Note: This solution is provided for reference only. For specific requirements, please feel free to contact us.

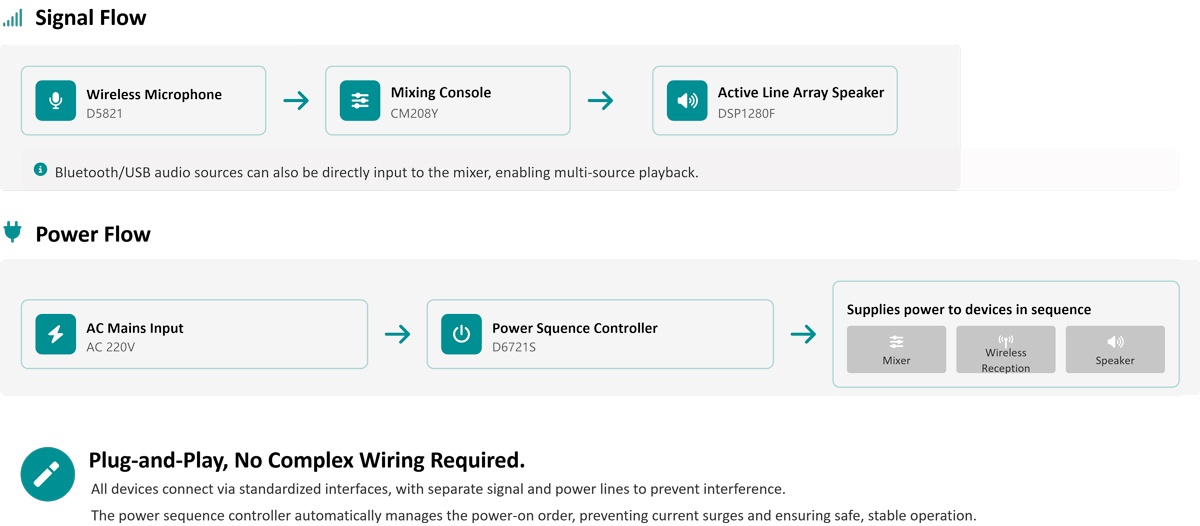

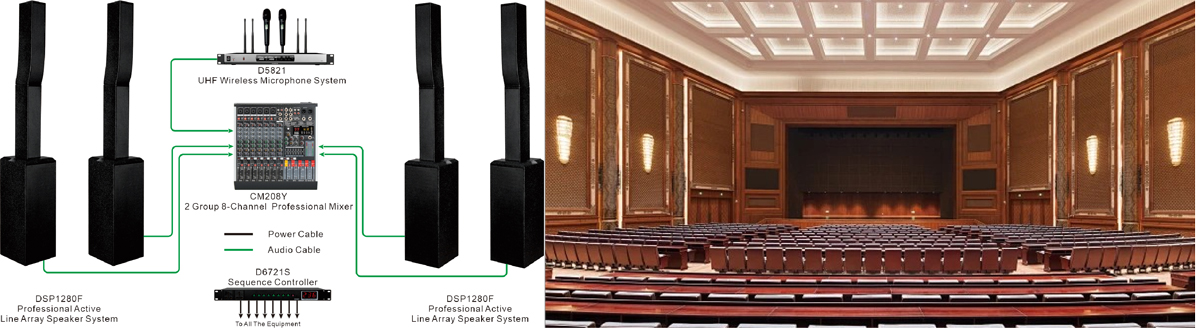

 IV. System Connection Logic – Signal and Power Flow

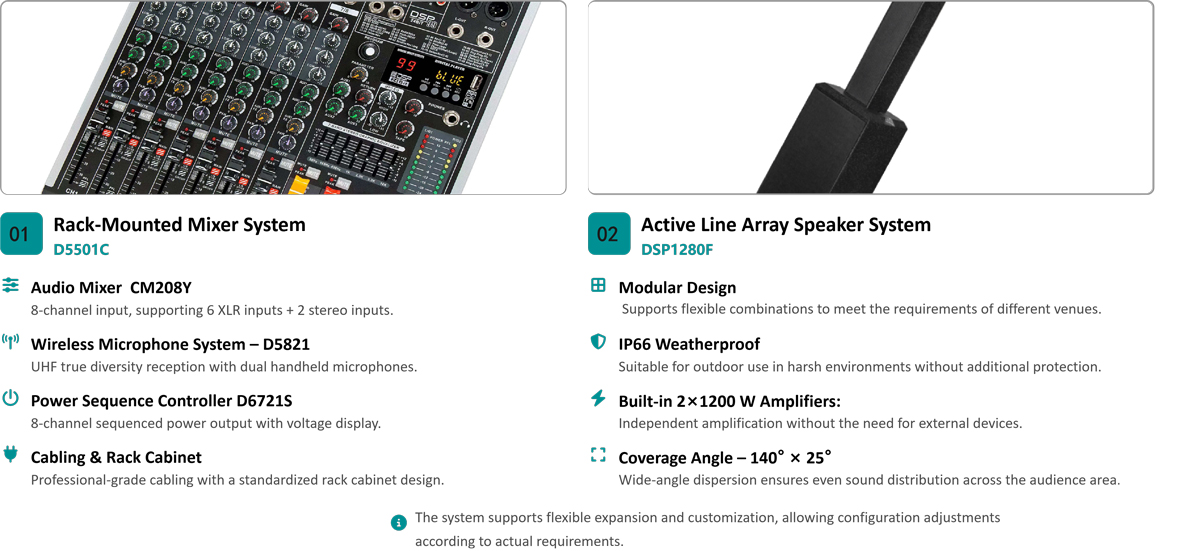

 V. System Composition – Two Core Modules

 VI. Why Choose This System?

Rapid Deployment

Integrated rack design enables system setup within 15 minutes. No complex wiring is required—devices are plug-and-play, allowing quick on-site deployment and significantly improving work efficiency.

High-Quality Sound Output

Professional mixer combined with line array speakers delivers clear and powerful sound. With 140° wide-angle coverage, every position in the venue enjoys high-quality audio experience.

Power Safety

The sequencing controller prevents current surges and automatically manages device startup order, effectively protecting equipment, extending lifespan, and ensuring stable system operation.

Environmental Adaptability

Speakers are rated IP66 for water and dust protection, suitable for both indoor and outdoor use. They perform reliably in rain, dust, high or low temperatures, and other challenging conditions.

Stable Wirless Performance

UHF true diversity system provides strong interference resistance and frequency stability. Infrared automatic frequency synchronization allows simple operation and long-range transmission, ensuring smooth performance and meetings.

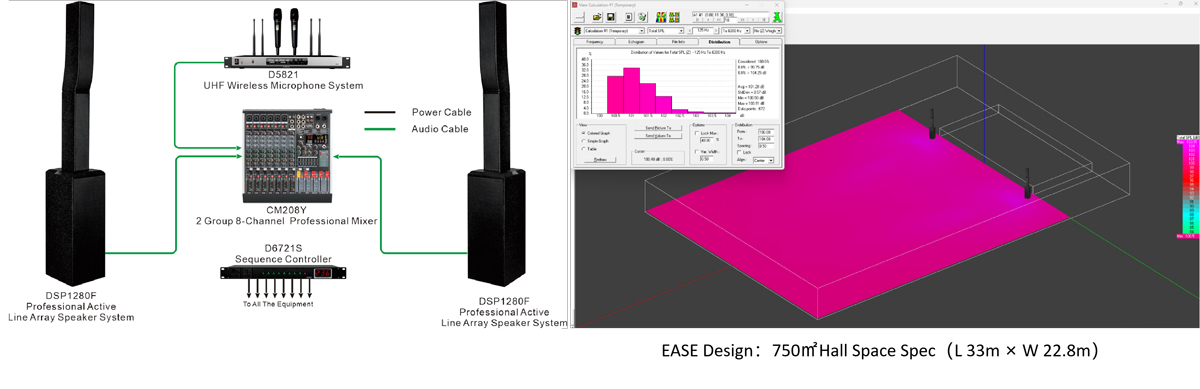

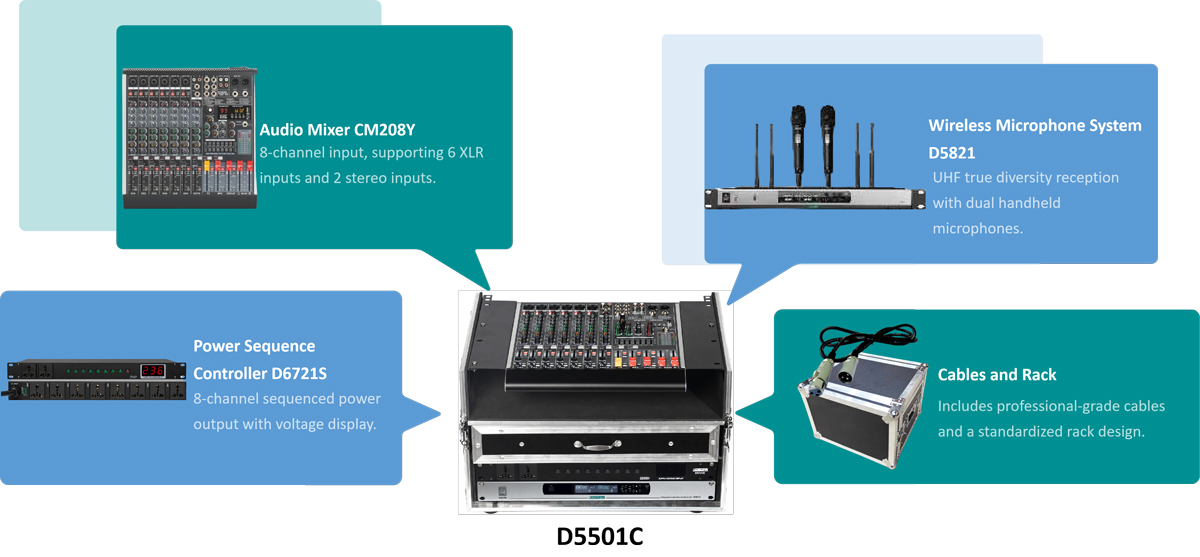

 VII. D5501C System Configuration

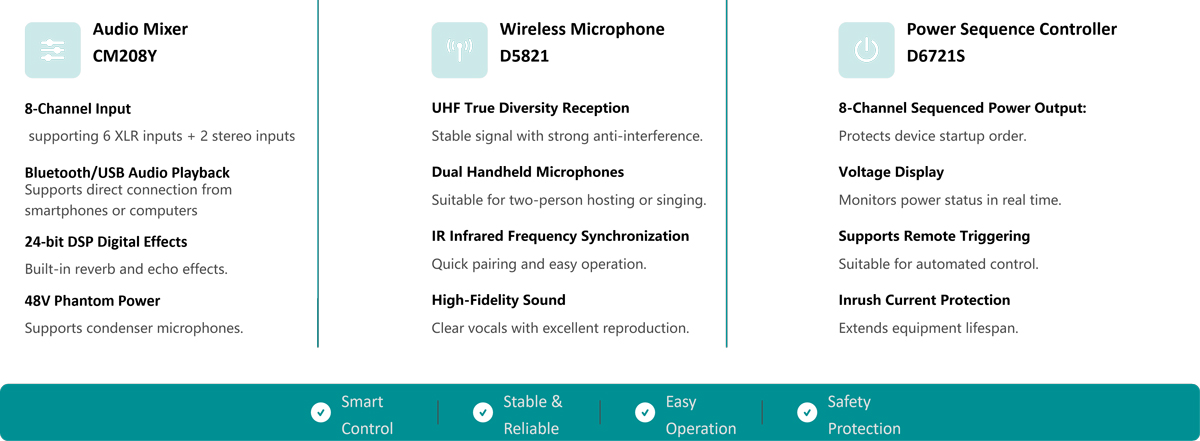

 VIII. Product Introduction

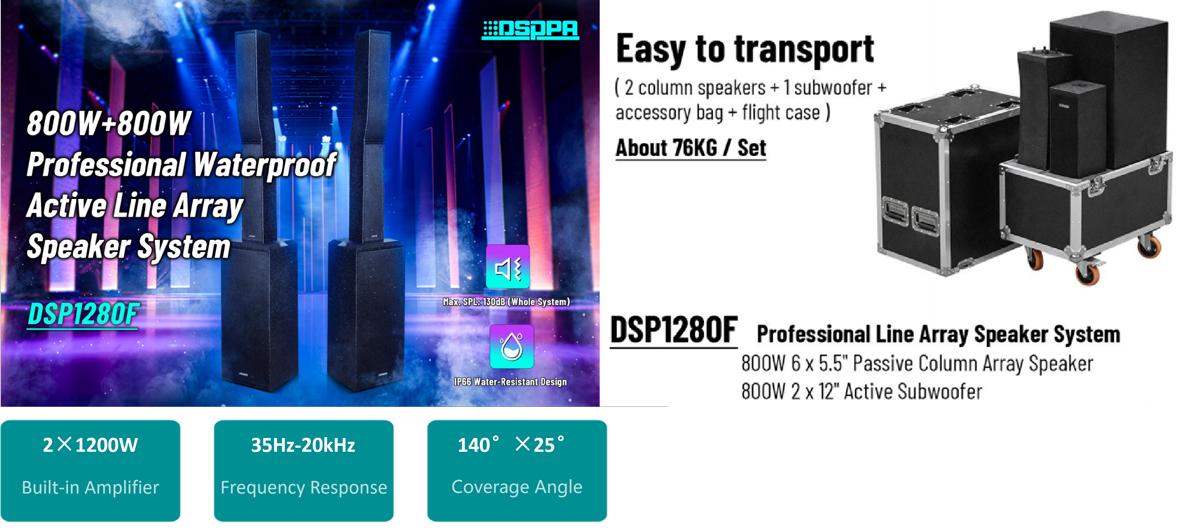

 IX. Product Introduction_DSP1280F

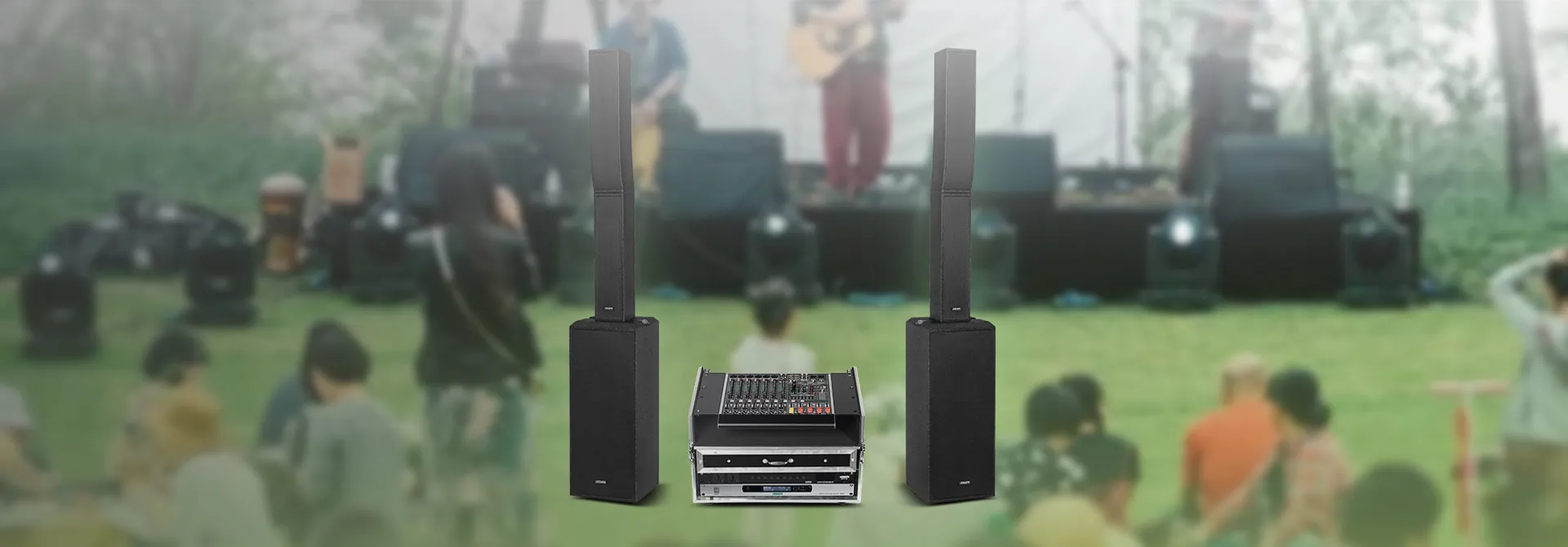

 X. Versatile Indoor and Outdoor Applications
