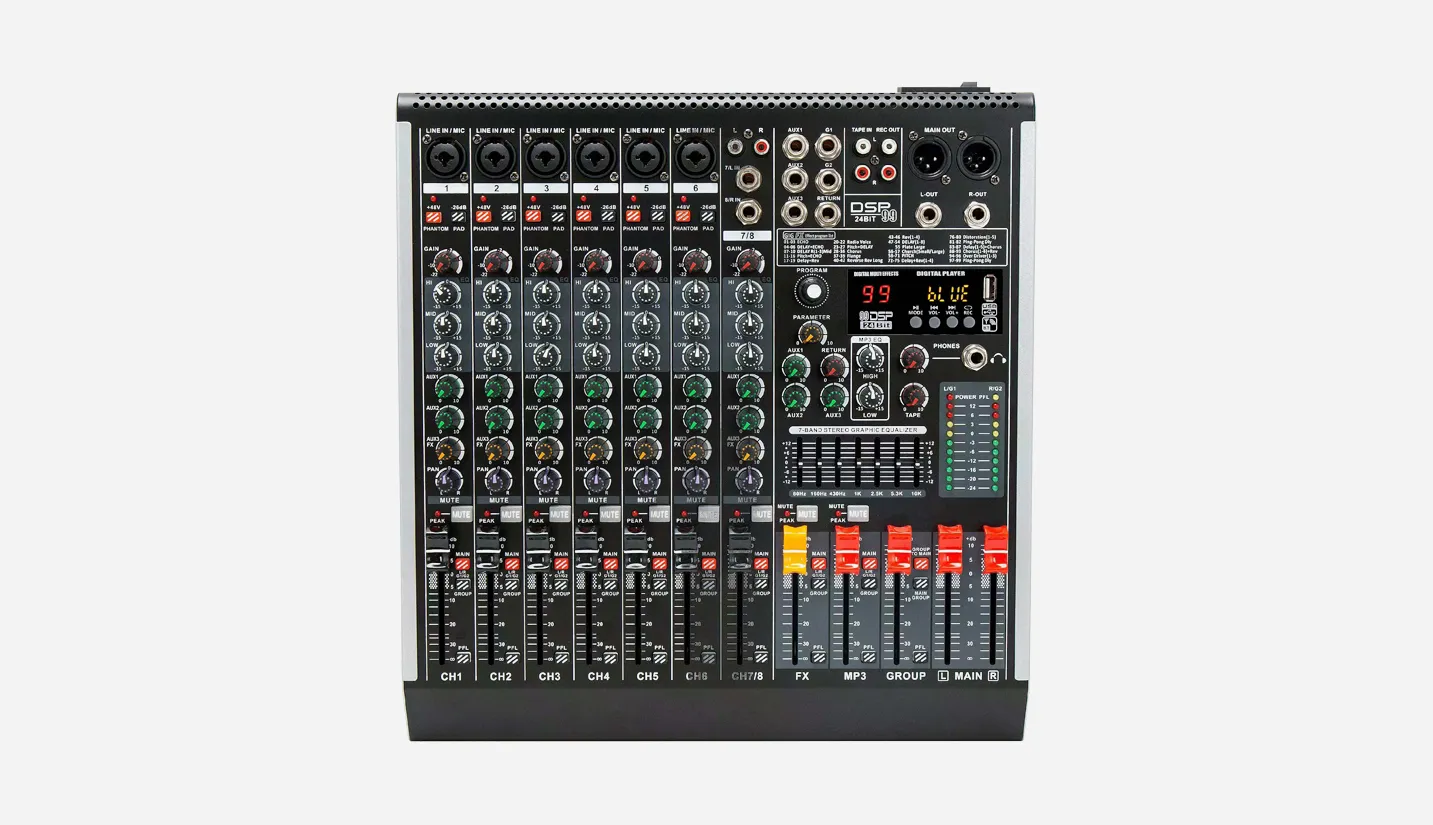

.webp "2 Group 8-Channel Professional Audio Mixer")
8-channel professionalmixing console with compact and practical design
Mic/Line combo inputs with balanced XLR and TRS connectors
Independent 48V phantom power switch for each mono channel
26 dB input attenuation per channel for high-level signal control
Gain control and 3-band EQ (treble, mid, bass) on each channel
Three AUX sends (AUX1, AUX2, AUX3/FX) for monitors and effects
Flexible routing to Main L/R or G1–G2 group buses
PFL (Pre-Fader Listen) monitoring for precise signal checking
Peak indicators and mute control on each channel
Dual 7-band stereo graphic equalizer for accurate tonal shaping
Built-in digital effects processor with 99 selectable effect presets
Dedicated FX channel with routing, mute, PFL, and level fader
Integrated USB MP3 playback with full-color display
Independent MP3 EQ, routing, mute, and fader control
Output level meters for Main L/R and G1–G2 buses
Headphone monitoring with selectable main or group signals
TAPE/REC recording interface for external recording devices
Stable audio performance with low distortion and high S/N ratio
Wide frequency response for clear and natural sound reproduction
The CM208Y 8-Channel Professional Audio Mixer is a compact audio mixer offering flexible and professional mixing capabilities, designed for live sound reinforcement, conferences, education, and small to medium-scale events. It combines high-quality microphone inputs, flexible signal routing, and integrated digital effects to deliver clear, stable, and professional audio performance.
Equipped with Mic/Line combo inputs, independent 48V phantom power, three AUX sends, group and main bus routing, a dual 7-band graphic equalizer, and a built-in USB MP3 player, the CM208Y offers precise control over every signal channel. Its intuitive front-panel layout and reliable audio processing make it an ideal solution for users who require professional sound quality with straightforward operation.
Model | CM208Y |
Input Sensitivity | -60dBm~-40dBm |
Nominal Input Level | Mic-60dBm, Line-20dBm, Effect Return（Eff Ret）-20dB, Aux In-20dB, Tape in 10dB |
Nominal Output Level | Effect Send（Eff Send）-10dB, Aux Send 0dB |
Common Mode Rejection | -17dB |
Output Voltage (Mixr Part) | 4V Max |
S/N Ratio | ≥80dB |
THD (1KHz Full Power) | Less than 0.03% (at 1 KHz) |
Frequency Response | 20Hz-20kHz ±3dB |
Headphone | 7V / 220Ω |
Parametric CQ | Hi +15dB / 12KHZ Mid +15dB / 2.5K Low +15dB / 80KHz |
Power Consumption | 30W |
Power Supply | AC 110-245V / 50-60Hz |
Product Dimension | 350×375×100mm |
