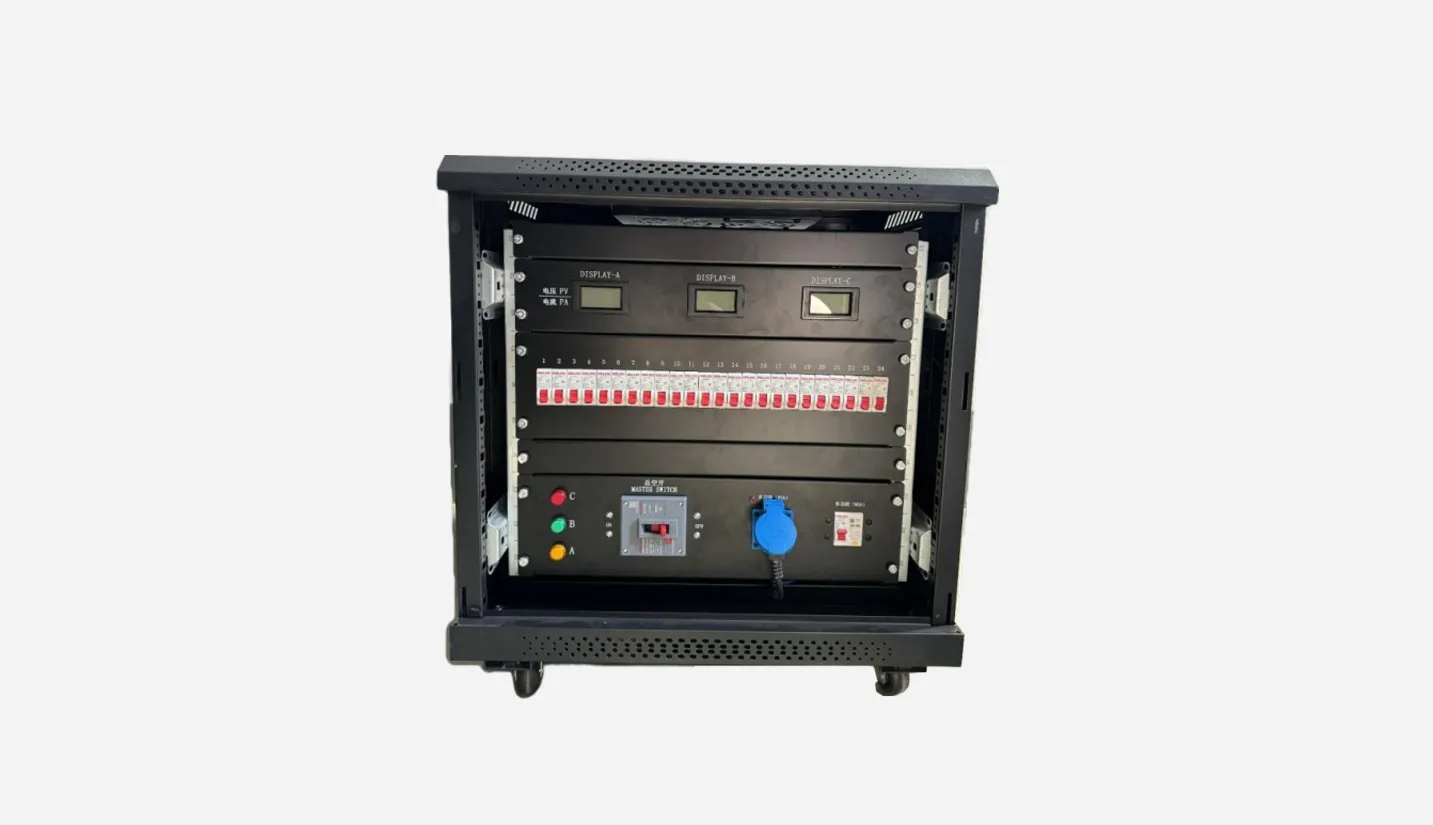

.webp "24-Channel Power Distribution Box")

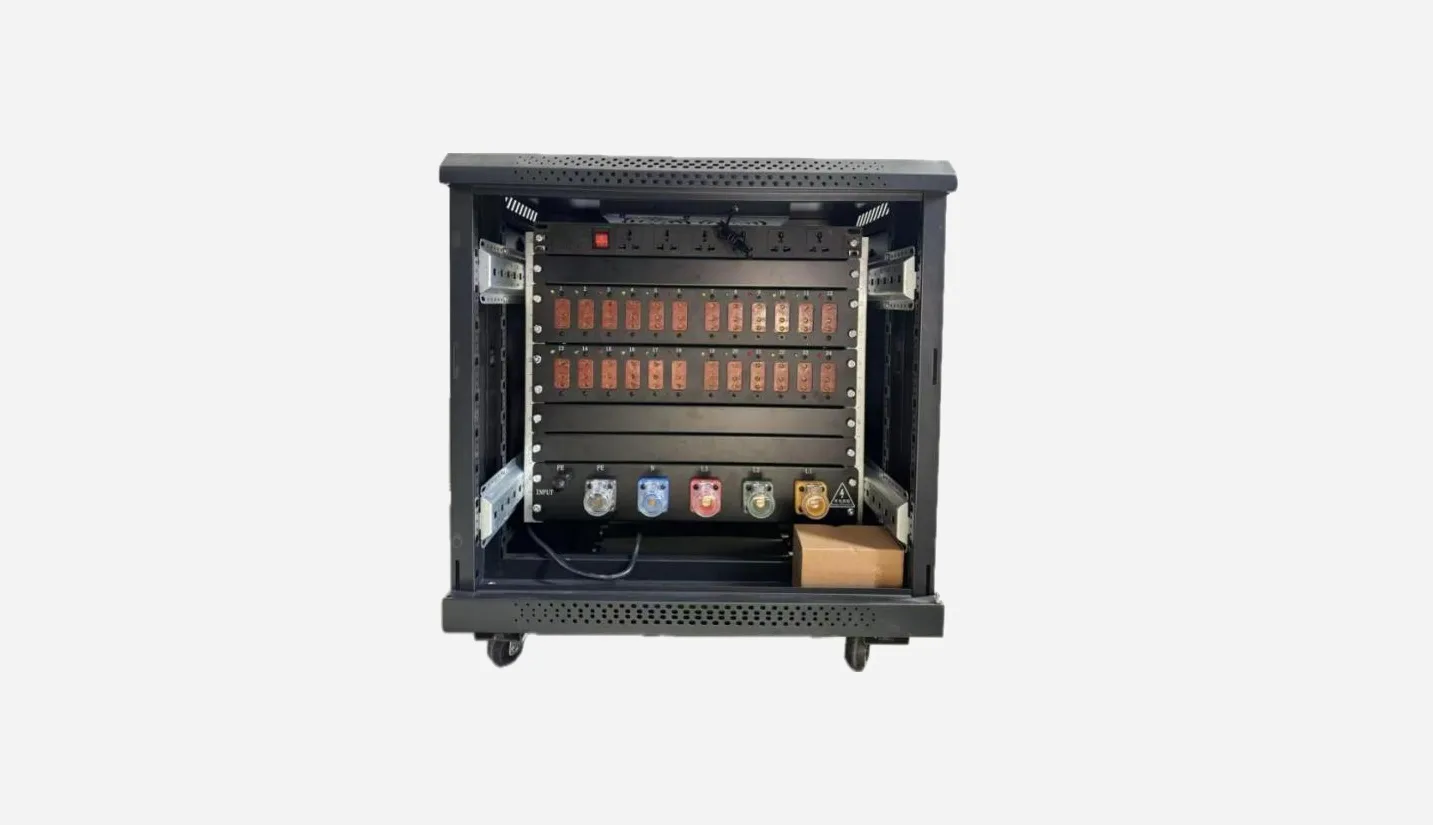

.webp "24-Channel Power Distribution Box")
Internal wiring uses 25 mm² copper cables, with 4 mm² branch wires.
Each branch circuit is equipped with a CHINT 32A / 1P secondary protection circuit breaker.
LED power indicator for each channel.
Three-phase intelligent digital current and voltage meter.
Equipped with working light.
Multi-functional socket with 1P protection.
24 pcs 3-core bakelite sockets.
The ZT2404-P1 is a 24-channel power distribution box designed for stage lighting and professional event systems. With a three-phase 380V power supply, built-in circuit protection, and real-time voltage and current monitoring, it provides reliable and stable power distribution. The unit features a 200A Powerlock input and 24 independent 32A outputs, making it ideal for concerts, theaters, and large-scale performances.
Model | ZT2404-P1 |
Power Supply | Three-phase five-wire system AC380V ±10%, Frequency 50Hz / 60Hz ±5% |
Total Power | Maximum 96 kW, suitable for various loads |
Protection | Built-in 125A molded case circuit breaker with overload and short-circuit protection, high breaking capacity air switch |
Monitoring | Independent monitoring of three-phase voltage and current |
Indicators | Three-phase A / B / C indicator lights |
Dimensions | International standard 10U |
Input Connector | 200A powerlock input |
Output Connector | 3-core 32A bakelite sockets |
