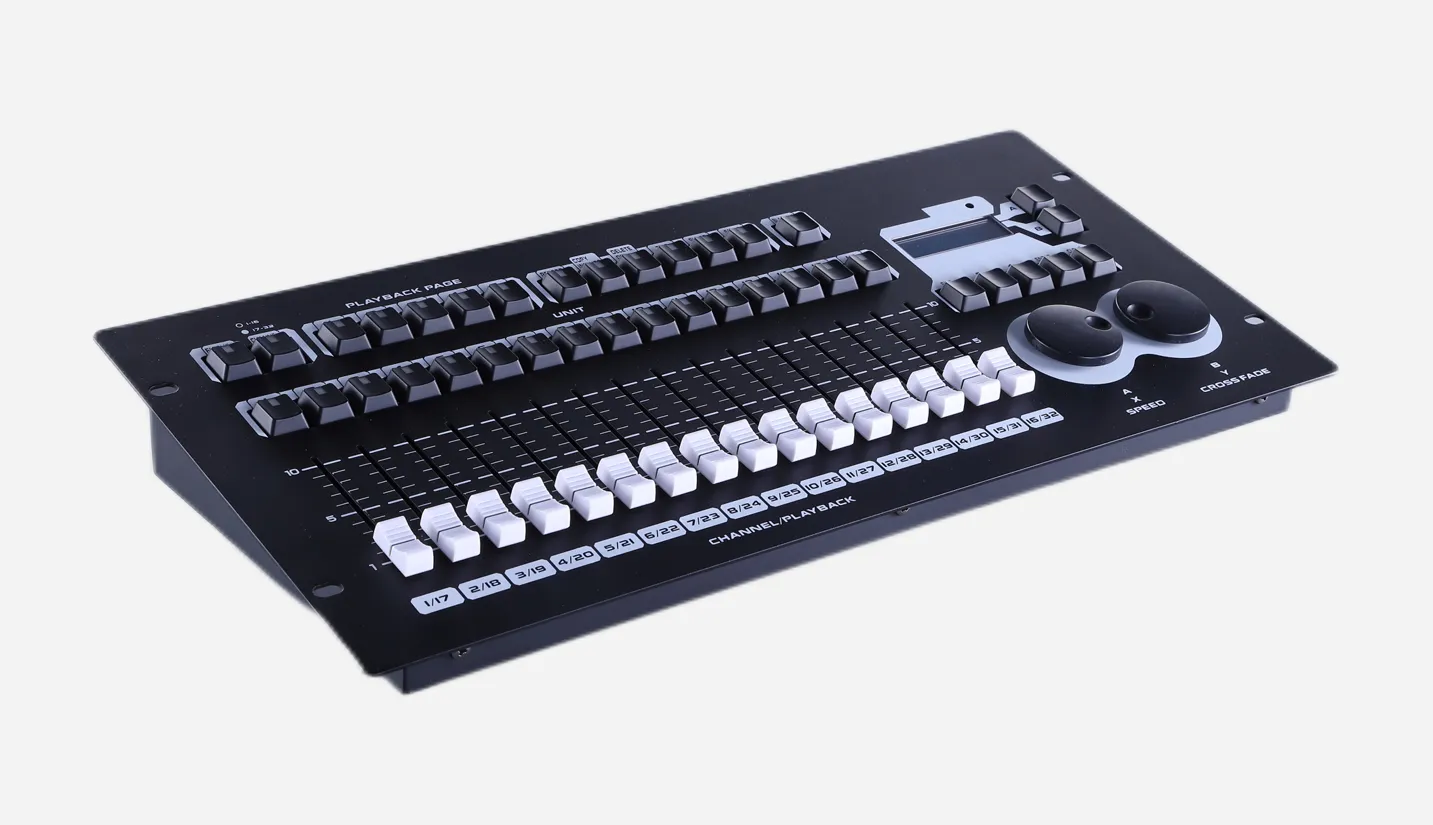

.webp "256-Channel DMX Intelligent Lighting Console")
Controls up to 12 intelligent moving head fixtures simultaneously
Supports 256 DMX channels for precise lighting control
Built-in graphic effects including X/Y circular motion, RGB rainbow, and chase effects
Supports up to 16 scenes and 10 built-in graphic effects running simultaneously
Scene playback and dimming via faders with real-time brightness adjustment
Max 32 control channels per fixture
Scene storage capacity of 80, with multi-step scenes up to 100 steps
Scene timing control with HTP and LTP modes
Supports up to 2 graphics per scene and 10 graphics running simultaneously
Instant blackout function for safety and emergency control
Dial (data wheel) adjustment for XY values, multi-step scene speed, and crossfade ratio
Channel crossfade mode switch supported
Point control and fader dimming for scene adjustments
USB drive compatible with FAT32 format for scene backup and transfer
Scene page, fixture, and channel navigation buttons for intuitive control
Menu control and option keys for programming, selection, and editing
Function keys for saving, copying, and managing scenes and fixtures
The 256-Channel DMX Intelligent Lighting Console can control up to 12 intelligent moving head fixtures simultaneously. It features built-in graphic effects, enabling easy implementation of X/Y circular movements, RGB rainbow effects, chase effects, and more. The console supports the simultaneous operation of up to 16 scenes and 10 built-in graphic effects. Scenes can be operated via faders, with real-time adjustment of scene brightness output.
Model | KL256K |
DMX512 Number of Channels | 256 |
Number of Moving Head Fixtures | 12 |
Channel Crossfade Mode Switch | Support |
Max Control Channels per Fixture | 32 |
Scene Storage Capacity | 80 |
Number of Scene Running Simultaneously | 16 |
Total Steps in Multi-Step Scenes | 100 |
Scene Timing Control | HTP, LTP |
Max Graphics per Scene | 2 |
Scene Launch and Dimming via Fader | Support |
Point Control for Scenes | Support |
Graphic Generator | Support Dimmer, P/T, RGB, CMY, Color Graphics |
Number of Graphic Running Simultaneously | 10 |
Instant Blackout | Support |
Dial Adjustment for XY Values | Support |
Multi-Step Scene Speed Adjustment via Encoder Wheel | Support |
Scene Dimming Control | Support |
USB Drive Compatibility | Supports FAT32 format |
