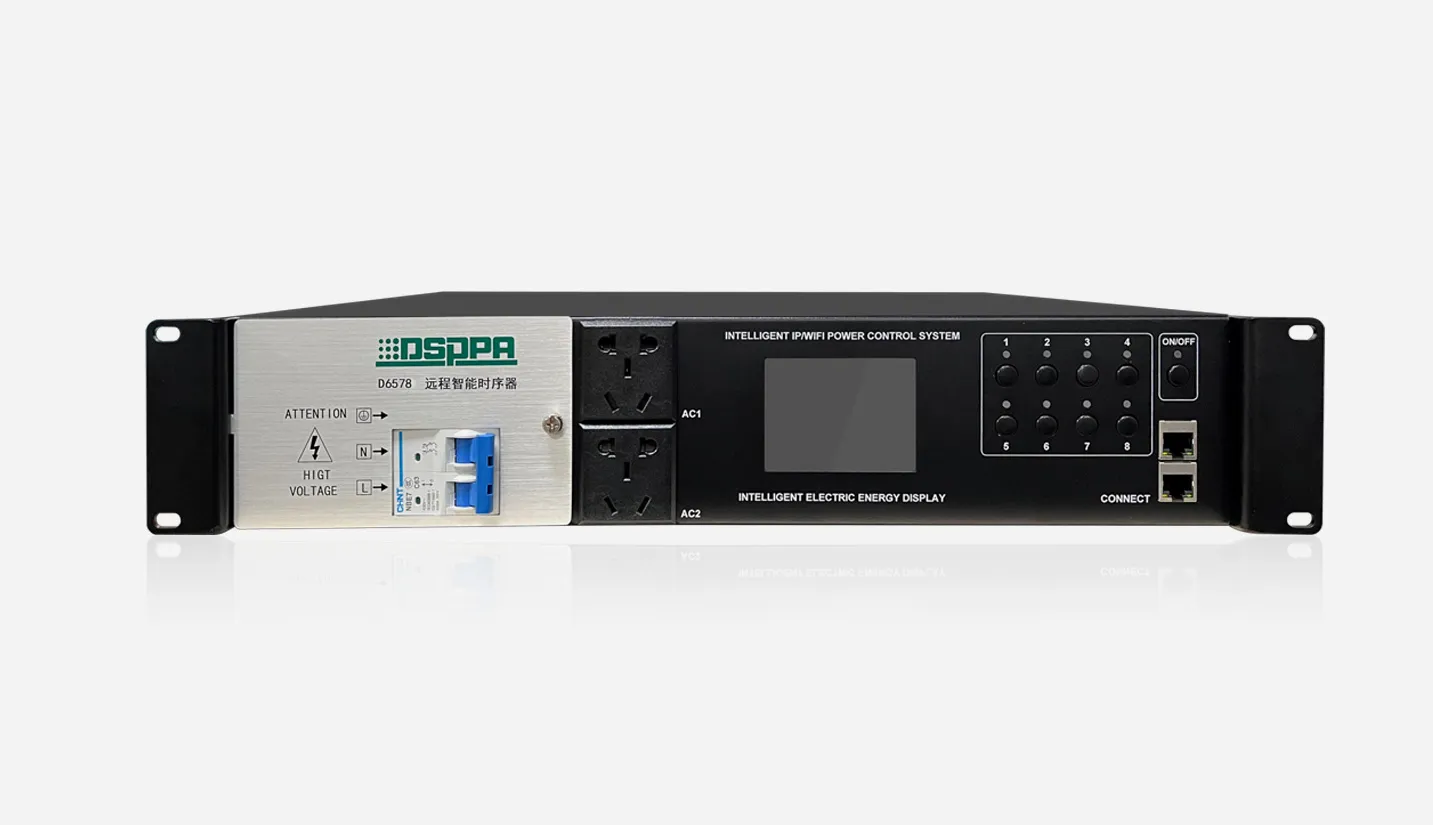

2U rack-mounted design with refined appearance and high-quality construction.
Equipped with a 3.2-inch industrial-grade LCD screen displaying real-time electrical metrics per channel, date/time, weekday, switch status, mode, scheduled points, and more.
Supports screensaver function with customizable timeout settings.
Each channel supports custom on/off intervals.
Independent control per channel and one-click sequential power on/off.
Built-in high-precision clock chip with automatic time synchronization via network.
Supports scheduled power on/off with multiple timer configurations—no manual operation required.
Real-time monitoring of voltage, power, and current, with per-channel current display.
Compatible with central control protocols; supports control via network port or serial port.
Includes 1 short-circuit trigger output, 1 DC12V trigger output, and 1 short-circuit input.
Supports 220V trigger input via touch-sensitive power input.
Fully isolated sampling for accurate power parameter monitoring.
Interfaces include DB9 RS-232, RJ45 RS-485, and RJ45 Ethernet.
Built-in web server for control and management via PC, smartphone, or tablet.
Configurable device ID with user-defined coding.
Supports cascading of multiple devices for centralized control.
Equipped with 8 controllable universal sockets (compatible with 10A and 16A), 2 pass-through sockets, 2 USB 5V outputs, and 1 x 3.81mm green terminal 5V output.
Maximum input current: 63A; maximum output per channel: 16A; operating voltage: 110V–240V.
Built-in air switch protection.
Integrated speaker with user-configurable alarm volume.
Undervoltage/under-current and overvoltage/overcurrent warnings with auto shut-off and audible alerts.
Per-channel real-time current monitoring with limit setting and automatic shutdown on threshold breach.
Support scene control, users can define custom channel groupings for switching.
Custom naming available for each channel.
Support temperature monitoring display.
With operation logs recording for system activity tracking.
Supports internet connectivity for remote control and firmware updates.
Built-in Wi-Fi hotspot for wireless control via direct device connection
The multi-channel intelligent power manager ensures stable performance and supports centralized control via IP network or RS-232 connection with a central control system. It also integrates RS-485 networking functionality, allowing up to 254 units to be connected through a hand-in-hand connection using RJ45 input and output ports. Additionally, an alternative RS-485 connection is available via Phoenix terminals on the rear panel. Once connected, the system supports sequential startup/shutdown of 8*N power outlets from front to back.
The device also features a built-in Wi-Fi AP mode, allowing users to log in for web-based management via various Wi-Fi terminals or a wired IP connection. Furthermore, it includes one RS-232 serial port, one DC12V trigger output, one short-circuit output, one short-circuit input, one AC220V trigger input, and two standard panel-mounted AC pass-through power outlets.
Model | D6578 |
Input/Output Voltage | AC110~240V |
Output Frequency | 50Hz |
Maximum Withstand Current | 63A |
Maximum Current for Single Channel | 16A |
Current Detection Accuracy | +/-0.1A |
Voltage Detection Accuracy | +/-1V |
Maximum Current for DC5V Output | 200mA |
Output Channel | 8 Channels |
EM Filter | Not Included |
Set Time On/Off | 1-120s |
Timer | 8 Channels |
Pass-Through Port | 2 Channels |
RS232 | 4 Channels |
RS485 | 1 Channel |
IP | 1 Channel |
WIFI | AP Mode (Account: P2P0, Password: 12345678) |
Weight | 6kg |
Package Dimensions | 2U (550mm*300mm*150mm) |
