Linux-based, virus-resistant OS with multi-language support (Chinese, English, Portuguese, Vietnamese, Traditional Chinese)
Industrial-grade hardware: 4-core CPU, 4GB RAM, 10.1" HD capacitive touchscreen
2 × optically isolated DMX512 outputs, Art-Net expandable to 8 outputs (4096 channels)
Smooth, precise, and responsive faders with no delay or jumping
4 encoder wheels for fixture attribute and scene adjustment
10 scene faders + 1 blackout fader for simultaneous scene playback and instant blackout
Dual console link for seamless backup control
Wireless and wired remote control via app or wall panel
Built-in music player with automated show marking, waveform visualization, and fill mode for fast light show creation
Scene, fixture, and graphic management with custom naming, grouping, and drag-and-drop programming
Supports RDM for remote fixture identification and address editing

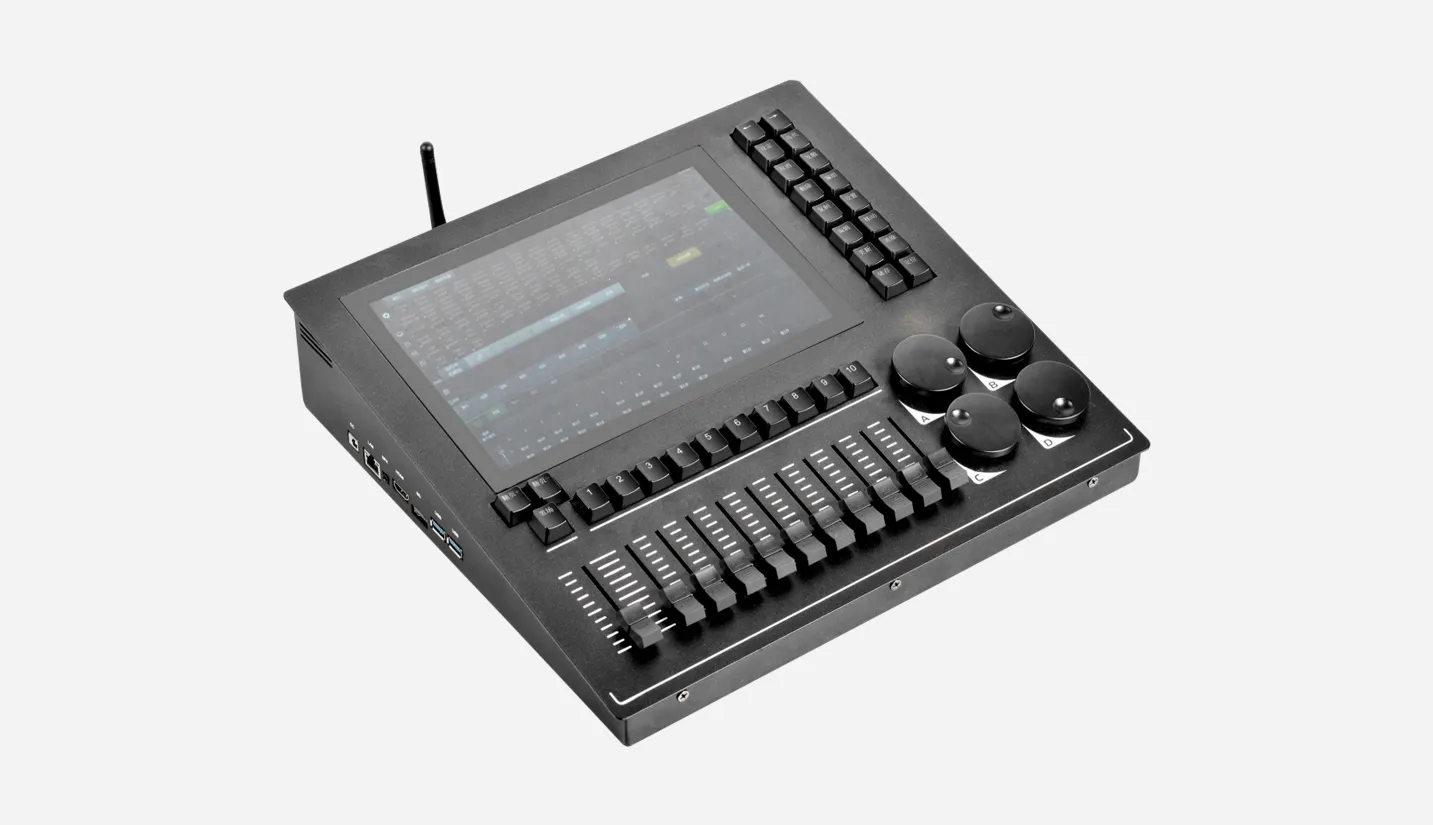

The KL1024DT-K1 Digital Lighting Console is a high-performance DMX/Art-Net stage lighting controller designed for precise and intuitive control of complex lighting setups. Featuring a Linux-based custom OS, industrial-grade hardware, multiple DMX outputs, and a full touchscreen interface, it supports advanced scene programming, playback, graphics, and automated light shows. With remote control via app or network systems, the console is ideal for concerts, theaters, events, and professional lighting productions.
Model | KL1024DT-K1 |
Operating System | Linux Ubuntu-based Custom System, Multi-language Support |
CUP / RAM | 4-core CPU, 4GB RAM |
Display | 10.1" HD Capacitive Touchscreen |
DMX Outputs | 2 × Optically Isolated DMX512 Outputs (1024 Channels Each), Art-Net Expandable to 8 Outputs (4096 Channels) |
USB / Storage | 2 × USB ports, 1 × SD card slot |
Network | 1 × 100Mbps Ethernet port, Wi-Fi support, Supports TCP/IP, UDP, TCP, 485 |
Encoders | 4 × Rotary Wheels for Attribute Adjustment |
Scene Faders | 10 Scene Faders + 1 Blackout Fader |
Graphics & Effects | 160 Preset Graphics, 31 Curve Effects, Support for 60 Simultaneous Effects |
Fixture Capacity | Up to 1600 Fixtures in 300 Groups |
Scene / Show Storage | 900 Scenes, 200 Shows |
Dimensions / Weight | 330 × 350 × 85 mm / 3.8 kg |
Power Supply | AC 90–240V |
