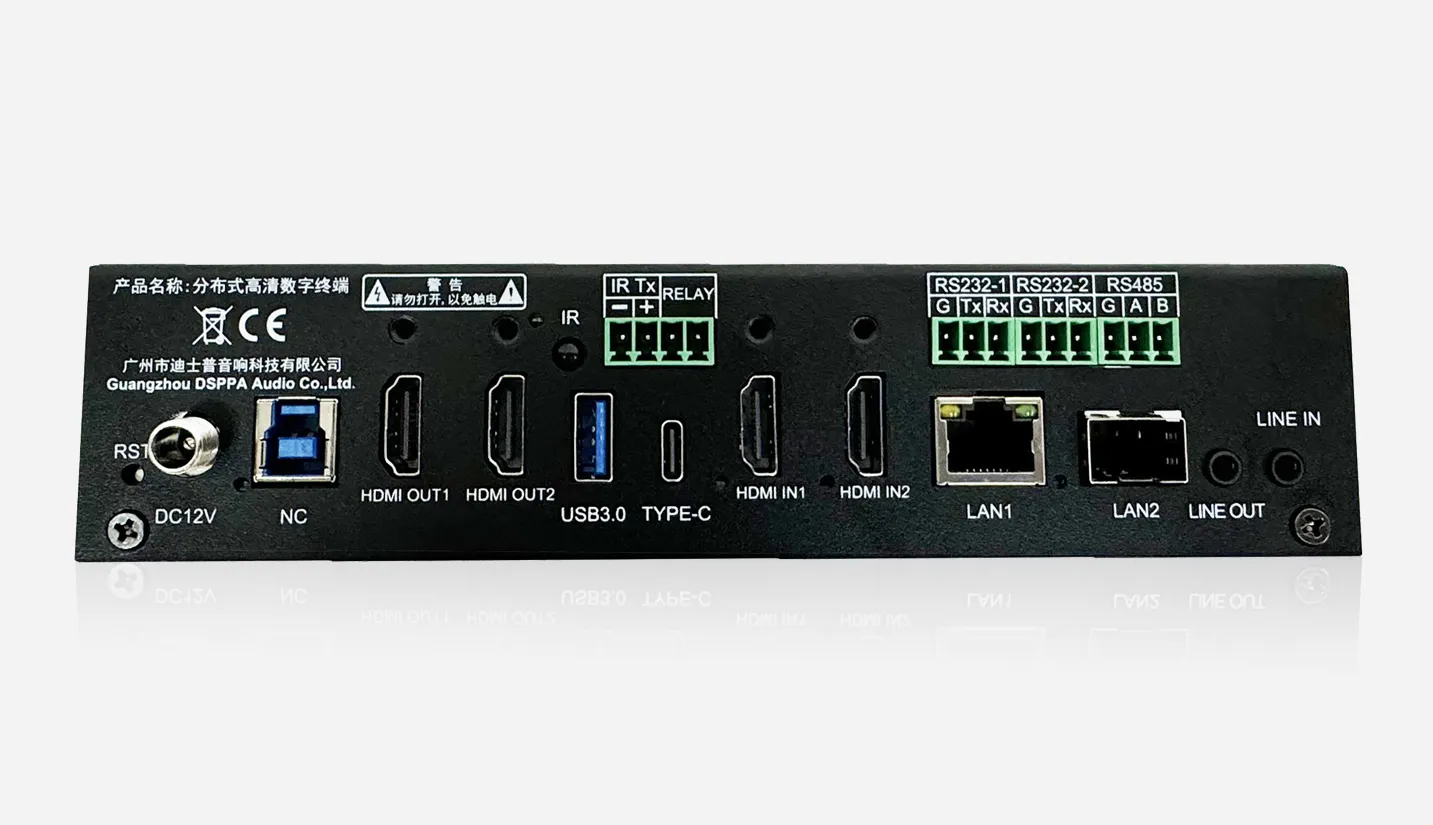

Distributed Digital High-Definition Terminal D6919C D6919D

Flexible Configuration, All-in-One Design: Featuring an integrated input/output design, the system can be flexibly configured as an input terminal, output terminal, KVM input terminal or KVM output terminal according to actual application requirements, meeting the needs of diverse scenarios.

Ultra HD Signal Processing with Strong Compatibility: When functioning as an input node, it supports multiple high-definition video signal formats, including 4K@60fps, 4K@30fps, 1080P@60fps, and 1080P@30fps, with backward compatibility. It supports 4K@60fps YUV 4:4:4 acquisition and encoding, enabling simultaneous multi-stream transmission. When functioning as an output node, it supports 4K@60fps, 4K@30fps, 1080P@60fps, and 1080P@30fps HD output with backward compatibility, and supports 4K@60fps YUV 4:4:4 decoding and display.

Efficient Encoding/Decoding with Multi-View Processing: As an output node, it supports H.264/H.265 encoding and decoding at 4K@60fps. It can simultaneously decode up to 4 channels of 4K@60fps video streams or 16 channels of 1080P@60fps streams. Multiple display modes are supported, including tiling, scaling, overlay, and split-screen, meeting the requirements of complex application scenarios.

Real-Time Preview for Precise Control: Input signals can be previewed in real time through the client software, allowing users to monitor signal status at any time for efficient and convenient operation.

Built-in Logo (OSD) Function for Easy Operation: When operating as an input node, a logo image can be added directly to the input source without additional equipment. The logo supports display in the upper-left corner, lower-left corner, or at customized X and Y coordinates. Users can upload new images or select previously uploaded images for configuration, ensuring simple and intuitive operation.

Local HD Background Image for Easy Setup: No additional equipment is required. The system supports direct loading of local images as the video wall background. Users can flexibly enable or disable the background function via software, ensuring simple and efficient operation.

High-Performance KVM with Cross-Platform Support: Supports takeover and push functions, allowing video sources to be pushed to any display or large screen. Seamless KVM roaming across multiple screens enhances operational efficiency and user experience. Fully compatible with Windows, Linux, macOS, and Kylin operating systems.

Proprietary Splicing Algorithm with Seamless Synchronization: Featuring a built-in video wall synchronization algorithm, the system eliminates the need for an external video wall processor. It can directly interface with LED, LCD, and DLP video walls, delivering visually seamless synchronization without tearing, ensuring smooth and natural display performance.

Multi-Functional Central Control Interfaces with Programmability: Equipped with 1× RS-485, 2× RS-232, 2× low-voltage relay ports, 3× IO ports, and 4× IR output interfaces. Supports customizable programming to meet complex control requirements.

Ultra-Low Latency Transmission for Smooth Performance: From signal acquisition at the input node, H.265 encoding, network transmission, decoding at the output node, to final display, the end-to-end latency can be as low as 30 ms, ensuring real-time responsiveness and smooth visual performance.

Certain models in this series support dual-network redundant transmission, featuring one Gigabit Ethernet port and one fiber optic port (SFP module not included by default and sold separately), enabling network redundancy to ensure secure and reliable data transmission.
