Capacitive touch technology, precise sensing, high sensitivity
Colorful capacitive film-forming pen, water pen writes smoothly and dust-free
White diamond writing film, good writing and erasing, high contrast
Smart board eraser for easy erasing
Standard USB interface, can be paired with any host/display device
Modular design, easy to disassemble
In conjunction with the software, all whiteboards support the writing memory function.
The written content supports local storage and cloud storage, realizing QR code scanning and downloading.
Support customized shortcut key design
Equipped with a smart pen case that automatically senses the color change of the pen.

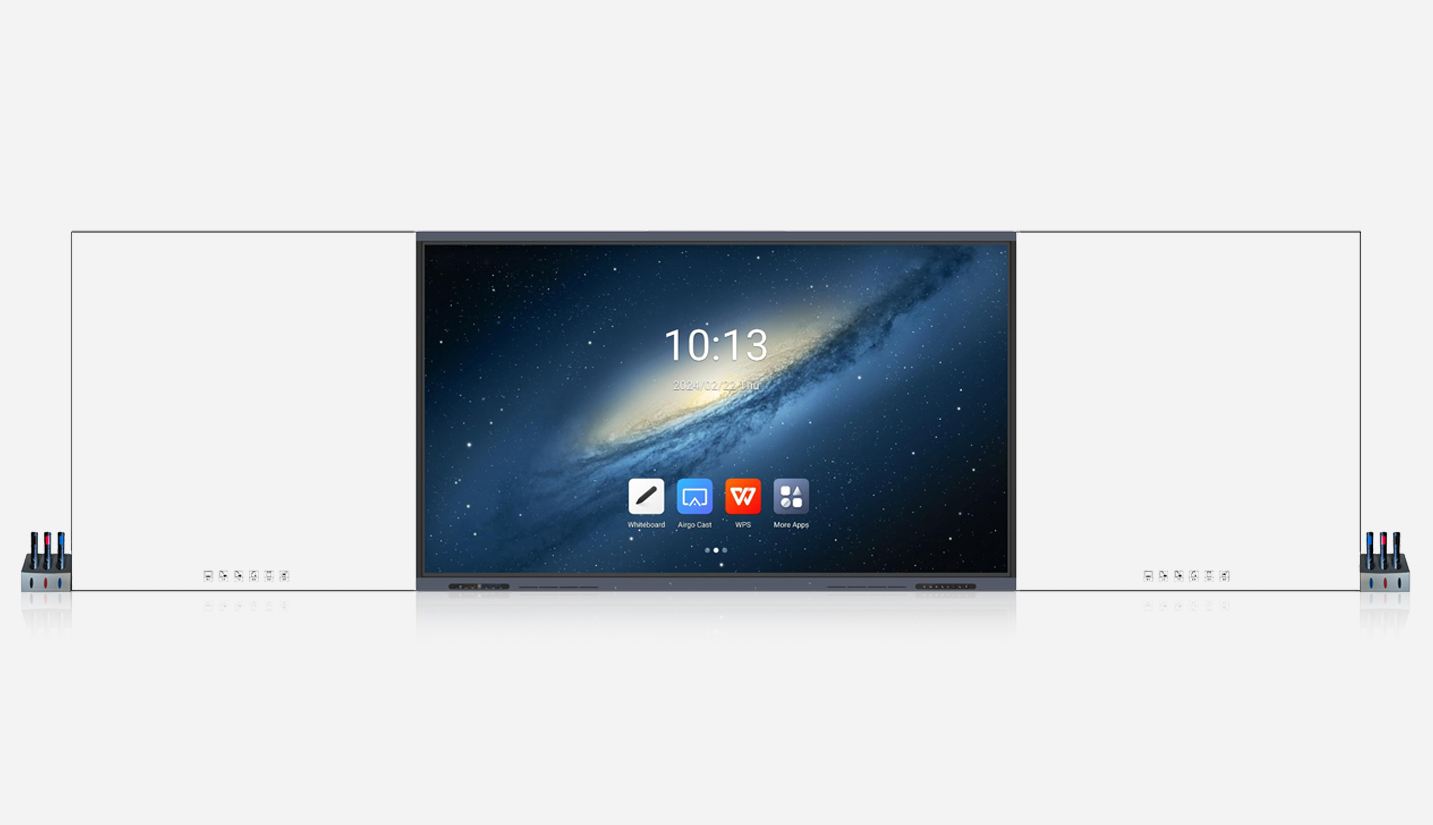

This product belongs to the capacitive touch technology with precise sensing and high sensitivity which can bring wonderful experience to the customers. It has colorful capacitive film-forming pen which writes smoothly, dust-free and easy erasing.
Model | DCP-86WHB |
Housing Material | Profiles, sheet metal, glass, plastic |
Product Size | 1139 x 1155mm (single side writing board) 1389 x 1155mm (single side writing board plus pen case) |
Wall thickness | 110~135mm Adjustable |
Package Size | 1235 x 255 x 1265mm (double sub-panel) |
Net weight | 14.4kg×2 |
Gross weight | 32.7kg |
Effective writing area | 1092 x 1070mm (single writing tablet) |
Type Technology | Capacitive Touch Technology |
Writing Instrument | Capacitive Introduction Film-forming Pen, Capacitive Pen |
Sampling Rate | ≥120Hz |
Writing Accuracy | ≤1mm |
Sensing Height | ≤0.5mm |
Writing Tablet Color | White |
Ambient Light | Full-angle glare resistance2 |
(Computer) Shortcut Key | Window, New, Page Up, Page Down, Save, Clear Screen |
Connection Method | Standard USB Port |
