Dual-channel stereo professional power amplifier.

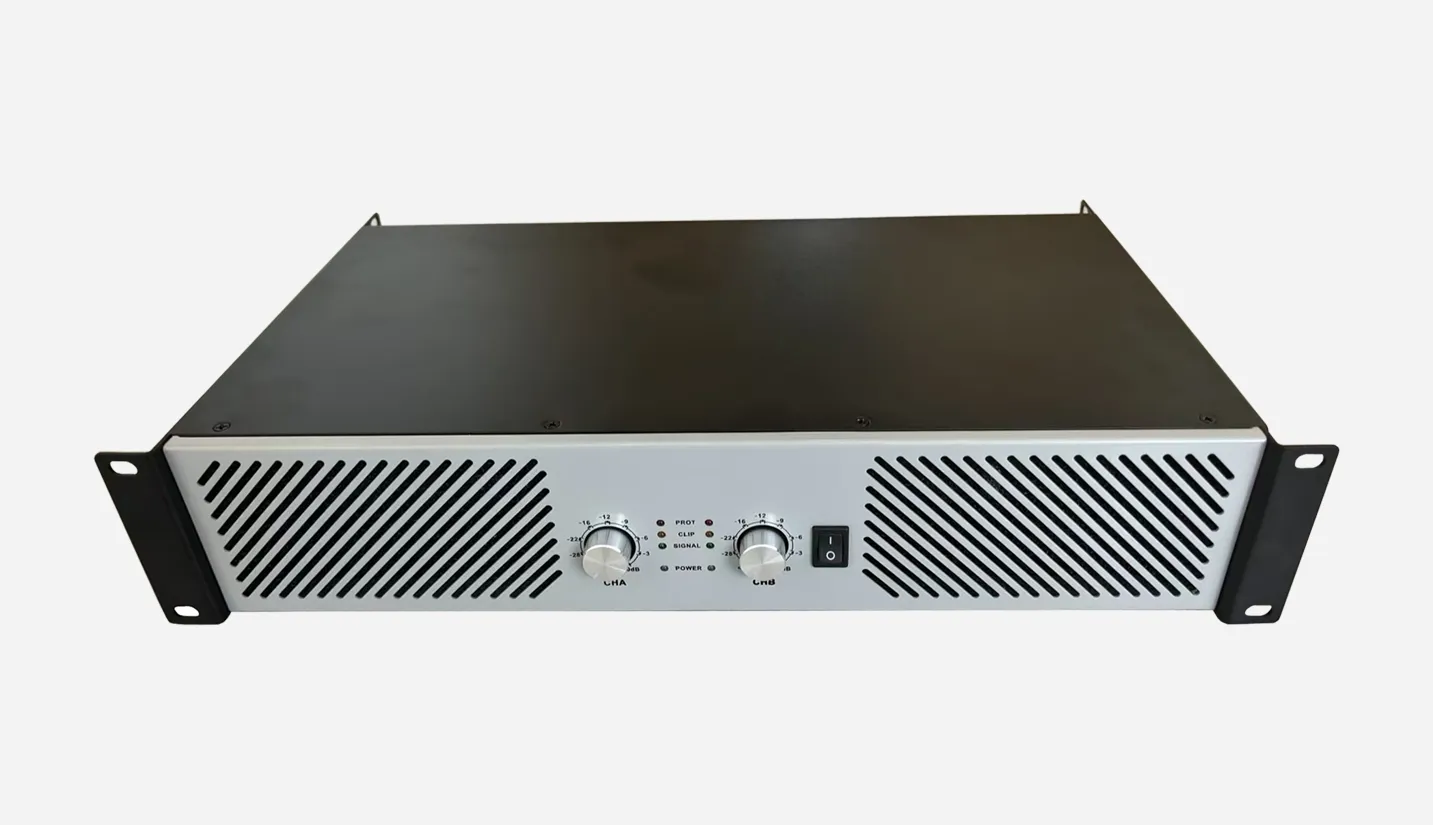

Brand-new appearance design with a standard 2U durable chassis, suitable for standard rack installation.
A range of high-power amplifier options to meet different requirements.
Adjustable input sensitivity: 0.775V, 1V, 1.44V.
Three selectable output modes: dual-channel, mono, and BTL bridge, with an output mode switch.
Independent volume control for each channel.
Minimum load impedance: 4Ω in stereo mode, 8Ω in BTL mode.
Equipped with XLR signal input interfaces for flexible and convenient use.

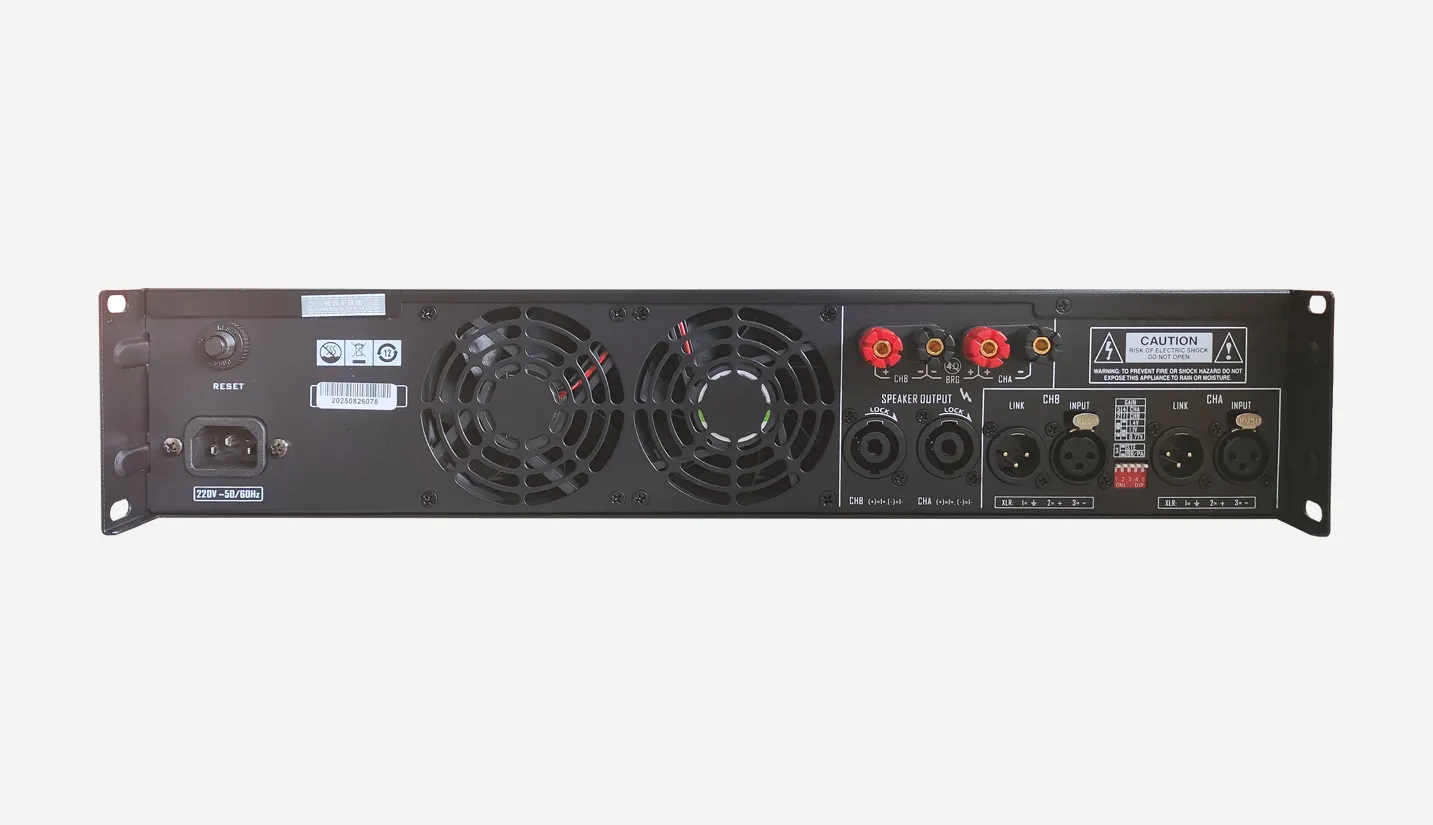

Four standard binding posts and two professional SPEAKON speaker connectors for amplifier output.
Protection and alarm functions including short-circuit protection, DC protection, and power on/off protection.
LED indicators for each channel showing operating status, designed for low noise.
Suitable for speech transmission and sound reinforcement in various applications.

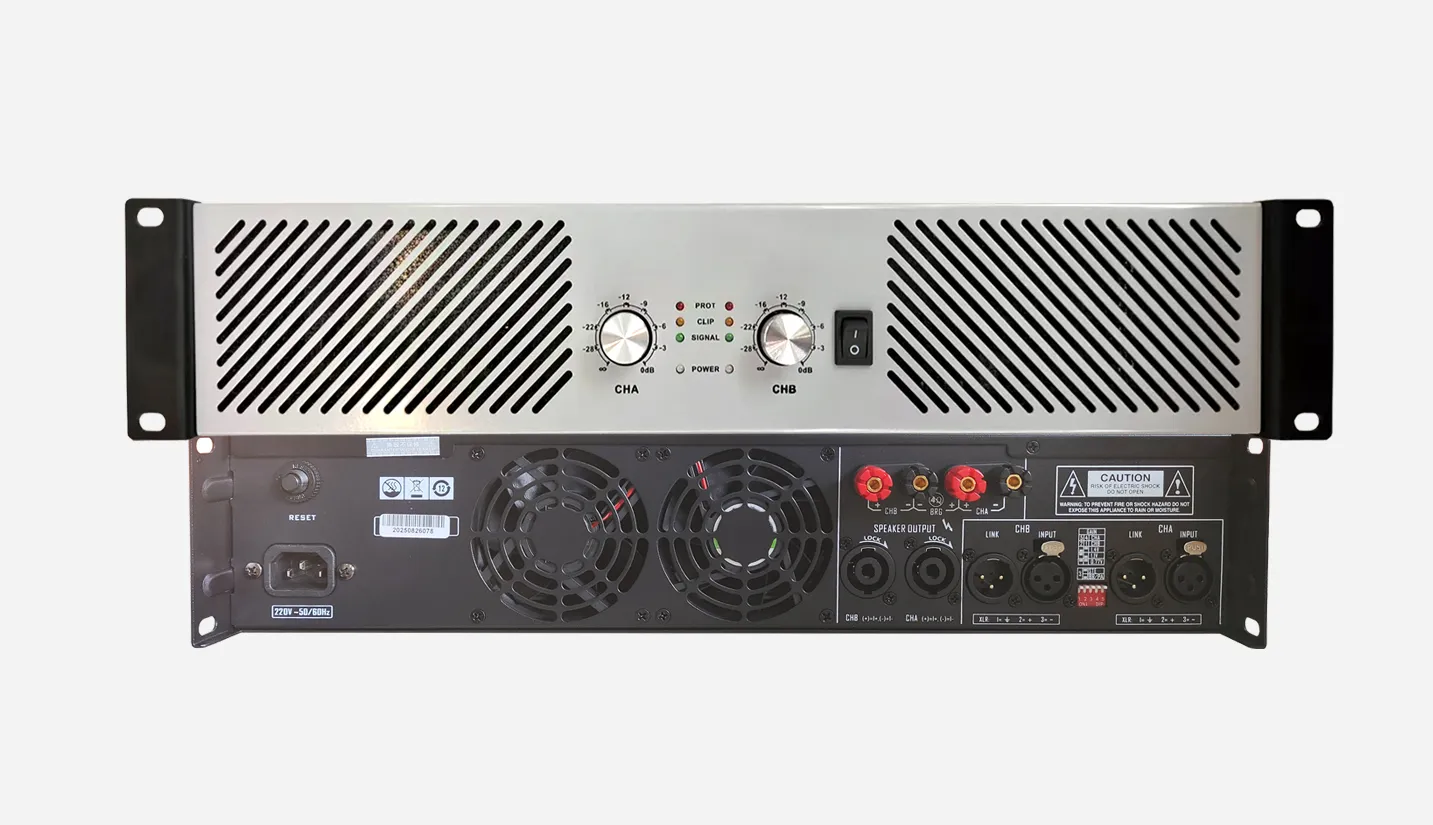

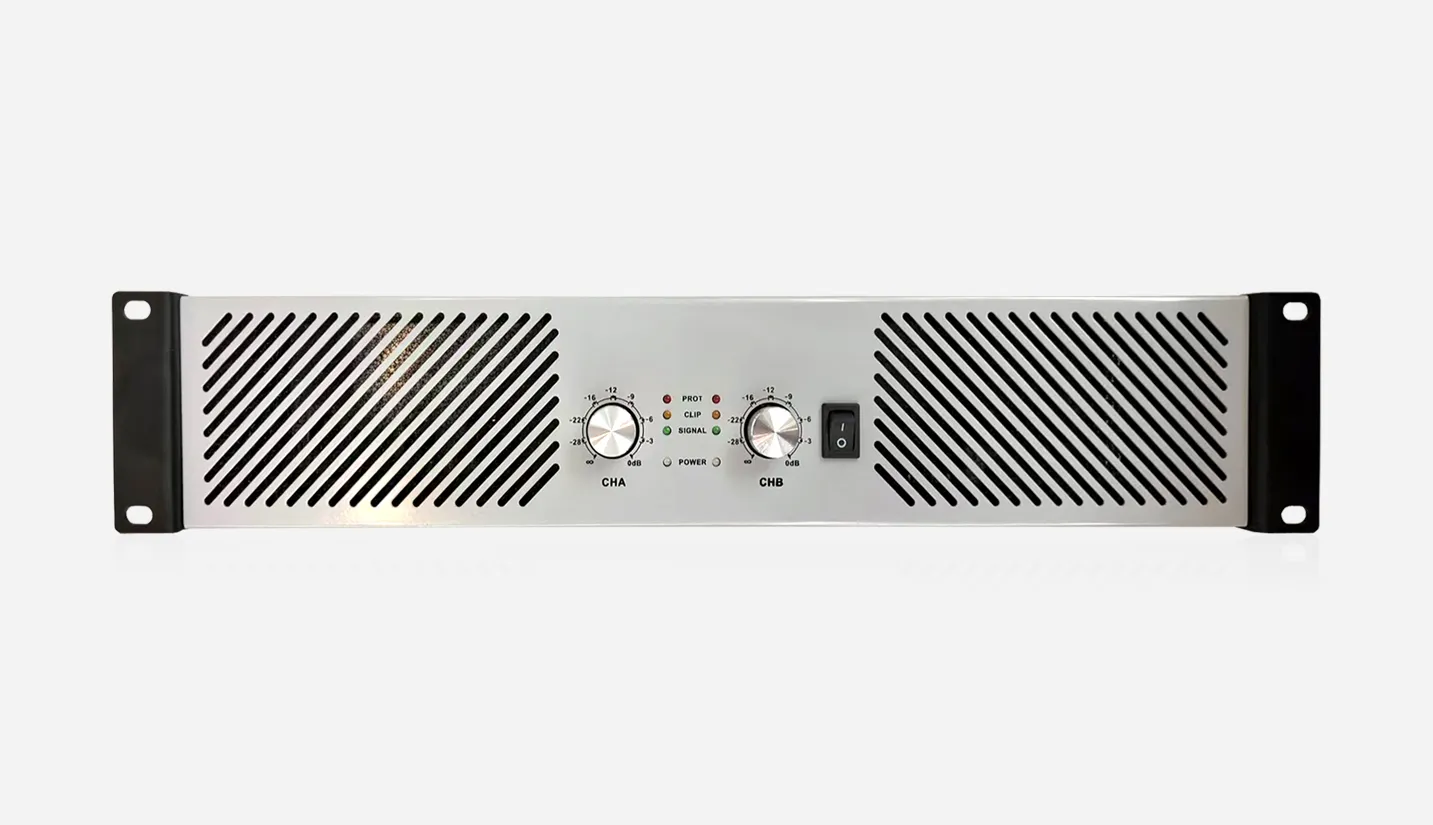

The PV2050/PV2065/PV2080/PV2095 series is a 2U dual-channel digital power amplifier lineup designed to deliver robust output power for demanding sound reinforcement applications. With a durable standard-rack chassis and multiple operating modes—including stereo, parallel, and bridge—the series supports flexible system configuration across various venue sizes. It offers adjustable input sensitivity and professional connectivity via XLR, SPEAKON, and binding posts, ensuring seamless integration with different audio setups. Supported by comprehensive protection circuitry and independent channel control, the series provides stable, reliable performance for speech and high-power sound applications.

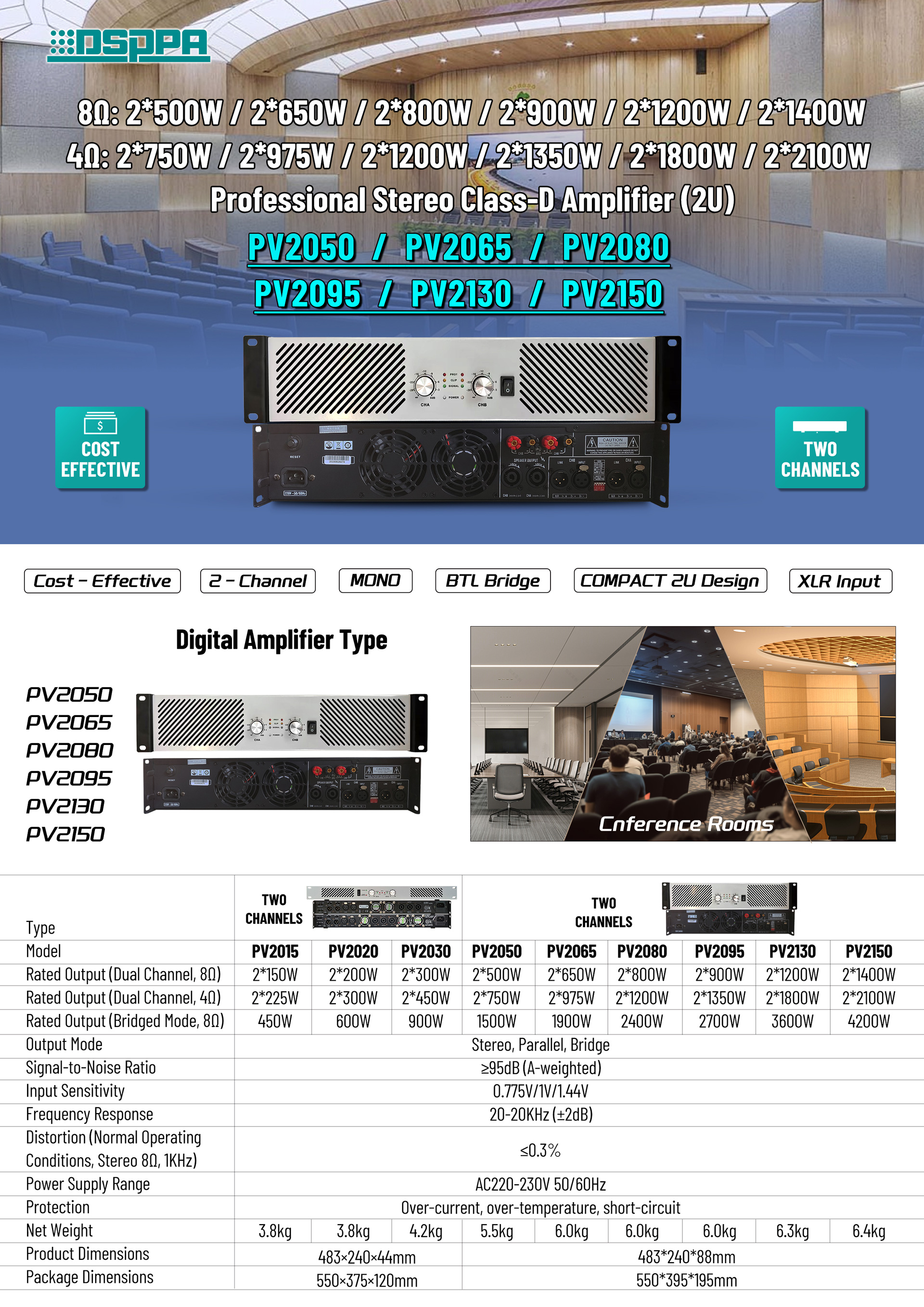

Model | PV2050 | PV2065 | PV2080 | PV2095 |
Rated Output (Dual Channel, 8Ω) | 2*500W | 2*650W | 2*800W | 2*900W |
Rated Output (Dual Channel, 4Ω) | 2*750W | 2*975W | 2*1200W | 2*1350W |
Rated Output (Bridged Mode, 8Ω) | 1500W | 1900W | 2400W | 2700W |
Output Mode | Stereo, Parallel, Bridge | |||
Signal-to-Noise Ratio | ≥95dB (A-weighted) | |||
Input Sensitivity | 0.775V/1V/1.44V | |||
Frequency Response | 20-20KHz (±2dB) | |||
Distortion (Normal Operating Conditions, Stereo 8Ω, 1KHz) | ≤0.3% | |||
Power Supply Range | AC220-230V 50/60Hz | |||
Protection | Over-current, over-temperature, short-circuit | |||
Net Weight | 5.5kg | 6.0kg | 6.0kg | 6.0kg |
Product Dimensions | 483*240*88mm | |||
Package Dimensions | 550*395*195mm | |||
