Features one high-power 12-inch woofer and two 75 mm compression drivers, integrated with a precision crossover network for optimized acoustic performance.
The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor and outdoor venues such as gymnasiums, auditoriums, and multifunction halls.
Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

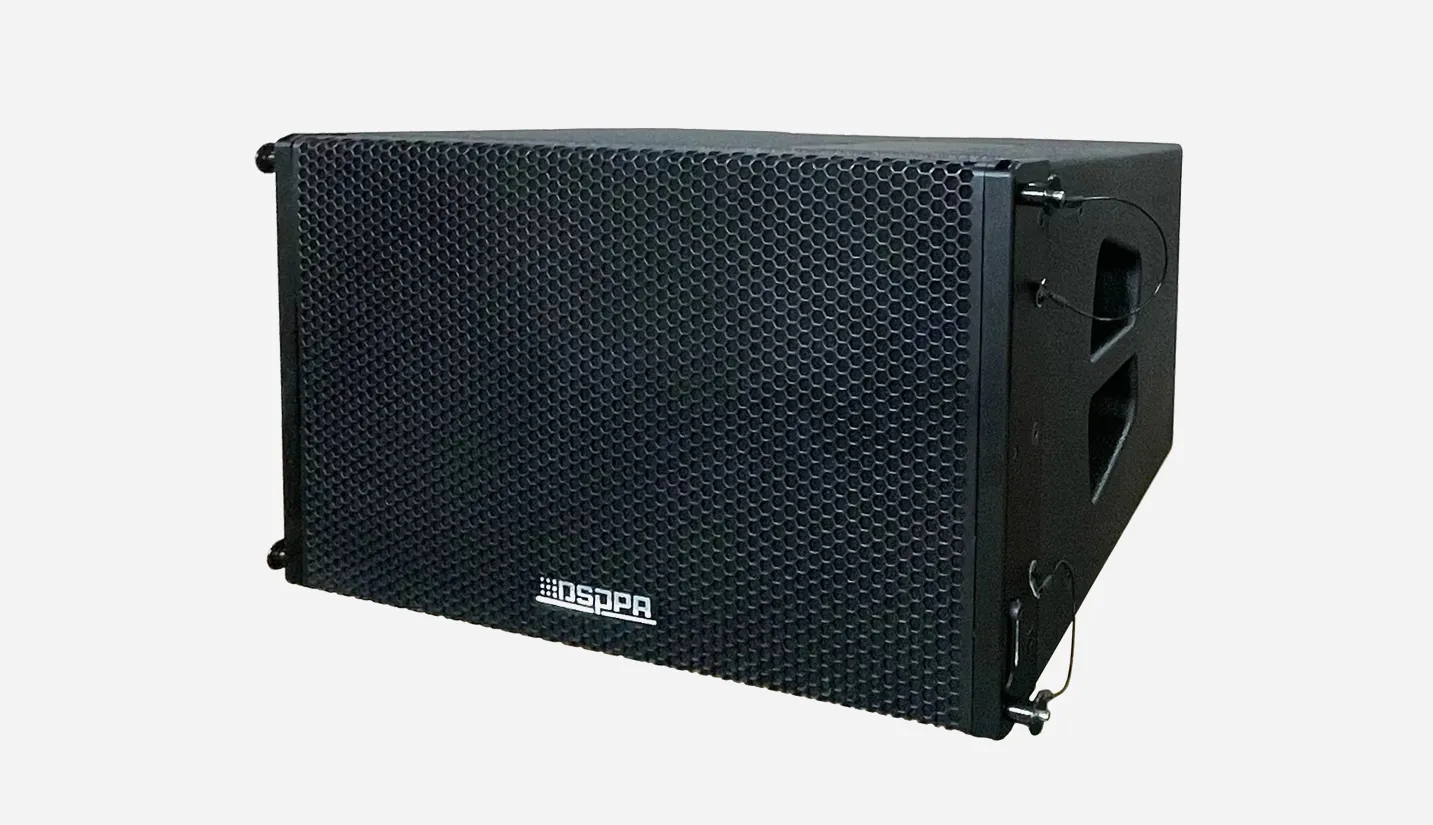

The PL112 is a compact yet powerful line array speaker, delivering clear and balanced sound across a wide frequency range (58 Hz–18 kHz). With 1×12" low-frequency unit and 2×3" high-frequency units, it achieves high sensitivity and a maximum SPL of 123 dB, with 450 W rated power, making it ideal for indoor and outdoor venues such as gymnasiums, auditoriums and multi-purpose halls. Its durable construction and flexible installation design ensure reliable performance in various professional applications.
Model | PL112 |
System Configuration | 1×12" LF, 2×3" HF |
Frequency Response (±3dB) | 58Hz–18,000Hz |
Sensitivity | 97±2dB |
MAX. SPL | 123±2dB |
Input Impedance | 8Ω |
Rated Power | 450W |
Coverage (H×V) | 120°×5°–20° (depending on array configuration) |
Dimensions (H×W×D) | 357×580×440mm |
Weight | 32.3kg |
