The sampling rate is 96kHz, with native AD/DA sampling resolution of 32bit, delivering an extremely high dynamic range;
High-precision panel level meters provide real-time display;
Full-featured crossover function with filter slope range: 1st to 8th order;
Input/output gain adjustment, delay, noise gate, limiter, compressor, etc.;
Full-featured matrix mixing function supporting send level adjustment;

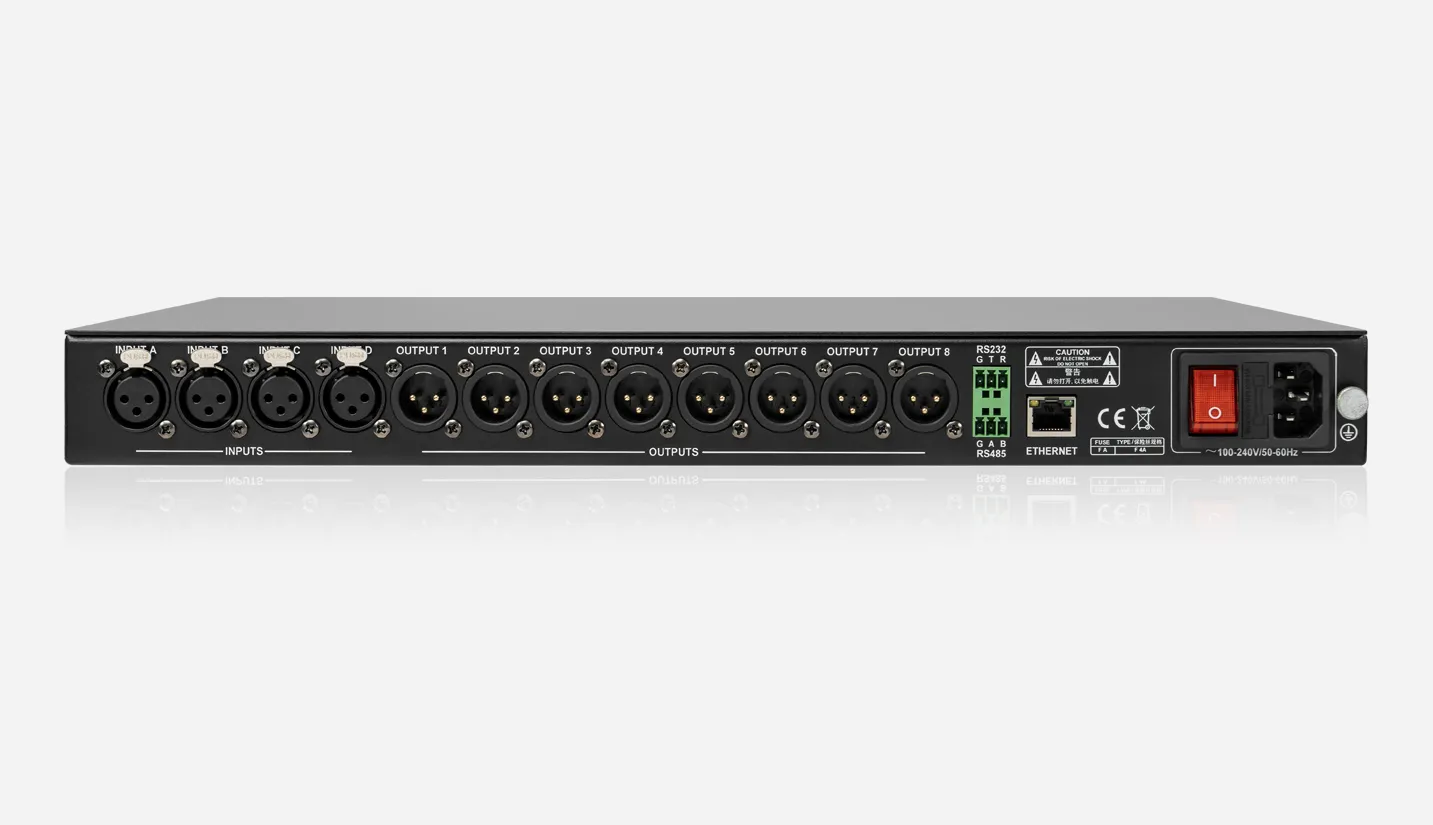

4 XLR analog inputs, 8 XLR analog outputs;
RS-232 and RS-485 interfaces provide comprehensive control functions;
9-band adjustable PEQ for inputs, 11-band adjustable PEQ for outputs;
20 scene presets for switching.

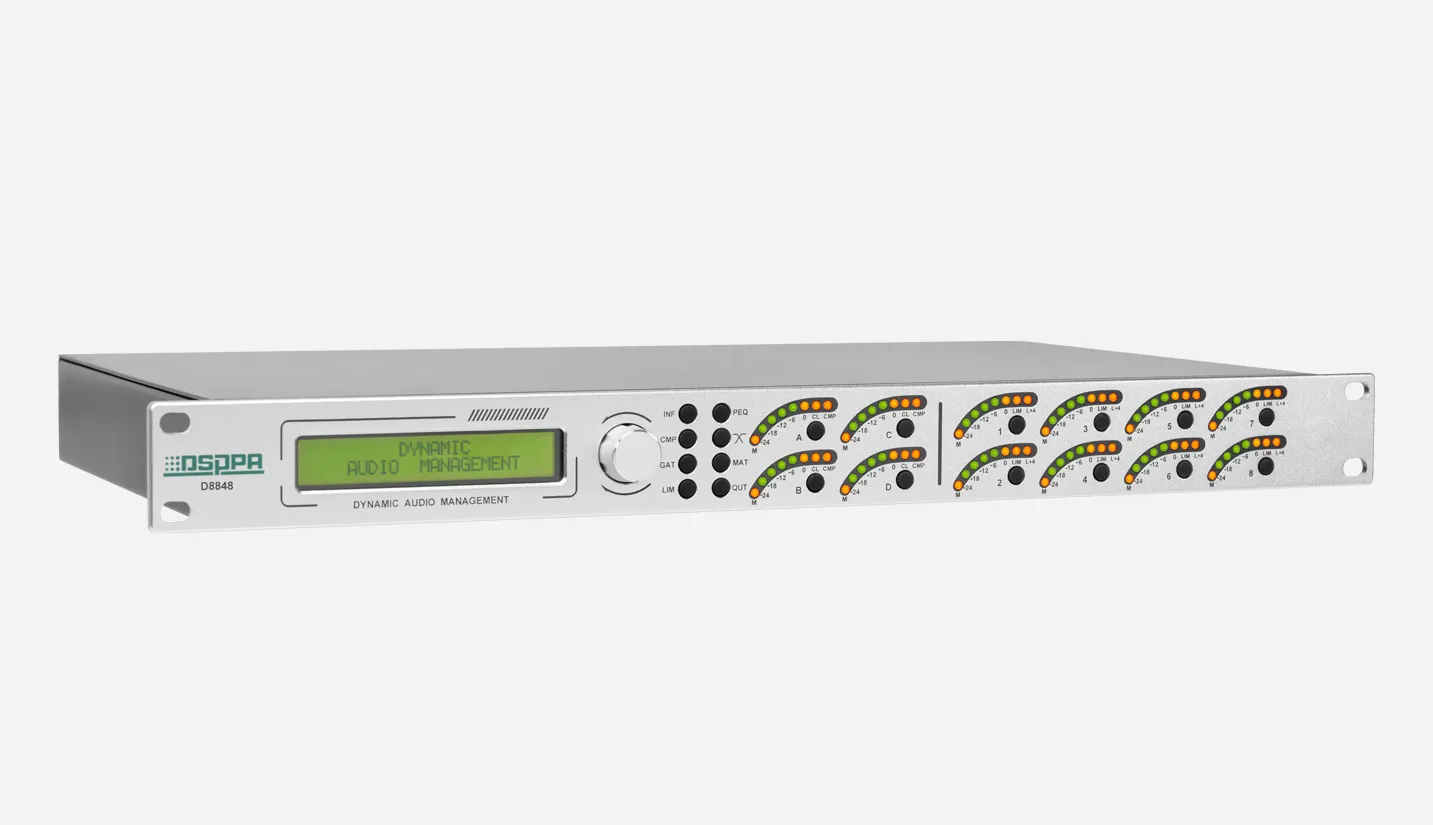

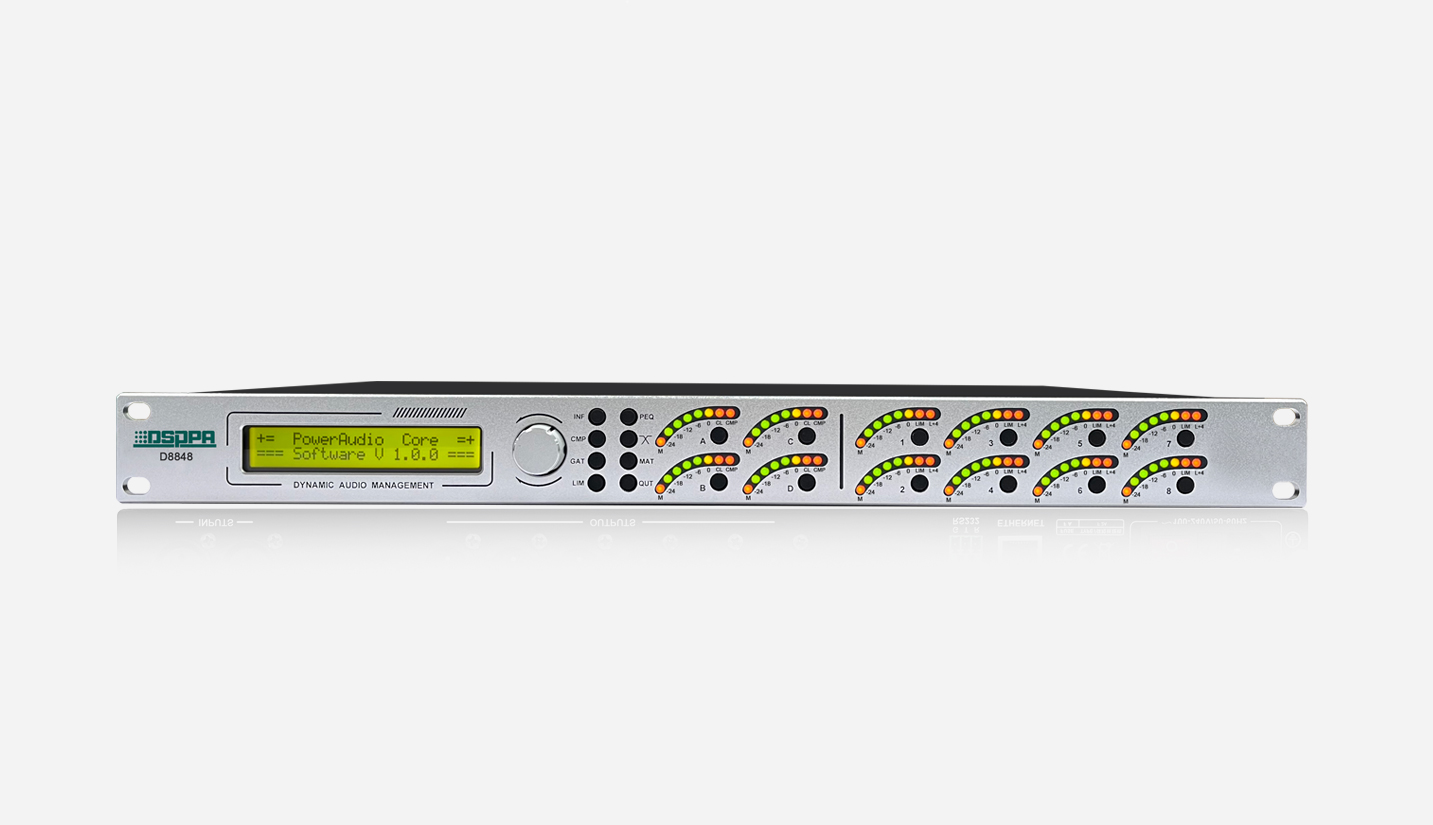

This product is a professional-grade audio processor with a sampling rate of 96kHz and native AD/DA resolution of 32bit, featuring an extremely high dynamic range. It is equipped with 4 analog inputs and 8 analog outputs. The product incorporates built-in DSP functions such as input/output gain adjustment, noise gate, compressor, equalizer, full-featured matrix mixing, crossover, delay, limiter, and real-time level meters. With outstanding circuit hardware parameters, this processor perfectly reproduces the original sound quality and delivers pleasant, captivating audio output, making it suitable for various large, medium, and small-scale applications.
.jpg "A4---Brochure-D8826-D8836-D8848-Professional-Audio-Processor(1).jpg")
Model | D8848 |
Input/Output | 4 × 8 |
Input/Output Type | (Analog) |
Signal Processor | 64-bit Floating-Point DSP 1GHz |
Bit Depth | 32-bit |
Sampling Frequency | 96kHz |
Input Impedance | 20kΩ |
Output Impedance | 600Ω |
A/D Dynamic Range | 128dB |
D/A Dynamic Range | 127dB |
Max Input Level | >20dBu |
Max Output Level | >20dBu |
Transmission Delay | 1.81ms |
Input Channel Delay | 0ms～1000ms (Step:0.01ms) |
Output Channel Delay | 0ms～1000ms (Step:0.01ms) |
FIR Taps | 1024 × 8 |
THD+N | <0.0008%(+10dBu @ 20Hz～20kHz) |
Frequency Response | 20Hz～20kHz ±0.1dB 10Hz～32kHz ±0.2dB |
Crosstalk | ≤-100dB |
SNR | ≥115dB(20Hz-20kHz No Weighted) |
Dynamic Range | ≥115dB(20Hz-20kHz No Weighted) |
Noise Floor | <-95dBu(20Hz-20kHz No Weighted) |
Connection Type | TCP/IP、RS232、RS485 |
Preset | 20 |
Size | 483mm×44mm×264mm 1RU |
Net/Gross Weight | 4.1Kg / 5.0Kg |
