Compact, durable gooseneck with non-memory flexible design for precise positioning.
Built-in preamplifier and power circuitry; no external module required.
High-performance high-pass filter reduces low-frequency noise and plosives.
Excellent acoustic isolation prevents feedback at high gain levels.
Optional desk-mounted shock-absorbing base reduces impact noise and vibrations.
Dual-layer foam windscreen minimizes wind noise and plosive sounds.
Quick-install 3-pin XLR male connector compatible with XLR female bases or direct console connection.

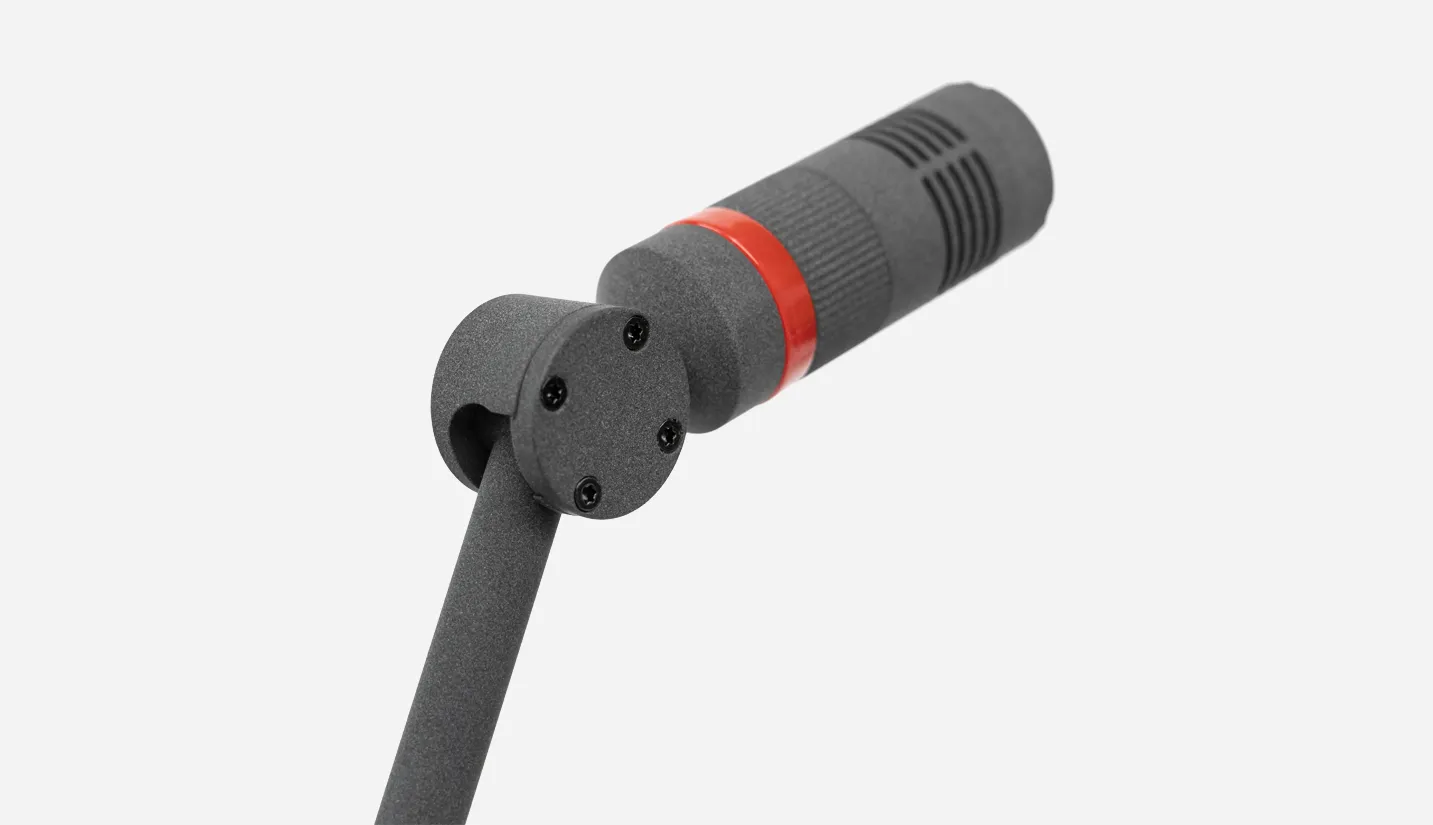

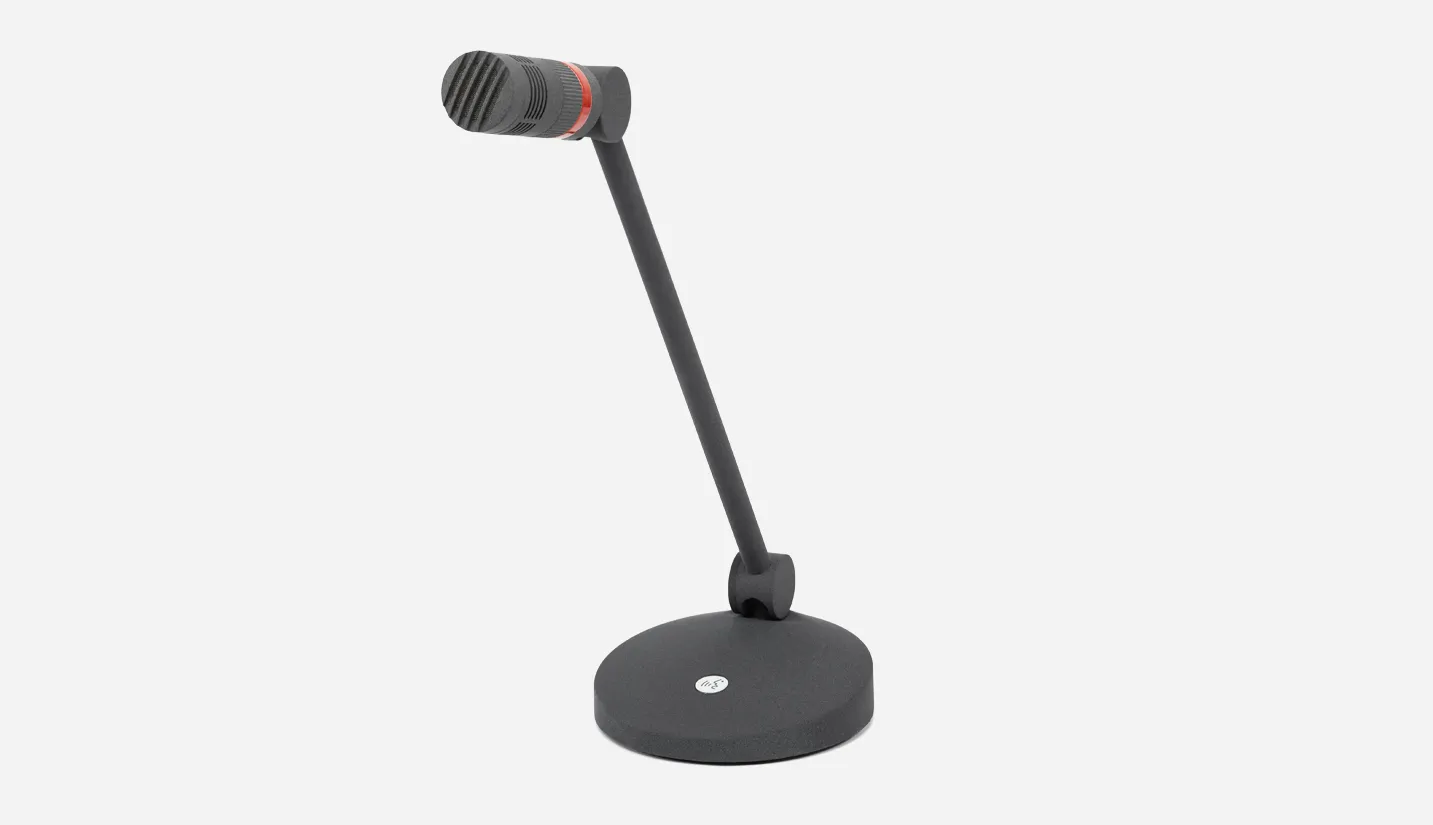

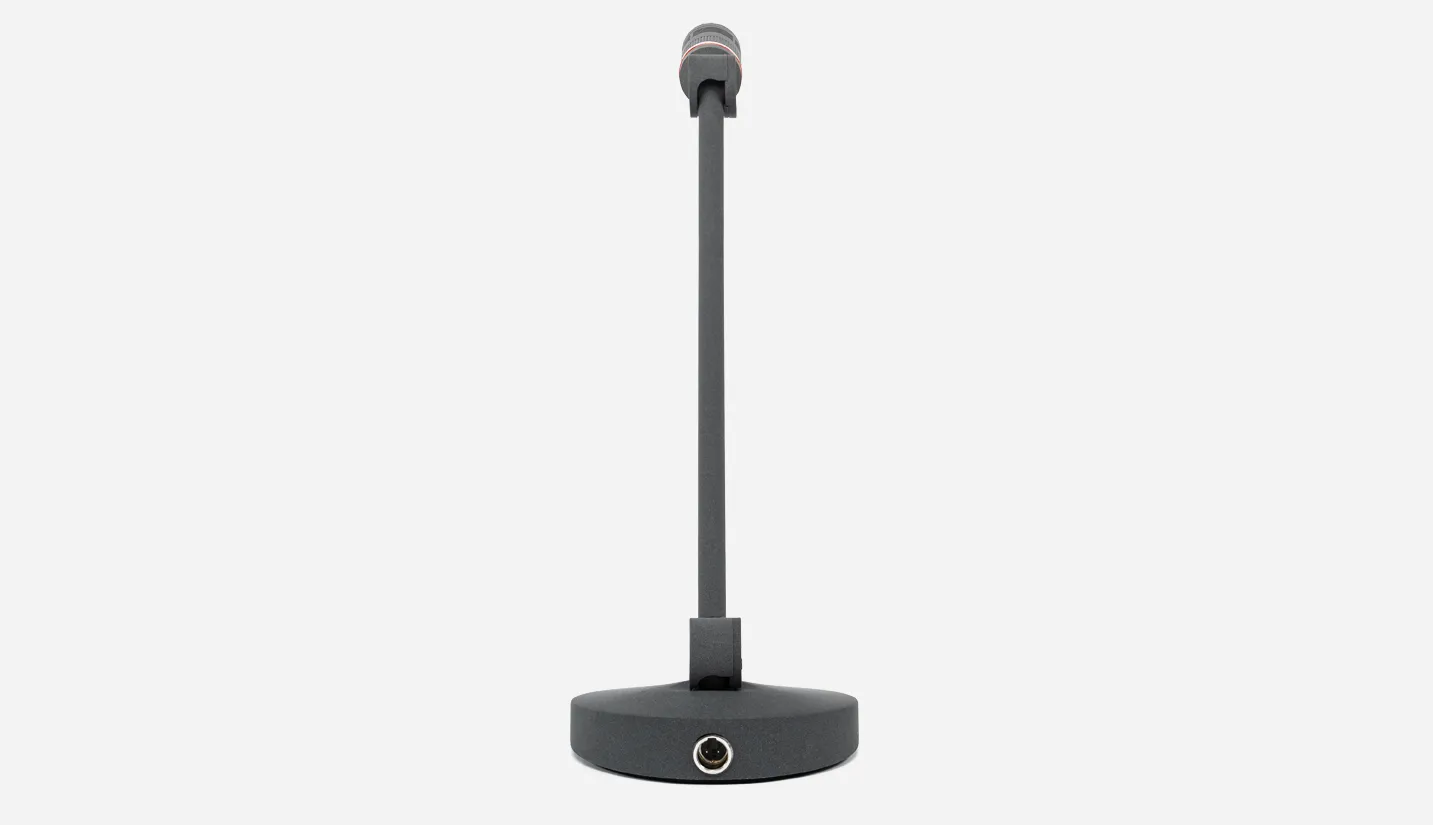

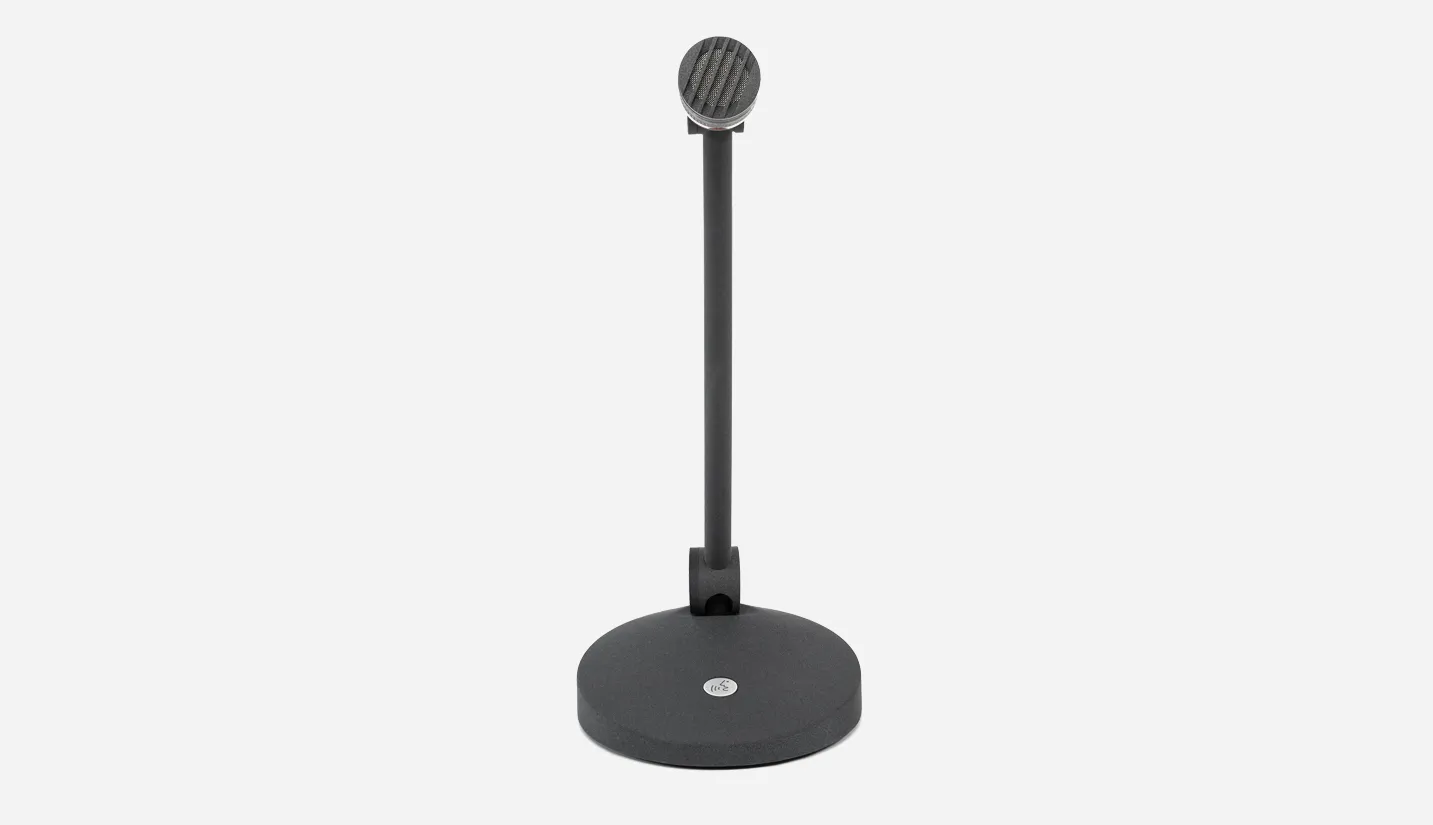

This professional condenser microphone is designed for high-quality sound capture in demanding environments such as recording studios, television broadcasting, and conference systems. It features a compact and durable gooseneck with a flexible, non-memory design, allowing precise positioning of the microphone capsule. The built-in preamplifier and power circuitry eliminate the need for external modules, while the high-performance high-pass filter ensures clear speech by reducing low-frequency noise. With excellent acoustic isolation and optional desk-mounted shock-absorbing base, it delivers reliable, feedback-free performance in a wide range of professional applications.
Model | D5630 |
Capsule | Fixed-charge Backplate, Electrostatic Condenser (Pre-polarized Condenser) |
Polar Pattern | Cardioid (Unidirectional) |
Frequency Response | 100Hz-16000Hz |
High-Pass Filter | 80Hz, 18dB/Octave |
Open-Circuit Sensitivity | –43 dB (7.0 mV), re 1 V at 1 Pa |
Output Impedance | 250Ω |
Maximum Sound Pressure Level | 140 dB SPL at 1 kHz, 1% T.H.D. |
Dynamic Range (Typical) | 111 dB, 1 kHz at maximum SPL |
Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
Phantom Power Requirement | DC 11–52 V, 2 mA typical |
Switch | Flat / High-Pass Filter |
Output Connector | Integral 3-pin XLR male |
Microphone Length | 13cm |
