120 high-efficiency RGBW LEDs for bright and vivid color output.
Smooth 0–100% linear dimming with excellent color mixing.
Supports DMX512 control, master-slave mode, and stand-alone operation.
Multiple built-in lighting effects including fade, pulse, strobe, and color jump.
Electronic strobe up to 25 fps with adjustable speed.
High-efficiency 25° optical lens for uniform wash effect.
30 kHz high-frequency driver, flicker-free for video recording.
Intelligent silent fan cooling system for stable performance.
LED digital display for easy operation and configuration.
Suitable for stage lighting, clubs, events, and architectural lighting.

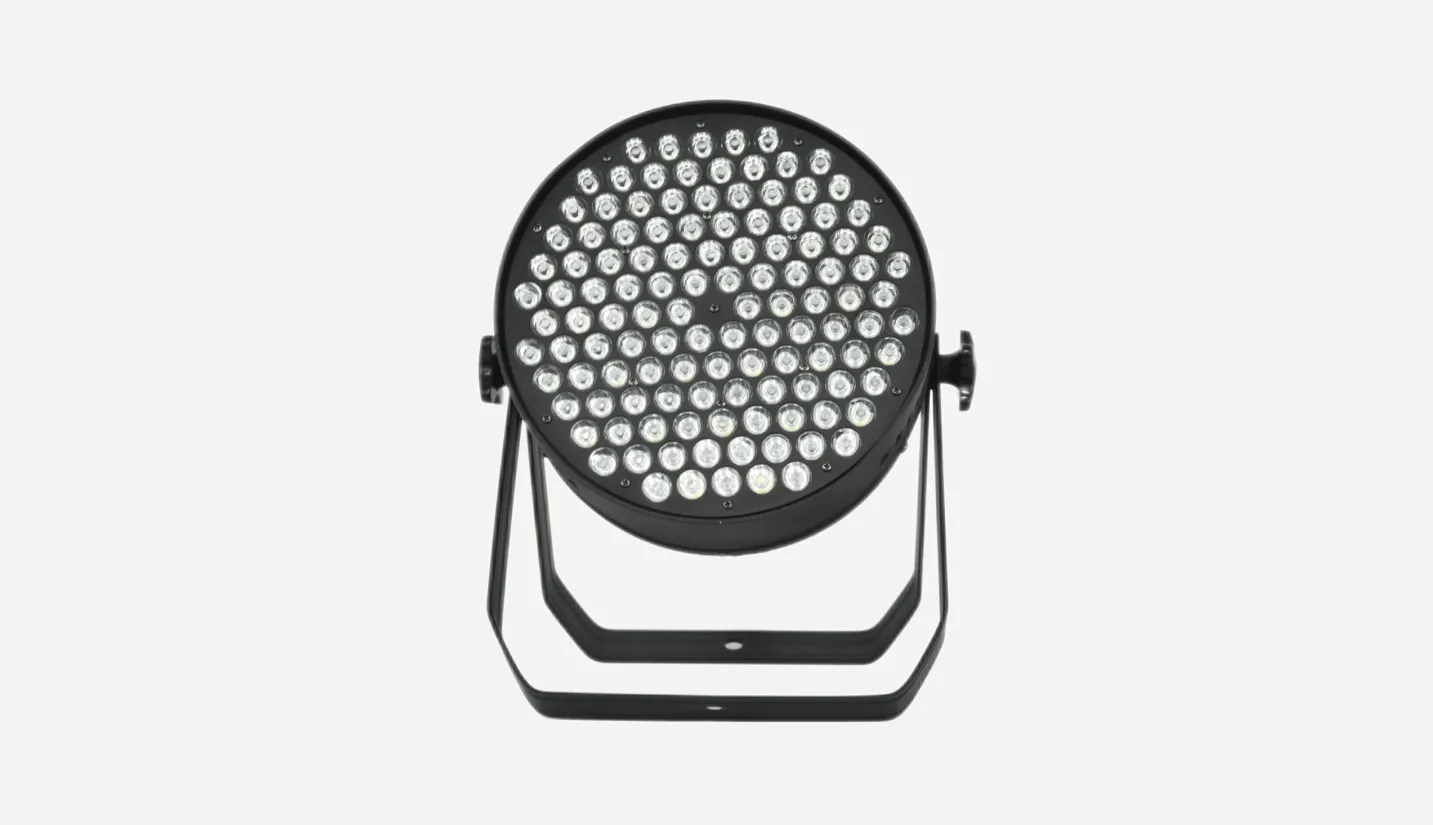

The DSL-L1203DG is a high-performance RGBW LED PAR wash light designed for stage, event, and architectural lighting applications. Equipped with 120 high-efficiency RGBW LEDs and precision optical lenses, it delivers vibrant color mixing and uniform wash effects. With DMX512 control, built-in programs, and multiple operating modes including master-slave and stand-alone operation, the fixture offers flexible lighting control for various professional lighting environments.
Model | DSL-L1203DG |
Power Supply | AC100–240V, 50/60Hz |
Power Consumption | 400W |
LED Source | 120 pcs energy-saving RGBW LEDs |
Optical Lens | High-efficiency lens, Ø18 mm, 25° beam angle |
Channel Mode | 8 channels |
Control Modes | DMX512 control, intelligent master-slave mode, and stand-alone mode. 8 built-in effects selectable via DMX controller or preset programs. |
Color | Continuous RGBW color mixing with smooth color transitions. Infinite RGBW rainbow effect with adjustable speed. |
Dimming | 0–100% linear dimming |
Display | 4-digit 8-segment digital display |
Strobe | Electronic strobe, 1–25 fps. Supports random strobe, sequential strobe, variable-speed strobe (slow to fast), and combined effects (strobe + background color, strobe + fade). |
Cooling System | High-quality heat sink with convection cooling, supported by intelligent silent fan |
Protection Rating | IP20 |
