2.4GHz Bluetooth band + built-in antenna for stable signal.
20dBm max transmit power, 15m wide coverage radius.
5V/2A Type-C power supply, convenient to use.
<2.0W ultra-low power consumption, energy-saving.
Wide temperature adaptability (0~60°C operating, -20~70°C storage).
Reliable connectivity for electronic meeting nameplates and smart terminals.

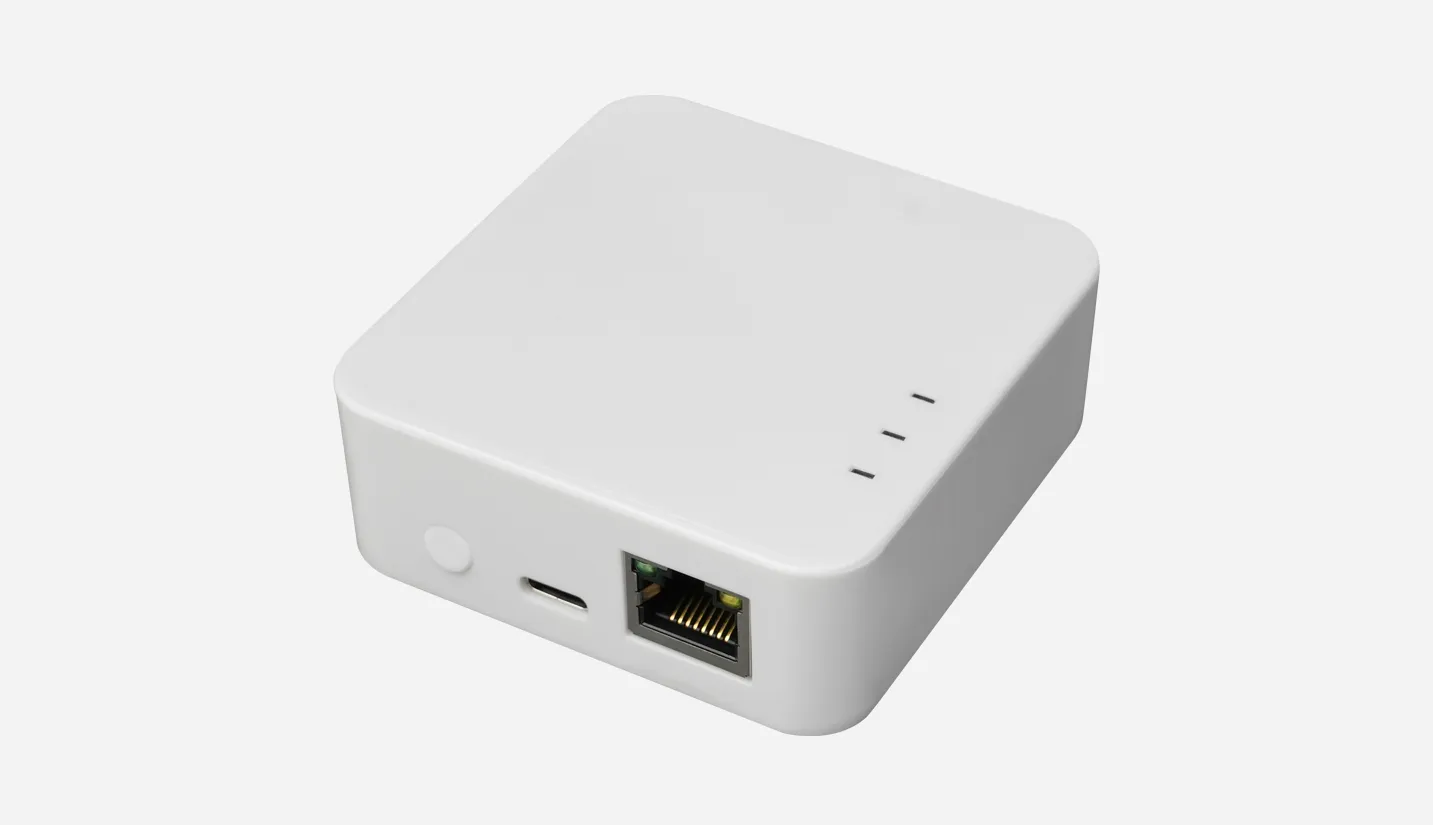

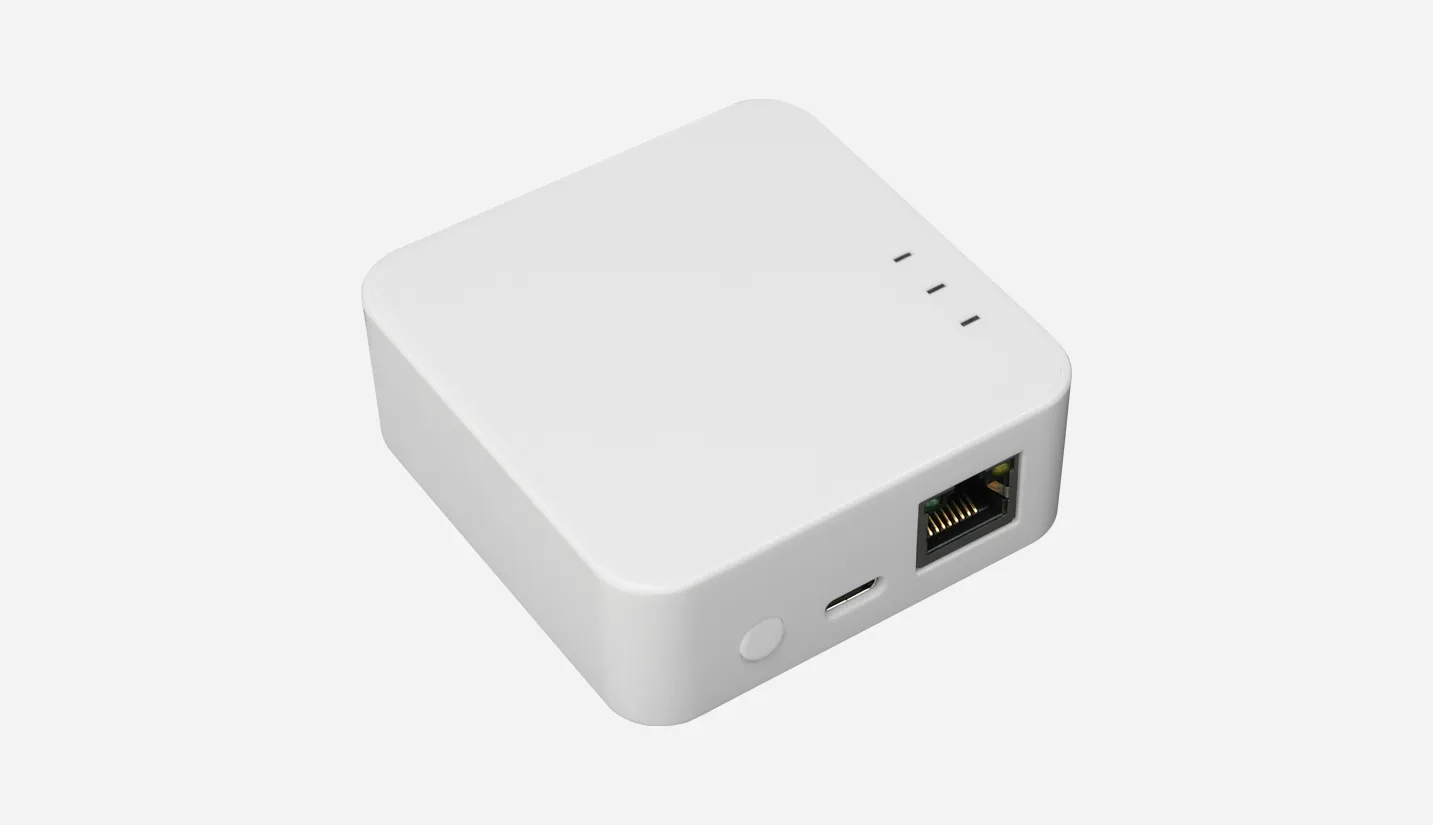

The D7673B Bluetooth Gateway is an energy-efficient 2.4GHz wireless connectivity device. Boasting 20dBm max transmit power, 15m coverage radius, and <2.0W low power consumption, it delivers stable, reliable connections for electronic meeting nameplates and smart terminals in offices, meeting rooms, and commercial venues.
Model | D7673B |
Frequency Band | 2.4GHz (Bluetooth) |
Antenna | Built-in Antenna |
Transmit Power | 20dBm (Max) |
Power Supply | 5V / 2A, Type-C |
Power Consumption | <2.0W |
Transmission Range | Coverage Radius: 15 m |
Operating Temperature | 0 °C ~ 60 °C |
Storage Temperature | -20 °C ~ 70 °C |
Product Dimensions | 73.5 × 71.3 × 27.2 mm |
