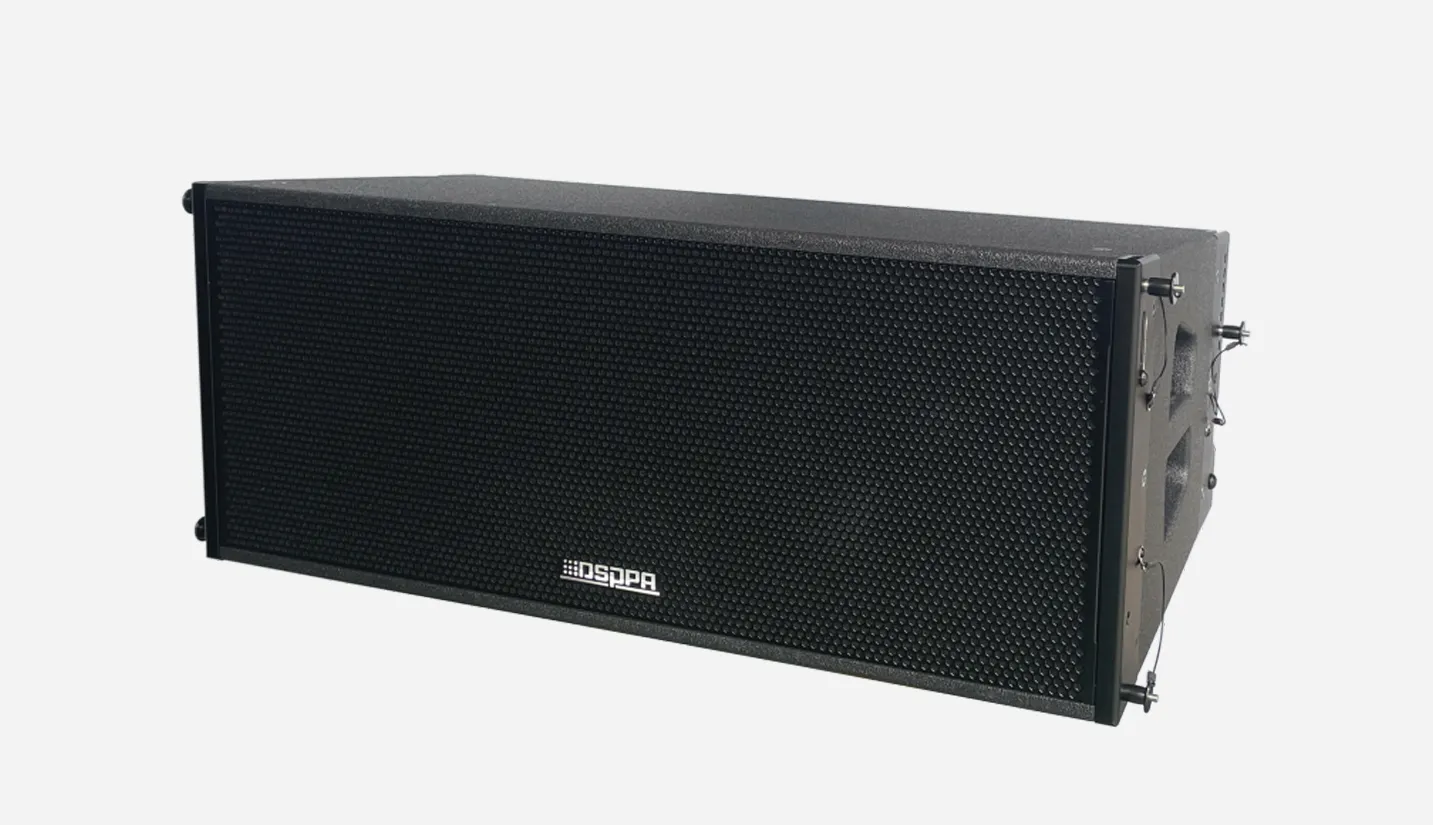

.webp "1000W 12 Inch Passive 2-Way Line Array Full-Range Speaker")
Features two high-power 12-inch woofers and two 75 mm compression drivers, integrated with a precision crossover network for optimized acoustic performance.
The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.
The PL212 is a passive line array speaker featuring dual 12-inch woofers and dual 3-inch compression drivers, delivering powerful output with up to 134 dB maximum SPL. Designed for clear, long-throw sound coverage, it offers a wide 90° horizontal dispersion and supports flexible array configurations. With its durable plywood enclosure and integrated rigging system, the PL212 is ideal for auditoriums, theaters, multifunction halls, and other professional venues.
Model | PL212 |
System Configuration | 2×12" LF, 2×3" HF |
Frequency Response (±3dB) | 65Hz–18kHz |
Sensitivity | 104±2dB |
MAX. SPL | 134±2dB |
Input Impedance | 8Ω |
Rated Power | 1000W |
Coverage (H×V) | 90°×20° |
Dimensions (H×W×D) | 353×880×461 mm |
Net Weight | 47 kg |
